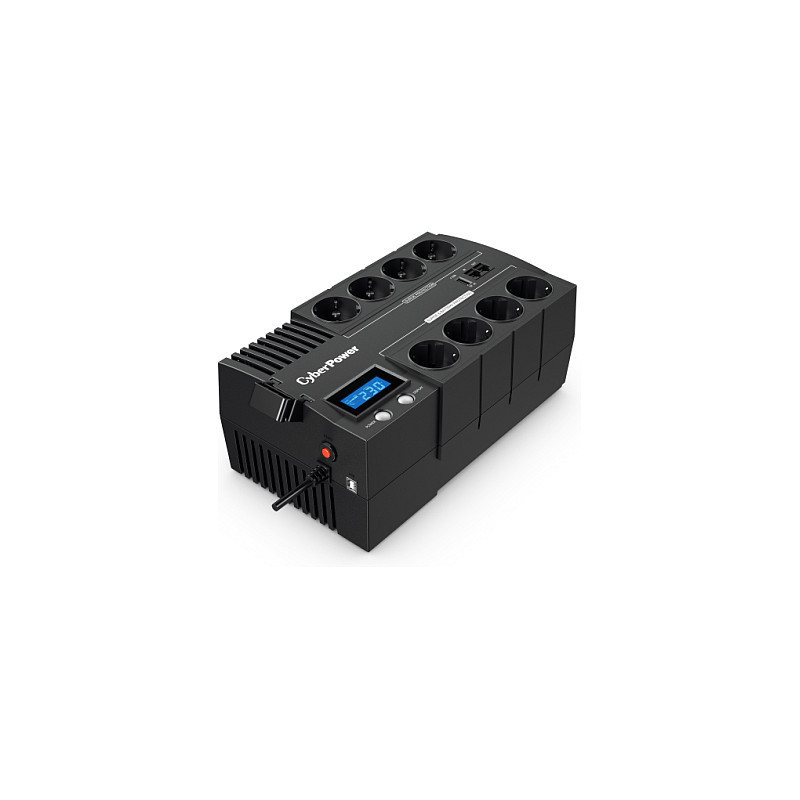

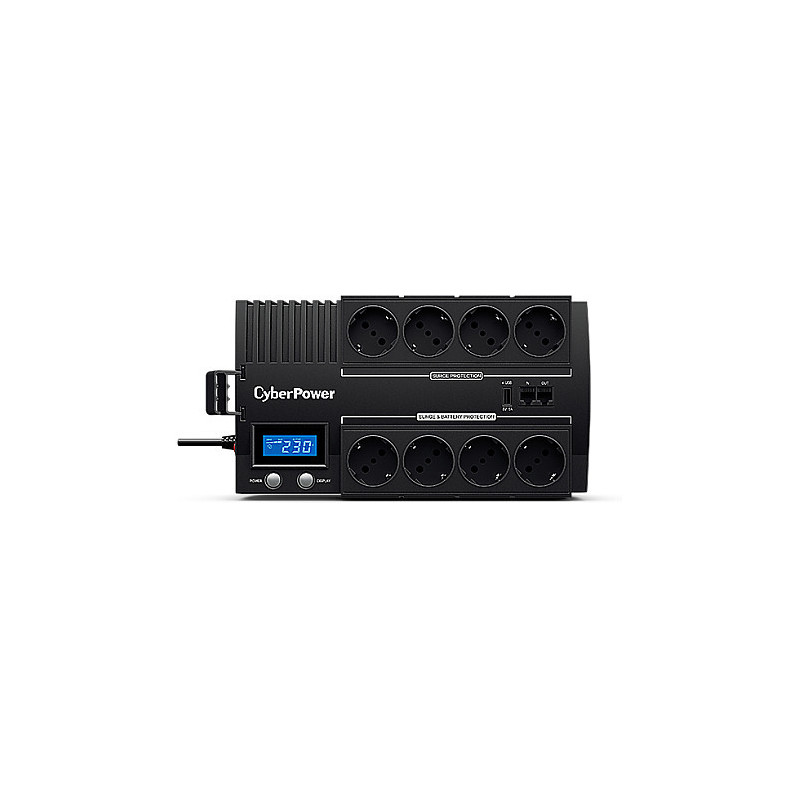

„CyberPower BR700ELCD“ nepertraukiamo maitinimo šaltinis (UPS)

CyberPower BR700ELCD. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s), USB port type: USB Type-A. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 230 V, Typical backup time at full load: 1.5 min. Form factor: Desktop, Product colour: Black, Housing material: Plastic. Compliance certificates: CE, EAC, RoHS

The BRICs LCD Series UPS offers home and small office users clean and stable battery backup while the featured RJ11/RJ45 port ensures phone, fax, and modem lines are protected from surges. With Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, this allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. The multifunction LCD readout provides immediate access to precise information of critical power/battery condition. For convenient mounting, these units can be installed in either a horizontal or wallmounted placement to make the most of your space.

The included PowerPanel Personal Edition management software showcases the feature rich abilities such as input/output power voltage readings, self-diagnostics, and approximate battery backup time. With the Energy-Saving Technology, the BRICs LCD Series UPS can save up to 75% of electricity therefore save your electricity expenses.

Features

UPS topology: Line-Interactive
Output power capacity: 0.7 kVA
Output power: 420 W
Waveform: Sine
Input operation voltage (min): 165 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 150 J
Response time: 4 ms
Heat dissipation: 71 BTU/h
Feature: EMI/RFI noise filtering
Feature: Surge protection
Surge protection features: Fax, Modem, Network, Telephone
Power protection features: Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-A
Modem (RJ-11) ports: 2
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 230 V
Number of batteries supported: 1
Typical backup time at full load: 1.5 min
Typical backup time at half load: 9 min
Battery recharge time: 8 h
Replacement battery cartridge: RBP0083

Design

Form factor: Desktop
Housing material: Plastic
Cable length: 1.5 m
Product colour: Black
Display type: LED
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CE, EAC, RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 166 mm
Depth: 288 mm
Height: 118 mm
Weight: 5.3 kg

Packaging data

Package width: 158 mm
Package depth: 325 mm
Package height: 230 mm
Package weight: 6.05 kg

Logistics data

Harmonized System (HS) code: 8504408590

Other features

Number of phases: 1
