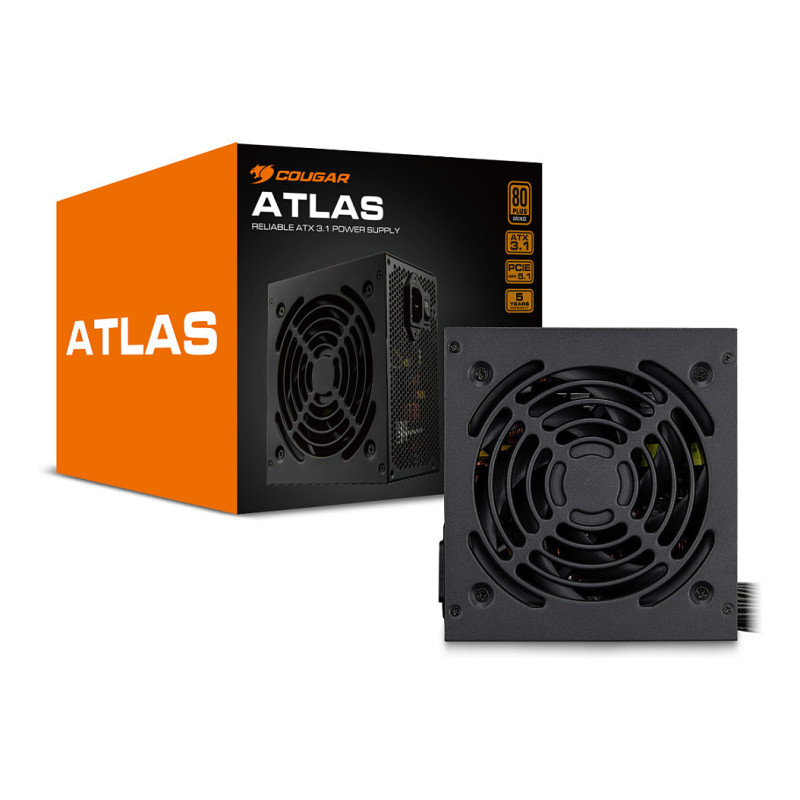

COUGAR CGRVG-750 maitinimo blokas

COUGAR Power Supply ATLAS 750W ATX3.1 / 80 Plus Bronze. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE, FCC, RoHS

RELIABLE ATX 3.1 POWER SUPPLY
The COUGAR ATLAS series power supply is 80 PLUS Bronze certified. It features a native PCIe 12V-2X6 connector, meeting Intel ATX 3.1 and PCIe 5.1 standards. With a single 12+4-pin cable, it efficiently supports next-gen GPUs. Ensuring exceptional power delivery, efficiency, silent operation, and durability.

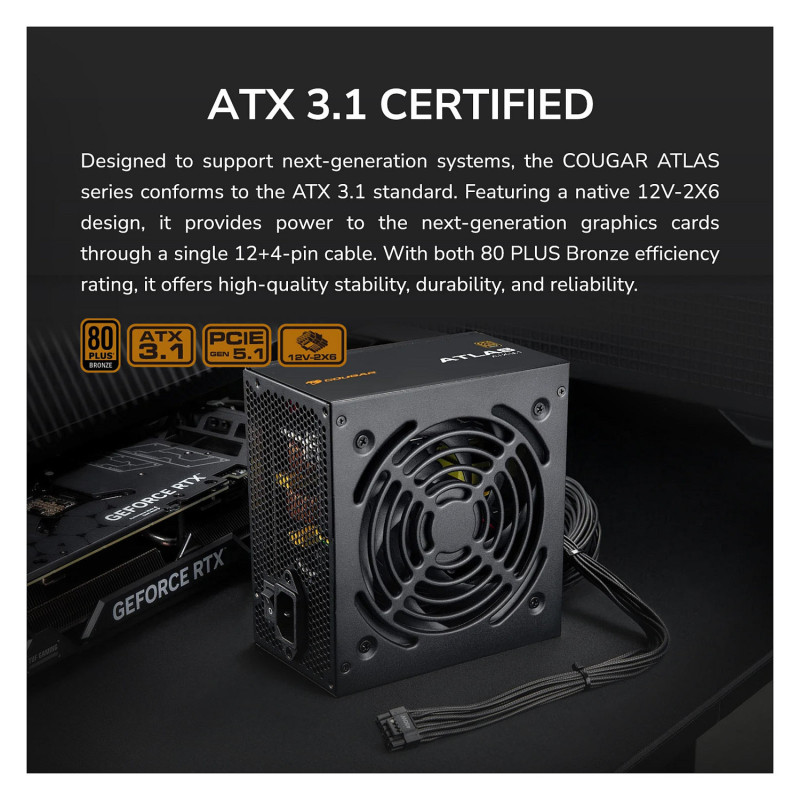

ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR ATLAS series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Bronze efficiency rating, it offers high-quality stability, durability, and reliability.

The COUGAR ATLAS series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.

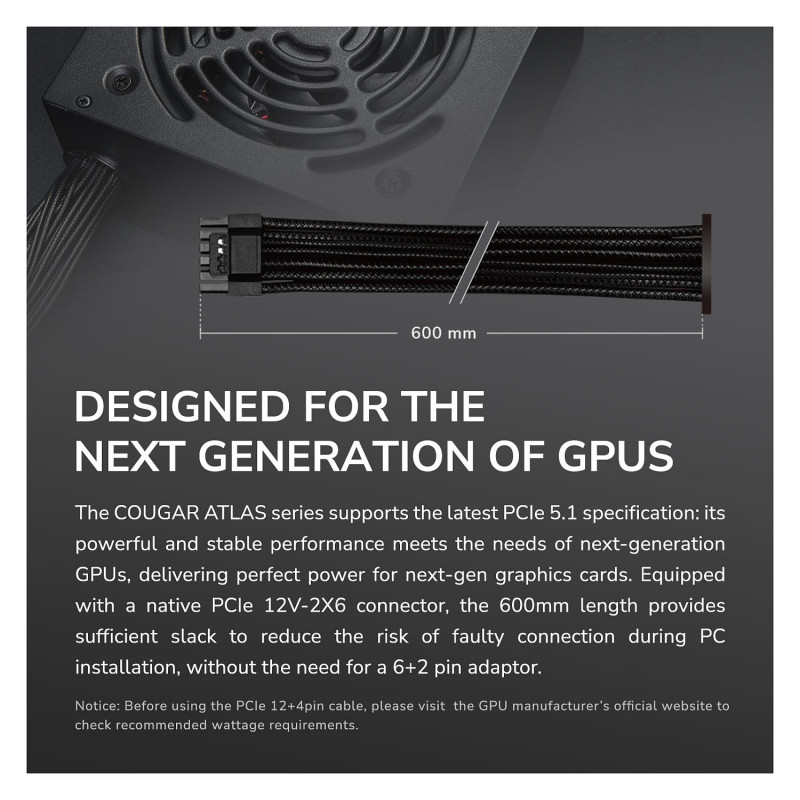

Designed for the Next Generation of GPUs
The COUGAR ATLAS series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.
Notice: Before using the PCIe 12+4pin cable, please visit the GPU manufacturer's official website to check recommended wattage requirements.

High Performance

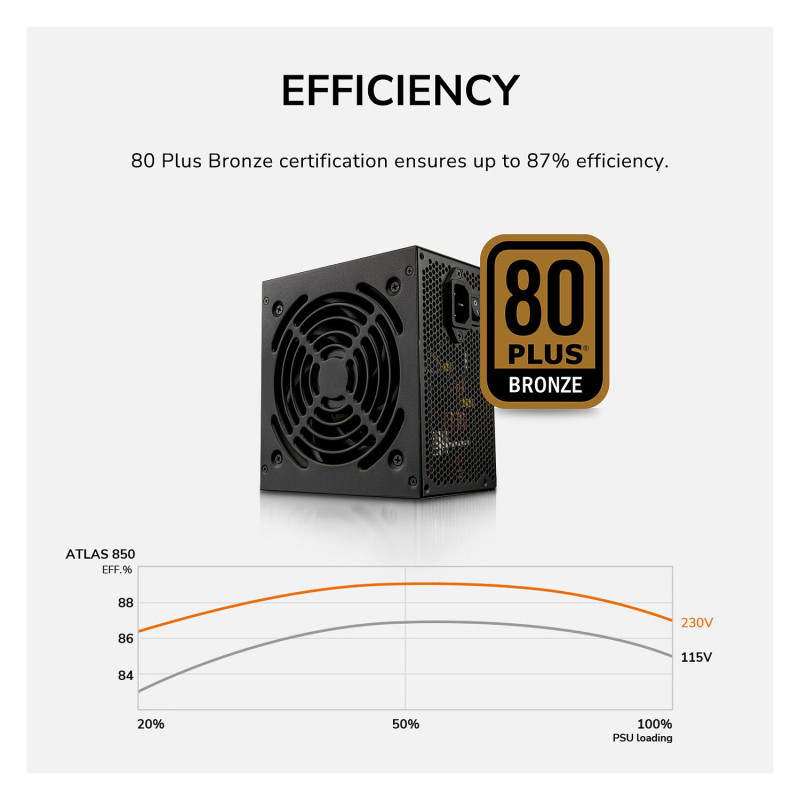

Efficiency
80 Plus Bronze certification ensures up to 87% efficiency.

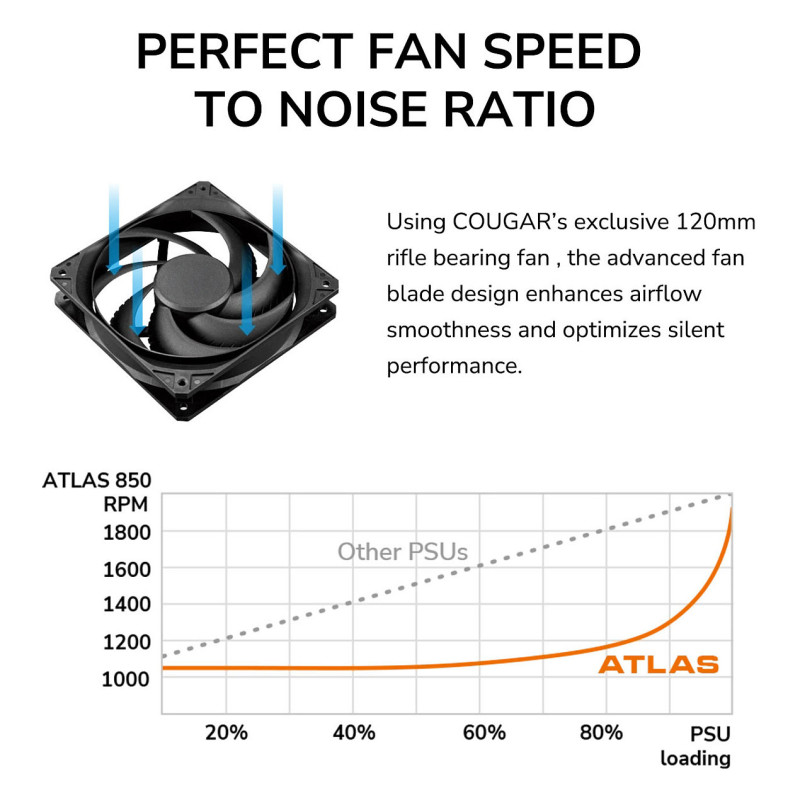

Perfect Fan Speed to Noise Ratio

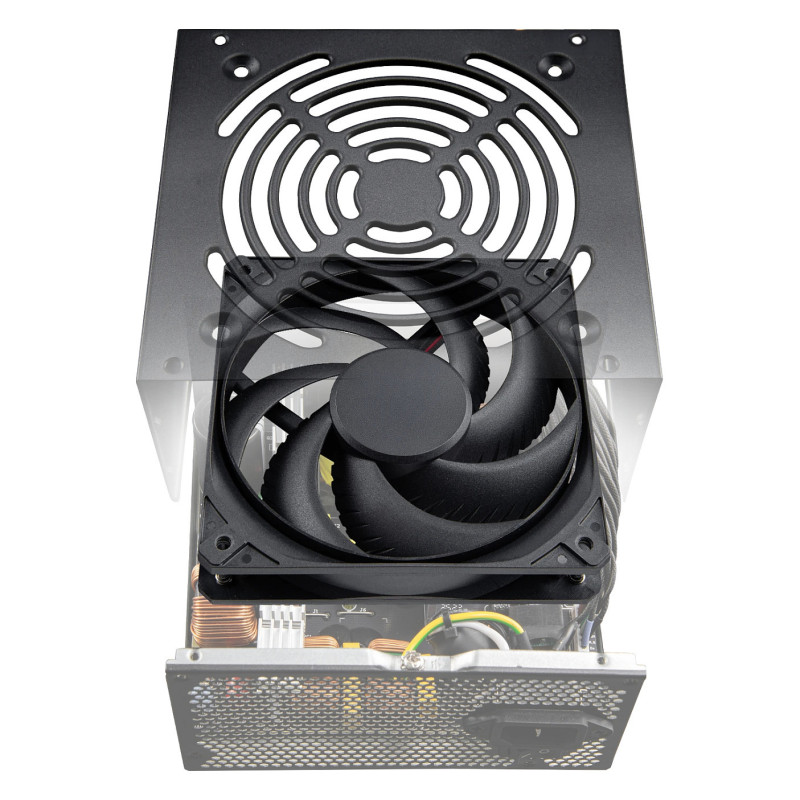

Using COUGAR's exclusive 120mm rifle bearing fan , the advanced fan blade design enhances airflow smoothness and optimizes silent performance.

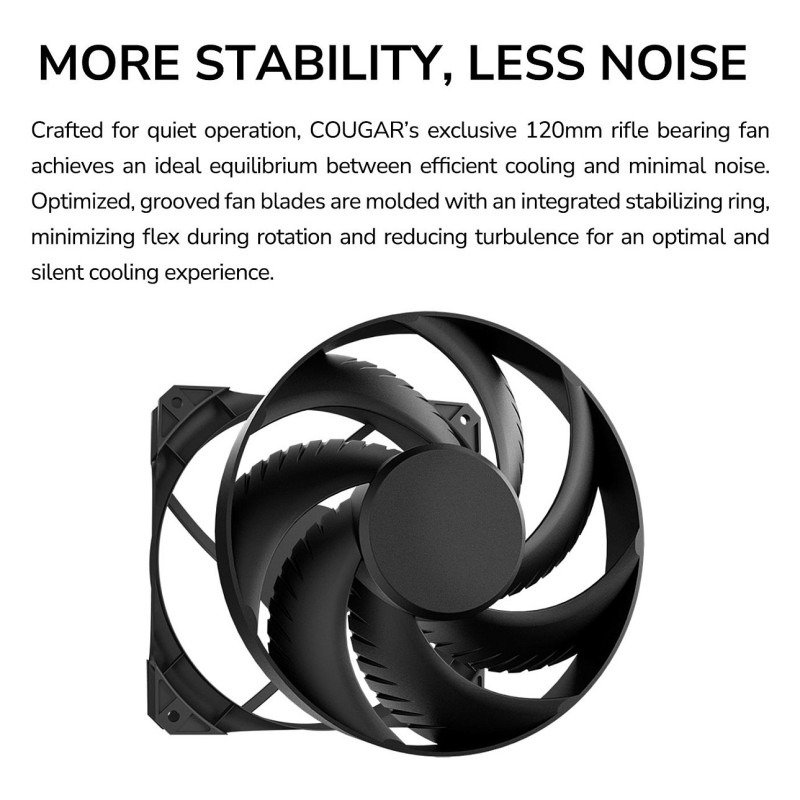

More Stability, Less Noise
Crafted for quiet operation, COUGAR's exclusive 120mm rifle bearing fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.

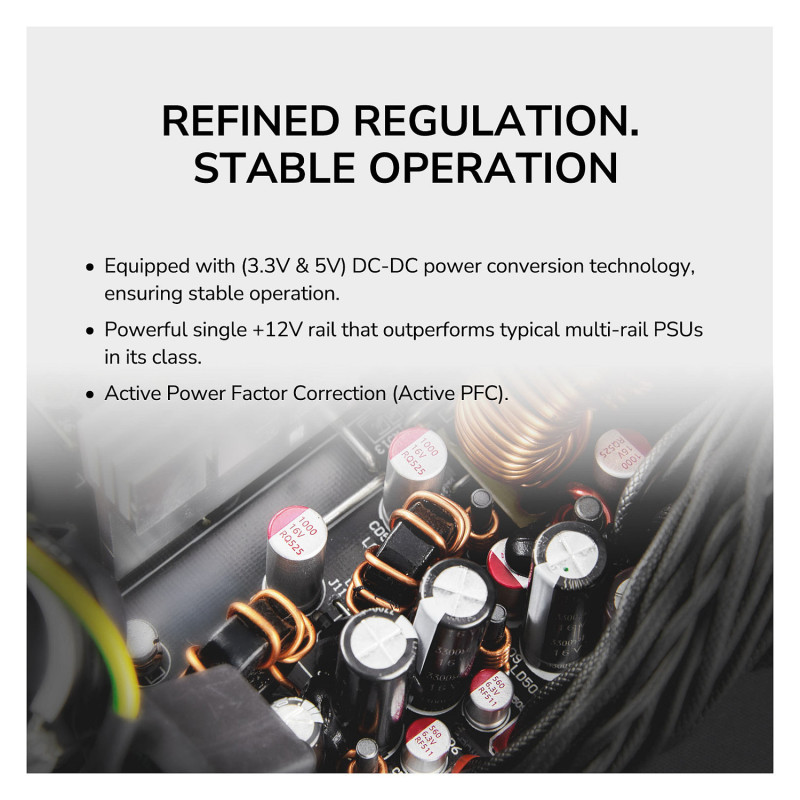

Refined Regulation. Stable Operation
- Equipped with (3.3V & 5V) DC-DC power conversion technology, ensuring stable operation.
- Powerful single +12V rail that outperforms typical multi-rail PSUs in its class.
- Active Power Factor Correction (Active PFC).

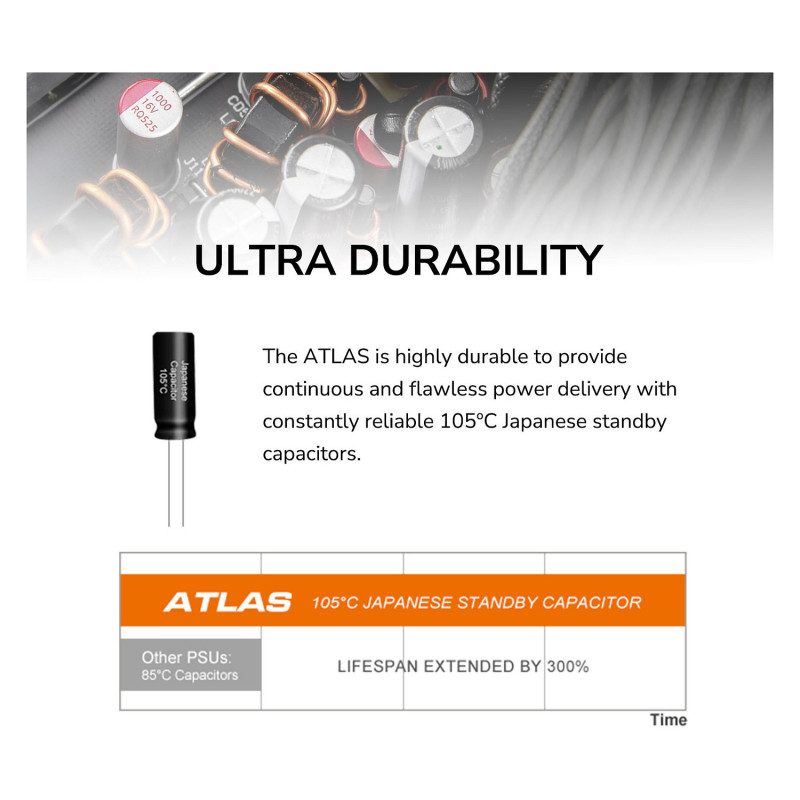

Ultra Durability
The ATLAS is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.

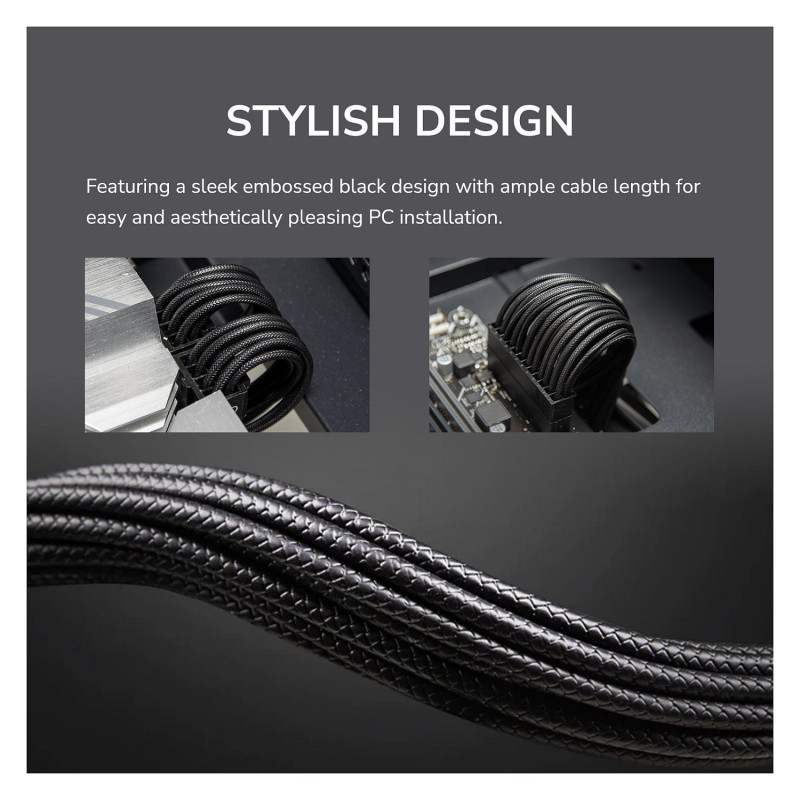

Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Bronze Certified
Up to 87% efficiency power conversion.
Powerful Single +12V Rail
Powerful single +12V rail that outperforms typical multi-rail
PSUs in its class .
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Full Protections with SCP, OCP, OVP, UVP, OPP, OTP
Active Power Factor Correction (Active PFC)
PF value up to 99% for clean and reliable power.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10-6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 140 W
Combined power (+12V): 750 W
Combined power (+5V): 140 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 62.5 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 87%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under total voltage

Ports & interfaces

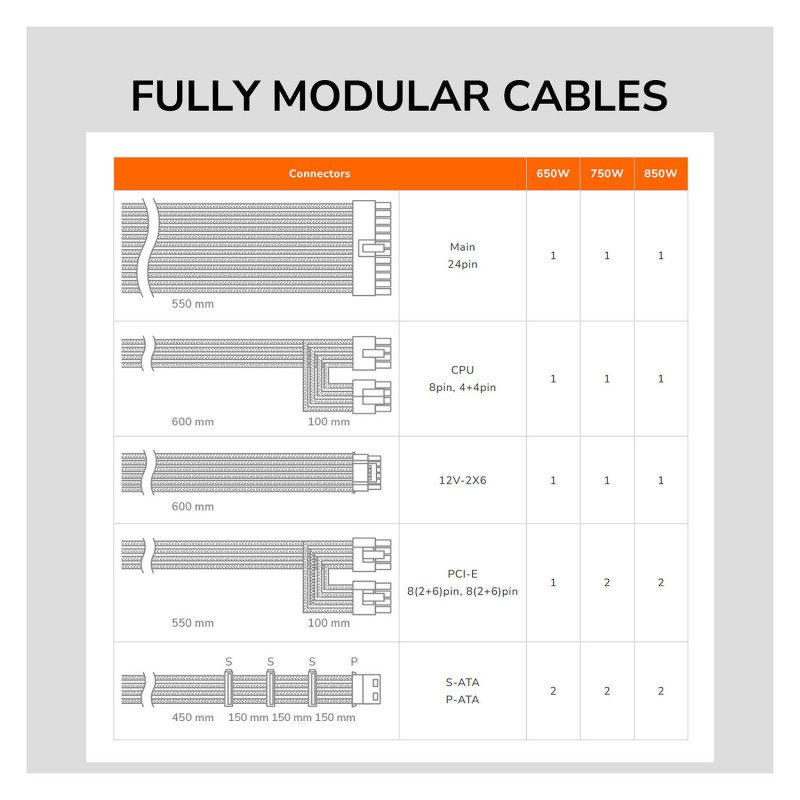

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 600 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Rifle

Design

Product colour: Black
Cooling type: Active

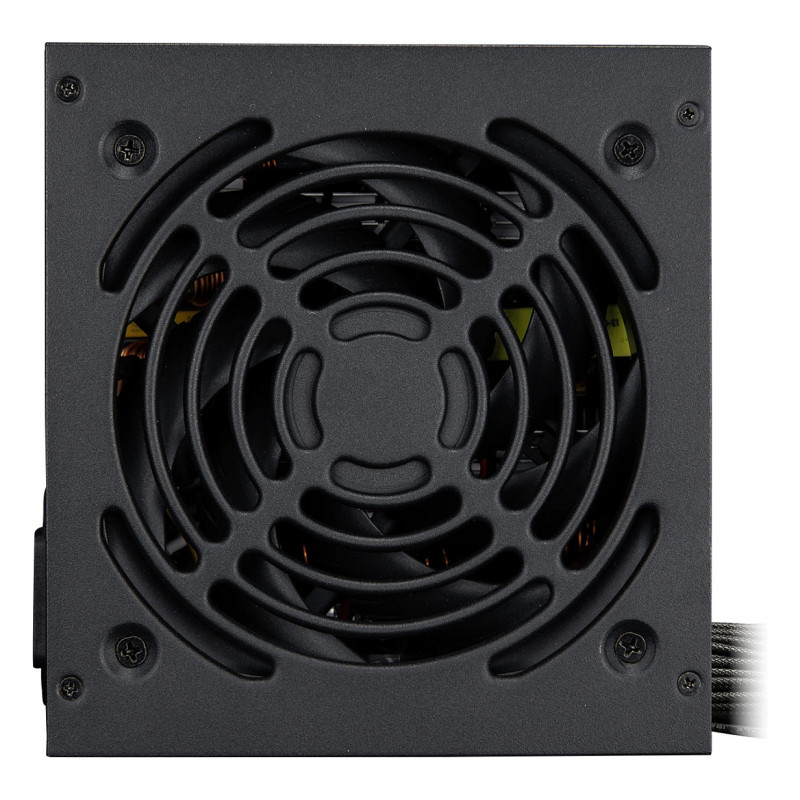

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Certificates

Certification: CE, FCC, RoHS

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.94 kg

Packaging data

Package width: 187 mm
Package depth: 158 mm
Package height: 165 mm
Package weight: 2.23 kg
