COUGAR CGR-GEX1050 maitinimo blokas

COUGAR Power Supply GEX 1050W ATX3.0 / 80 Plus Gold / Modular. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 120,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PATA, PCIe

COUGAR GEX1050 is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX1050 is the best answer for those looking for the best value in PSU.

High Efficiency for Power Saving
GEX1050 features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.

Perfect Cooling System with 0dB mode & HDB Fan
Using COUGAR's exclusive 135mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.

Solid Durability with Japanese Electrolytic Capacitors
Firstly, GEX1050 has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.

Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.

Advanced Structure for Impeccable Stability
GEX1050's LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 2% voltage regulation to deliver a stabler operation.

Perfectly Support GeForce RTX 30 Series GPU
The GEX1050 was designed for high end gamers and complicated media workers which can perfectly supporting RTX 30 series GPU and provide stable performance.

Power

Total power: 1050 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 13 - 6 A
Combined power (+3.3V): 120 W
Combined power (+12V): 1050 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 87.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

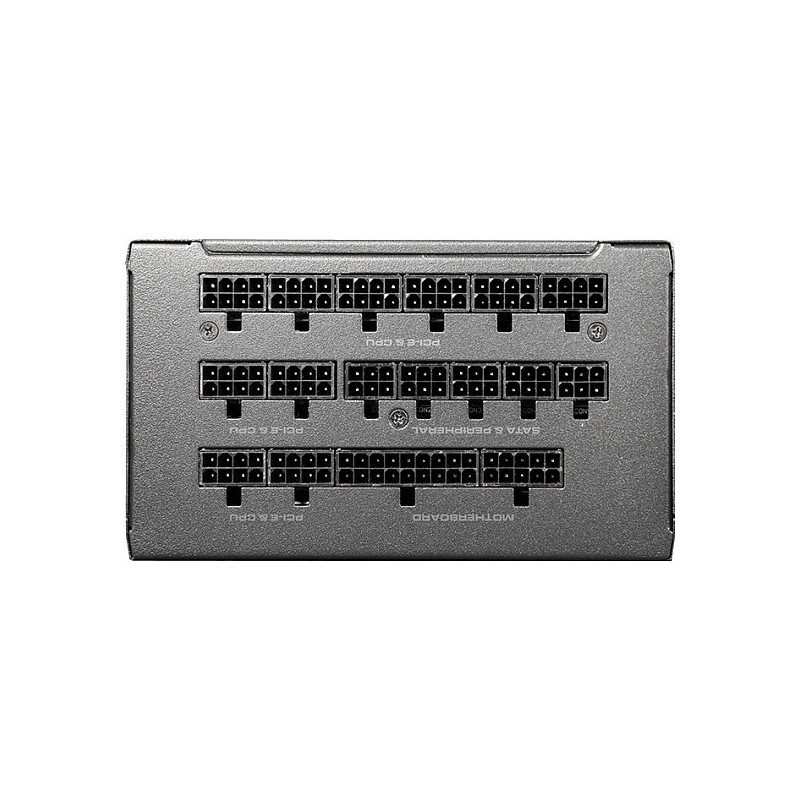

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 12
Number of PATA power connectors: 1
SATA power cable length: 120,500 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 120,500 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 65 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Feature: Silent mode
Bearing technology: HDB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 10 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 5 - 95%

Packaging content

Cables included: CPU, PATA, PCIe

Certificates

Compliance certificates: CCC, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark

Weight & dimensions

Width: 150 mm
Depth: 180 mm
Height: 86 mm
Weight: 2.09 kg

Packaging data

Package width: 229 mm
Package depth: 331 mm
Package height: 107 mm
Package weight: 3.59 kg

Technical details

Feature: Sustainability compliance

Logistics data

Warranty period: 5 year(s)
