Cooler Master MWE Gold 850 V2 ATX 3.1 maitinimo blokas

Cooler Master MWE Gold 850 V2 ATX 3.1. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 500,620,740,860 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

Level Up Your Power

Cooler Master presents the MWE Gold V2 ATX 3.1 Ready featuring high power, ultra-silent performance with exceptional efficiency and reliability.

ATX 3.1 Support & a Durable 12V-2x6 Adapter Cable

Includes ATX 3.1 support and a 90-degree 12V-2x6 PCIe 5.1 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.

*All performance stats confirmed in 25°C ambient temperature testing.

Certified Efficiency

The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.

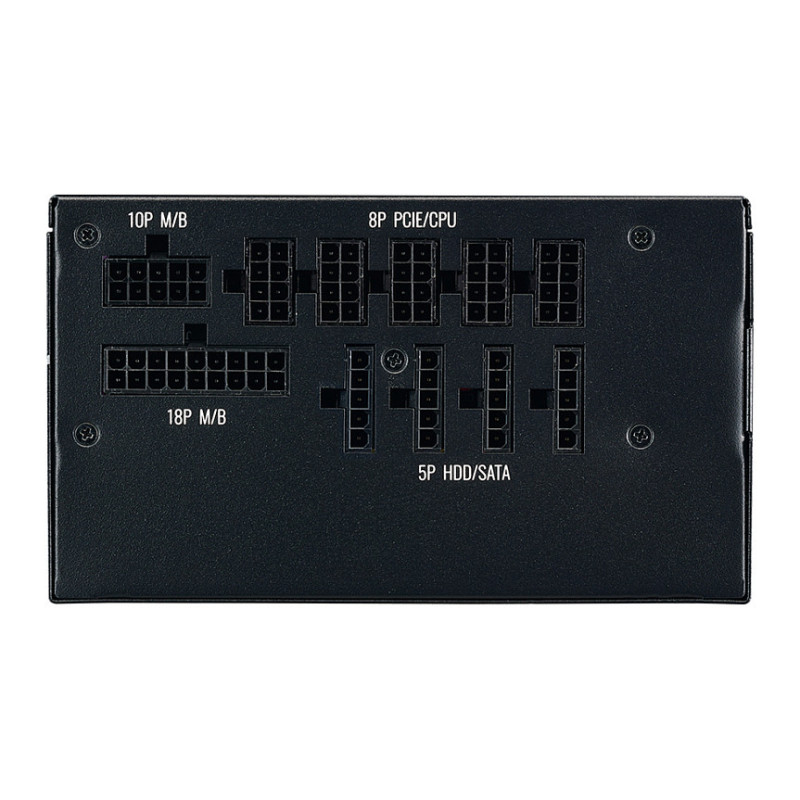

Fully Modular Cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

High Temperature Resilience

A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.

Three 8-pin Connectors

Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.

PSU Calculator

Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 6 - 12 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power protection features: Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
SATA power cable length: 500,620,740,860 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500,860,740,620 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
Feature: ATX Power connector (24-pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Certification: TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 2.62 kg

Packaging data

Package width: 194 mm
Package depth: 310 mm
Package height: 120 mm
Package weight: 2.9 kg
Package type: Box

Technical details

Sustainability certificates: ErP
