„Cooler Master MWE Gold 1250 V2 ATX 3.1“ maitinimo blokas

Cooler Master MWE Gold 1250 V2 ATX 3.1. Total power: 1250 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,620,740,860 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Certification: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

ATX 3.1 Fully Modular 80 PLUS Gold Certified ATX Power Supply Unit

MWE Gold 1250 V2 ATX 3.1

Connect the Future, connect ATX 3.1

100% ATX 3.1 Compatible

Cooler Master took the initiative and continuously developing our first ATX 3.1 Power Supply lineup. Compliant with ATX 3.1 standard and 12V-2x6 connectors, the MWE Gold 1050/1250 V2 ATX 3.1 can fully support the peak power drawn by the 40 series RTX graphic cards and whole system.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold 1050/1250 V2 ATX 3.1 features 80 PLUS Gold certification, guaranteeing 90% efficiency at typical load.

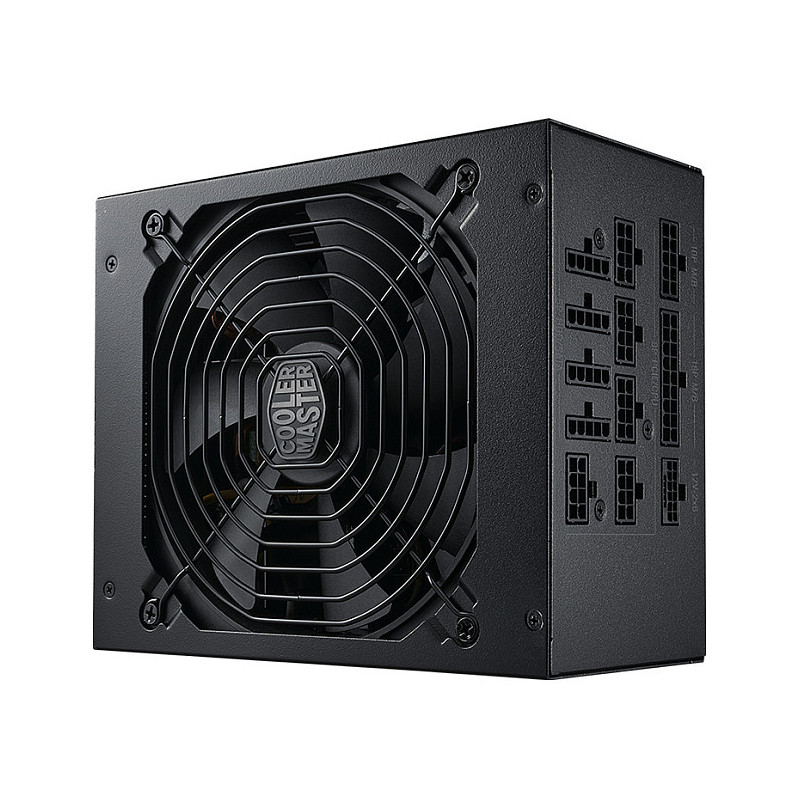

Quiet Cooling

The MWE Gold 1050/1250 V2 ATX 3.1 has been optimized with an 140mm fan along with an advanced fluid-dynamic bearing (FDB) delivers quiet and effective cooling with a long lifespan. With Smart Thermal Control System (STCM), the fan will not spin until at 40% of rated output power to reduce noise.

Industrial-grade Temperature Resilience

The MWE Gold 1050/1250 V2 ATX 3.1 has improved to operate safely at up to 50 degrees Celsius ambient for high-end computer, overclocking and other high intensity applications. Such a high threshold greatly enhances the performance of your PSU and your system.

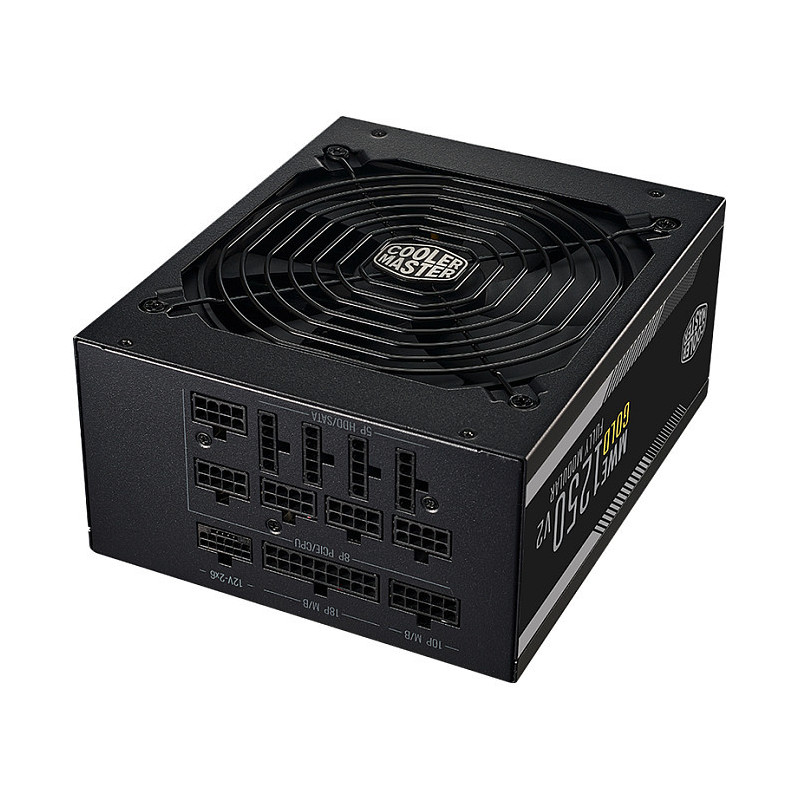

Fully Modular Cabling

The fully modular version of the MWE Gold 1050/1250 V2 ATX 3.1 comes with a set of flat black cables that can be customized to each user's individual needs. It's designed for easy cable management that each system only needs to include the cables required. This unused space within the chassis allows for reduced clutter, better airflow and aesthetic, thereby improving your system's overall cooling.

PSU Calculator

Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

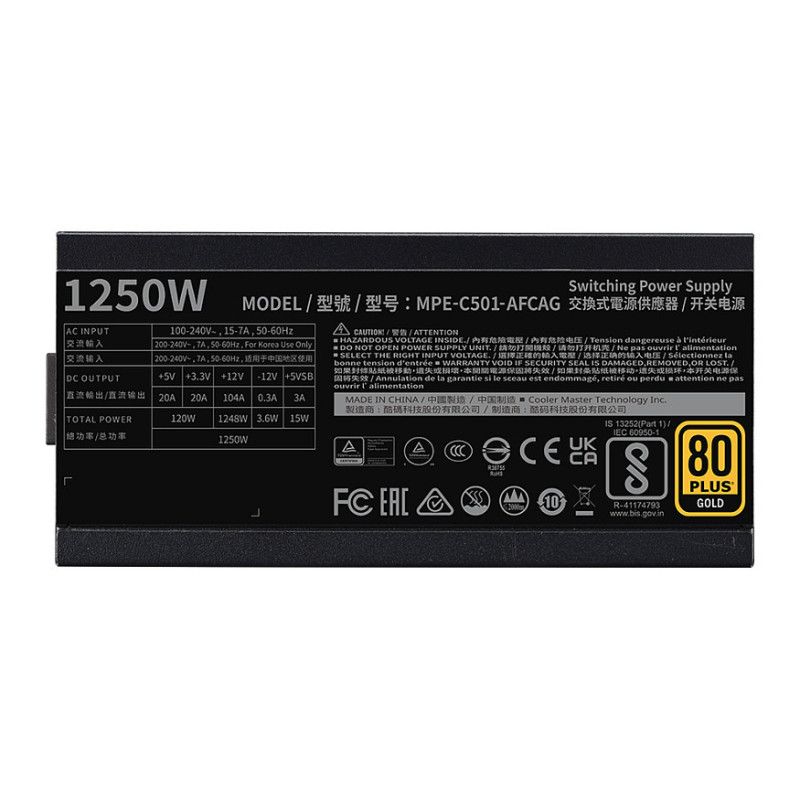

Power

Total power: 1250 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 15 - 7 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 1248 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 104 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 12
SATA power cable length: 500,620,740,860 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 740,620,500,860 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
Feature: ATX Power connector (24-pin)
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: TBB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Certificates

Certification: TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM,UKCA, BIS

Weight & dimensions

Width: 150 mm
Depth: 180 mm
Height: 86 mm
Weight: 3.02 kg

Packaging data

Package width: 197 mm
Package depth: 333 mm
Package height: 122 mm
Package weight: 3.42 kg
Package type: Box

Technical details

Sustainability certificates: ErP
