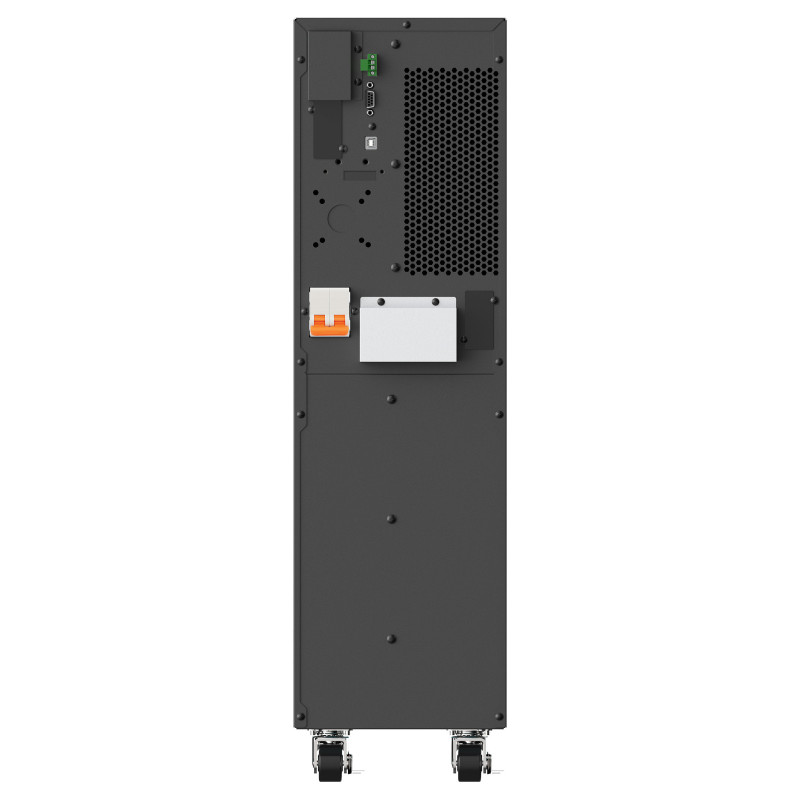

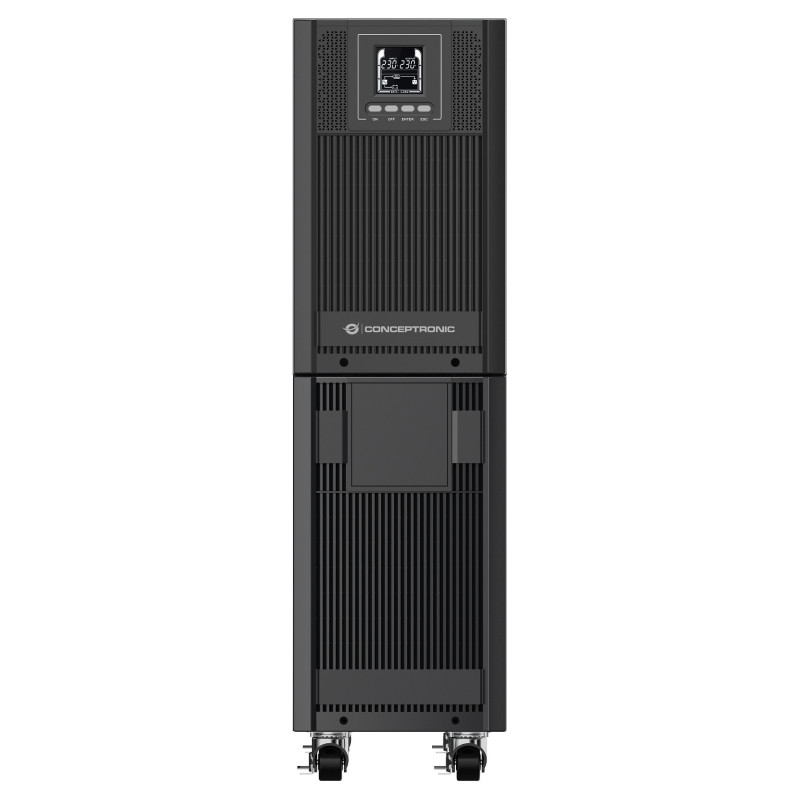

„Conceptronic ZEUS52E6K“ nepertraukiamo maitinimo šaltinis (UPS)

Conceptronic ZEUS52E6K 6000VA 5400W Online Tower UPS. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 7 Ah, Battery voltage: 192 V, Battery recharge time: 4 h. Form factor: Tower, Product colour: Black. Compliance certificates: CE, RoHS

Introducing the Conceptronic Online Tower UPS—the premier power backup solution for your home or office. Featuring an output power factor of 0.9, this UPS delivers superior efficiency and performance. Its ECO Mode enhances energy savings, while compatibility with generators ensures uninterrupted power during extended outages.

The Conceptronic Online Tower UPS comes with HID USB communication for seamless device connectivity and enhanced control and monitoring. For added safety during emergencies, it includes an Emergency Power Off (EPO) port for swift shutdowns in critical situations.

With its sleek, modern tower design, the Conceptronic Online Tower UPS integrates effortlessly into any environment, providing reliable power backup when you need it most.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 6 kVA
Output power: 5400 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output power factor: 0.9
Feature: ECO mode
Input current Total Harmonic Distortion (THD): 5%
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

Ports & interfaces

Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
Feature: Emergency Power Off (EPO) connector

Battery

Battery capacity: 7 Ah
Battery voltage: 192 V
Number of batteries supported: 16
Battery recharge time: 4 h
Battery capacity: 84 Wh

Design

Form factor: Tower
Product colour: Black

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 50 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 196 mm
Depth: 412 mm
Height: 702 mm
Weight: 54 kg

Packaging data

Package type: Box

Logistics data

Pallet gross length: 76 cm
Pallet gross width: 110 cm
Pallet gross height: 126 cm
Customs product code (TARIC): 8504406090
Harmonized System (HS) code: 850440
Master (outer) case width: 348 mm
Master (outer) case length: 568 mm
Master (outer) case height: 810 mm
Master (outer) case gross weight: 55.6 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
