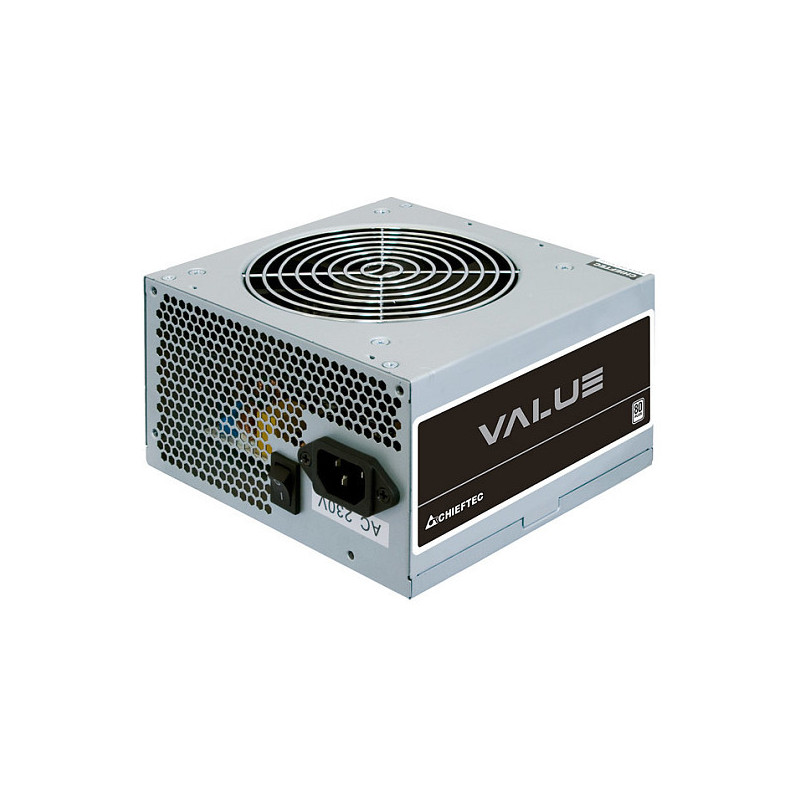

„Chieftec Value APB-500B8“ maitinimo blokas
Prekės kodas:
29-4710713230569
„Chieftec Value APB-500B8“, 500 W, 230 V, 50 Hz, 4 A, aktyvus, 130 W
„Chieftec Value APB-500B8“ maitinimo blokas
Prekės kodas:
29-4710713230569
„Chieftec Value APB-500B8“, 500 W, 230 V, 50 Hz, 4 A, aktyvus, 130 W
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Europos
per 6 - 11*
d. d.
Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it's the VALUE choice!
Power
Total power: 500 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 4 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 24 A
Max output current (+12V2): 21 A
Max output current (+5V): 19 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 80%
Power protection features: Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Design
Product colour: Silver
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Certificates
Compliance certificates: RoHS
Certification: CE, CB, TÜV, EAC
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 87 mm
Logistics data
Harmonized System (HS) code: 84733020
| Gamintojo kodas | APB-500B8 |
| Prekės būklė | - Naujas / demonstracinis daiktas - 12 mėnesių garantija - Su priedais |
| Prekės įpakavimas | - Pakuotė pažeista arba neatidaryta |
| Weight | 1.237 kg |
