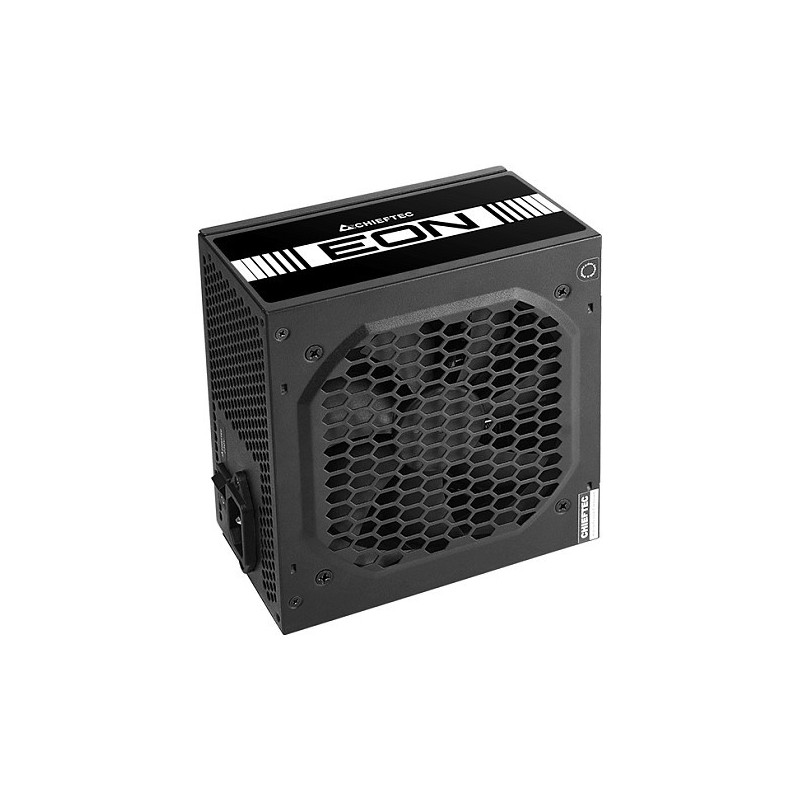

„Chieftec EON“ maitinimo blokas

Chieftec EON . Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.

The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.

Power

Total power: 700 W
AC input voltage: 200 - 240 V
AC input frequency: 50 Hz
Input current: 5.5 A
Maximum input current (@220V): 5.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (-12V): 4.8 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 53 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 2.5 A
Power protection features: Surge and inrush, Surge protection, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 4
SATA power cable length: 450,600,750 mm
Peripheral (Molex) power cable length: 450,600,750 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS
Supported motherboard form factors: ATX
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.3

Design

Product colour: Black
Fan diameter: 12 cm
Feature: On/off switch

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.4 kg

Logistics data

Warranty period: 2 year(s)
