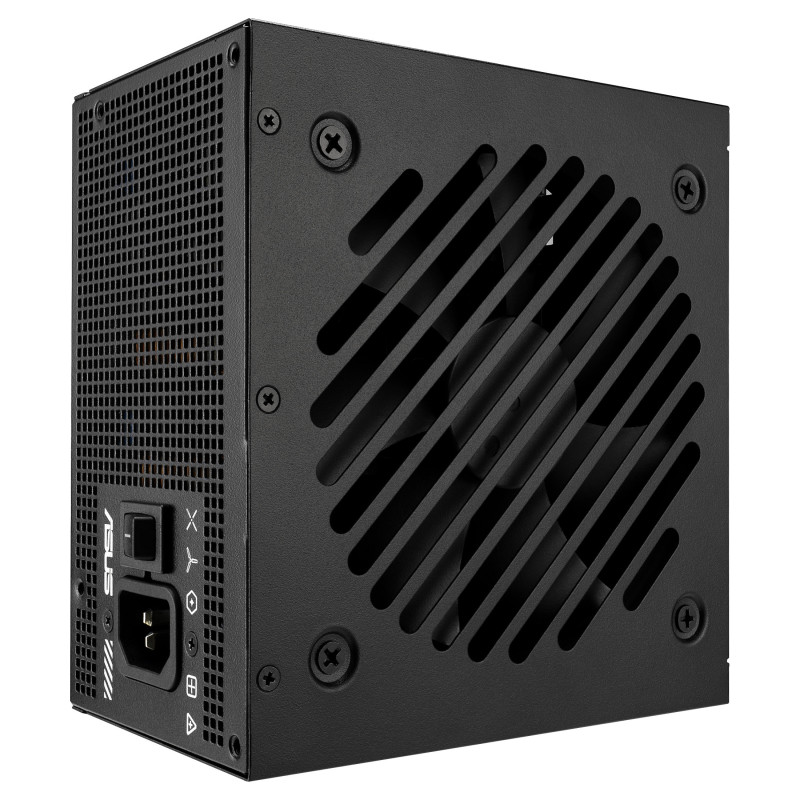

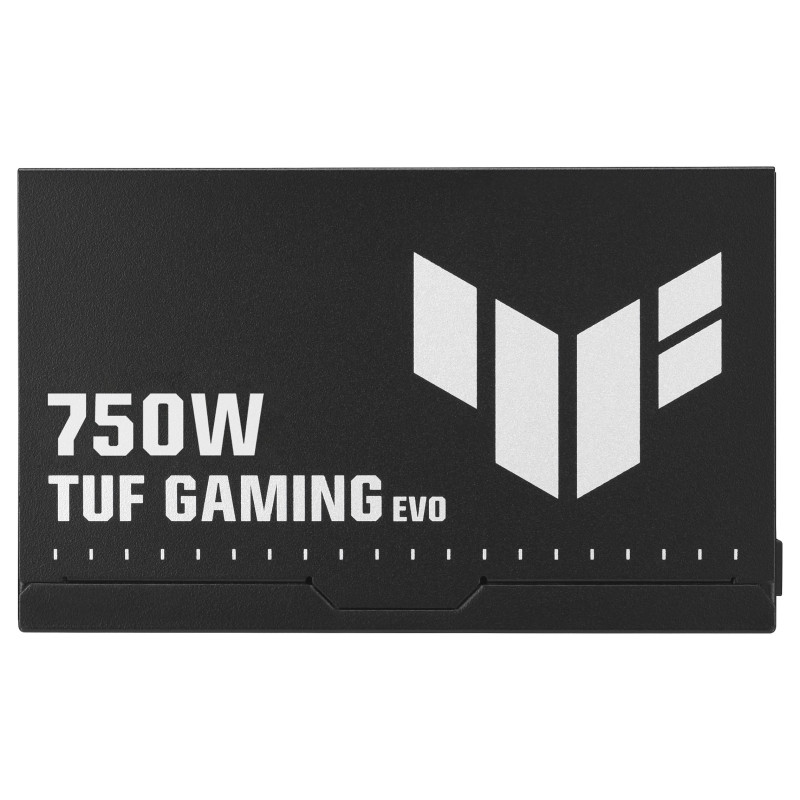

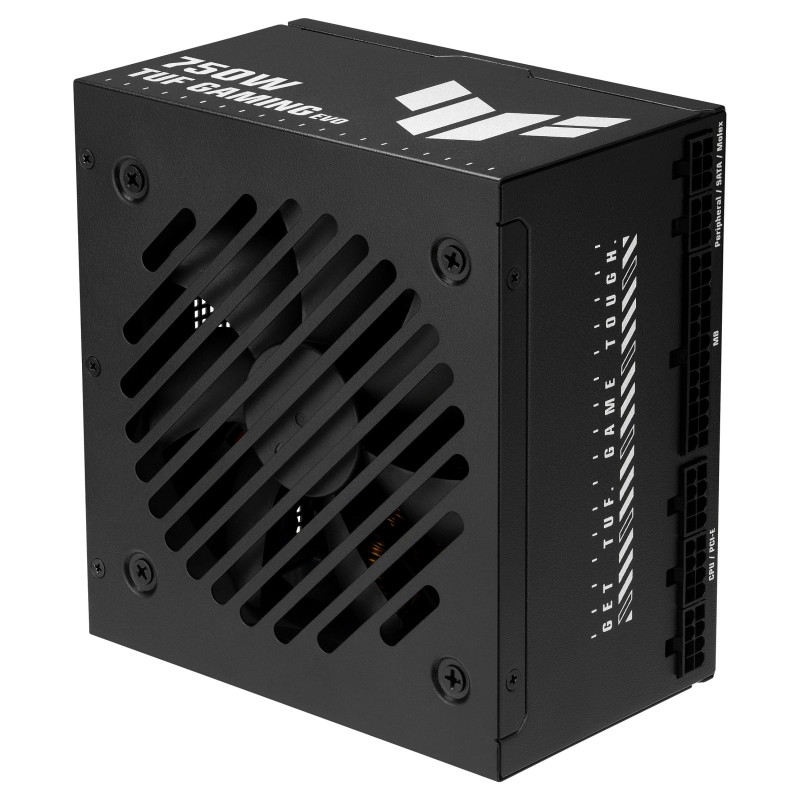

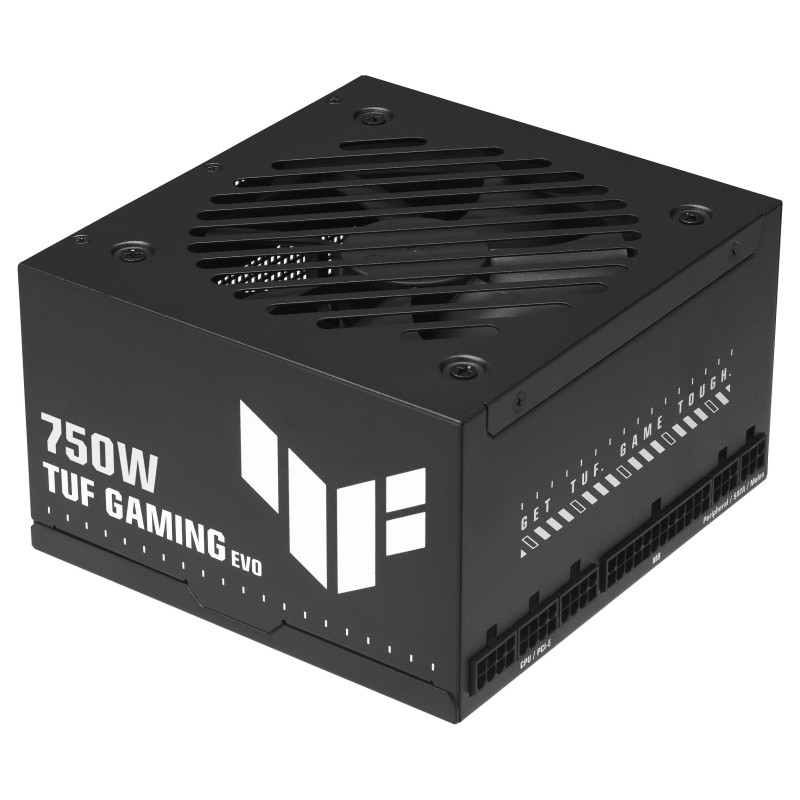

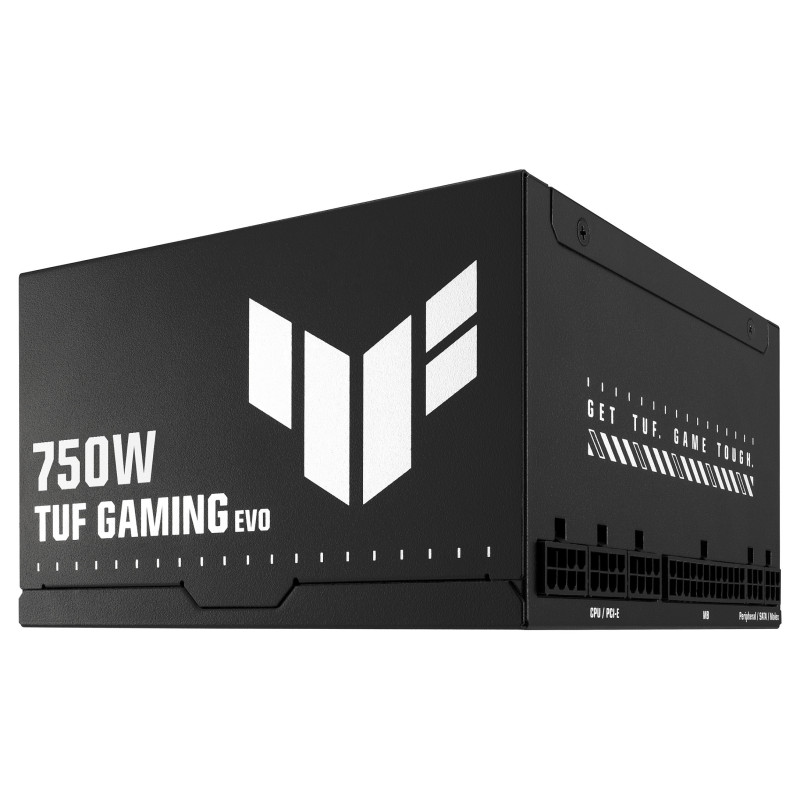

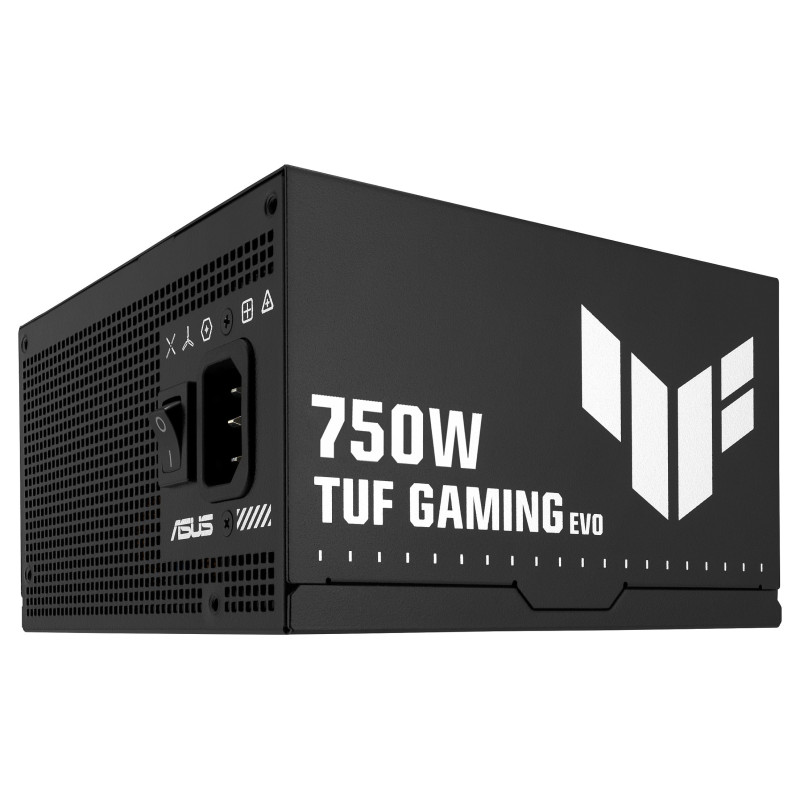

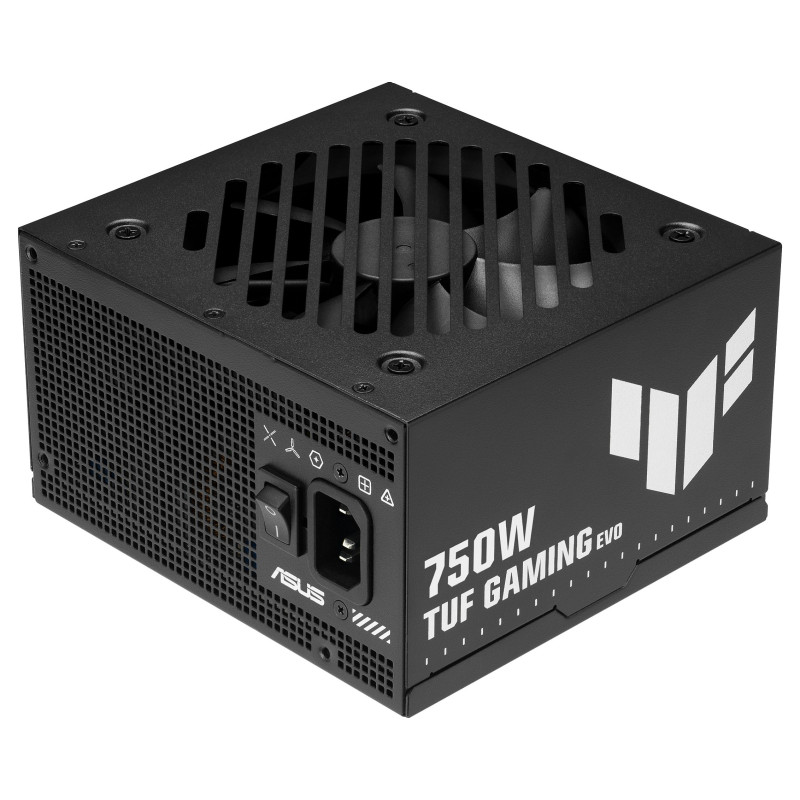

ASUS TUF-GAMING-750B-EVO maitinimo blokas

ASUS TUF-GAMING-750B-EVO. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA

Built For The Long Haul
TUF Gaming Bronze EVO series PSUs deliver dependable power with military-grade components, a robust cooling solution, and ATX 3.1 compatibility. High-quality capacitors and chokes endure rigorous testing to meet military specifications. The dual-ball fan bearings ensure longevity, making this PSU ideal for TUF Gaming rigs or any build designed for years of AAA gaming.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 80 W
Combined power (+12V): 750 W
Combined power (+5V): 80 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 12 A
Max output current (+12V): 62.5 A
Max output current (+5V): 12 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

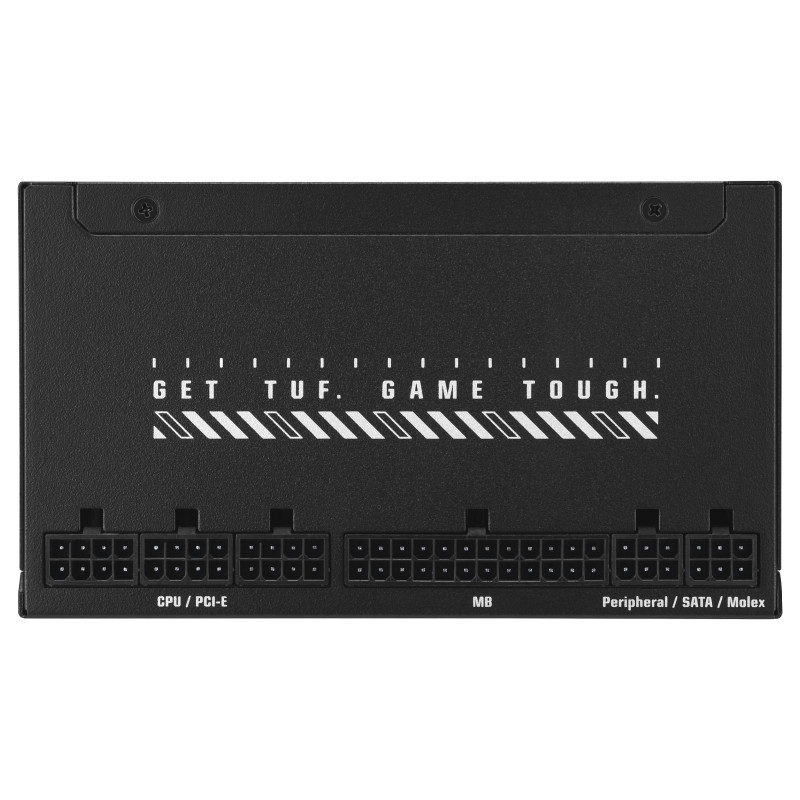

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 4
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 400,120 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active

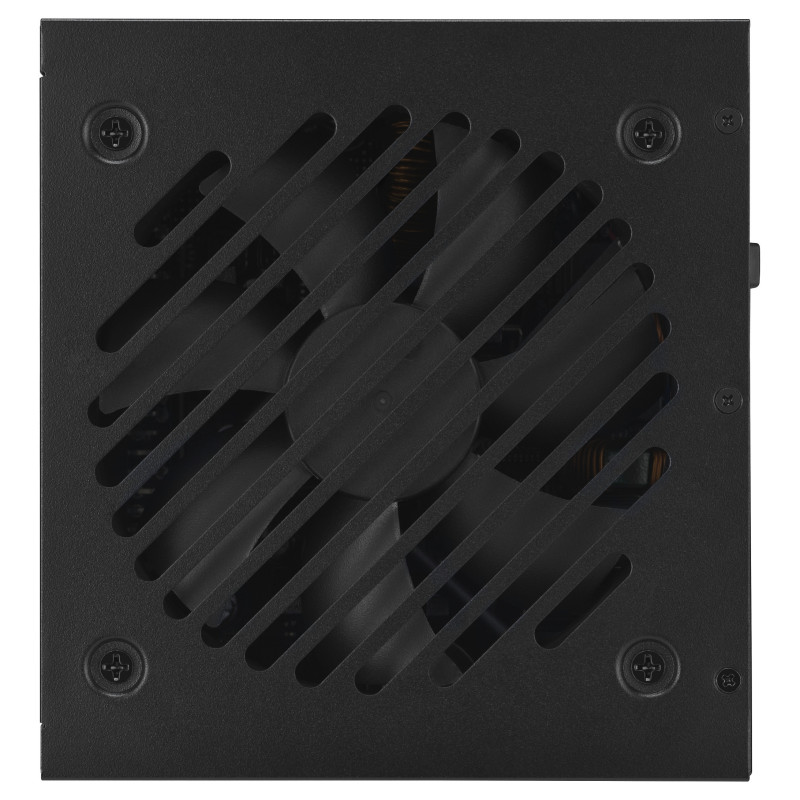

Number of fans: 1 fan(s)
Fan location: Top

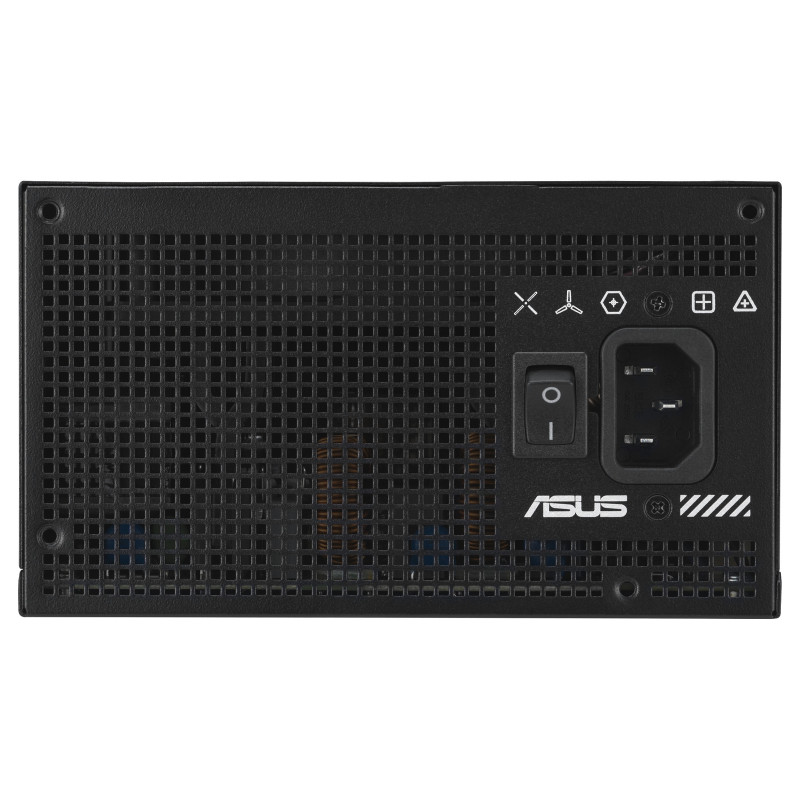

Feature: On/off switch

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.41 kg

Packaging data

Package width: 282 mm
Package depth: 182 mm
Package height: 127 mm
Package weight: 2.11 kg
Package type: Box
