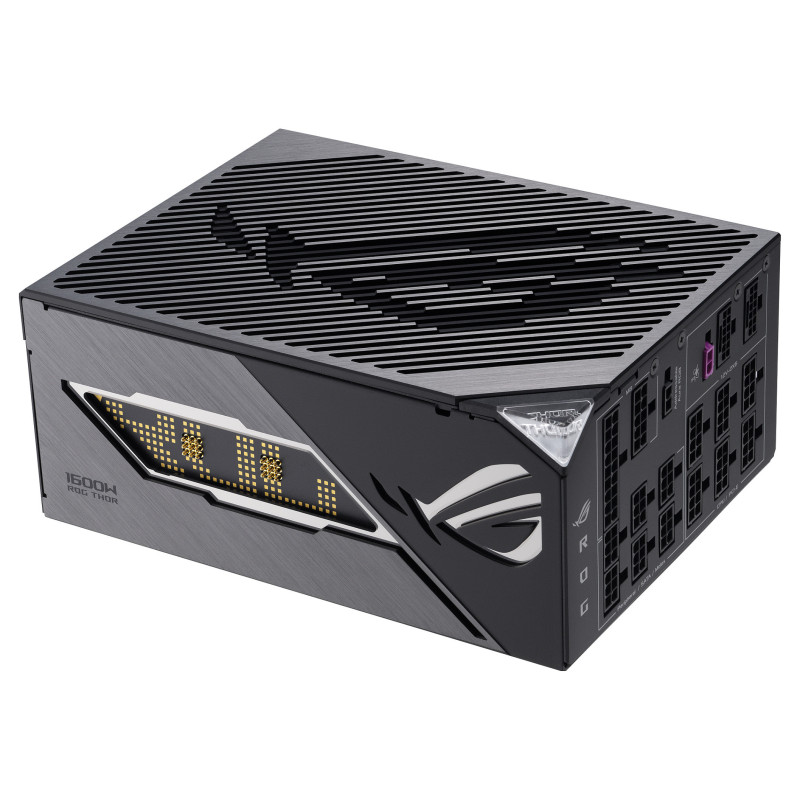

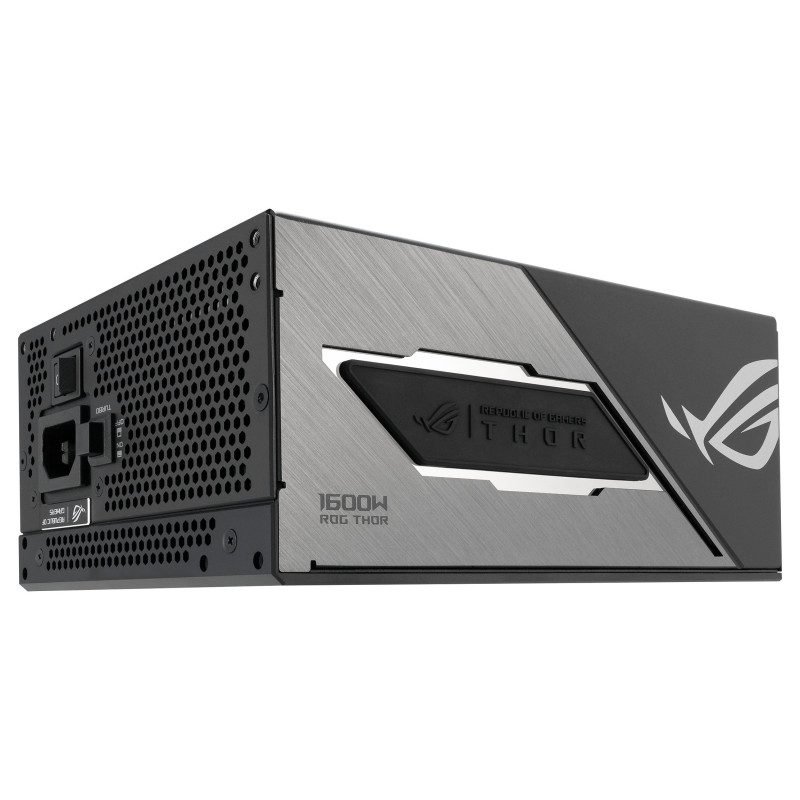

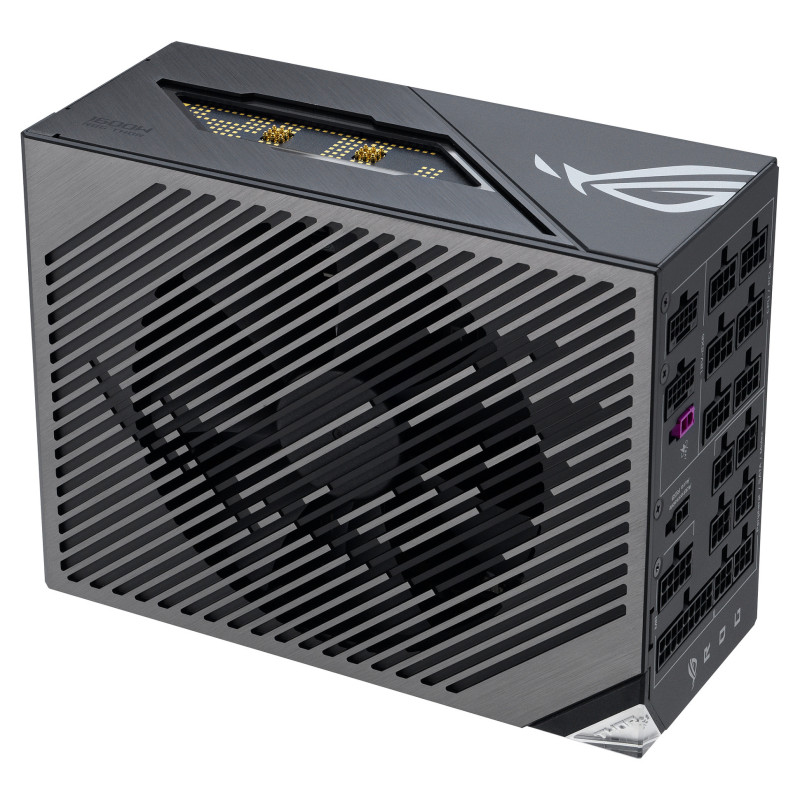

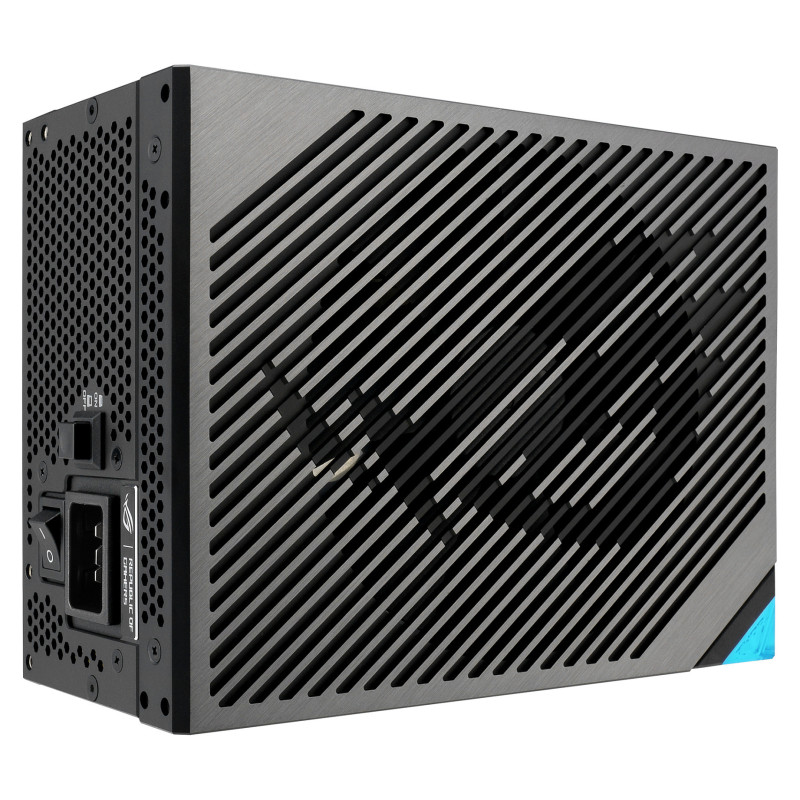

ASUS ROG -THOR-1600T3-GAMING maitinimo blokas

ASUS ROG -THOR-1600T3-GAMING. Total power: 1600 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Grey, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA

ULTIMATE POWER. UNMATCHED STABILITY.

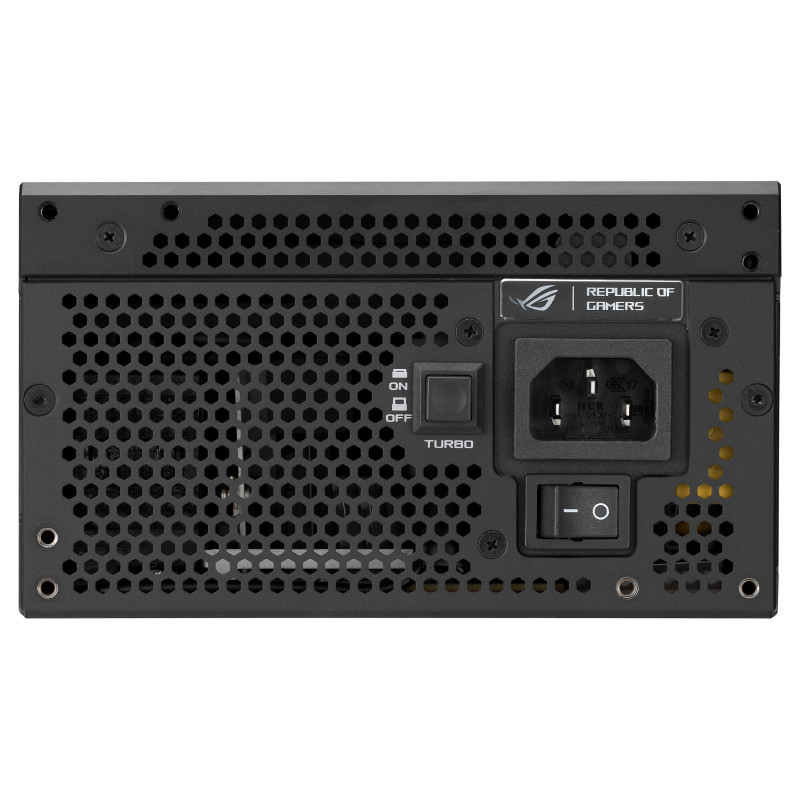

The ROG Thor 1600W Titanium III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

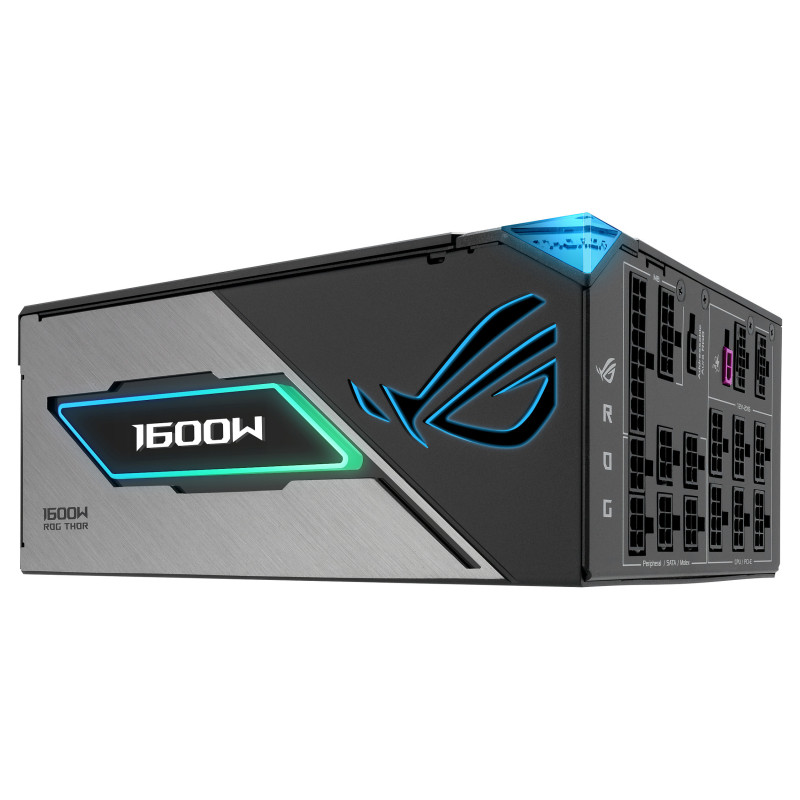

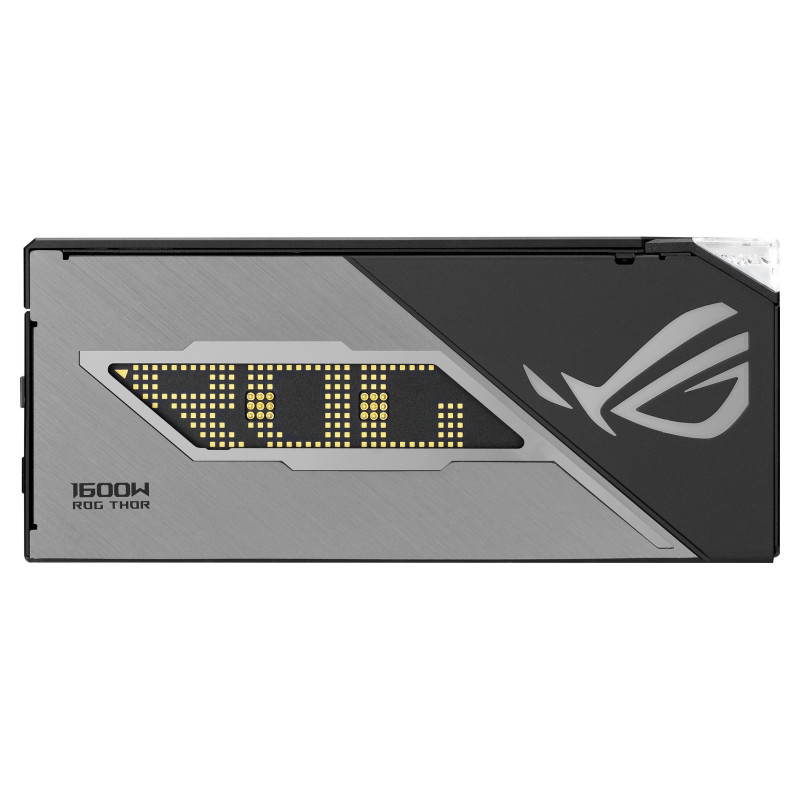

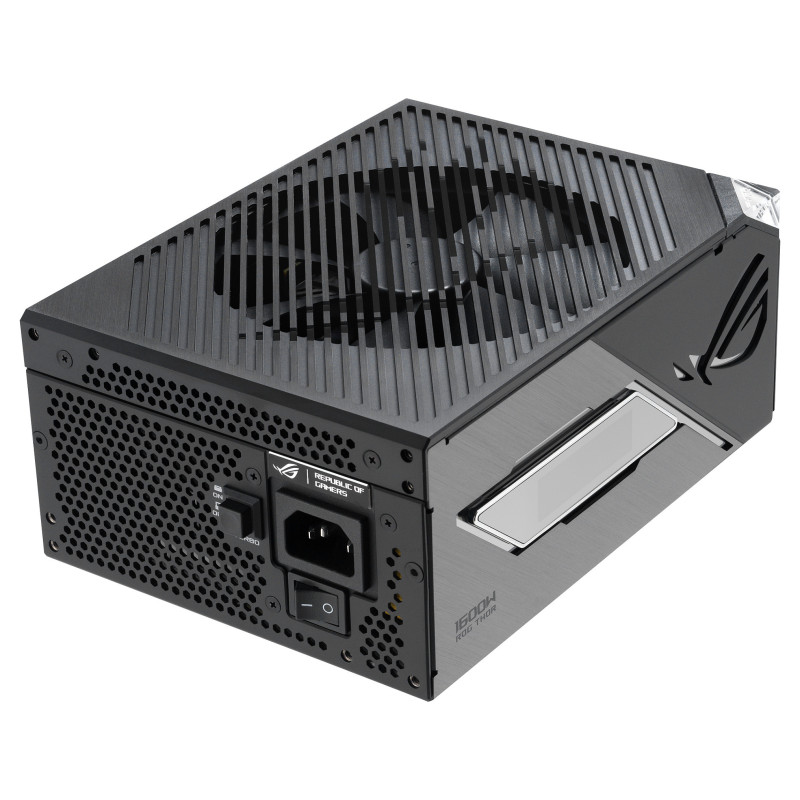

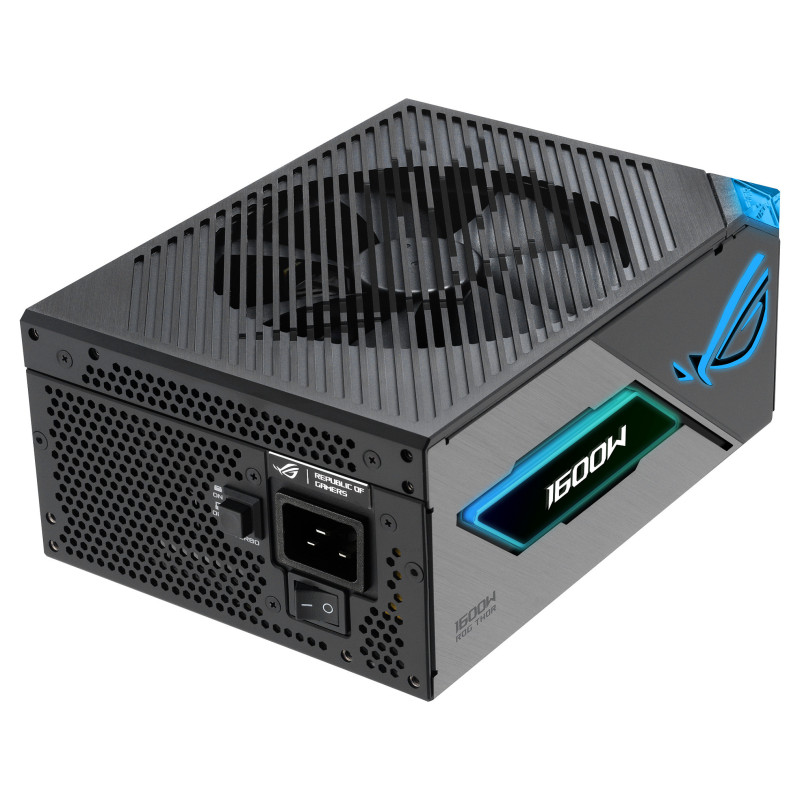

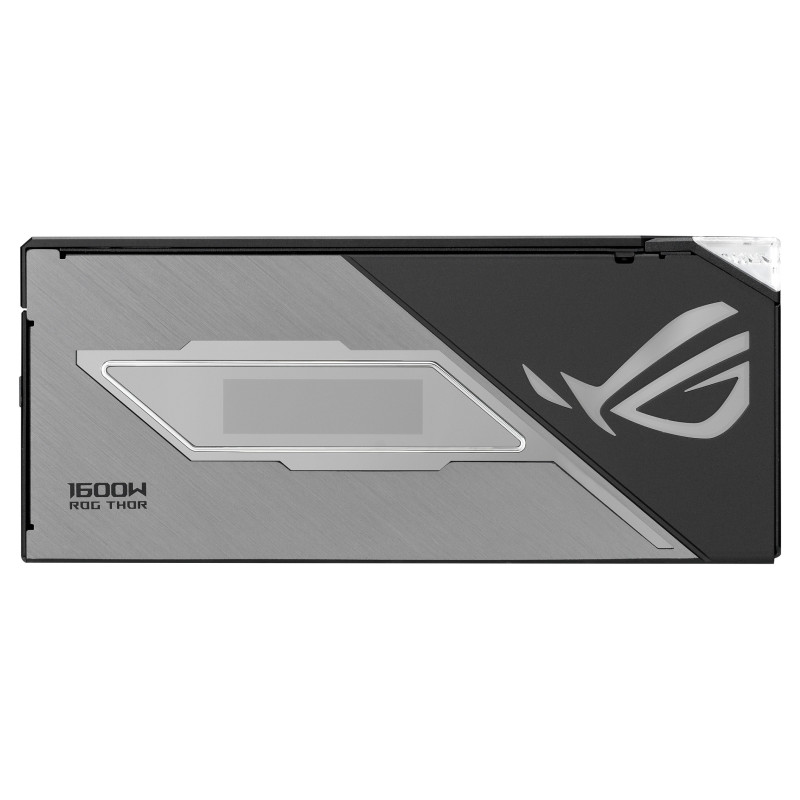

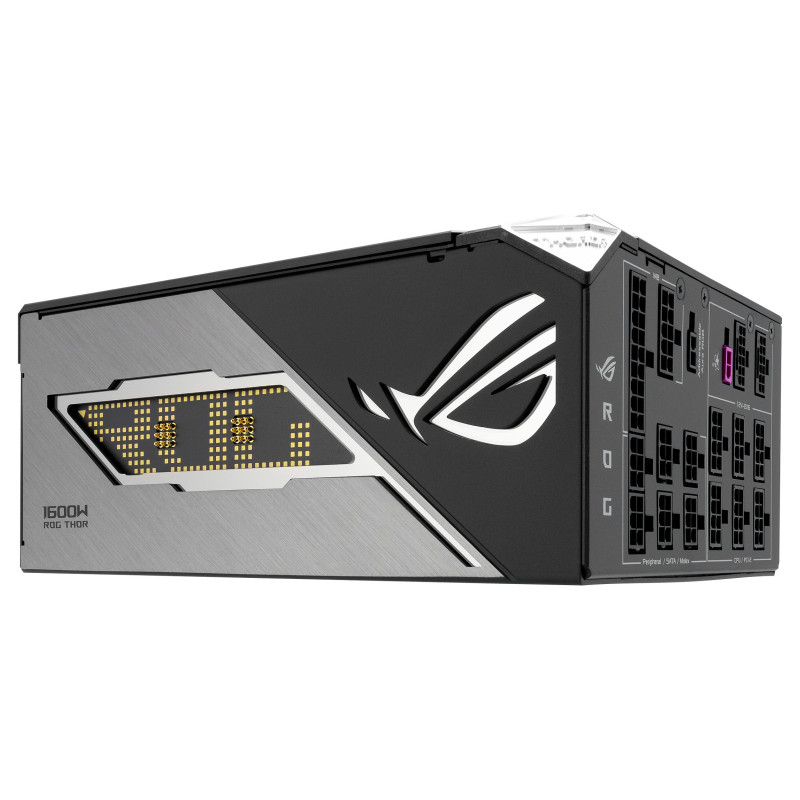

The ROG Thor 1600W Titanium III also features the signature Thor OLED display, now upgraded for easy magnetic attachment - it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Power

Total power: 1600 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1600 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 30 A
Max output current (+12V): 133.3 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

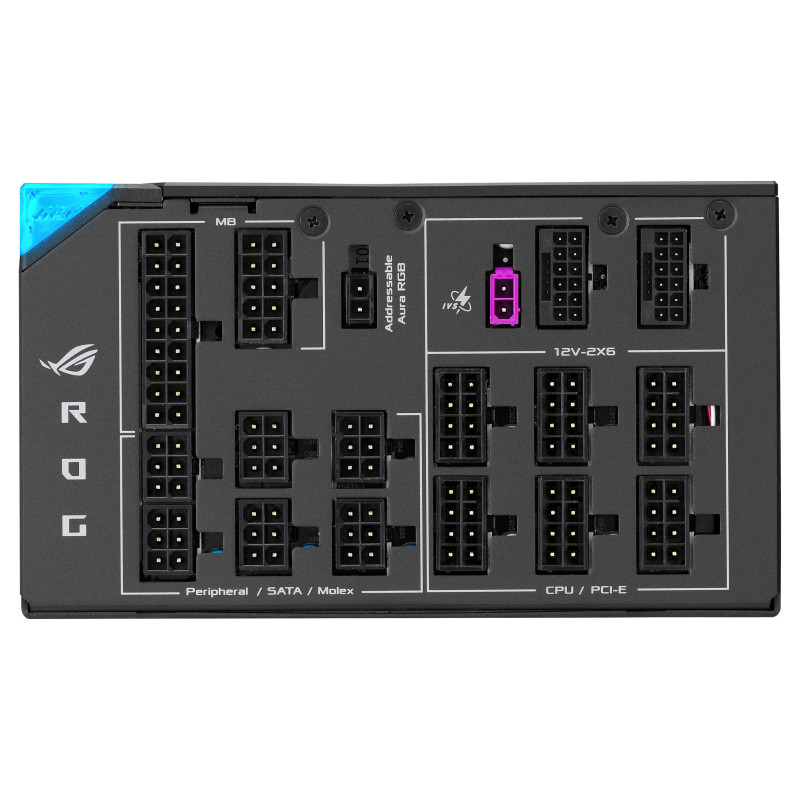

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 10
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 9
Peripheral (Molex) power cable length: 150,400 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 2
PCI Express power cable length: 75 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 100 cm
Feature: PCI Express connector
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Feature: Silent mode
Bearing technology: DBB
Mean time between failures (MTBF): 120000 h

Design

Product colour: Grey

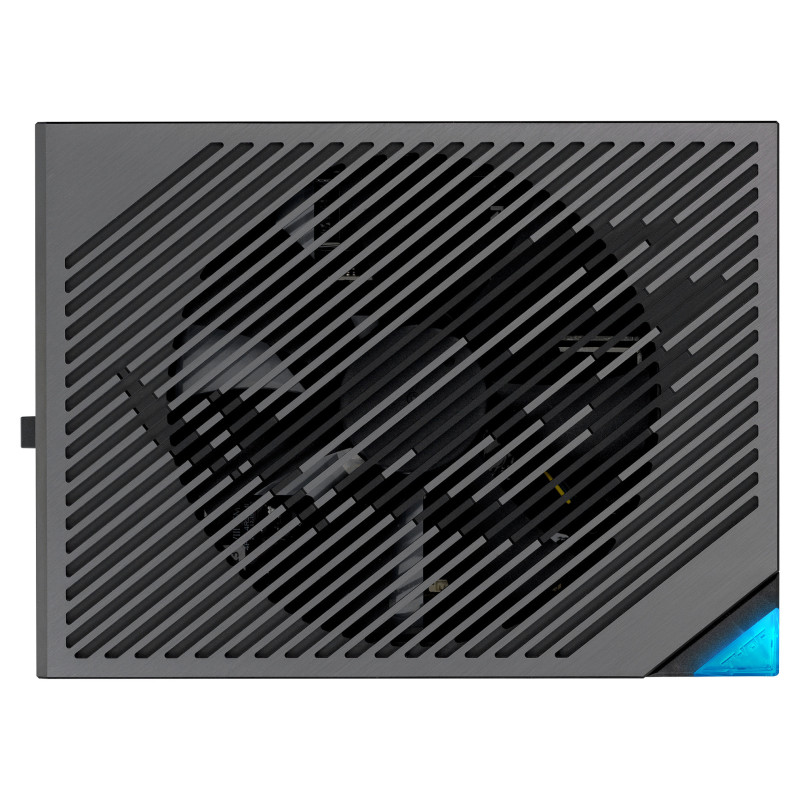

Cooling type: Active
Number of fans: 1 fan(s)
Feature: Illumination
Feature: Built-in display
Display type: OLED
Feature: On/off switch

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA
Feature: Cable tie(s) included

Weight & dimensions

Width: 200 mm
Depth: 150 mm
Height: 86 mm
Weight: 2.8 kg

Packaging data

Package width: 390 mm
Package depth: 251 mm
Package height: 159 mm
Package weight: 6.3 kg
Package type: Box
