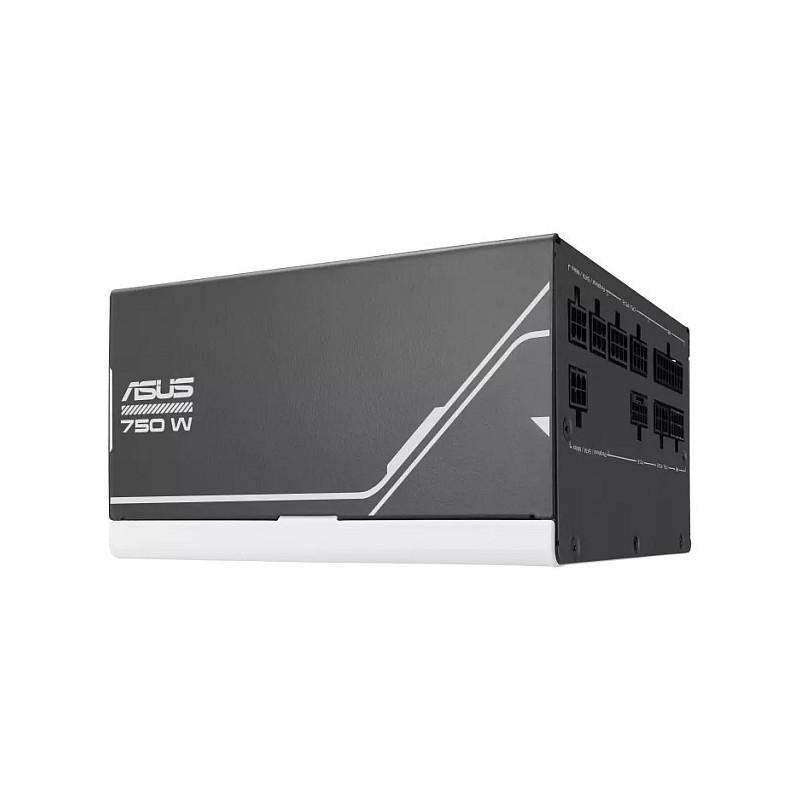

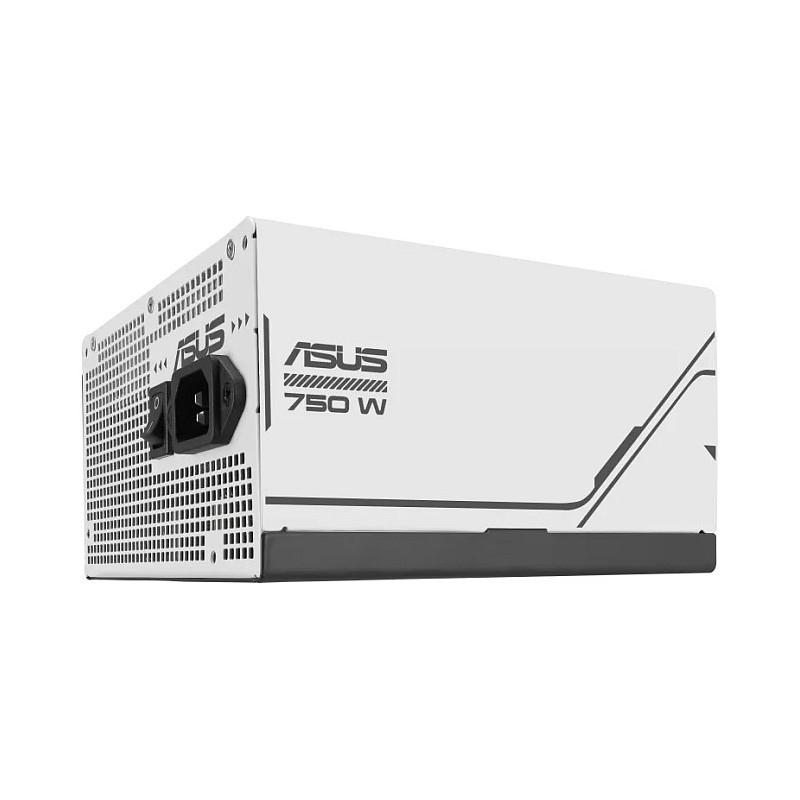

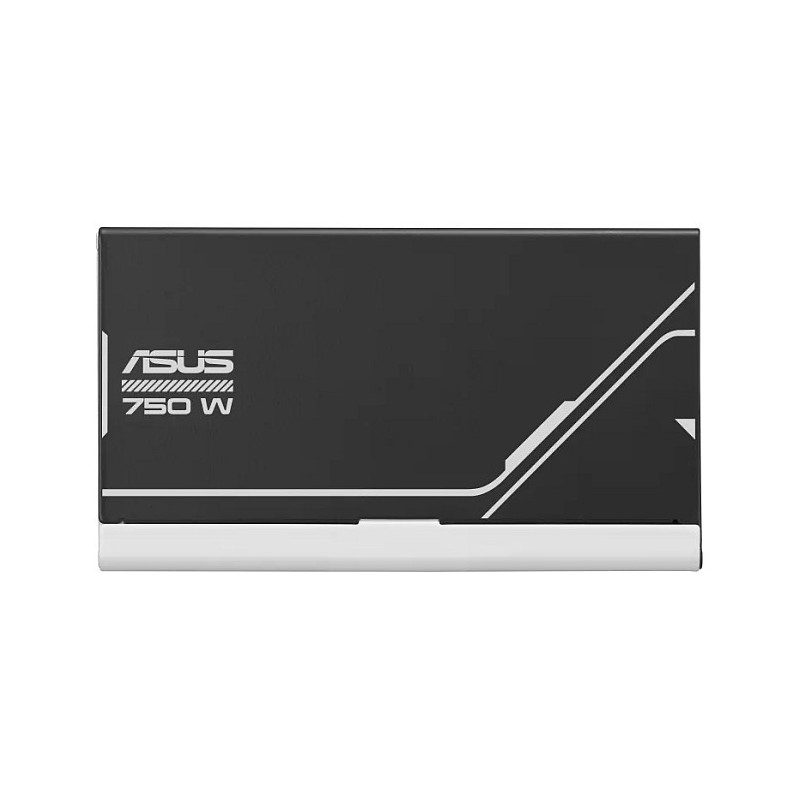

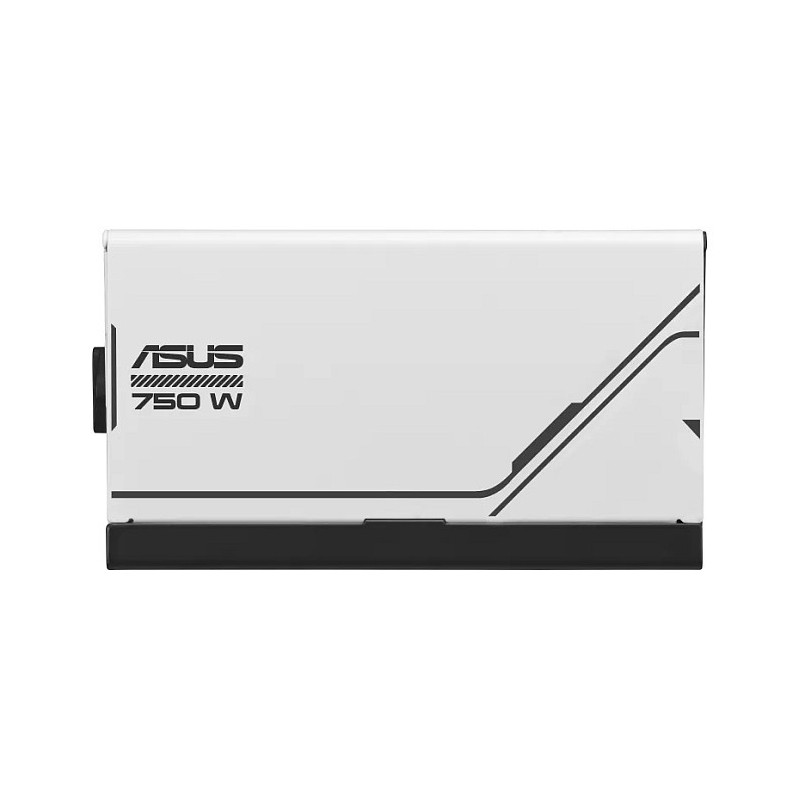

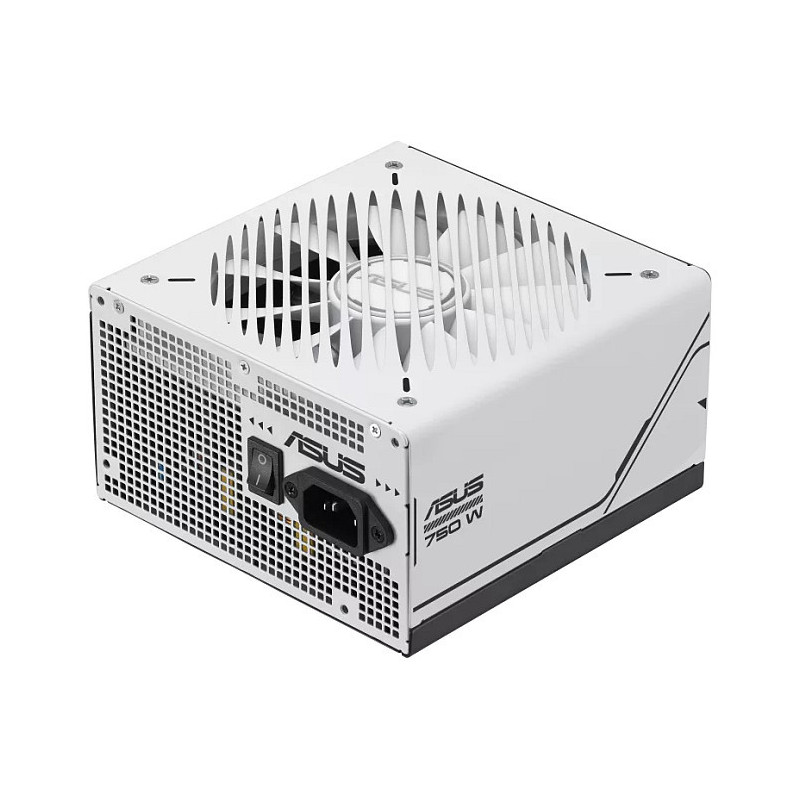

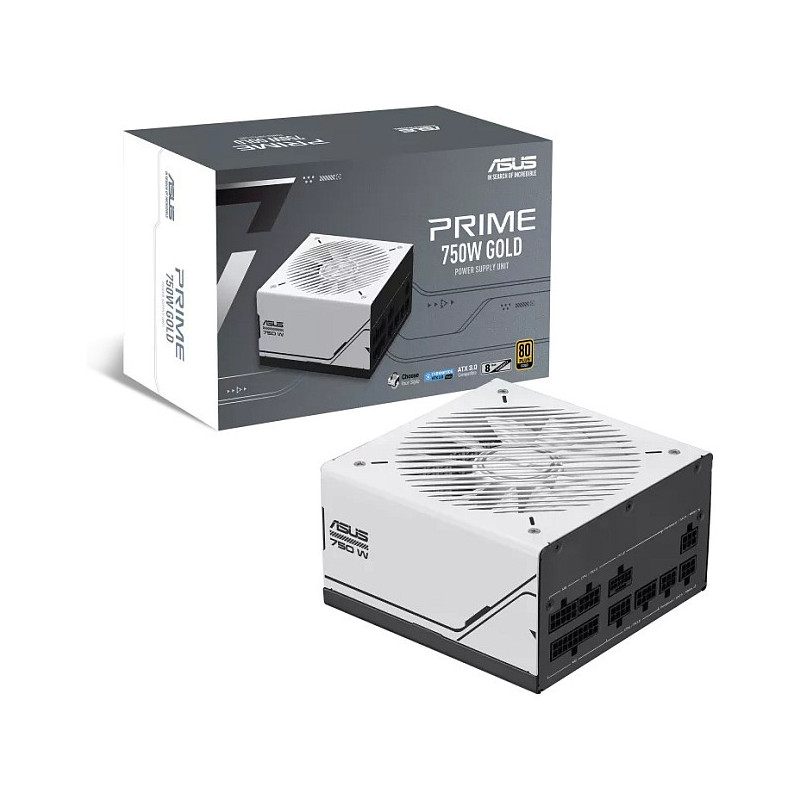

ASUS Prime 750W Gold (AP-750G) maitinimo blokas

ASUS Prime 750W Gold ( AP-750G ). Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, SATA, Peripheral (Molex)

PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

DUAL BALL FAN BEARINGS

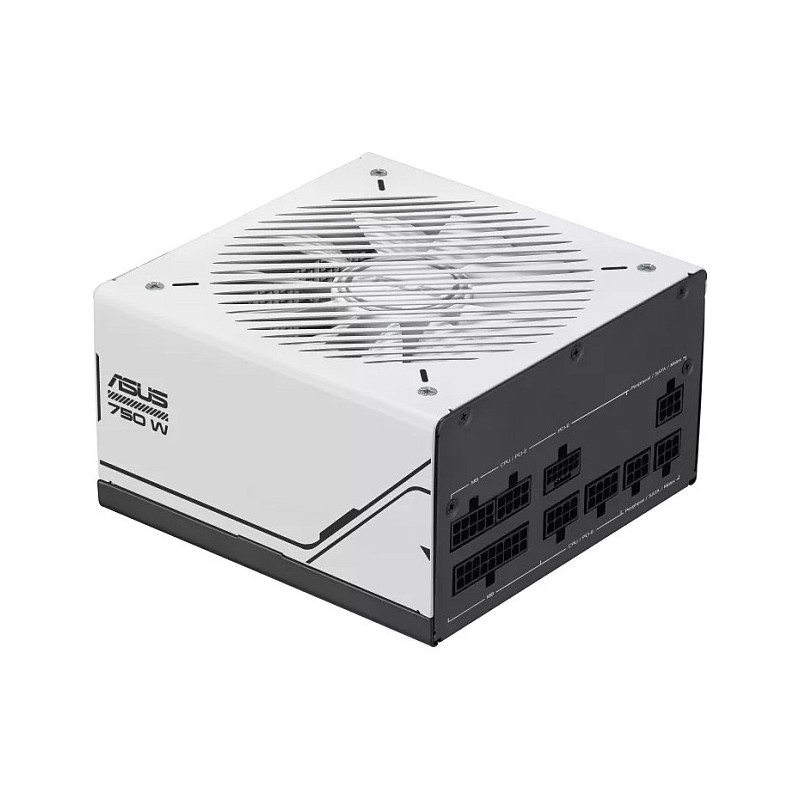

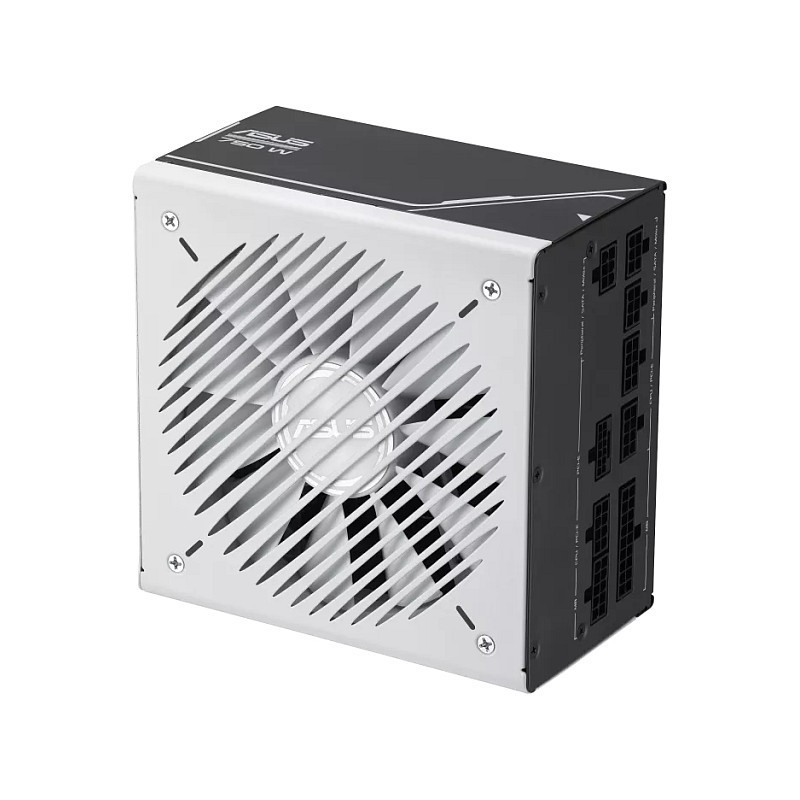

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

80 PLUS GOLD CERTIFICATION
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 744 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

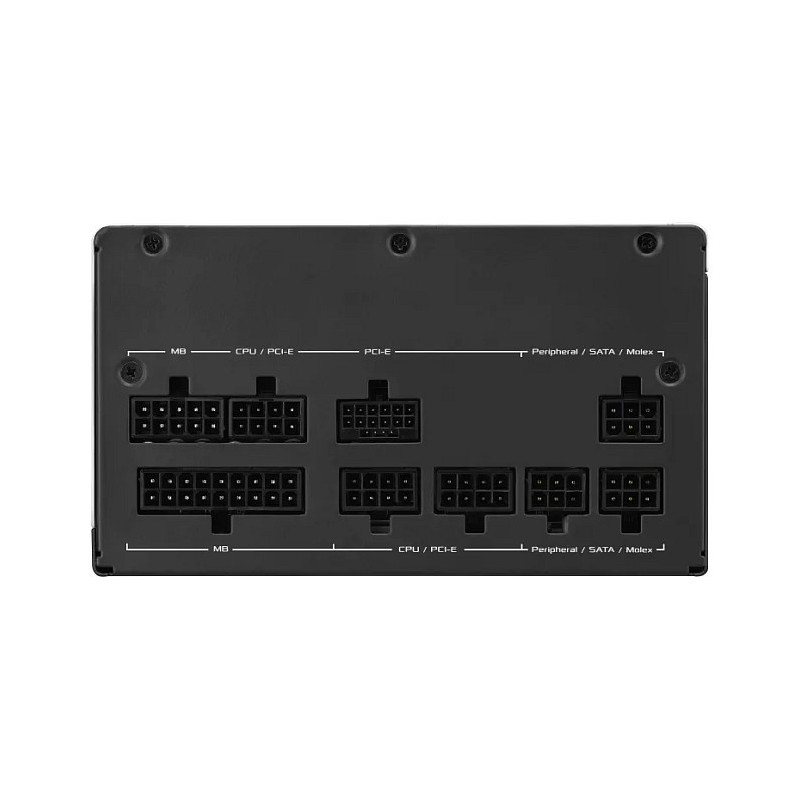

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 5
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 67.5 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
Bearing technology: DBB

Design

Product colour: Black, White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top

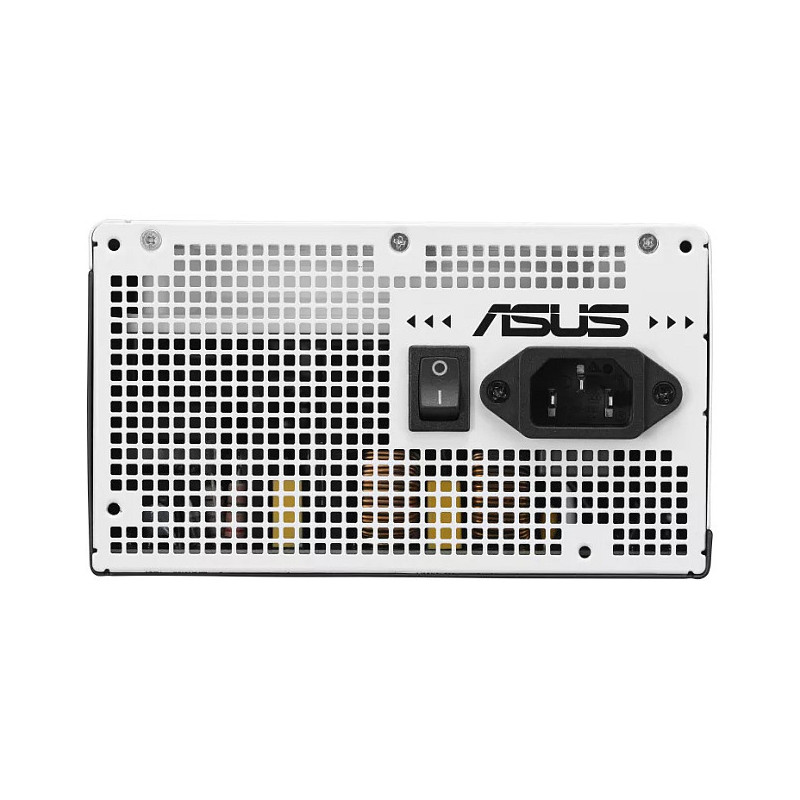

Feature: On/off switch

Packaging content

Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Certificates

Compliance certificates: RoHS

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.47 kg

Packaging data

Package weight: 2.72 kg
Package type: Box
