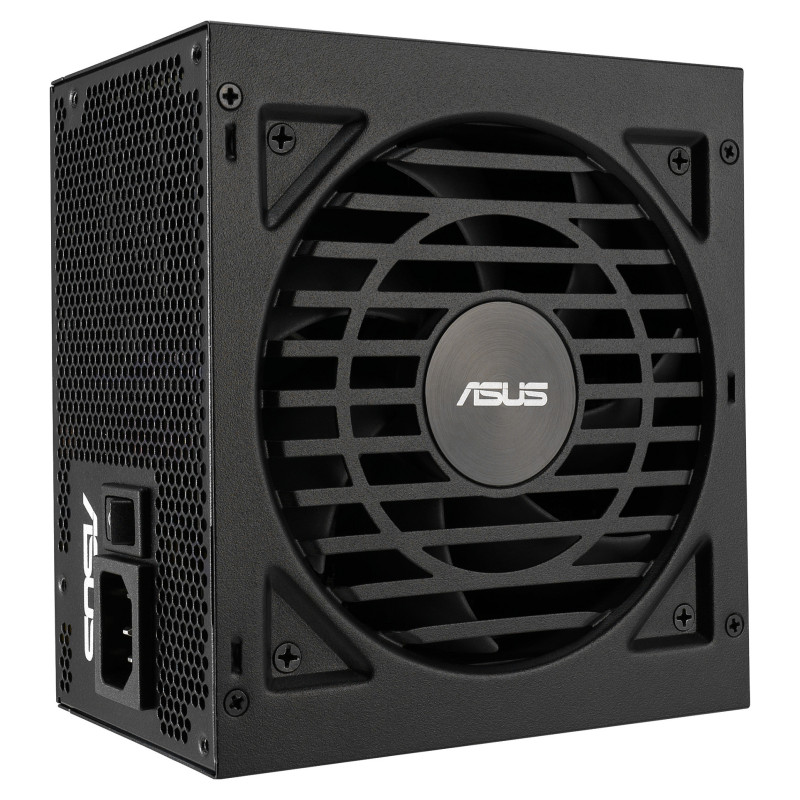

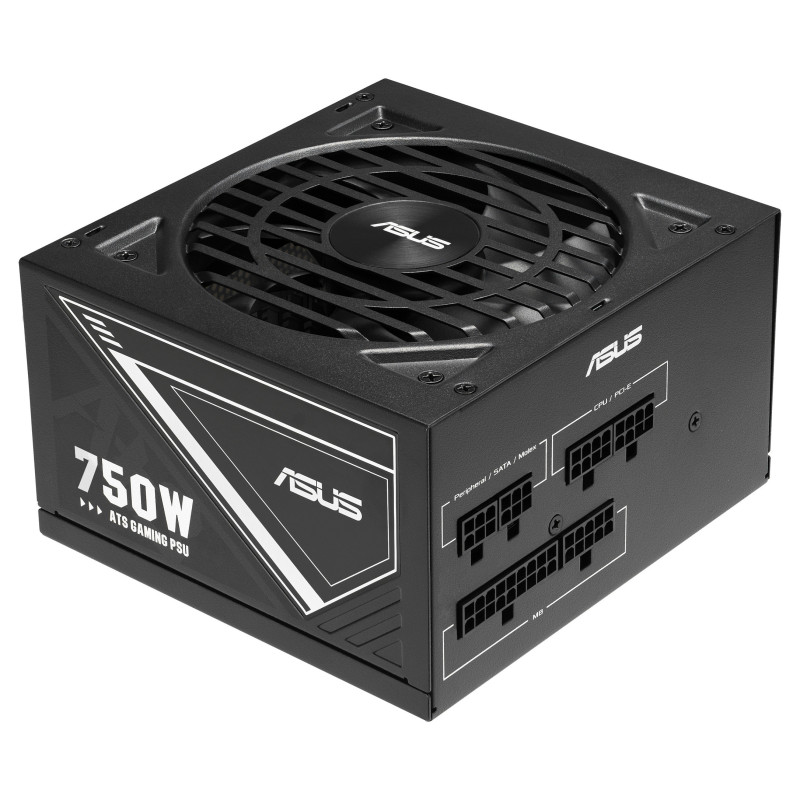

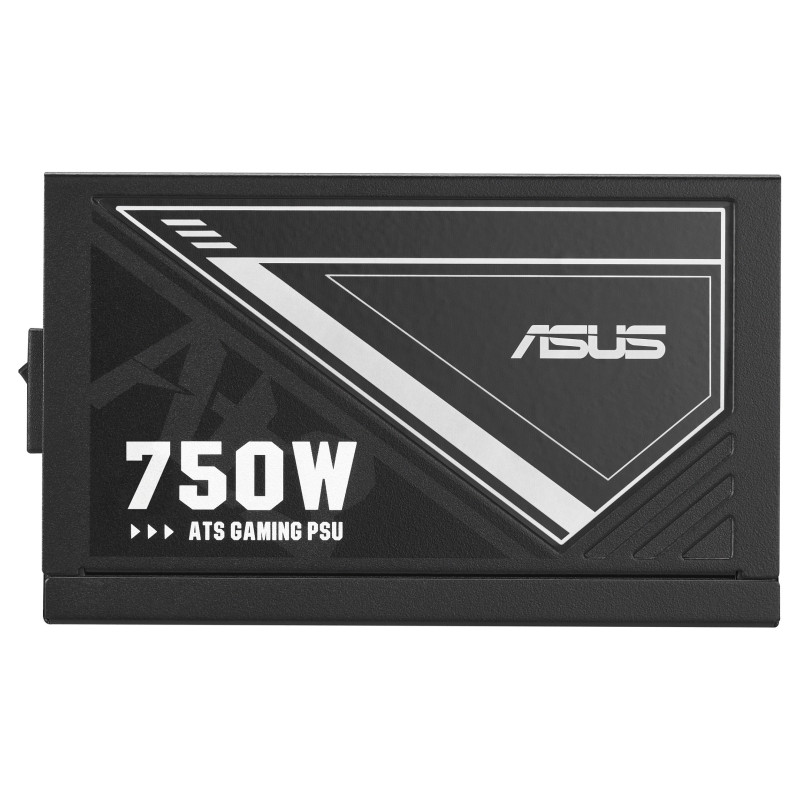

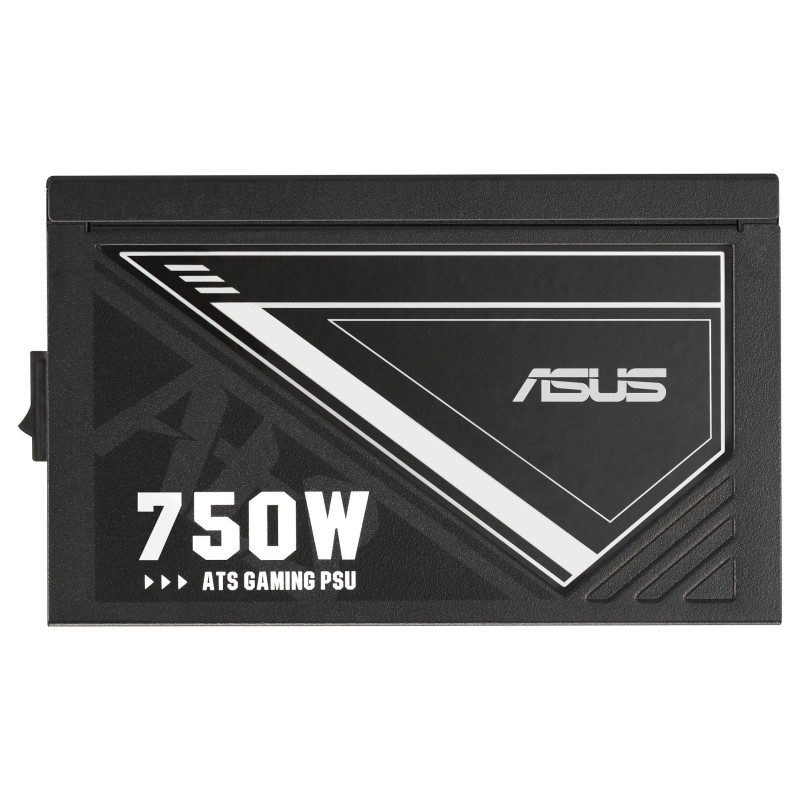

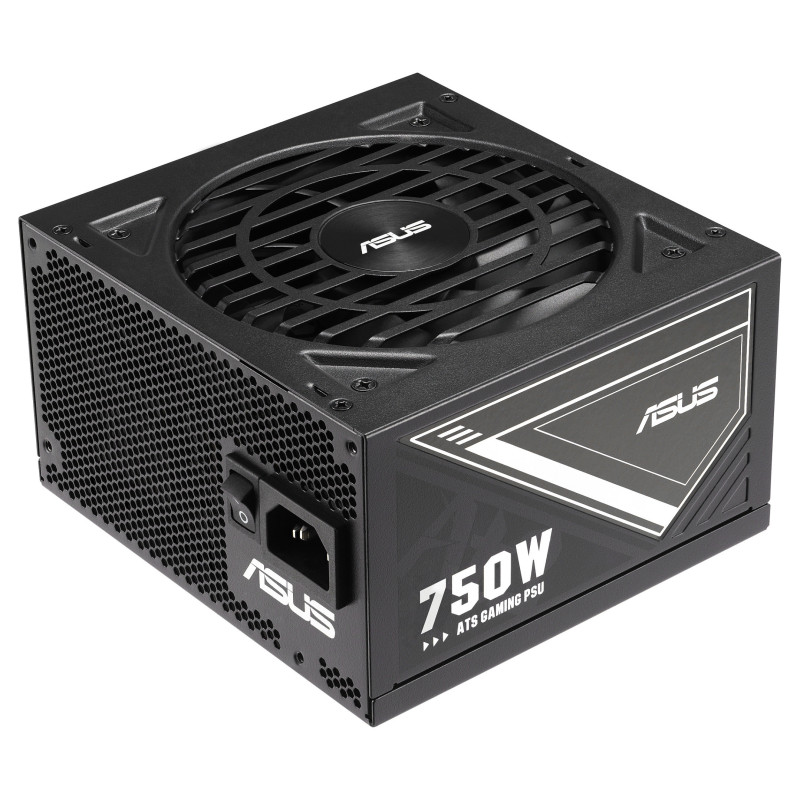

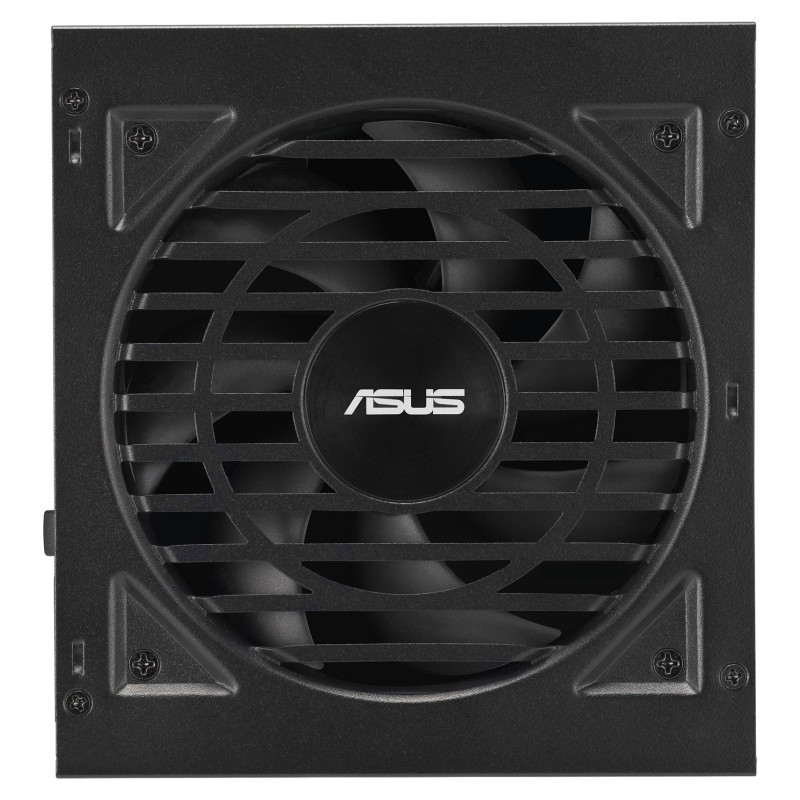

ASUS ATS-750G maitinimo blokas

ASUS ATS-750G. Total power: 750 W, AC input voltage: 110 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, PCI Express power cable length: 67.5 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: AC, PCIe, SATA, Packaging content: Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2...

ASUS 750W-ATS Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

With 80+ Gold certification, dual ball fan bearings, etched cables and a 3-year warranty, the PSU brings efficient and durable power delivery to reliable performance for the system build.

80 Plus Gold Certification
Heart of gold
The PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

COOLING

Dual Ball Fan Bearings
2X Longer Lifespan
Dual ball bearings boast an extensive lifespan of up to 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This means long-lasting, reliable cooling with minimal noise when you choose the PSU.

EXPERIENCE

Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-friendly CPU Power Connector
Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

3-year Warranty
We're so confident about the reliability of the PSUs that we back them with a 3-year warranty.

Power

Total power: 750 W
AC input voltage: 110 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 750 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 92%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
PCI Express power cable length: 67.5 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm
Feature: ATX power connector (20+4 pin)

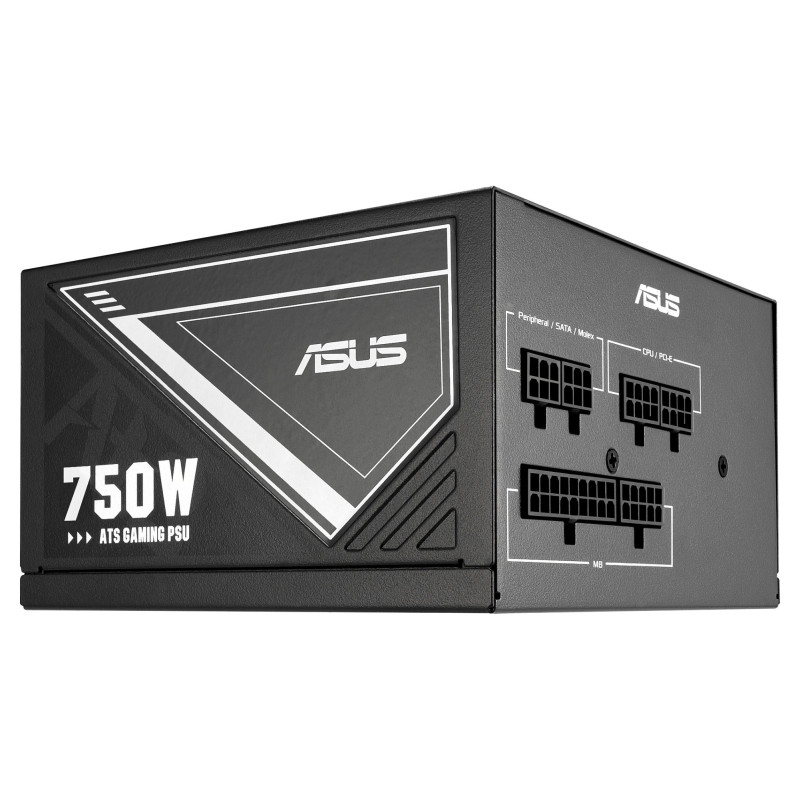

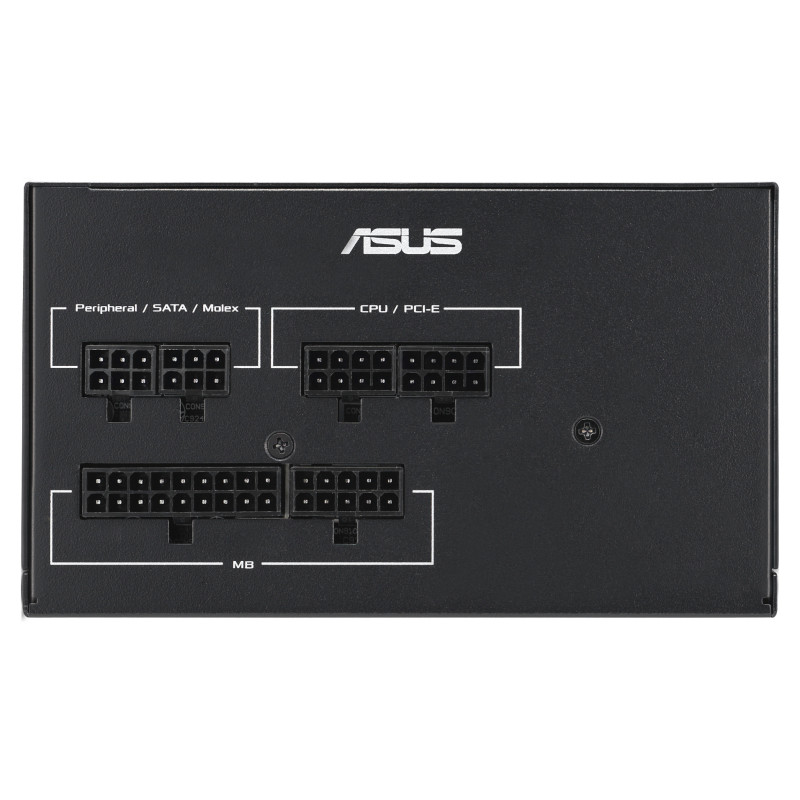

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: Ball bearing
Mean time between failures (MTBF): 120000 h

Design

Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)

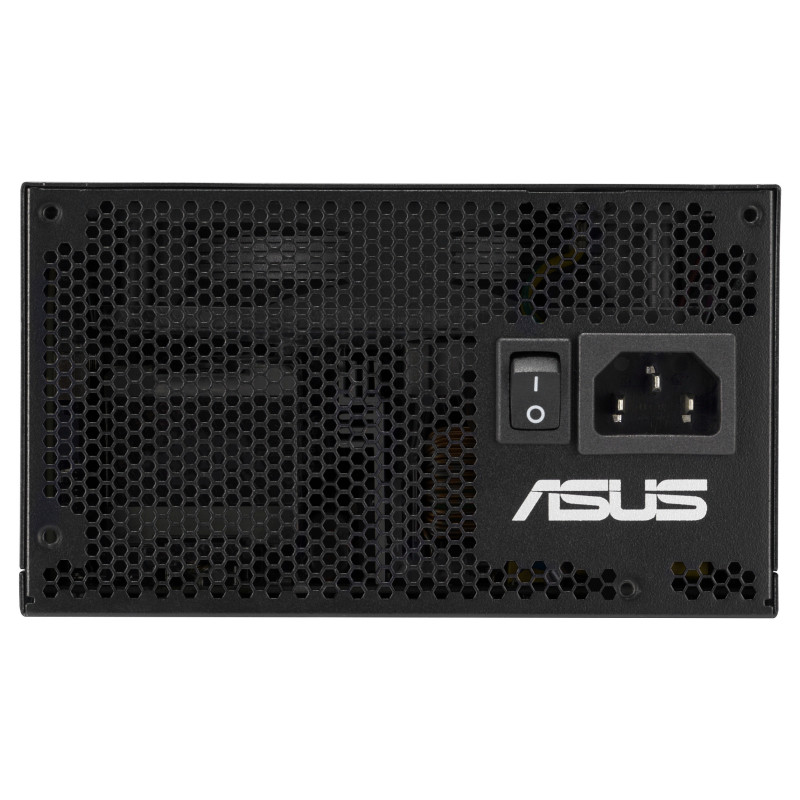

Feature: On/off switch

Packaging content

Cables included: AC, PCIe, SATA

Certificates

Compliance certificates: RoHS

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.53 kg

Packaging data

Package width: 250 mm
Package depth: 180 mm
Package height: 115 mm
Package weight: 2.78 kg
Package type: Box
