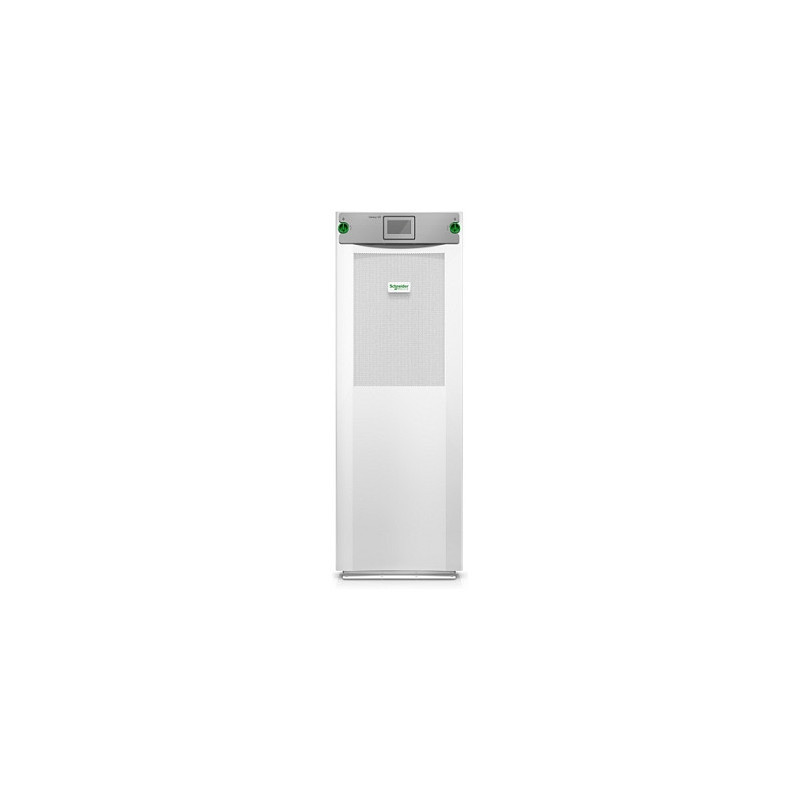

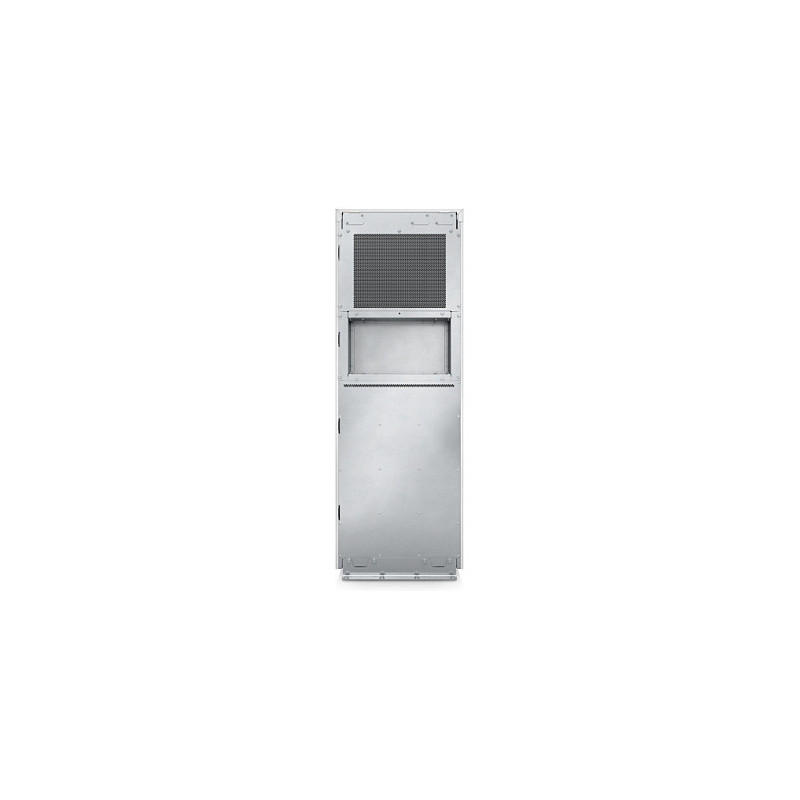

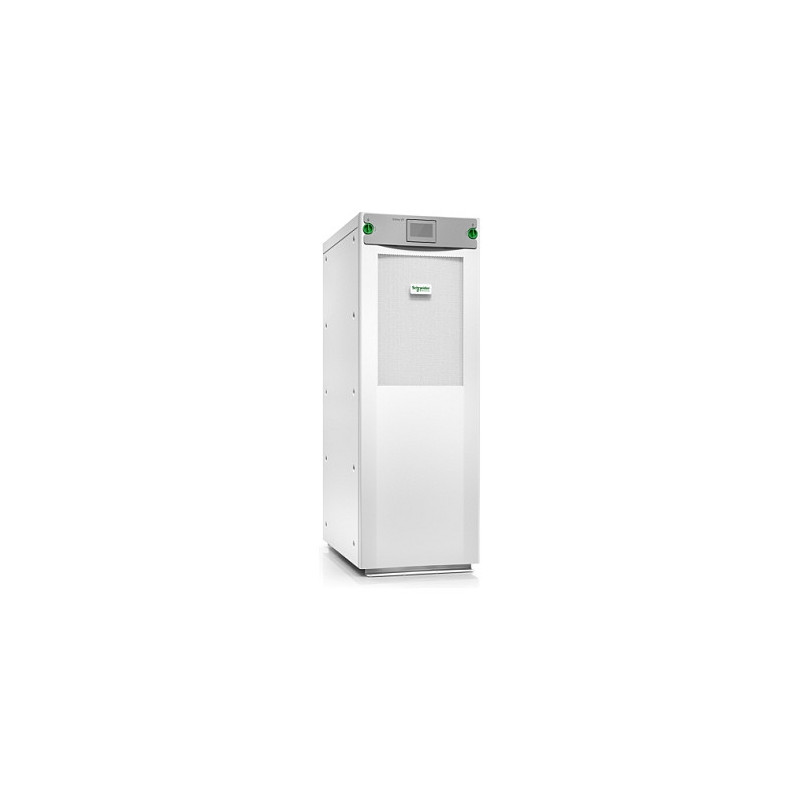

APC Galaxy VS nepertraukiamo maitinimo šaltinis (UPS)

APC Galaxy VS UPS 30kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 30 kVA, Output power: 30000 W. AC outlet types: Hard Wire 5-wire (3P + N + E). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product colour: White, Display type: LCD. Certification: IEC 62040-1-1, IEC 62040-2, OSHPD

Highly efficient, easy-to-deploy 30 kW, 400 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS is for up to 4 smart modular high capacity battery strings, but is supplied without batteries, so you can easily customize the battery runtime. Includes 5x8 start-up service.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 30 kVA
Output power: 30000 W
Waveform: Sine
Input operation voltage (min): 340 V
Input operation voltage (max): 460 V
Input frequency: 40/70 Hz
Output operation voltage (min): 380 V
Output operation voltage (max): 415 V
Output frequency: 50/60 Hz
Output voltage regulation: 1%
Maximum current: 54 A
Number of input phases: 3
Number of output phases: 3
Input power factor: 0.99
Crest factor: 2.5:1
Feature: ECO mode
Output voltage Total Harmonic Distortion (THD): 3%
Input current Total Harmonic Distortion (THD): 3%
Noise level: 65 dB
Feature: Audible alarm(s)

Ports & interfaces

AC outlet types: Hard Wire 5-wire (3P + N + E)
Feature: SmartSlot

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 480 V

Design

Form factor: Tower
Product colour: White
Display type: LCD
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 1005.8 m
Non-operating altitude: 0 - 3048 m

Certificates

Certification: IEC 62040-1-1, IEC 62040-2, OSHPD

Packaging content

Feature: Management card included
Feature: Manual

Weight & dimensions

Width: 521 mm
Depth: 847 mm
Height: 1485 mm
Weight: 200 kg

Packaging data

Package width: 640 mm
Package depth: 990 mm
Package height: 1680 mm
Package weight: 200 kg

Logistics data

Harmonized System (HS) code: 85078000
