APC BVX700LI nepertraukiamo maitinimo šaltinis (UPS)

APC BVX700LI. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 360 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CB, CE, EN/IEC 62040-1, EN/IEC 62040-2

Access monitoring
Detect access by unauthorized personnel via door switch.

Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.

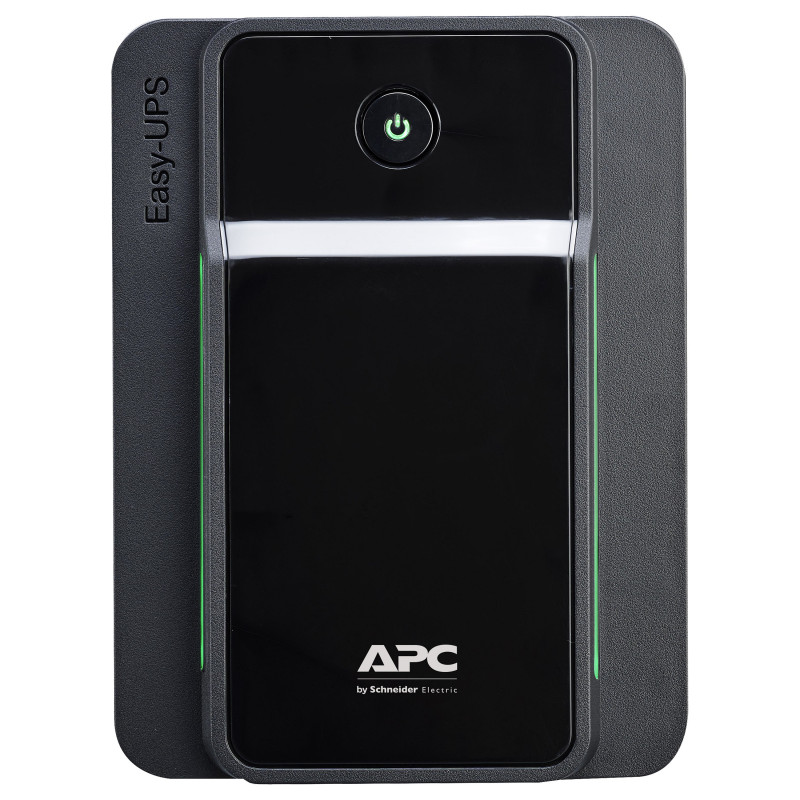

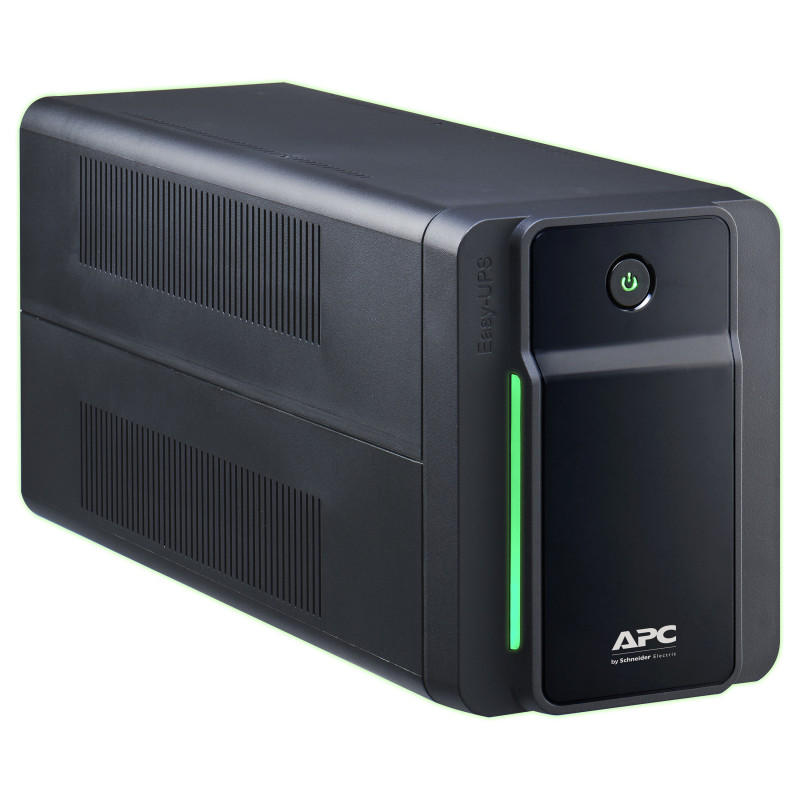

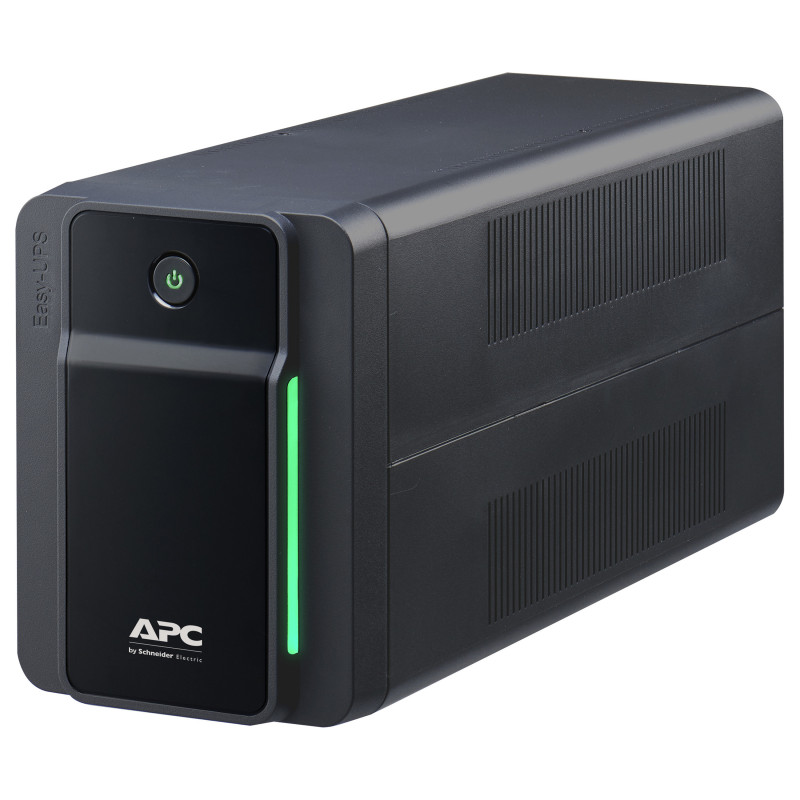

Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Cold-start capable
Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Features

UPS topology: Line-Interactive
Output power capacity: 0.7 kVA
Output power: 360 W
Waveform: Sine
Input operation voltage (min): 170 V
Input operation voltage (max): 280 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Output frequency regulation: 0.5 Hz
Output voltage regulation: 10%
Feature: Automatic Voltage Regulation (AVR)
Surge energy rating: 273 J
Response time: 6 ms
Input power factor: 0.51
Noise level: 40 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm

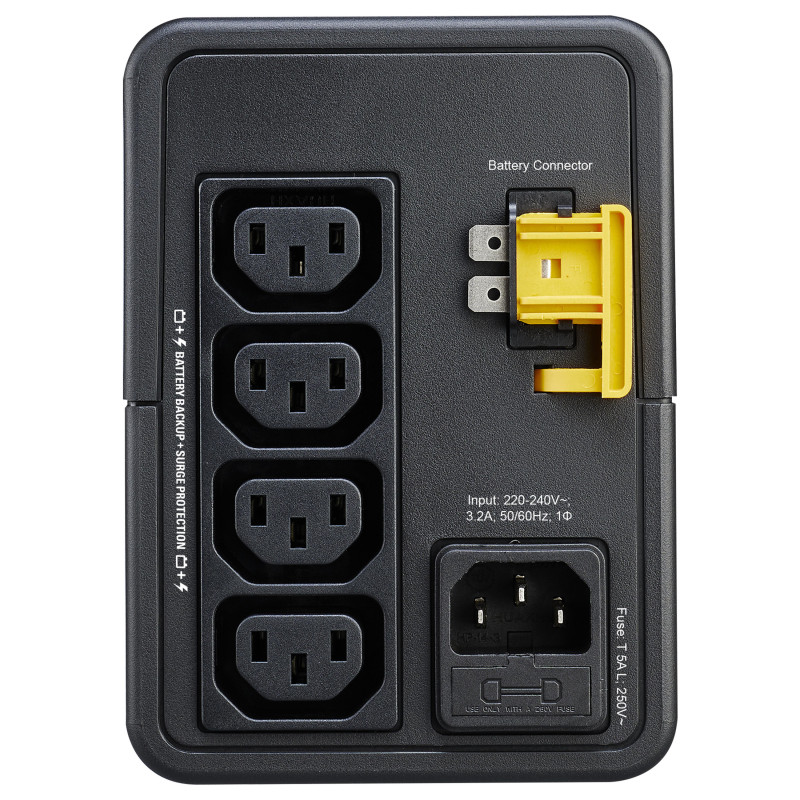

Ports & interfaces

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)

Battery

Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 7 Ah
Battery voltage: 12 V
Battery life (max): 2 year(s)
Battery recharge time: 8 h
Feature: Cold start

Design

Form factor: Compact
Product colour: Black
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 3000 m

Certificates

Certification: CB, CE, EN/IEC 62040-1, EN/IEC 62040-2

Packaging content

Cables included: Input power cable
Feature: Manual

Weight & dimensions

Width: 31 mm
Depth: 138 mm
Height: 98 mm
Weight: 4.5 kg

Packaging data

Package width: 222 mm
Package depth: 346 mm
Package height: 142 mm
Package weight: 4.5 kg

Logistics data

Harmonized System (HS) code: 85078000
