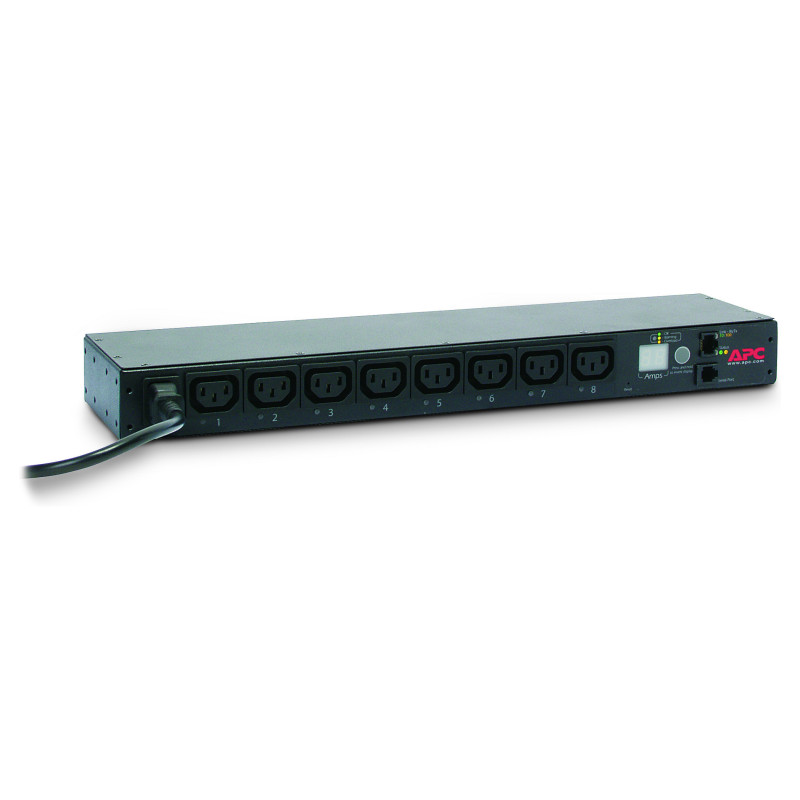

APC AP7920B maitinimo paskirstymo blokas (PDU)

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord. PDU types: Metered, Switched, Rack capacity: 0U/1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C14 coupler. Cable length: 1.98 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 200-230 V, Maximum current: 10 A, AC input frequency: 50 - 60 Hz

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Design

PDU types: Metered, Switched
Rack capacity: 0U/1U
Mounting: Horizontal/Vertical
Product colour: Black

Ports & interfaces

AC outlets quantity: 8 AC outlet(s)
Power plug: C14 coupler
AC outlet types: C13 coupler
Input connection type: IEC-320 C14

Features

Cable length: 1.98 m

Management features

Monitoring: Current, Power, Voltage
Outlet control: Lock-out, Recycle, Turn off, Turn on

Power

Nominal input voltage: 200-230 V
AC input frequency: 50 - 60 Hz
Maximum current: 10 A
Nominal output voltage: 208-230 V
Load capacity: 2300 VA
Maximum input current per phase: 10 A
Maximum total current draw per phase: 10 A
Maximum power: 2300 W

Certificates

Compliance certificates: RoHS
Certification: cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m
Non-operating altitude: 1 - 15000 m

Weight & dimensions

Width: 445 mm
Depth: 108 mm
Height: 44 mm
Weight: 2.27 kg

Packaging content

Packaging content: Installation Guide, Rack Mounting Brackets, User Manual

Packaging data

Package weight: 3.45 kg
Package width: 470 mm
Package depth: 343 mm
Package height: 70 mm

Logistics data

Total carbon footprint (kg of CO2e): 915.89
