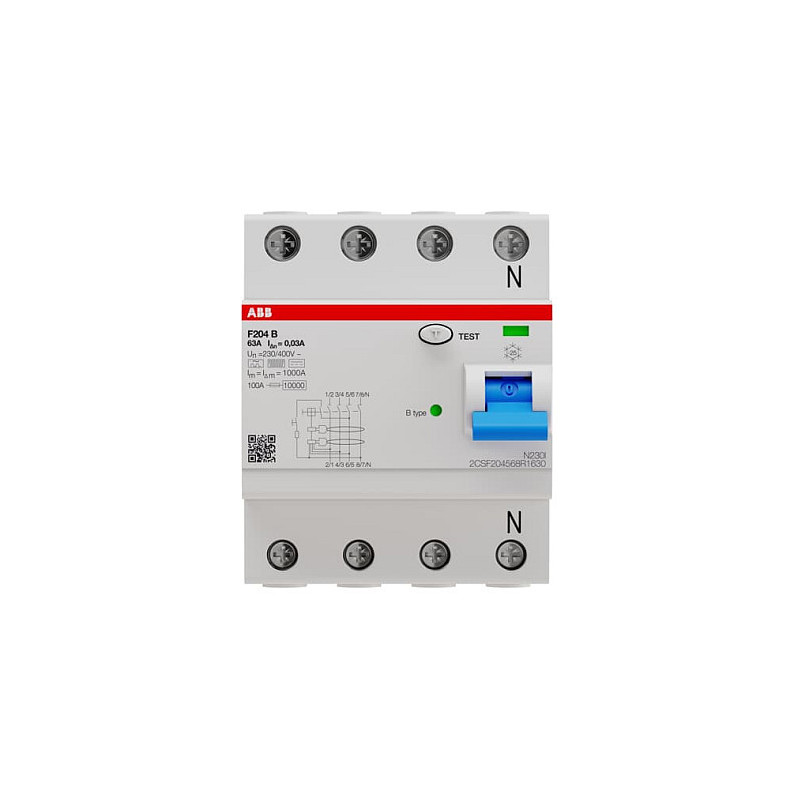

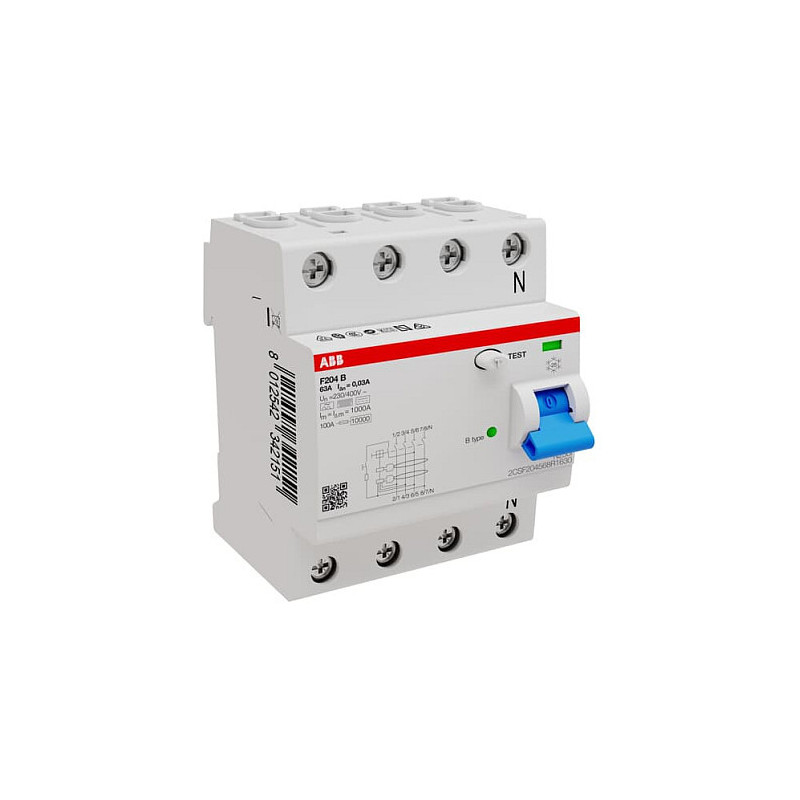

ABB F204 B-63 / 0,03 grandinės pertraukiklis

ABB F204 B-63/0.03. Rated current: 63 A, Input voltage: 230 - 400 V, Input frequency: 50 / 60 Hz. Circuit breaker type: Residual-current device, Residual-current type: Type B, International Protection (IP) code: IPX4. Width: 70 mm, Depth: 69 mm, Height: 85 mm. Package width: 80 mm, Package depth: 94 mm, Package height: 82 mm. Country of origin: Italy

The RCCBs F200 series assures protection to people and installations against fault current to earth. This product is manufactured according to international IEC standards, for the markets where it is required.

Power

Input voltage: 230 - 400 V
Input frequency: 50 / 60 Hz
Rated current: 63 A
Total power loss: 15.6 W

Features

Circuit breaker type: Residual-current device
Residual-current type: Type B
Number of poles: 4
International Protection (IP) code: IPX4
Pollution degree: 3
Installation type: DIN-rail
Product colour: Grey

Operational conditions

Operating temperature (T-T): -25 - 70 °C

Weight & dimensions

Width: 70 mm
Depth: 69 mm
Height: 85 mm
Weight: 380 g

Packaging data

Package width: 80 mm
Package depth: 94 mm
Package height: 82 mm
Package weight: 415 g

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Logistics data

Country of origin: Italy
