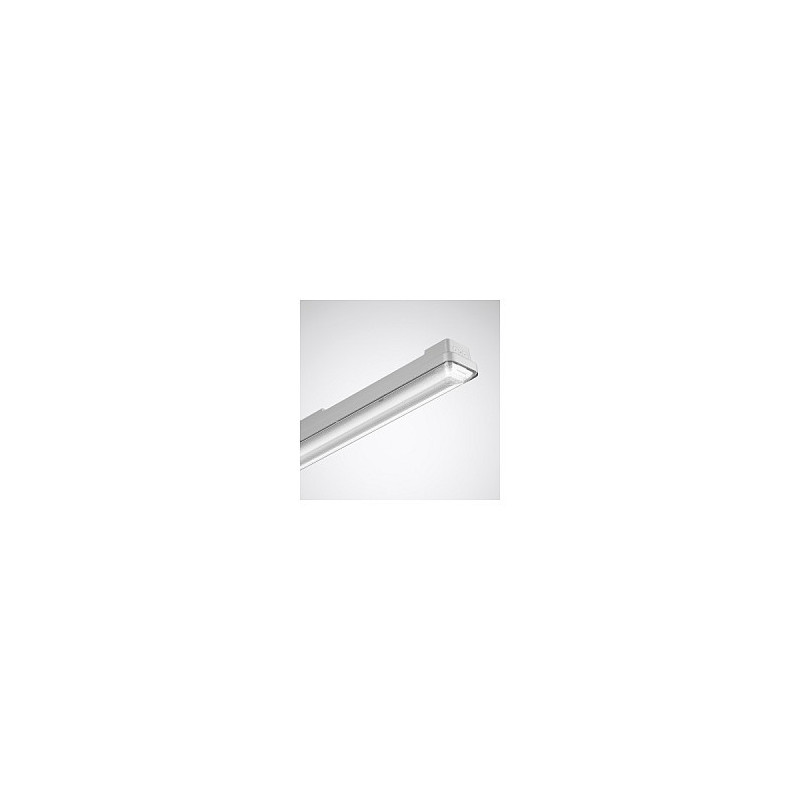

Trilux 7123240 lubų šviestuvas

Trilux 7123240. Product colour: Grey, Suitable location: Universal, Shape: Rectangle. Bulb type: LED, Total power: 28 W, Colour temperature: 4000 K. Power source type: AC, Input voltage: 220 - 240 V, AC input voltage: 220 - 240 V. Width: 102 mm, Depth: 1552 mm, Height: 91 mm. Quantity per pack: 1 pc(s)

Luminaire type
LED weather-proof surface-mounted luminaire IP66.

Applications
Ceiling and wall luminaires for damp environments and covered exterior areas. Advantageous with applications requiring increased mechanical stability. Suitable for use in HACCP, IFS version 6 and/or BRC Global Standard Food version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24, suitable for use in work locations exposed to fire hazards.

Mounting methods
With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. For ceiling, wall and suspended mounting. Ceiling mounting with stainless steel fixing clips (included). Suspended mounting possible via optional accessories.

Optical system
PMMA diffuser with inner prism structure. With symmetric wide light intensity distribution. Glare evaluation according to UGR rating (EN 12464-1) < 25.

LED system
Luminaire luminous flux 4000 lm, connected load 28,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 142 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM, Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020).

Luminaire body
Luminaire body of PC. Colour of luminaire body light grey (RAL 7035). With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,5 kg.

Design

Feature: Suitable for indoor use
Suitable location: Universal
Shape: Rectangle
Mounting type: Recessed
Feature: Wall mountable
Housing material: Steel
Product colour: Grey
International Protection (IP) code: IP66
Protection class: I
Mechanical impact protection code: IK03

Lamps

Bulb type: LED
Total power: 28 W
Colour temperature: 4000 K
Luminous flux: 4000 lm
Power factor: 0.95
Color Rendering Index (CRI): 80
Luminous efficacy: 142 lm/W

Power

Power source type: AC
Input voltage: 220 - 240 V
AC input voltage: 220 - 240 V

Weight & dimensions

Width: 102 mm
Depth: 1552 mm
Height: 91 mm
Weight: 2.5 kg

Packaging data

Quantity per pack: 1 pc(s)

Other features

Ambient temperature (min): -20 °C
Ambient temperature (max): 35 °C
