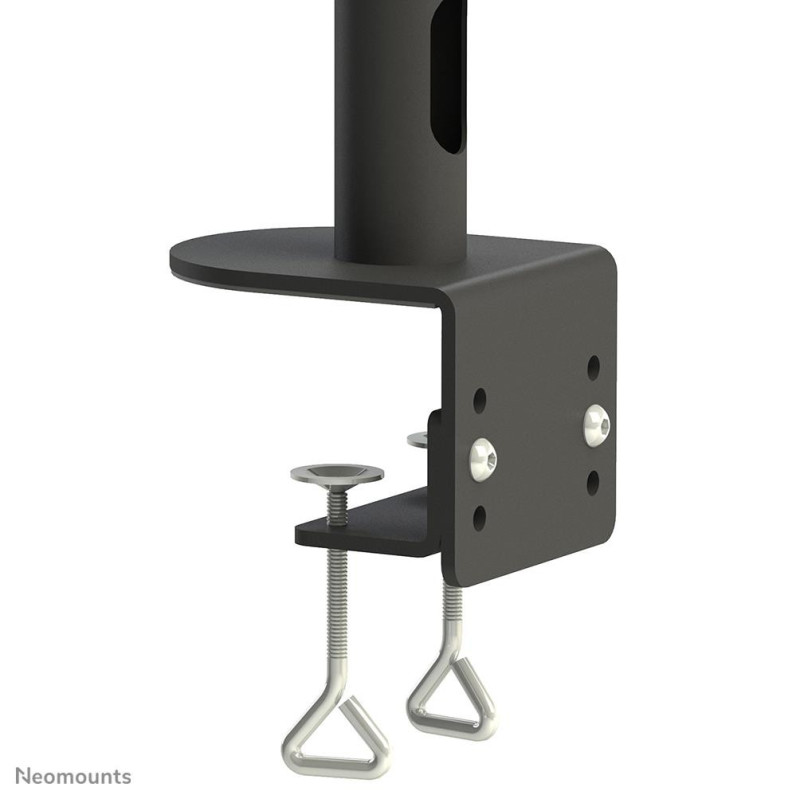

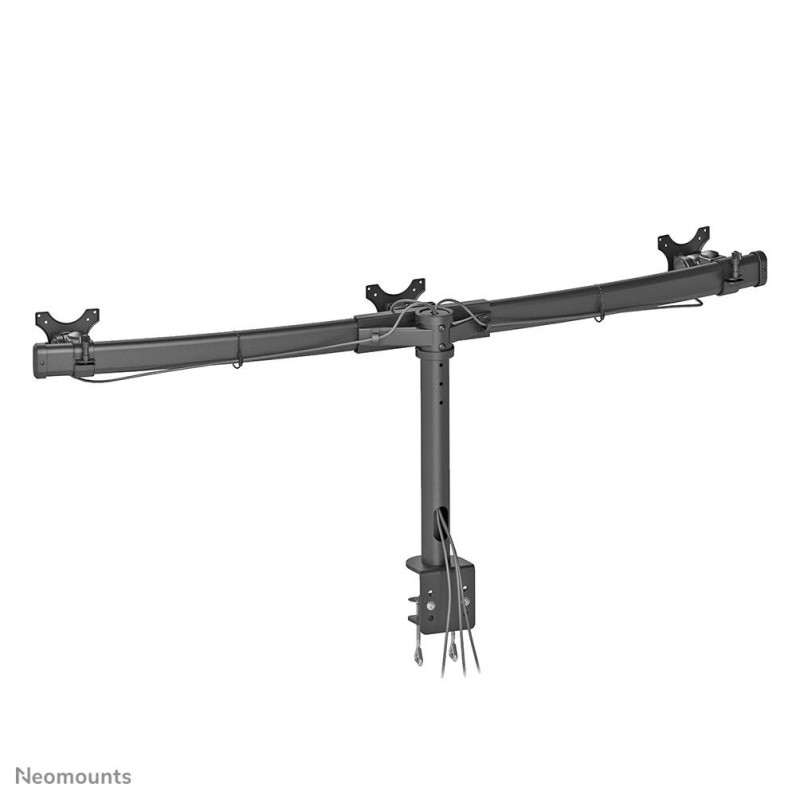

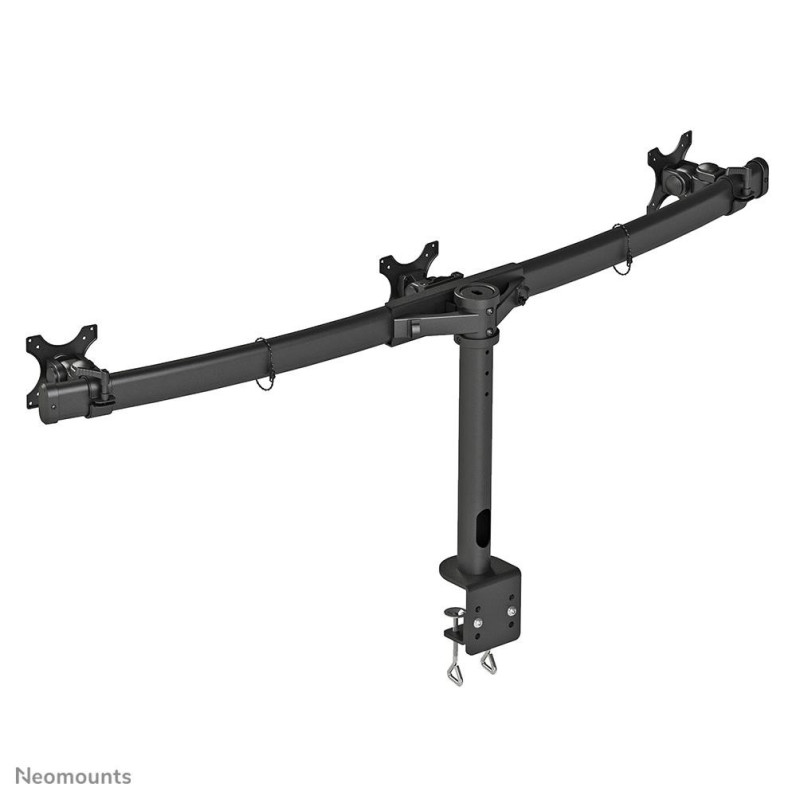

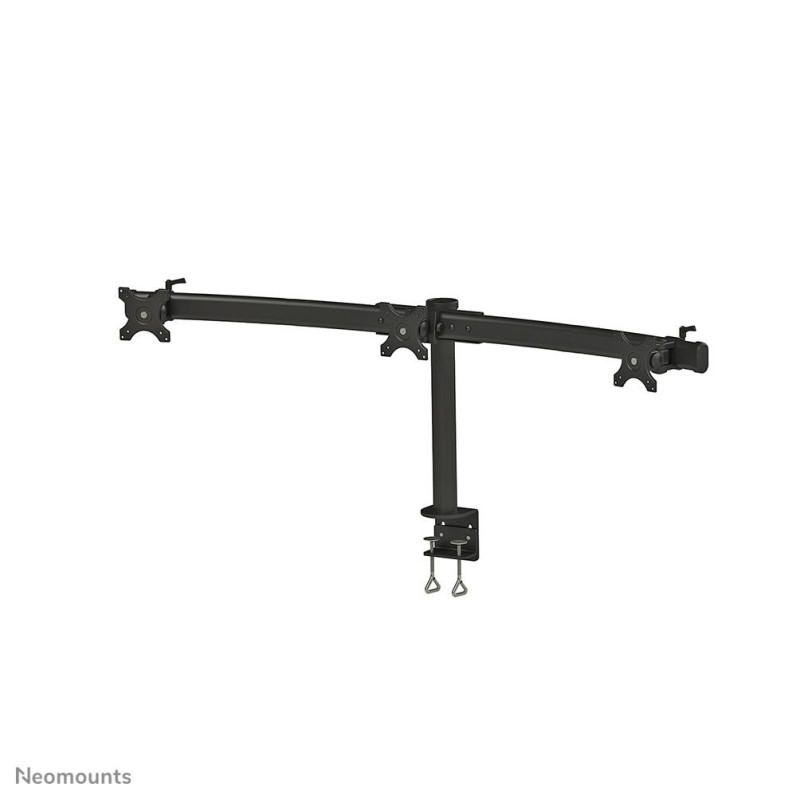

The Neomounts desk mount, model FPMA-D700D3 is a tilt- and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.
Neomounts versatile tilt (90°), rotate (360°) and swivel (103°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 32 to 42 centimetres. Depth 7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D3 has one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Angle of rotation | 360 ° |
| Country of origin | Taiwan |
| Depth | 70 mm |
| Depth adjustment range | 0 - 70 mm |
| Desk thickness (max) | 90 mm |
| Distance to the wall (max) | 70 mm |
| Harmonized System (HS) code | 7326909890 |
| Height | 420 mm |
| Height adjustment | Yes |
| Height adjustment range | 320 - 420 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Master (outer) case gross weight | 10500 g |
| Master (outer) case height | 160 mm |
| Master (outer) case length | 334 mm |
| Master (outer) case net weight | 9500 g |
| Master (outer) case width | 750 mm |
| Maximum screen size | 27 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp |
| Mounting type | Desk |
| Number of displays supported | 3 |
| Package depth | 334 mm |
| Package height | 160 mm |
| Package weight | 9500 g |
| Package width | 750 mm |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Product colour | Black |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 39 pc(s) |
| Rotating | Yes |
| Summary | Neomounts FPMA-D700D3 Monitor arm 10-27". Mounting: Clamp, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 103°, Tilt angle range: -90 - 90°. Product colour: Black |
| Swivel angle | 103 ° |
| Swivel angle range | 0 - 103 ° |
| Swivelling | Yes |
| Tilt angle range | -90 - 90 ° |
| Unit Box Height | 0.138 |
| Unit Box Length | 0.74 |
| Unit Box Width | 0.325 |
| Unit Calculated Volume | 0.03319 cubm |
| Unit Calculated Weight | 10.5 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D700D3 |
| Weight | 9160 g |
| Width | 1225 mm |
| Width adjustment | 1225 mm |
| Width adjustment range | 0 - 1225 mm |
