„StarTech.com DP21-2M-DP40-CABLE“ DisplayPort kabelis

StarTech.com 2m DisplayPort 2.1 Cable, VESA Certified DP40 DisplayPort Cable w/UHBR10/HDR/HDCP 2.2, 8K 60Hz/4K 144Hz w/DSC 1.2a, 40Gbps, DP 2.1 Cable, UHD Monitor Cord, M/M. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS. Cable diameter: 6.5 mm, Weight: 106 g. Package width: 220 mm, Package depth: 200 mm, Package height: 21 mm. Quantity per pack: 1 pc(s)

Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices

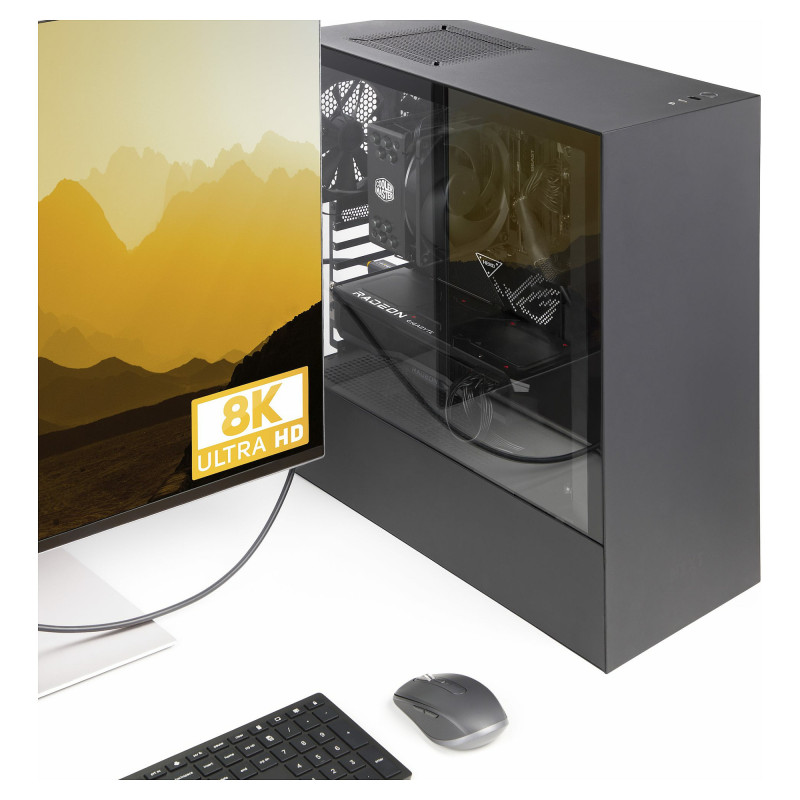

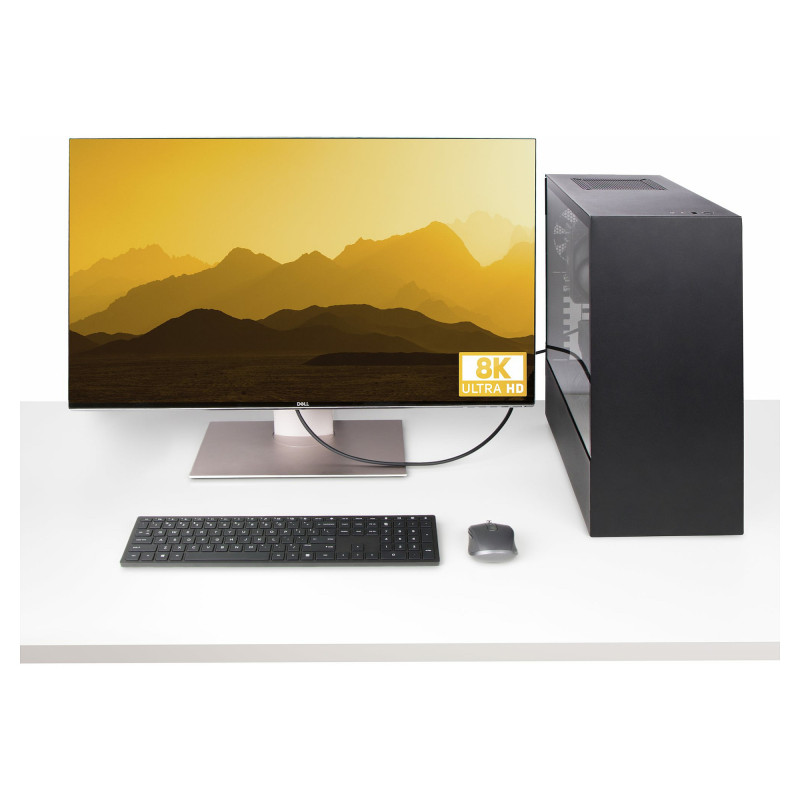

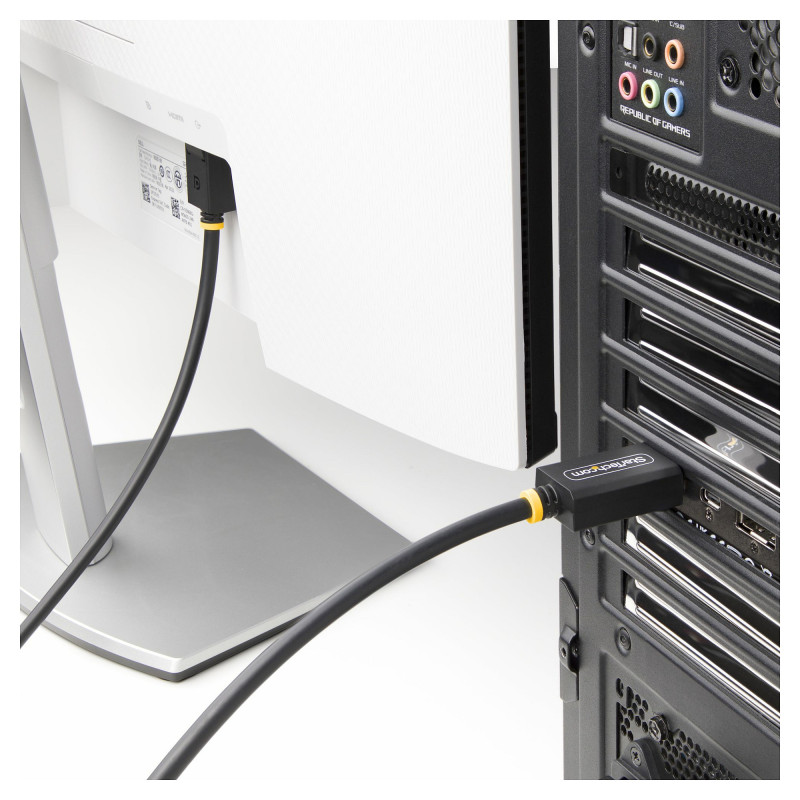

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.

Seamless Compatibility

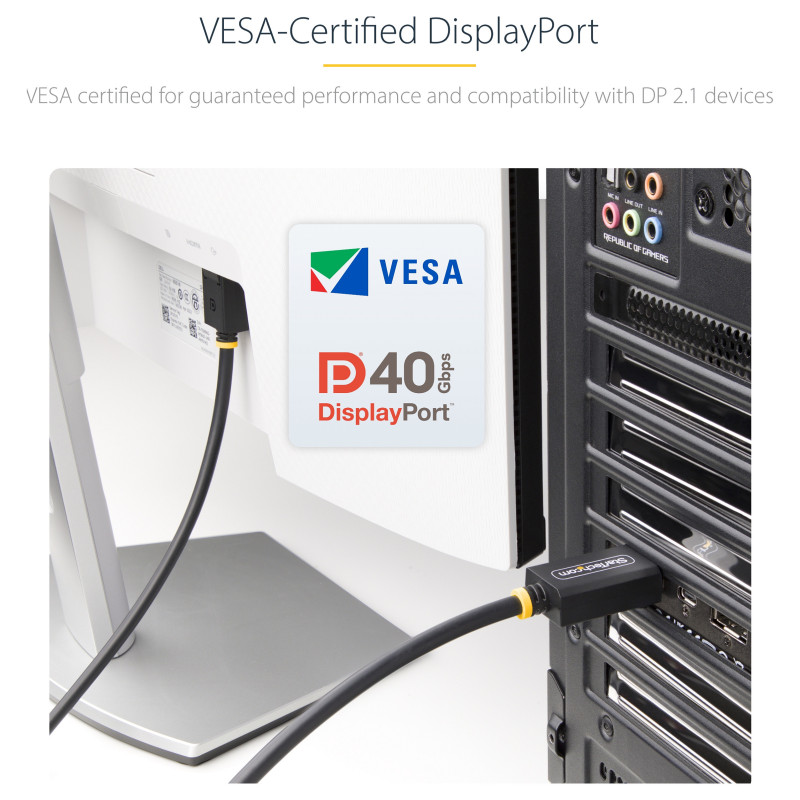

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

Durable Design

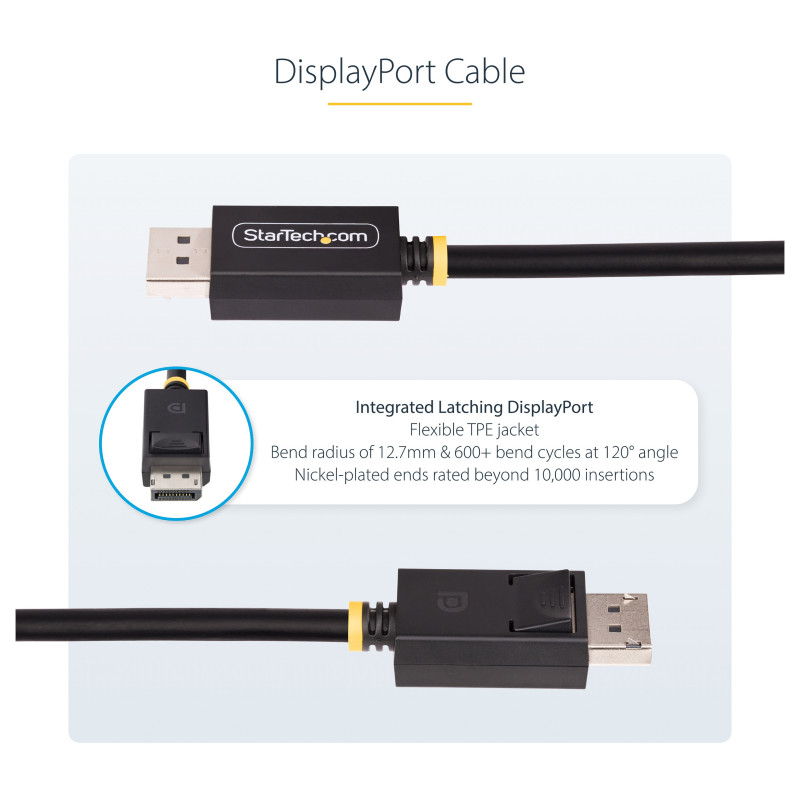

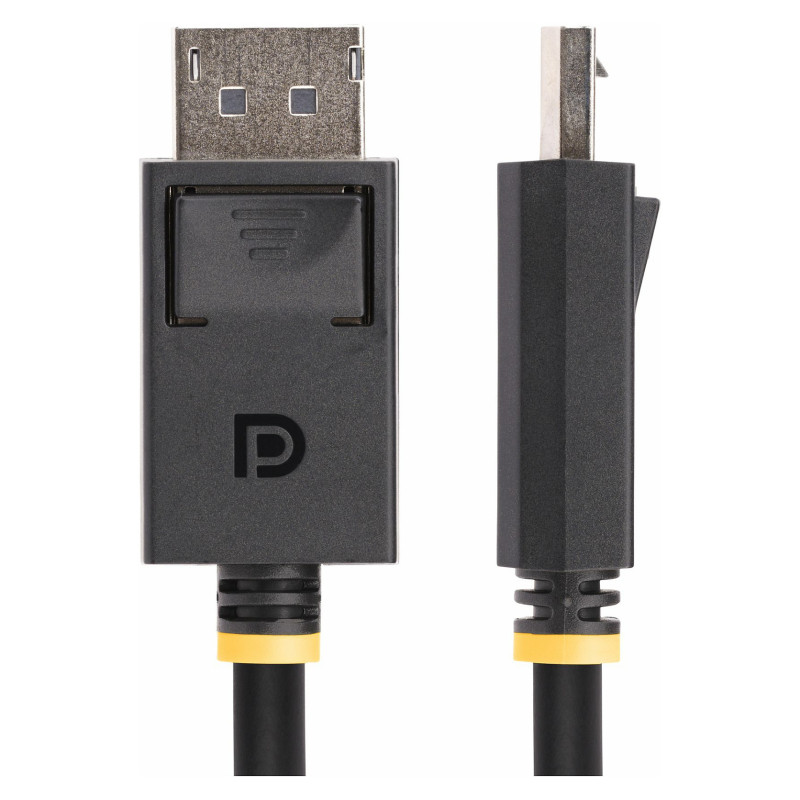

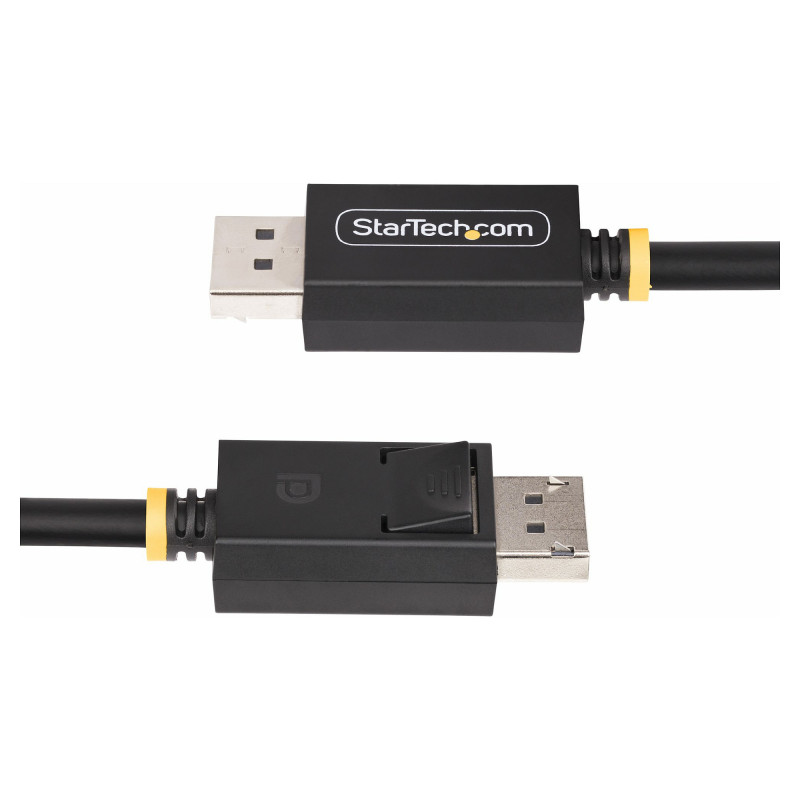

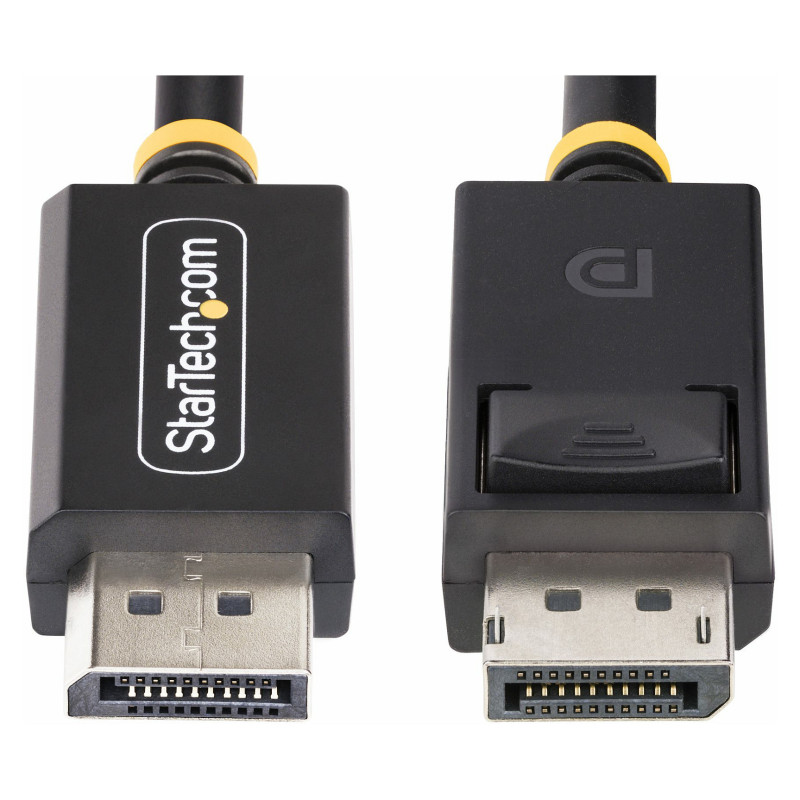

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.

Supported DisplayPort 2.1 Features:

This DP40 DisplayPort cable supports the following DP 2.1 features:

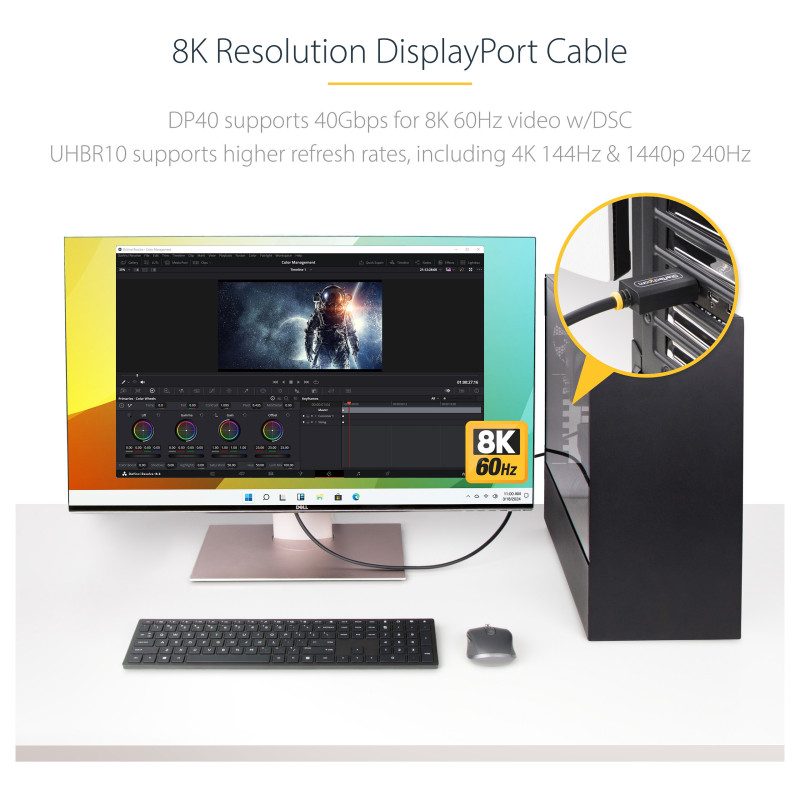

• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions

This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Nickel
DisplayPort version: 2.1
Maximum resolution: 7680 x 4320 pixels
Maximum refresh rate: 144 Hz
Feature: HDCP
HDCP version: 2.2
Feature: Display Stream Compression (DSC)
Display Stream Compression (DSC) version: 1.2a
Cable length: 2 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable material: Copper
Cable shielding: Aluminum mylar foil
Jacket material: Thermoplastic elastomer (TPE)
AWG wire size: 30
Feature: High Dynamic Range (HDR) supported
Data transfer rate: 40 Gbit/s
Channels quantity: 32 channels
Fire-resistance rating: VW-1

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Certificates

Compliance certificates: RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

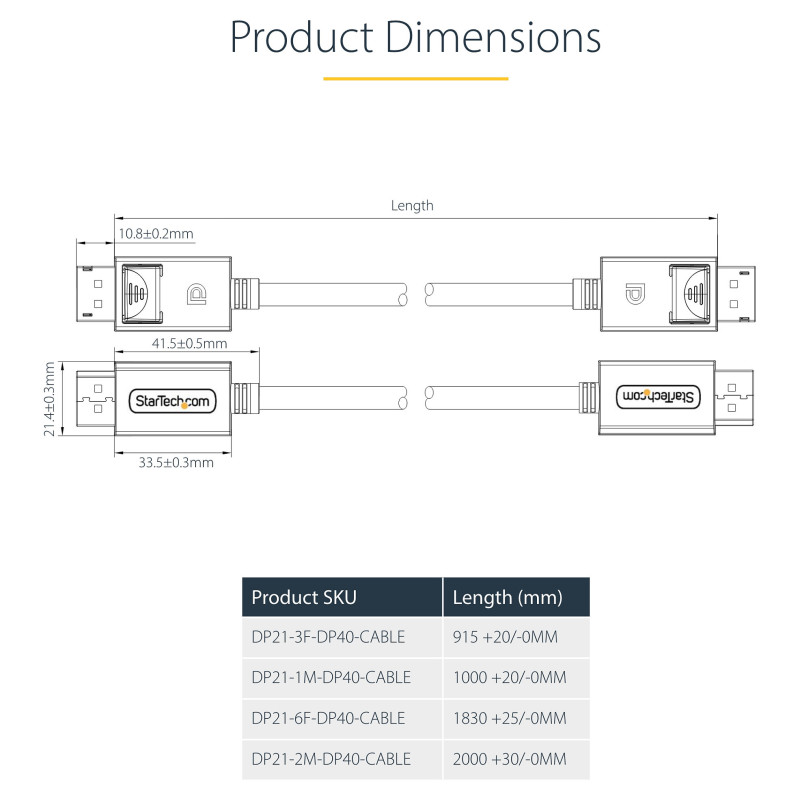

Cable diameter: 6.5 mm
Weight: 106 g

Packaging data

Package width: 220 mm
Package depth: 200 mm
Package height: 21 mm
Package weight: 120 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Master (outer) case width: 500 mm
Master (outer) case length: 320 mm
Master (outer) case height: 215 mm
Products per master (outer) case: 50 pc(s)
