StarTech.com CDP2DVI USB grafikos adapteris

StarTech.com USB C to DVI Adapter - Black - 1920x1200 - USB Type C Video Converter for Your DVI D Display/Monitor/Projector - Upgraded Version is CDP2DVIEC. USB version: 3.2 Gen 2 (3.1 Gen 2), USB connector type: USB Type-C, USB connector gender: Male. Product colour: Black. Width: 43 mm, Depth: 187 mm, Height: 15 mm. Package width: 122 mm, Package depth: 103 mm, Package height: 24 mm. Products per master (outer) case: 200 pc(s), Master (outer) case width: 326 mm, Master (outer) case length: 506 mm

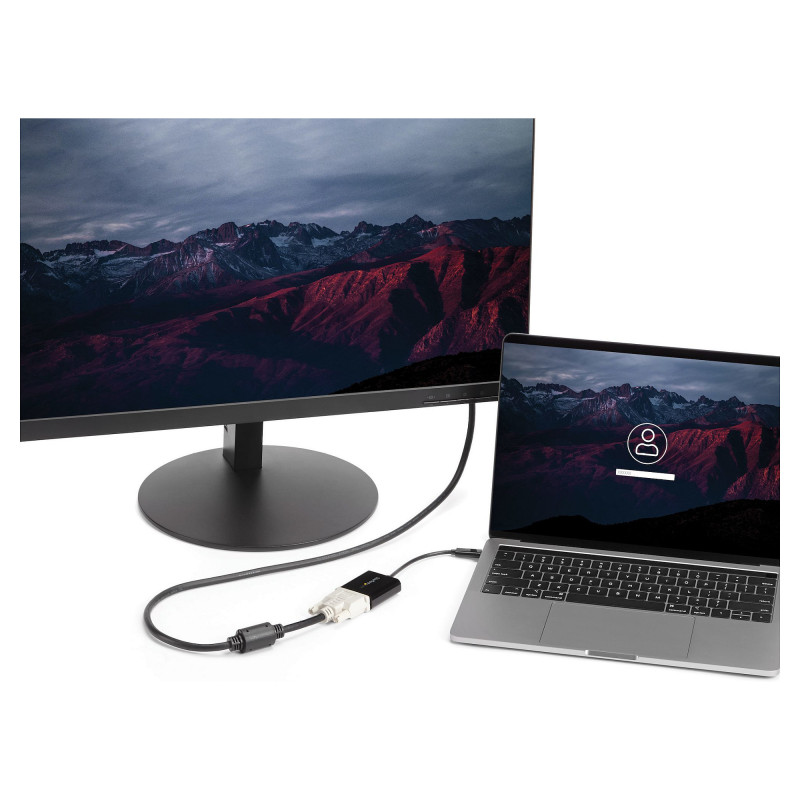

Connect your MacBook, Chromebook™ or laptop with USB-C to a DVI monitor or projector

This USB-C™ to DVI adapter lets you output DVI video from a USB Type-C™ device such as your MacBook, Chromebook™, Dell XPS™ or 2018 iPad Pro. The adapter works with USB-C devices that pass a DisplayPort video signal and it's also compatible with Thunderbolt™ 3 ports.

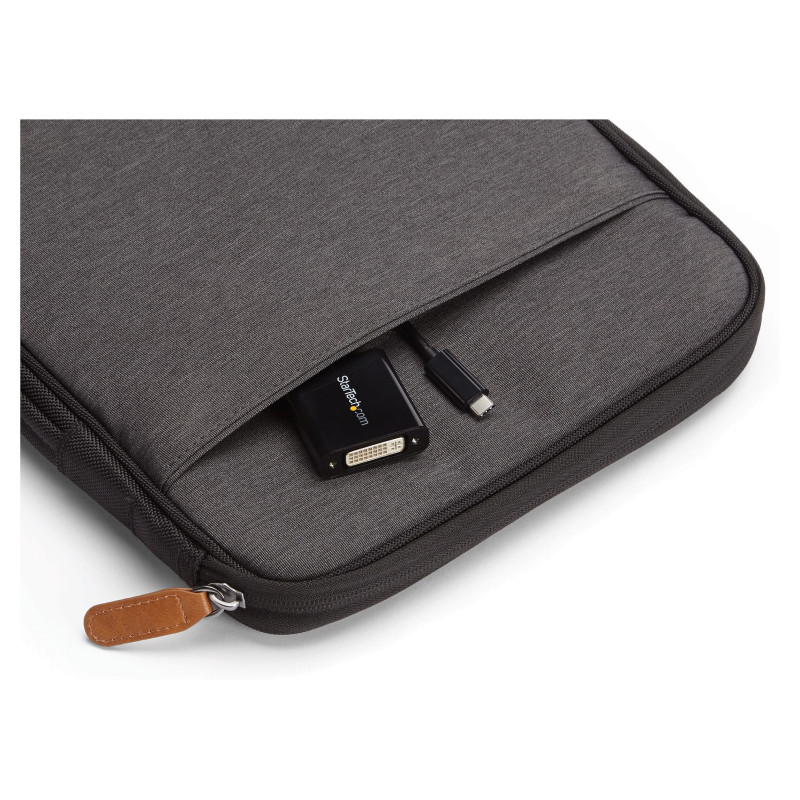

Ultimate portability

This USB Type-C™ video adapter is highly portable, with a small footprint and a lightweight design. It's the perfect accessory for your MacBook or Chromebook, fitting easily into your laptop bag or carrying case, which is great for BYOD (Bring Your Own Device) applications at the office.

Crystal-clear picture quality

The adapter supports video resolutions up to 1920x1200. You'll be surprised at the picture quality the adapter provides, even when connected to a DVI monitor, projector or television. The adapter harnesses the video capabilities that are built into your USB Type-C connection, to deliver every detail in stunning resolution.

Hassle-free connections with USB Type-C

This adapter lets you enjoy the versatility of your portable device's USB-C port. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work.

The CDP2DVI features a black housing that looks great with your ChromeBook Pixel and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Notes:

• Your USB-C equipped device must support video to work with this adapter.
• This adapter is not compatible for use with the Apple Cinema Display.

Performance

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
USB version: 3.2 Gen 2 (3.1 Gen 2)
Feature: DVI output
Number of displays supported: 1
DVI connector type: DVI-I
Maximum resolution: 1920 x 1200 pixels
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: 720p, 1080p
Chipset: Parade - PS171, NXP - PTN5100
Certification: CE, FCC, REACH

Design

Product colour: Black
Feature: Integrated USB cable

Weight & dimensions

Width: 43 mm
Depth: 187 mm
Height: 15 mm
Weight: 29 g
USB cable length: 0.014 m

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 5 - 95%

Packaging data

Package width: 122 mm
Package depth: 103 mm
Package height: 24 mm
Package weight: 34 g

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 200 pc(s)
Master (outer) case width: 326 mm
Master (outer) case length: 506 mm
Master (outer) case height: 210 mm
Harmonized System (HS) code: 84733020
