„Neomounts WL40-550BL14“ televizoriaus laikiklis / stovas

Neomounts WL40-550BL14 TV mount wall 40-55" - full motion - easy install. Maximum weight capacity: 35 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -2 - 12°, Swivel angle range: 0 - 40°, Angle of rotation: 6°, Distance to the wall (min): 4.5 cm, Distance to the wall (max): 42 cm. Product colour: Black

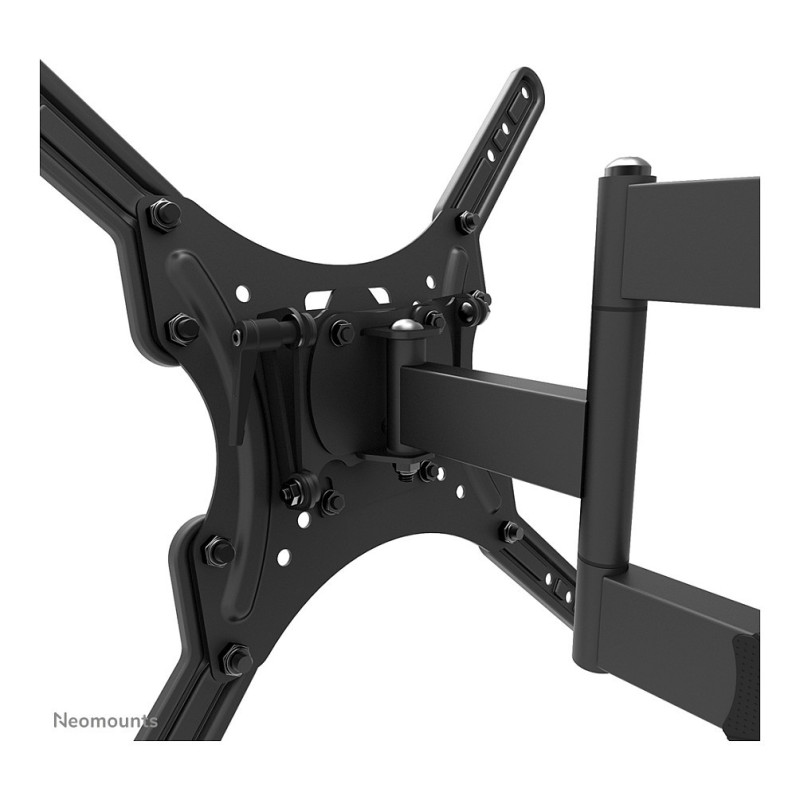

The Neomounts WL40-550BL14 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The LEVEL-550 wall mount has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm.

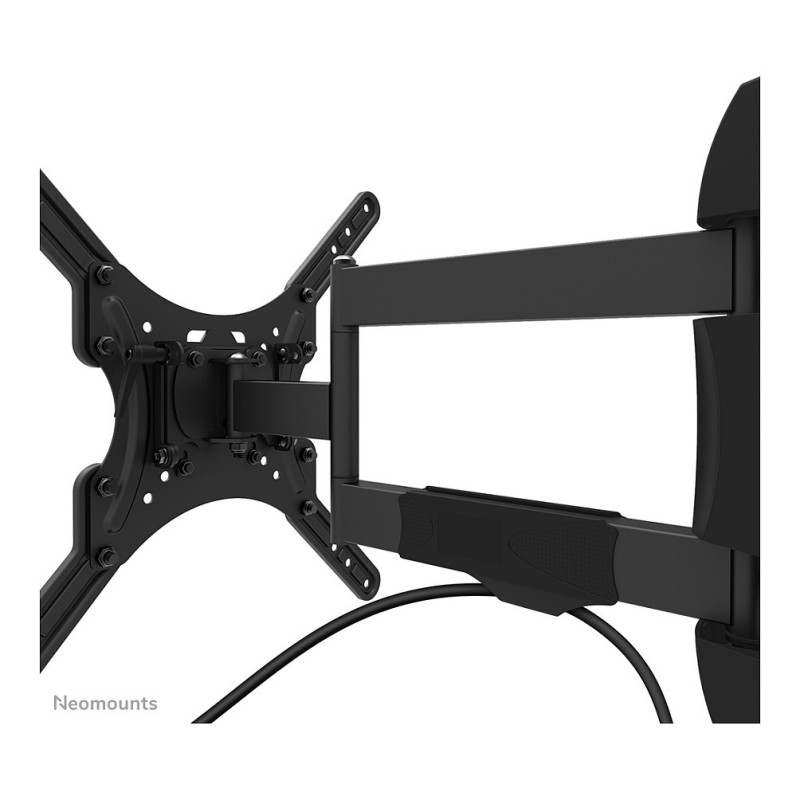

The WL40-550BL14 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 101.6 cm (40")
Number of displays supported: 1
Maximum weight capacity (per display): 35 kg
Maximum screen size: 139.7 cm (55")

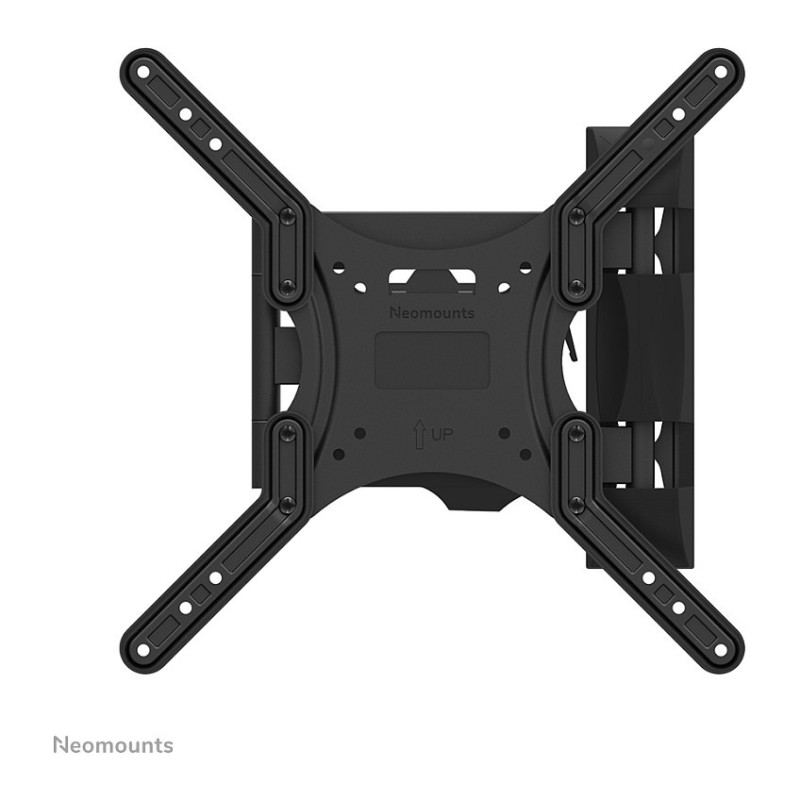

Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -2 - 12°
Feature: Swivelling
Swivel angle: 40°
Swivel angle range: 0 - 40°
Feature: Rotating
Angle of rotation: 6°

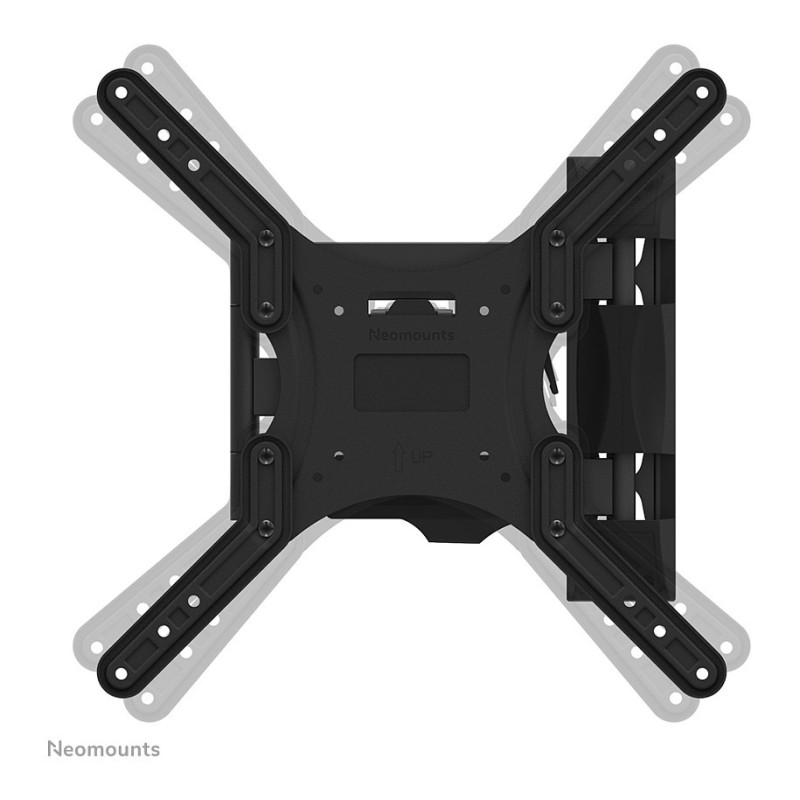

Pivot angle: -3 - 3°
Feature: Cable management
Type: Full motion
Distance to the wall (max): 42 cm
Distance to the wall (min): 4.5 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 4.5 kg
Quantity per pack: 1 pc(s)
Lockable: Not lockable

Packaging content

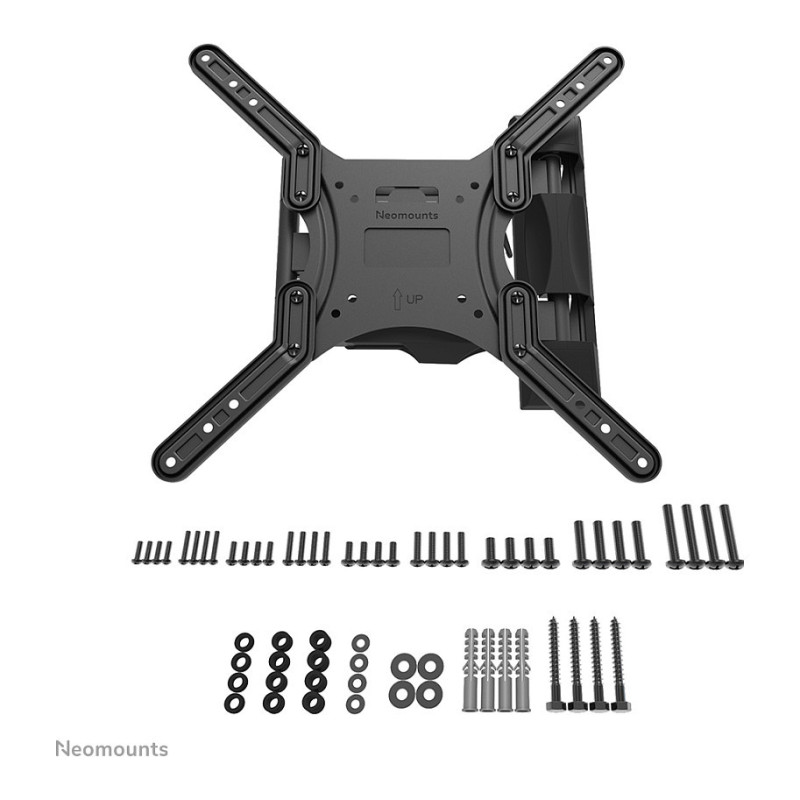

Feature: Mounting kit

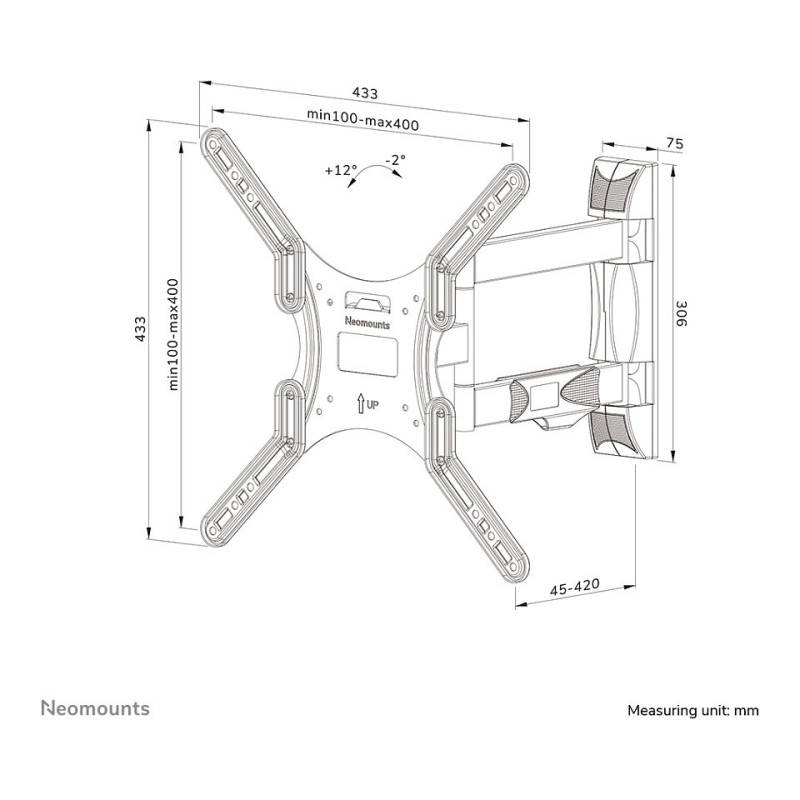

Weight & dimensions

Width: 433 mm
Depth: 45 mm
Depth (max): 4.5 cm
Height: 433 mm
Weight: 3.7 kg

Packaging data

Package width: 329 mm
Package depth: 310 mm
Package height: 55 mm
Package weight: 4.5 kg

Logistics data

Master (outer) case width: 349 mm
Master (outer) case length: 295 mm
Master (outer) case height: 330 mm
Master (outer) case gross weight: 22.7 kg
Master (outer) case net weight: 21 kg
Products per master (outer) case: 5 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 160 pc(s)
