„Neomounts NM-D775BLACKPLUS“ monitoriaus laikiklis / stovas

Neomounts NM-D775BLACKPLUS Monitor arm 10-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 360°, Tilt angle range: -45 - 45°. Product colour: Black

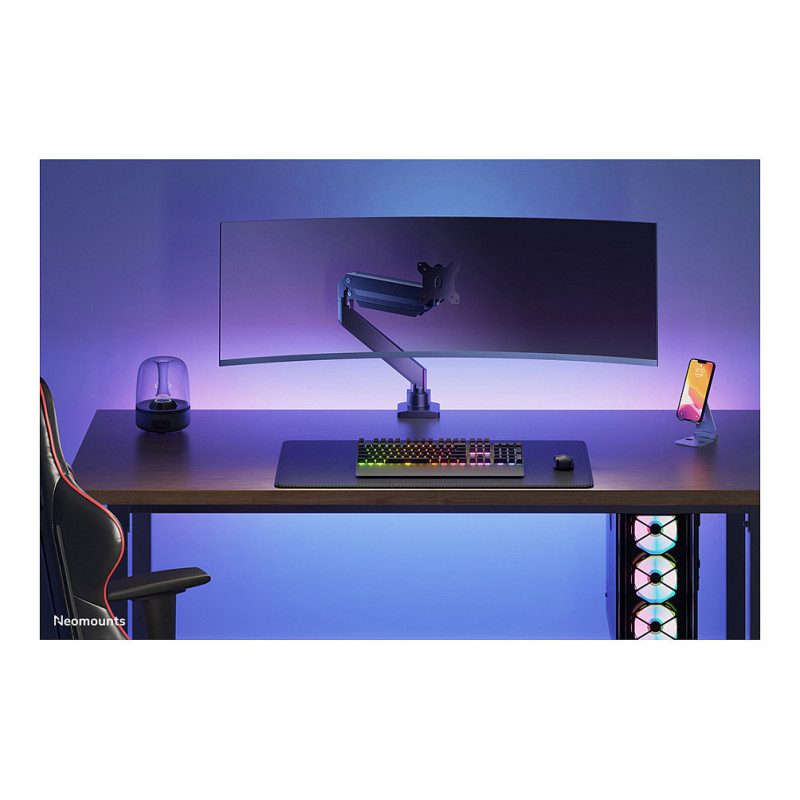

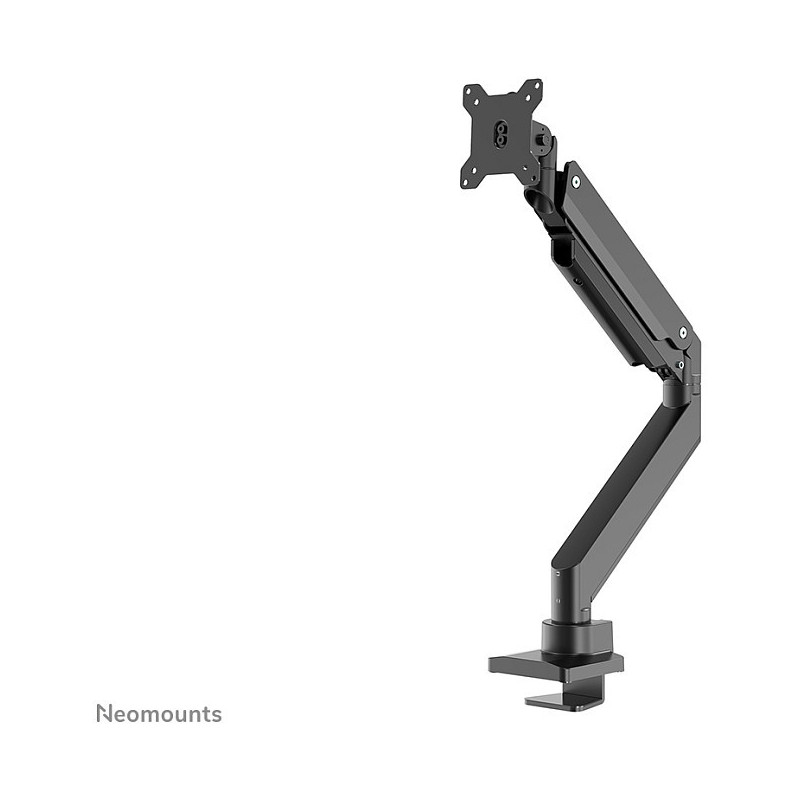

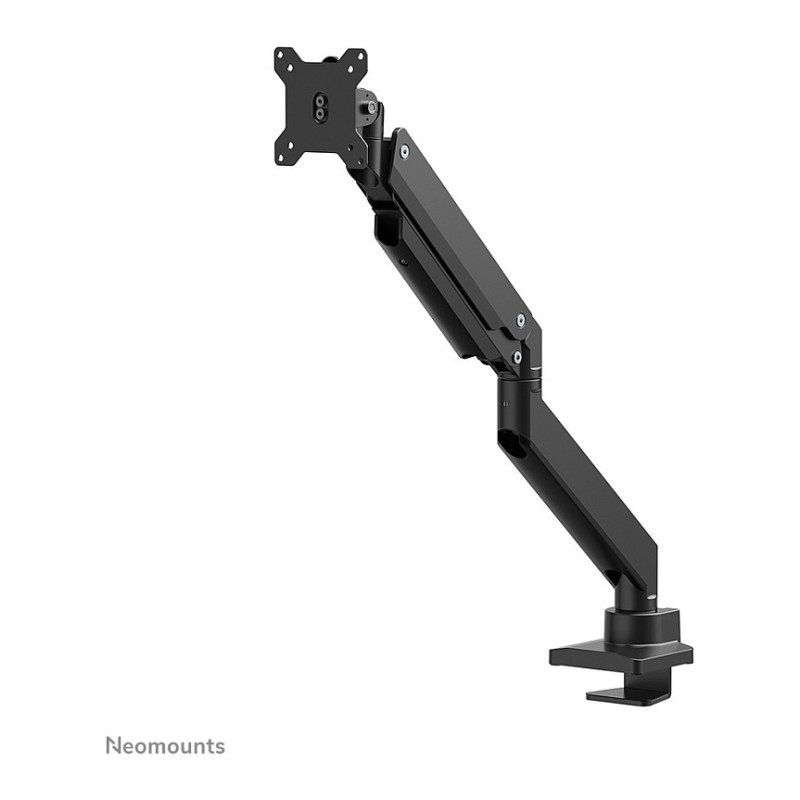

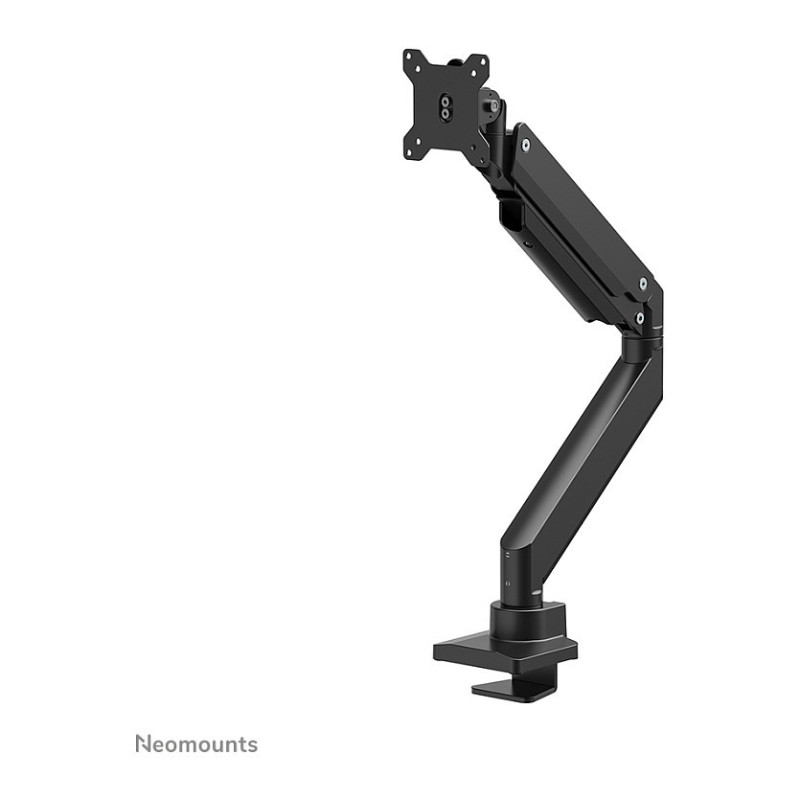

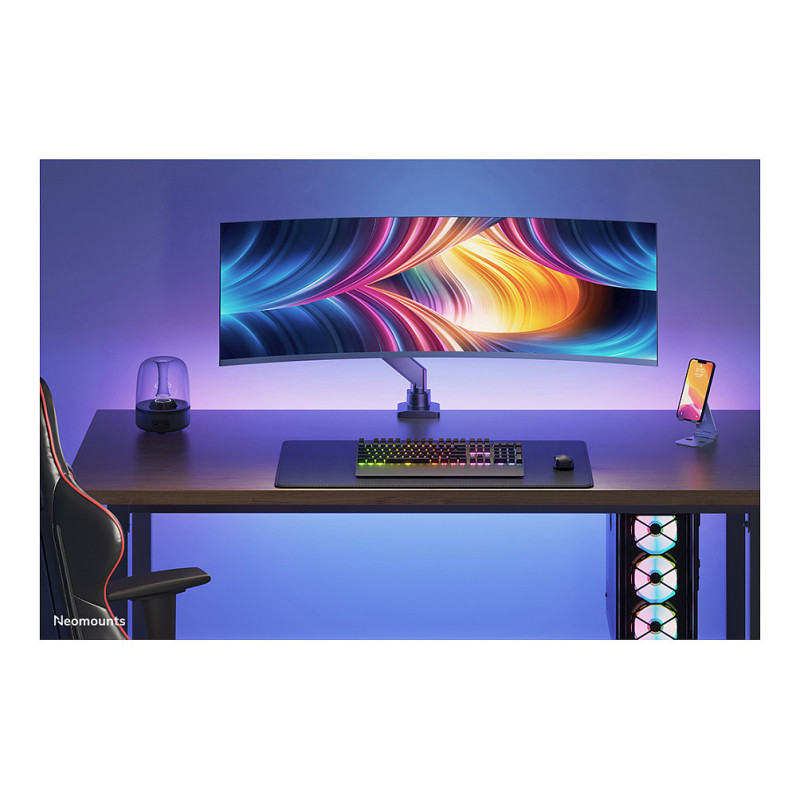

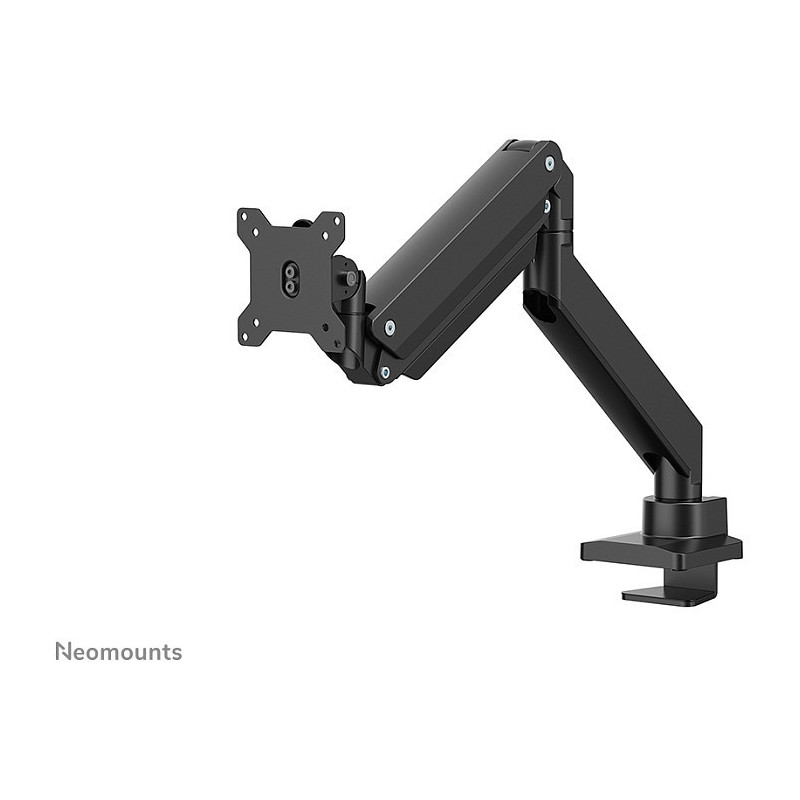

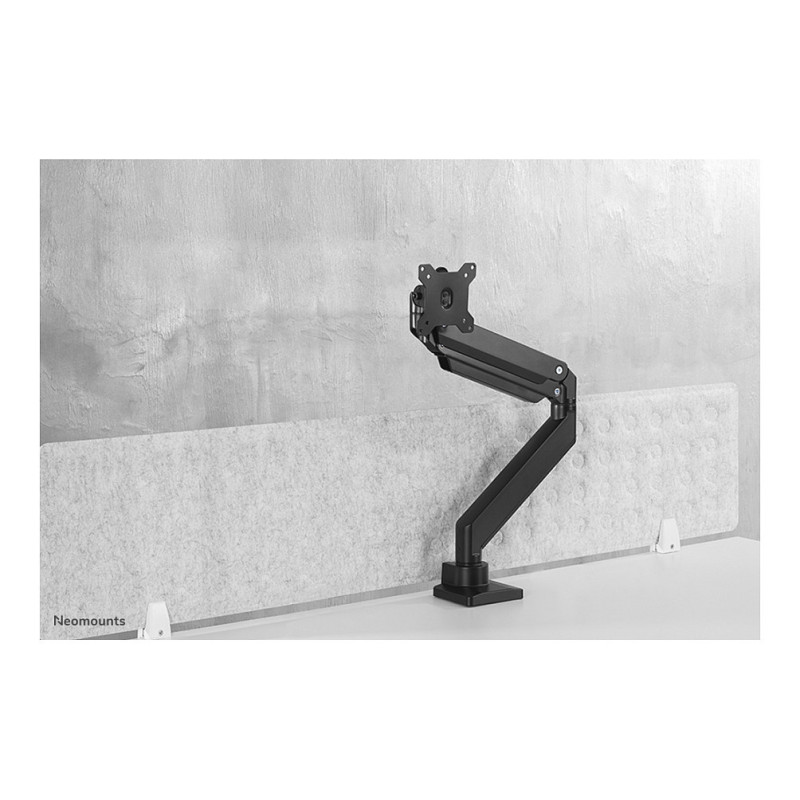

The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

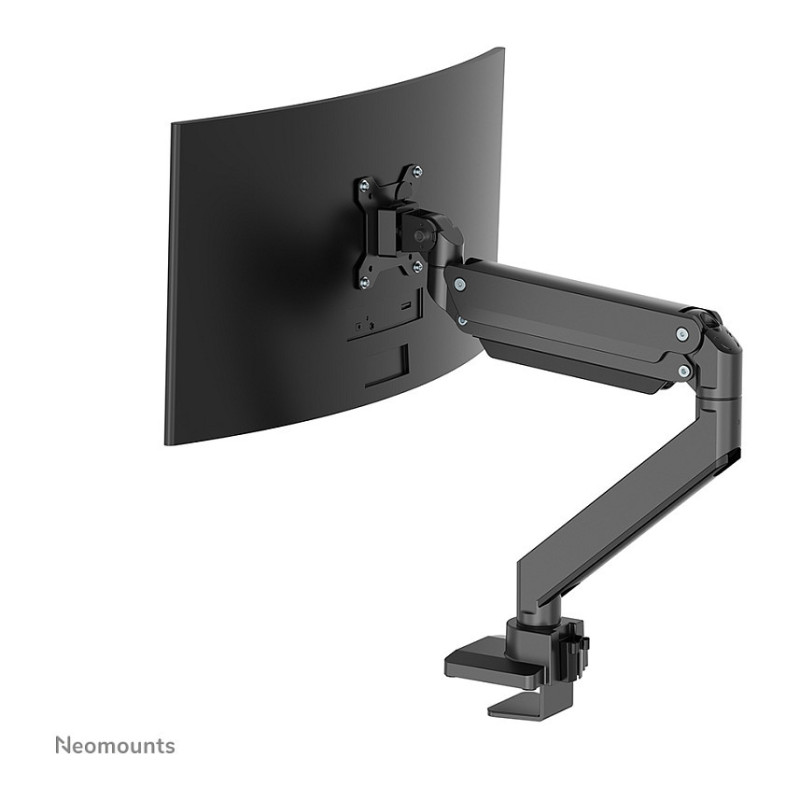

The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

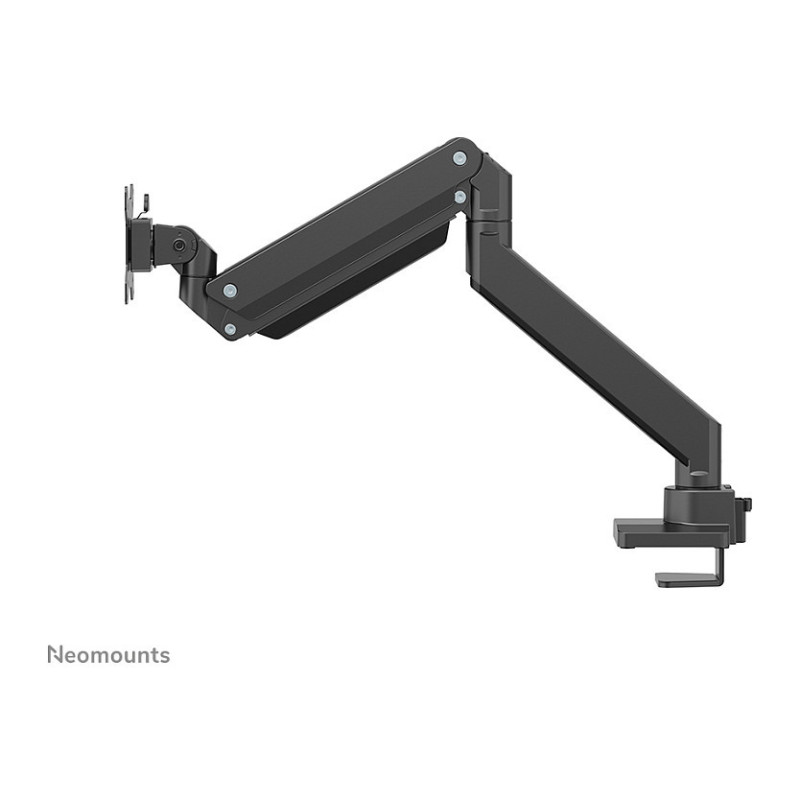

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

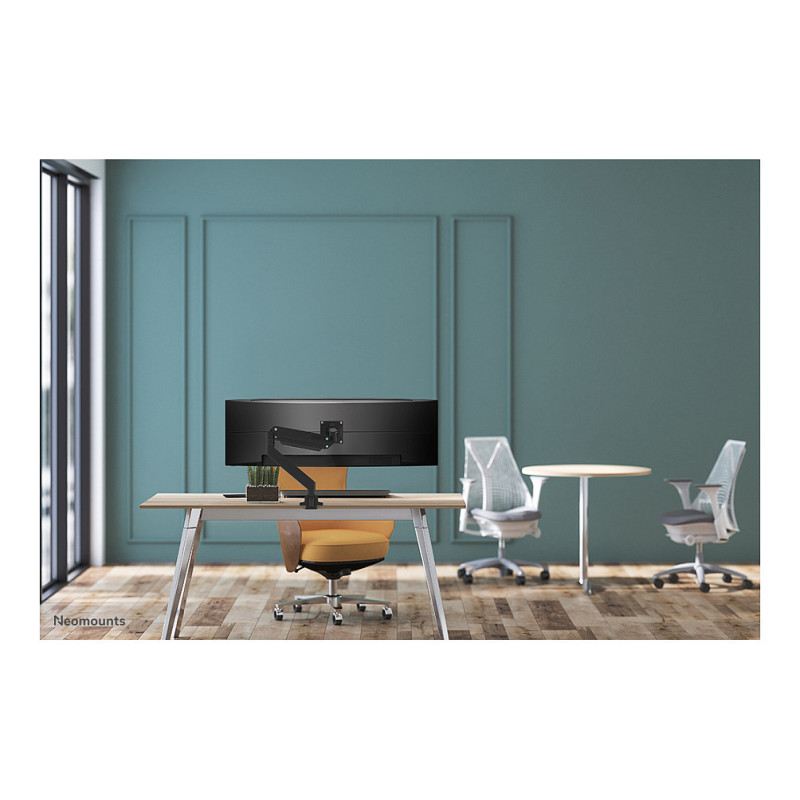

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

All installation material is included with the product.

Mounting

Maximum weight capacity: 18 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 1
Maximum weight capacity (per display): 18 kg
Maximum weight capacity (per curved/ultra-wide display): 14 kg
Maximum screen size: 124.5 cm (49")

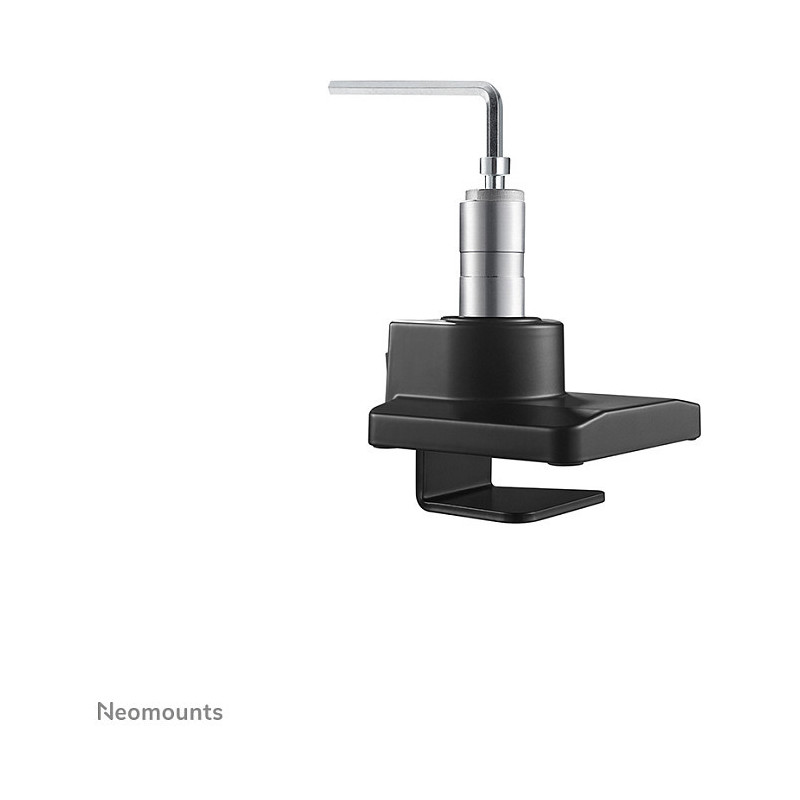

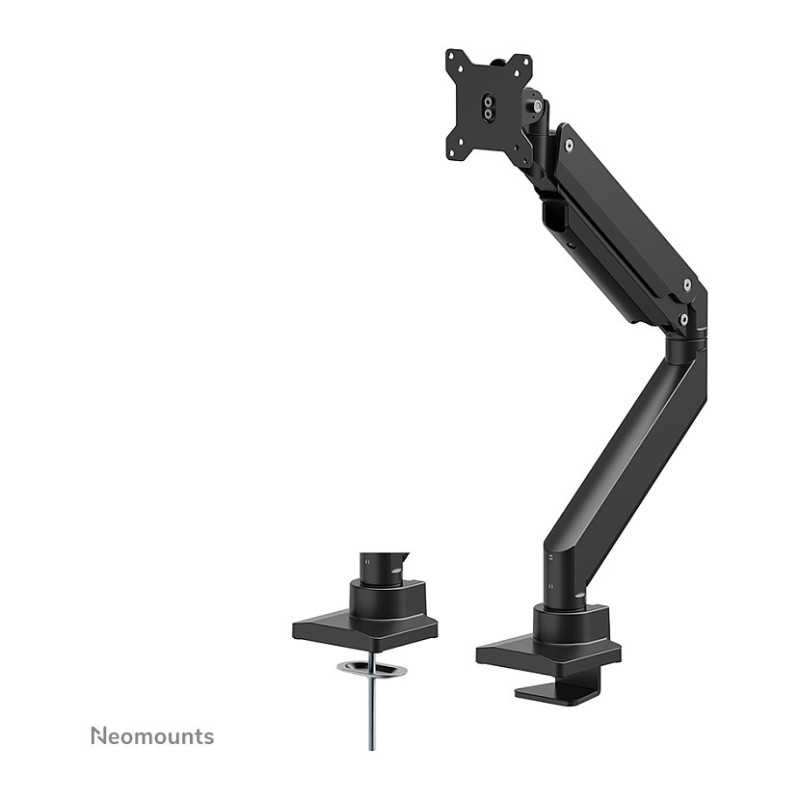

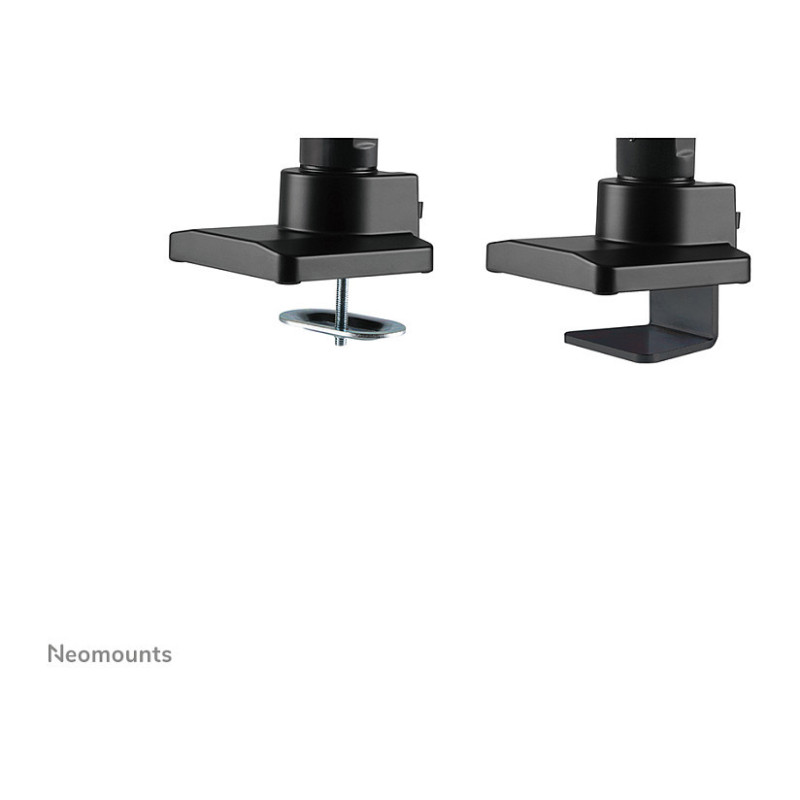

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring

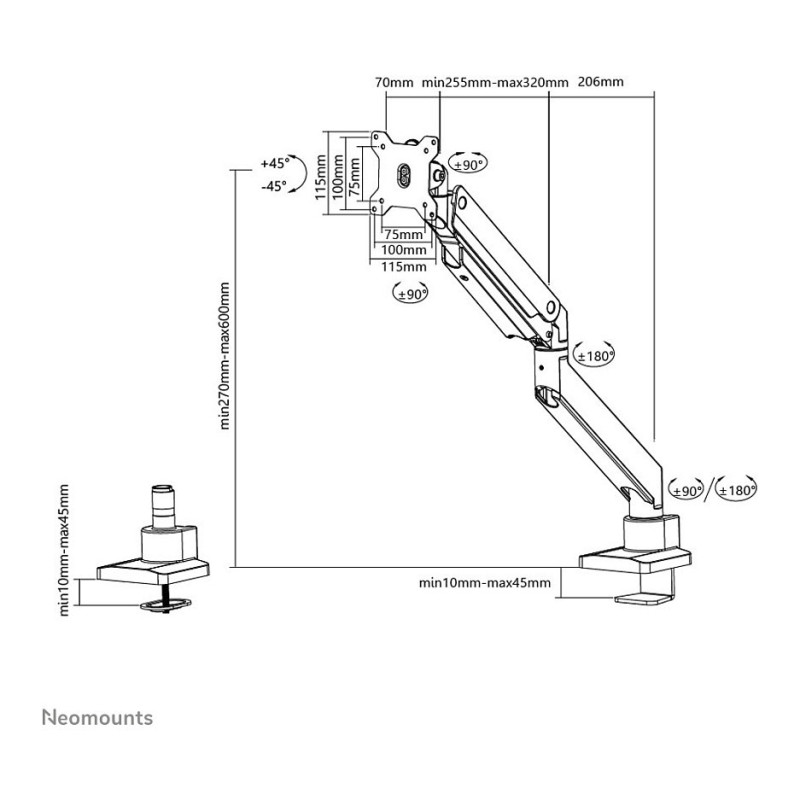

Height adjustment range: 270 - 600 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 630 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle: 360°
Swivel angle range: 0 - 360°
Feature: Rotating
Angle of rotation: 180°
Feature: Cable management

Design

Housing material: Steel
Product colour: Black

Weight & dimensions

Depth: 630 mm
Height: 600 mm
Weight: 3.91 kg

Packaging data

Package width: 240 mm
Package depth: 123 mm
Package height: 555 mm
Package net weight: 5.2 kg
Package weight: 5.2 kg

Other features

Minimum weight: 1 kg

Logistics data

Master (outer) case width: 500 mm
Master (outer) case length: 265 mm
Master (outer) case height: 575 mm
Master (outer) case gross weight: 5.2 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 4.6 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 72 pc(s)
