Neomounts FPMA-DCB100DBLACK monitoriaus laikiklis / stovas

Neomounts FPMA-DCB100DBLACK Monitor arm 10-27". Mounting: Clamp/Grommet, Maximum weight capacity: 10 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -15 - 15°, Tilt angle range: -45 - 45°. Product colour: Black

The Neomounts desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.

Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27". The weight capacity of this product is 10 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. The pole of the desk mount has a diameter of 35 mm.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.

All installation material is included with the product.

Mounting

Maximum weight capacity: 10 kg
Minimum screen size: 25.4 cm (10")
Number of displays supported: 2
Maximum weight capacity (per display): 10 kg
Maximum screen size: 68.6 cm (27")

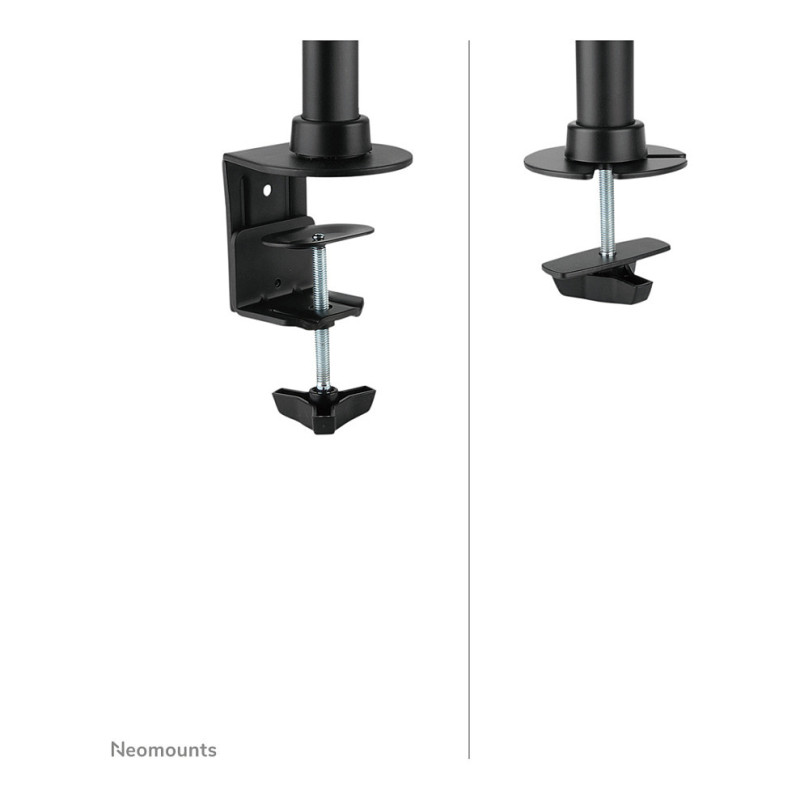

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (max): 9 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 0 - 450 mm
Depth adjustment range: 0 - 80 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle: 30°
Swivel angle range: -15 - 15°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Number of pivot points: 1

Design

Housing material: Steel
Product colour: Black

Weight & dimensions

Depth: 80 mm
Height: 450 mm
Weight: 4.03 kg

Packaging data

Package width: 166 mm
Package depth: 120 mm
Package height: 512 mm
Package weight: 5.3 kg

Logistics data

Master (outer) case width: 345 mm
Master (outer) case length: 255 mm
Master (outer) case height: 525 mm
Master (outer) case gross weight: 21.1 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 16.5 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 100 pc(s)
