Neomounts FPMA-C340BLACK televizoriaus laikiklis / stovas

Neomounts FPMA-C340BLACK Monitor/TV mount ceiling 32-75" - h 106-156 cm. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle range: -180 - 180°, Angle of rotation: 6°. Product colour: Black

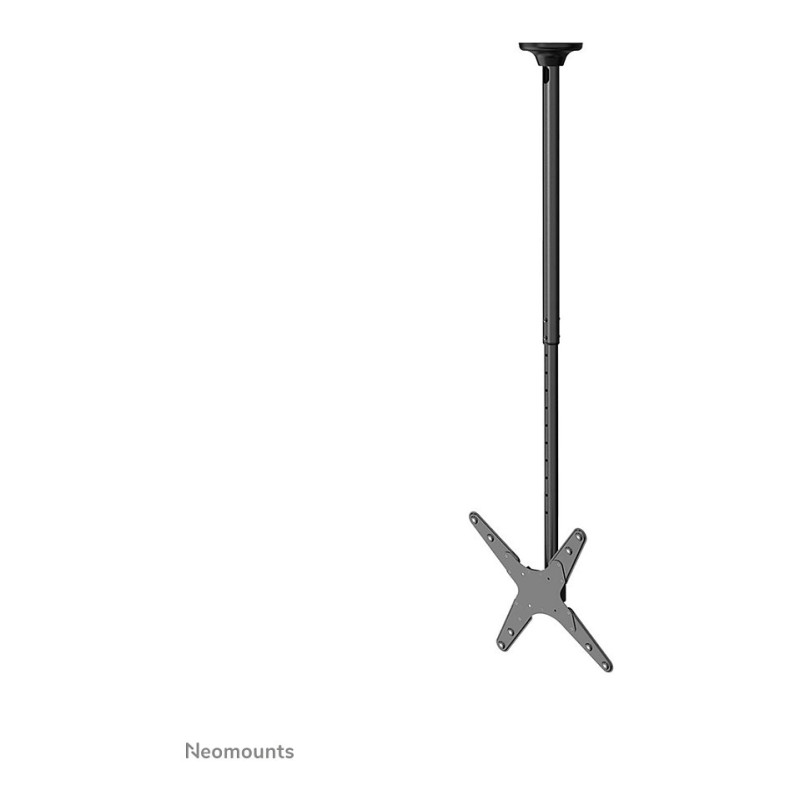

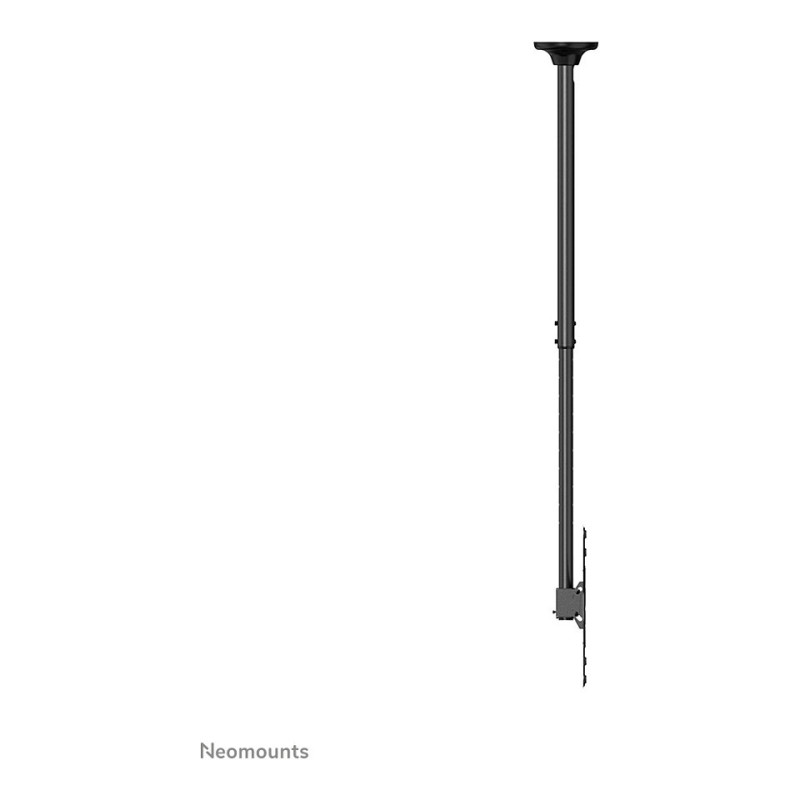

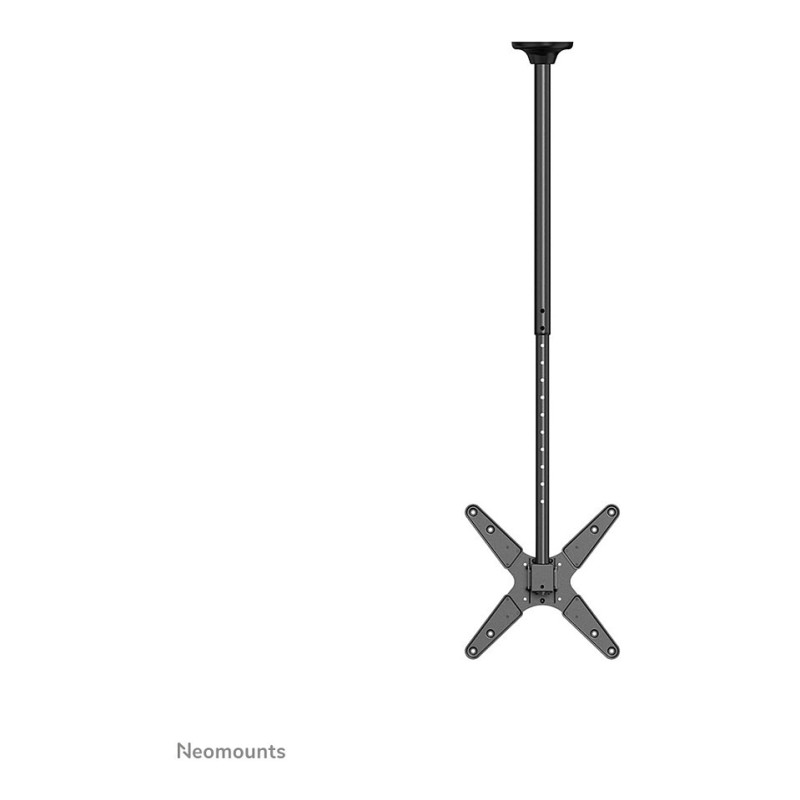

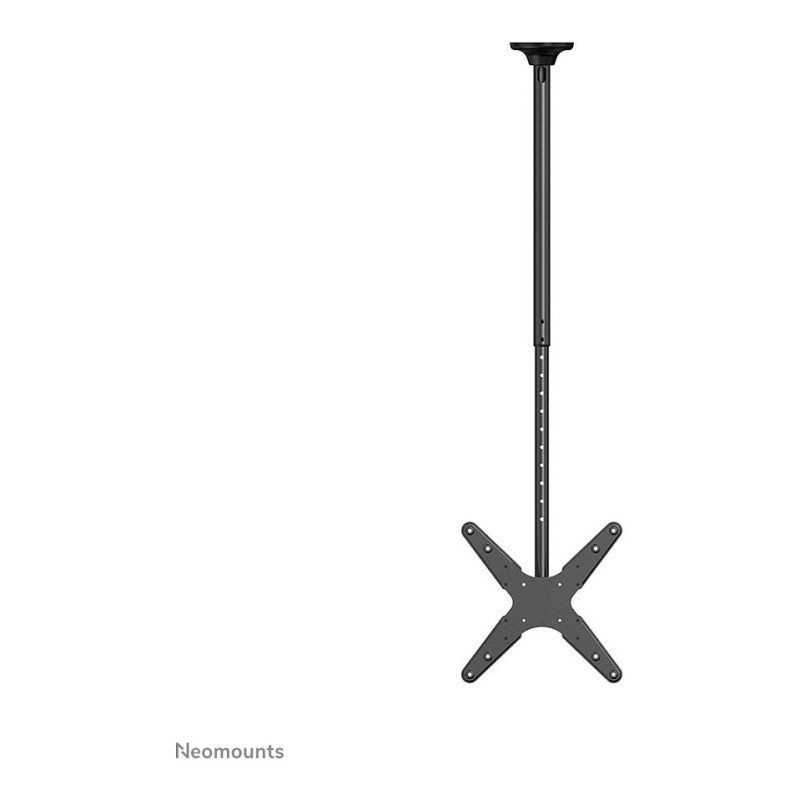

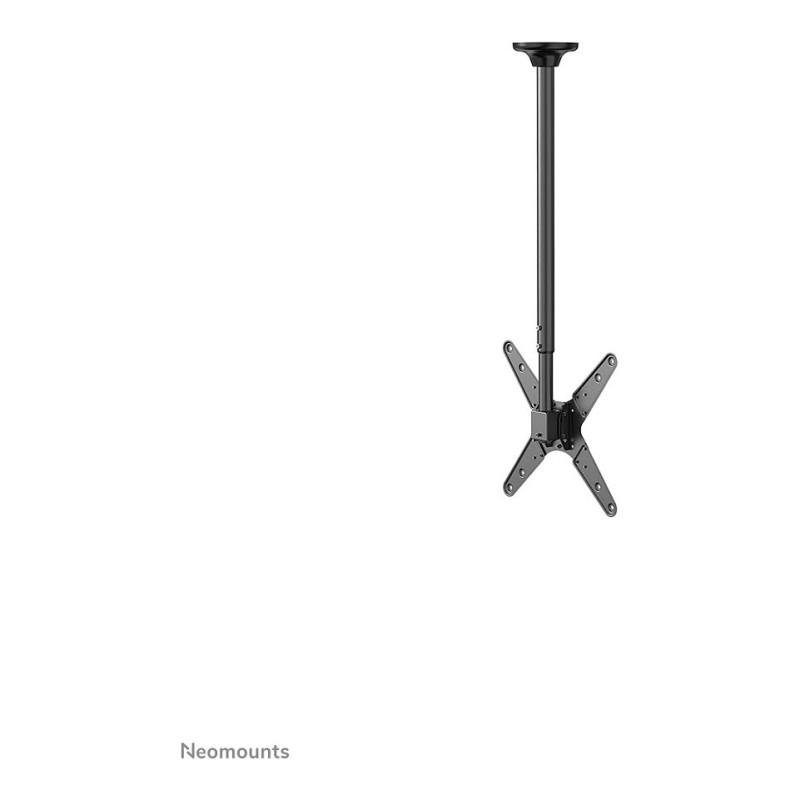

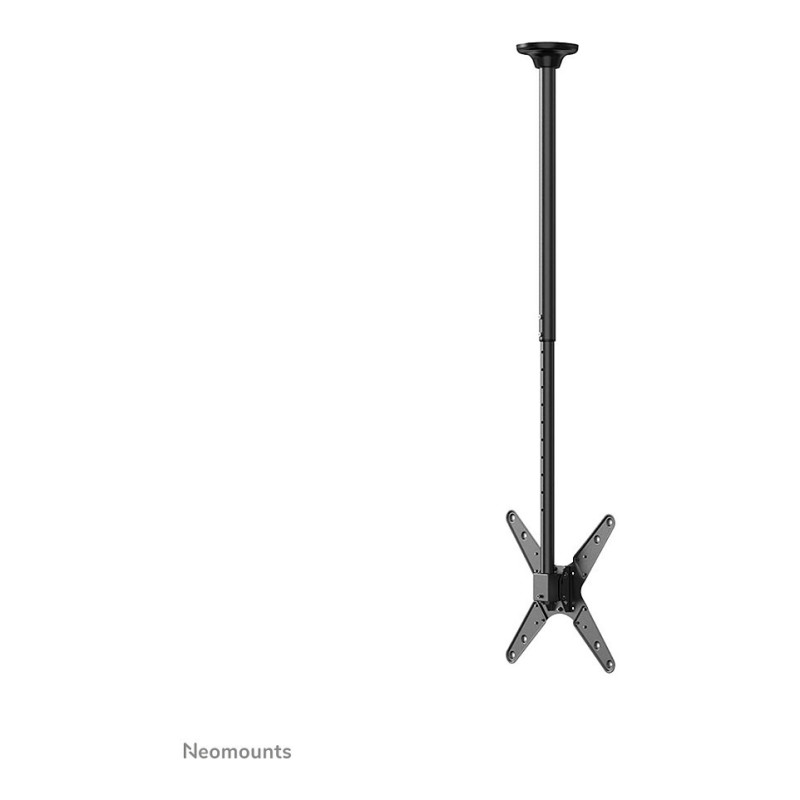

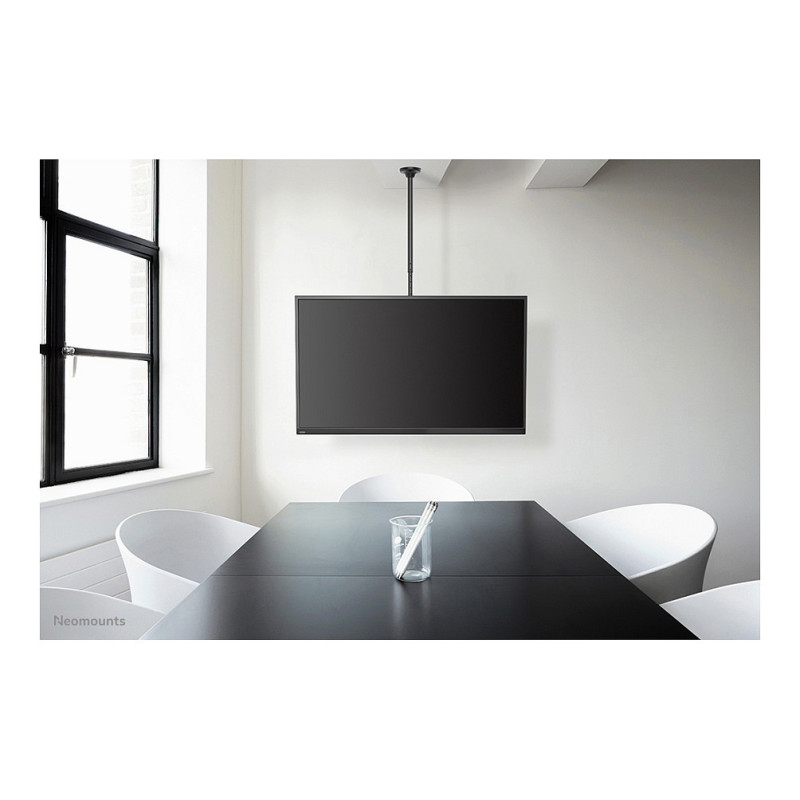

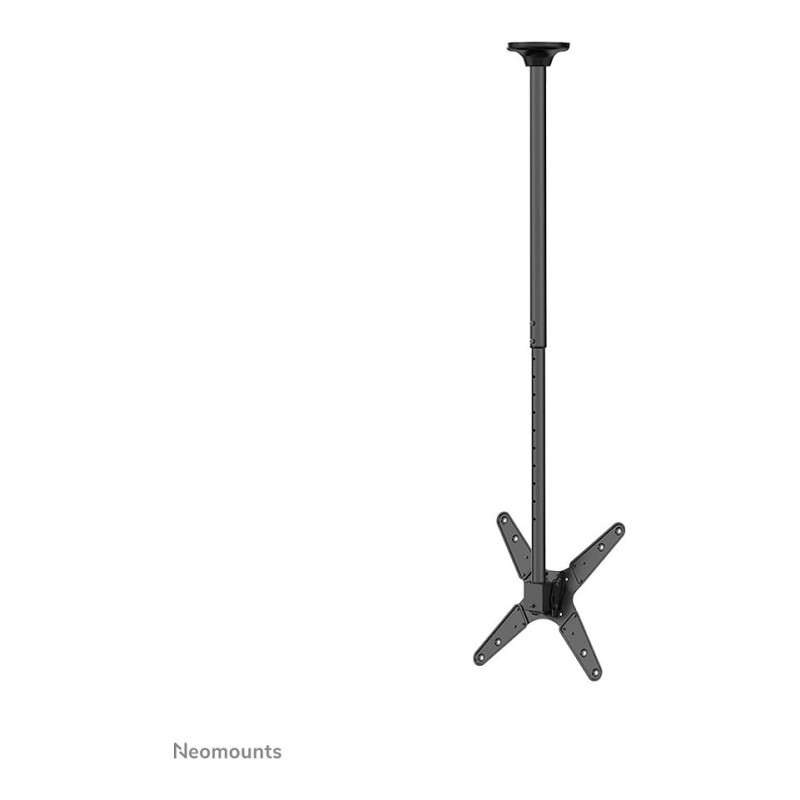

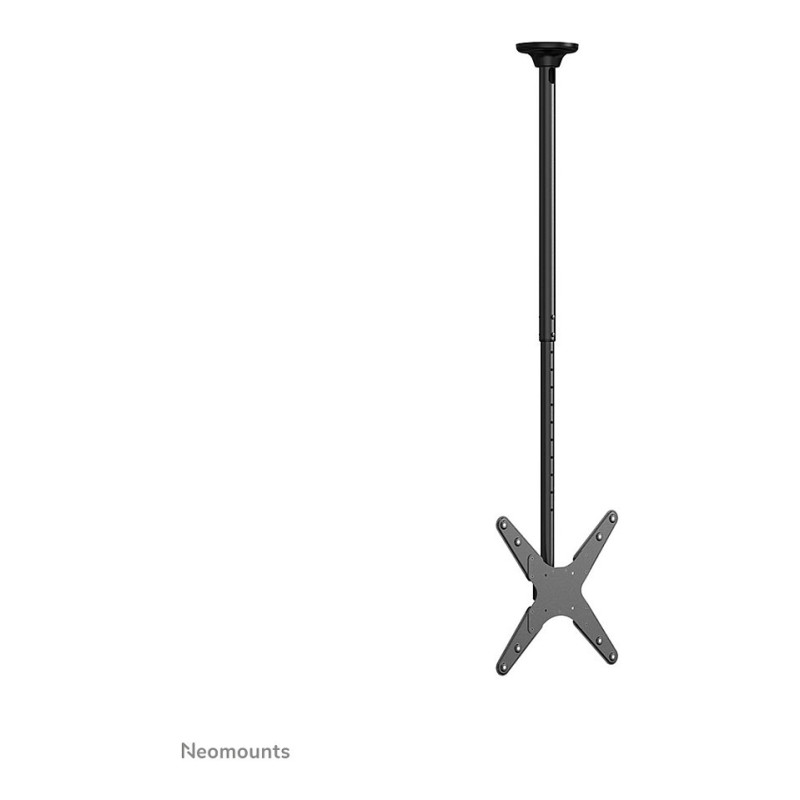

The Neomounts FPMA-C340BLACK is a full motion ceiling mount for flat screens up to 75". The unique tilt (25°), swivel (360°) and rotate technology (6°) allows the mount to change to the best angle for the optimal viewing position.

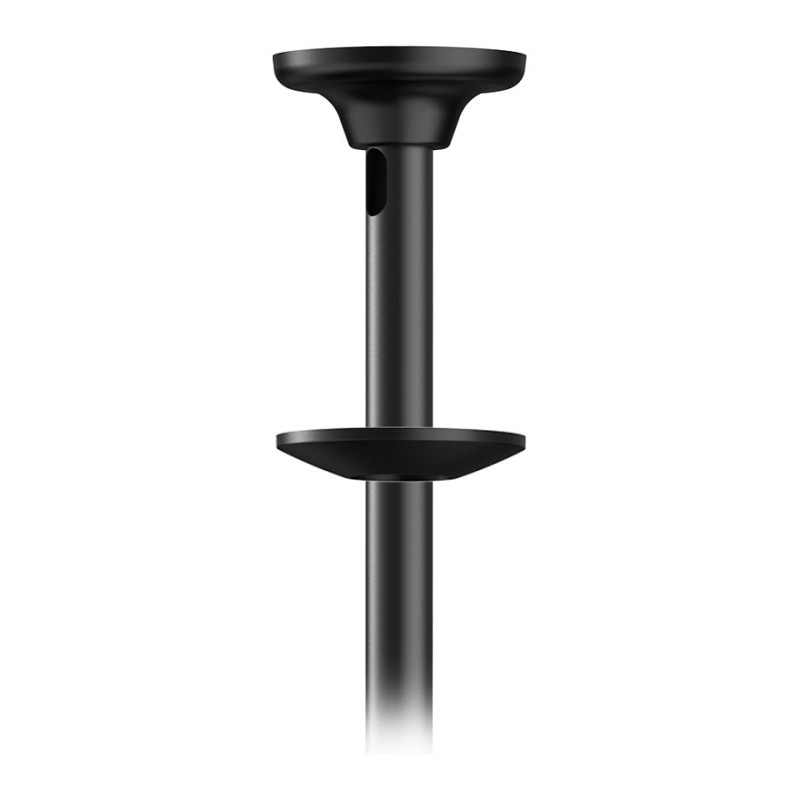

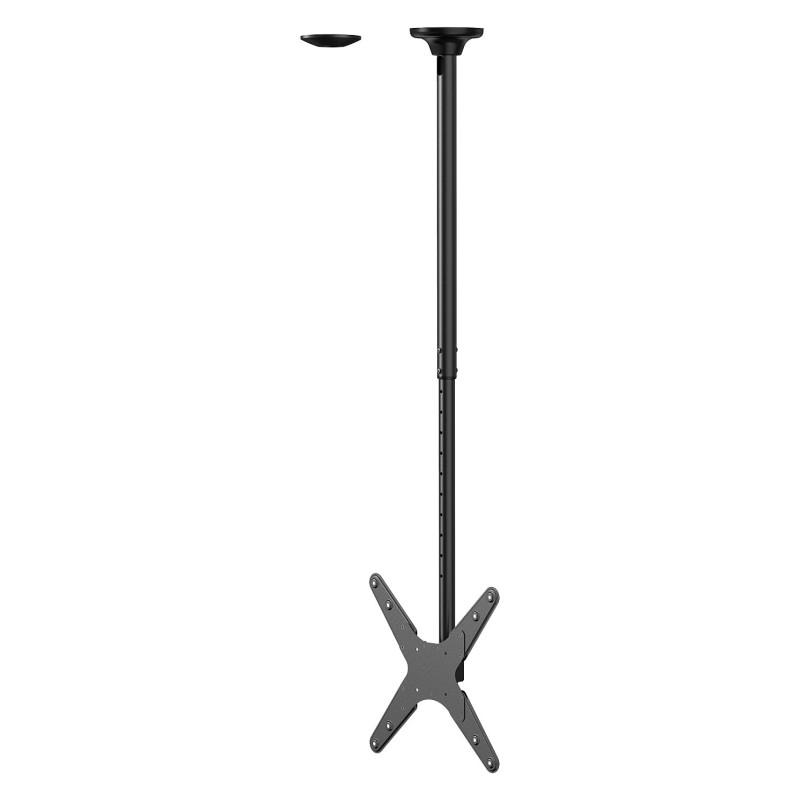

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The FPMA-C340BLACK is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. A nifty cable management systems conceals and routes cables from ceiling to screen. The mount comes with an additional cover for installation on suspended ceilings.

* The Neomounts NS-EP100BLACK is an extension pole for ceiling mount models NM-C440BLACK, NM-C440DBLACK, FPMA-C340BLACK and FPMA-C340DBLACK. This pole can be used as extra extension to the pole included with the models. In this way, the height of the ceiling mounts can be increased with an extra 107,5 cm.

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 1
Maximum weight capacity (per display): 50 kg
Maximum screen size: 190.5 cm (75")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,150 x 200,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400
Mounting type: Ceiling

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 1060 - 1560 mm
Feature: Tilt adjustment
Tilt angle range: -25 - 0°
Feature: Swivelling
Swivel angle: 360°
Swivel angle range: -180 - 180°
Feature: Rotating
Angle of rotation: 6°
Pivot angle: -3 - 3°
Number of pivot points: 1
Tilt angle: 25°

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China
Package net weight: 12.8 kg

Weight & dimensions

Height: 1785 mm
Weight: 5.54 kg

Packaging data

Package width: 250 mm
Package depth: 145 mm
Package height: 930 mm
Package weight: 8.8 kg

Logistics data

Master (outer) case width: 310 mm
Master (outer) case length: 270 mm
Master (outer) case height: 950 mm
Master (outer) case gross weight: 17.6 kg
Master (outer) case net weight: 17.6 kg
Products per master (outer) case: 2 pc(s)
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 30 pc(s)
