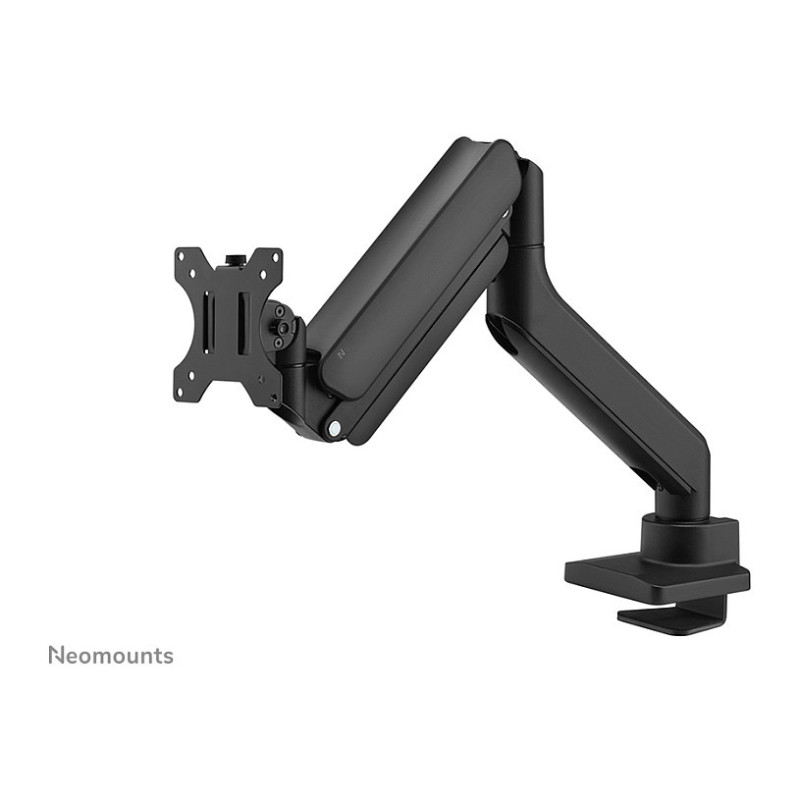

„Neomounts DS70PLUS-450BL1“ monitoriaus laikiklis / stovas

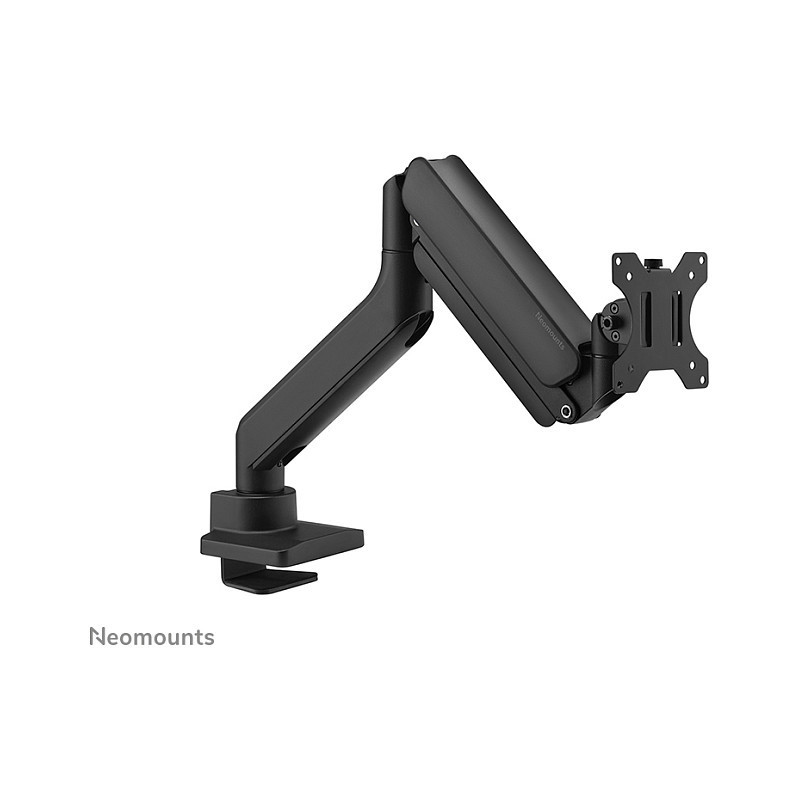

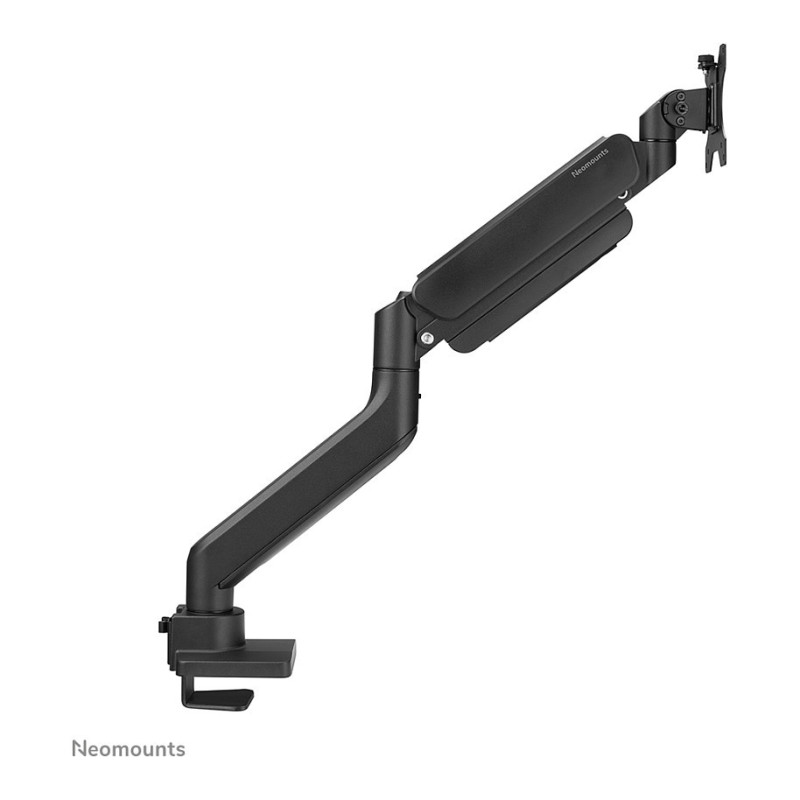

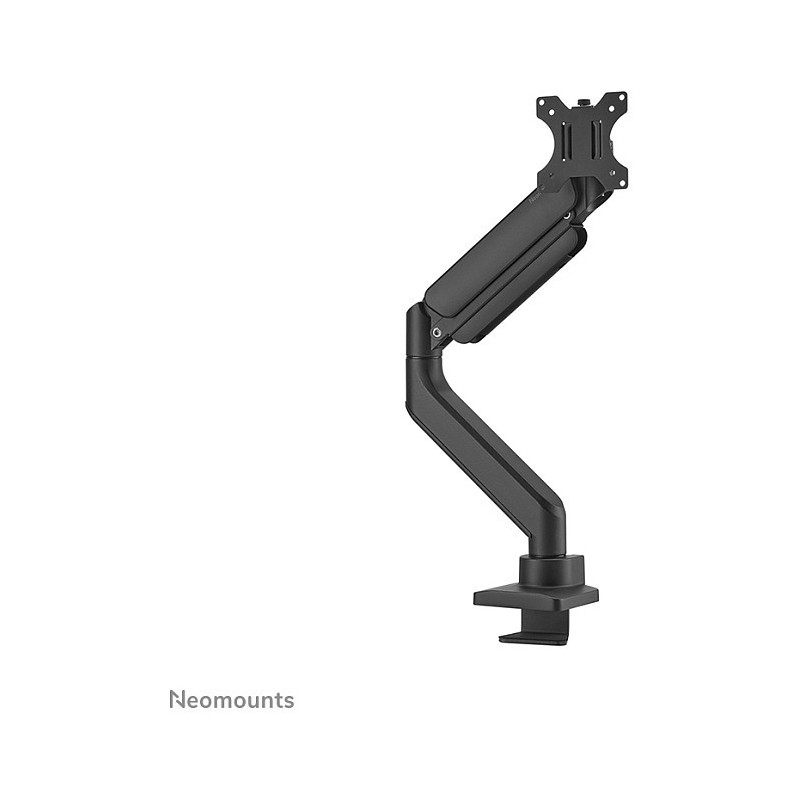

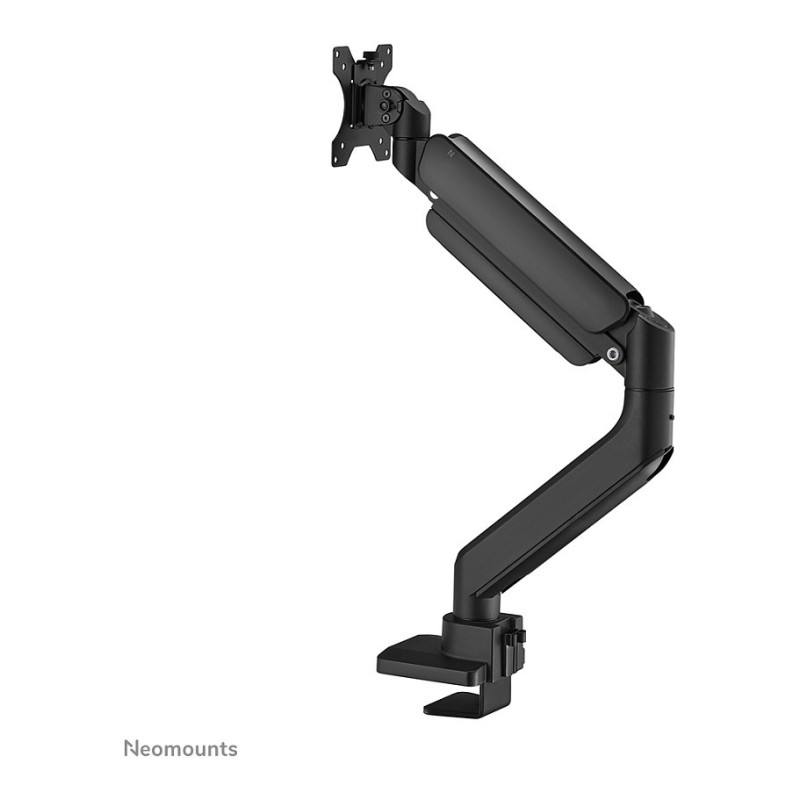

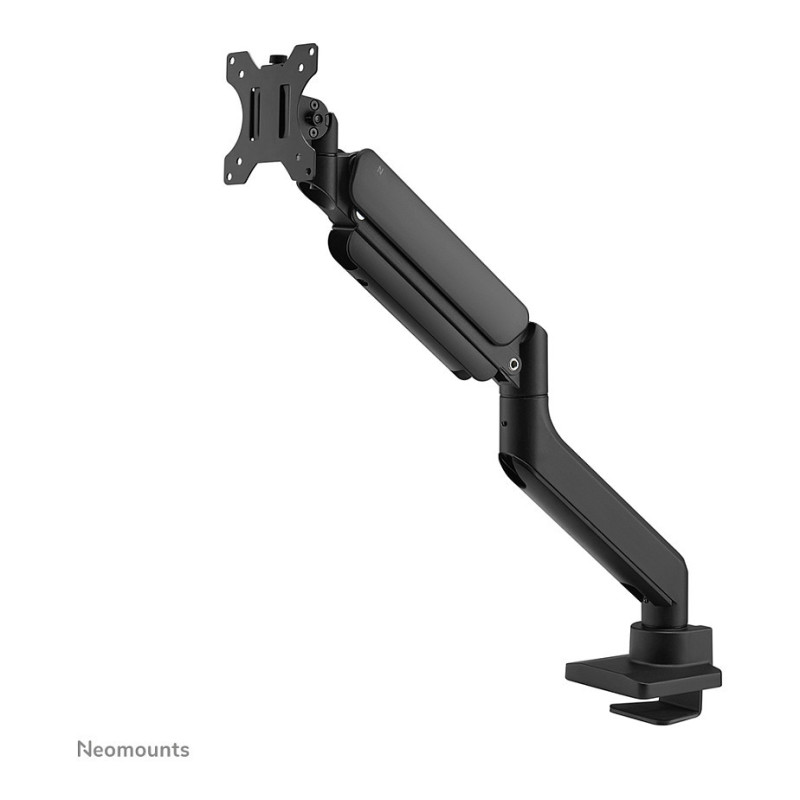

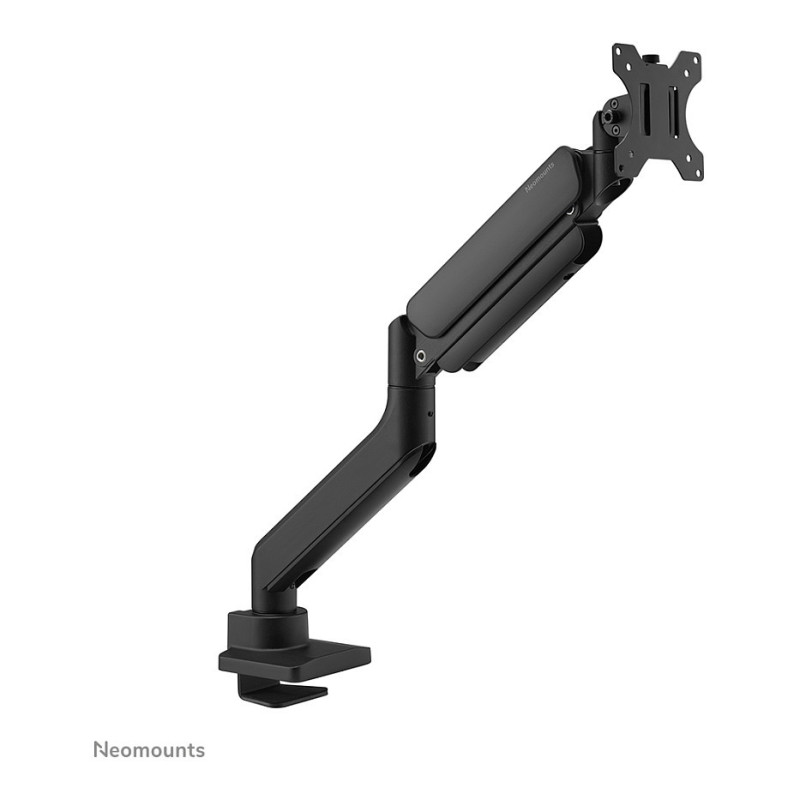

Neomounts DS70PLUS-450BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

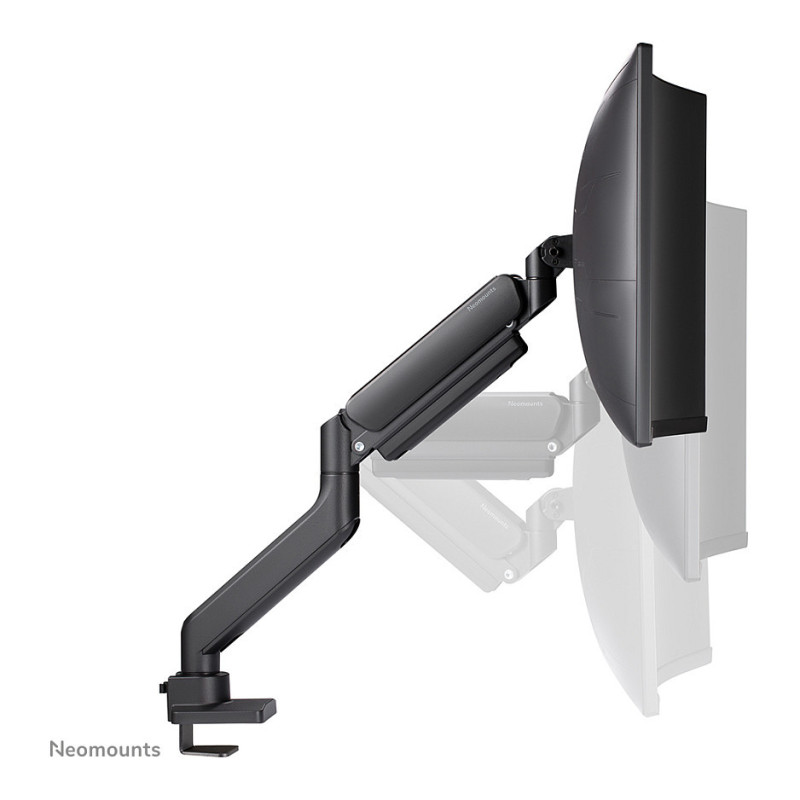

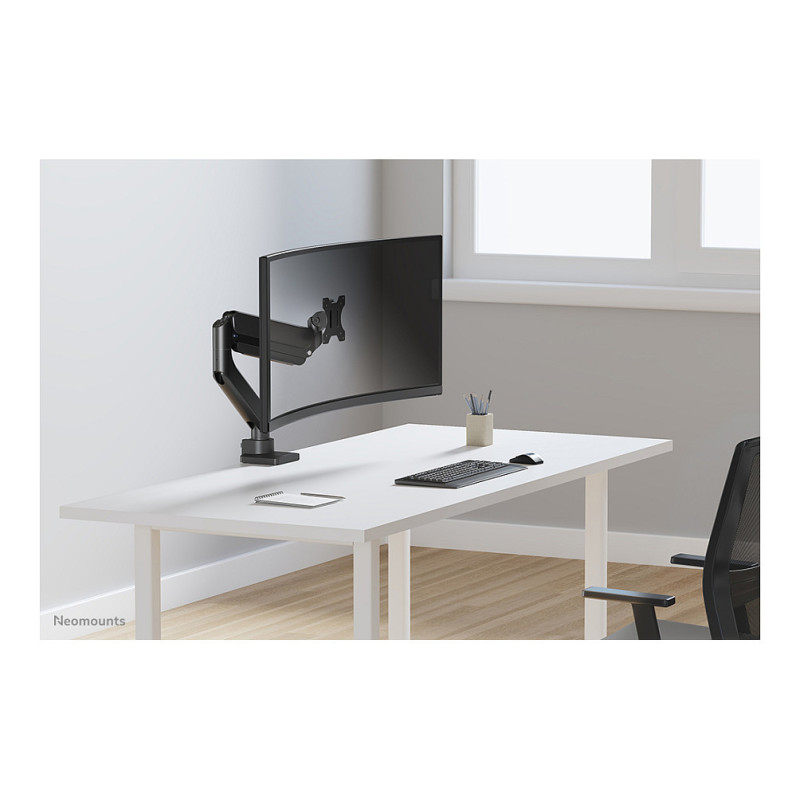

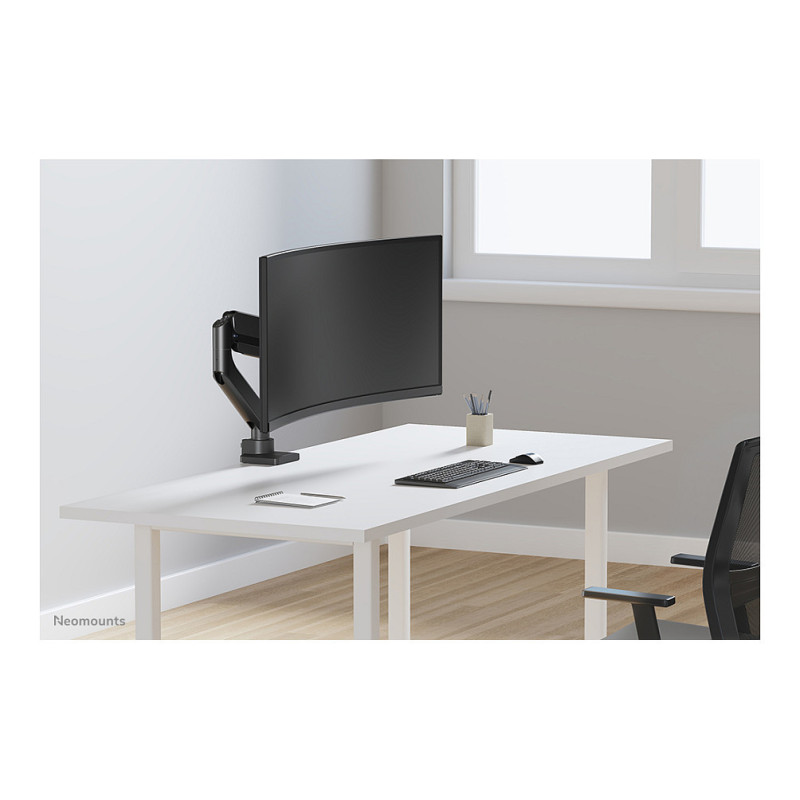

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

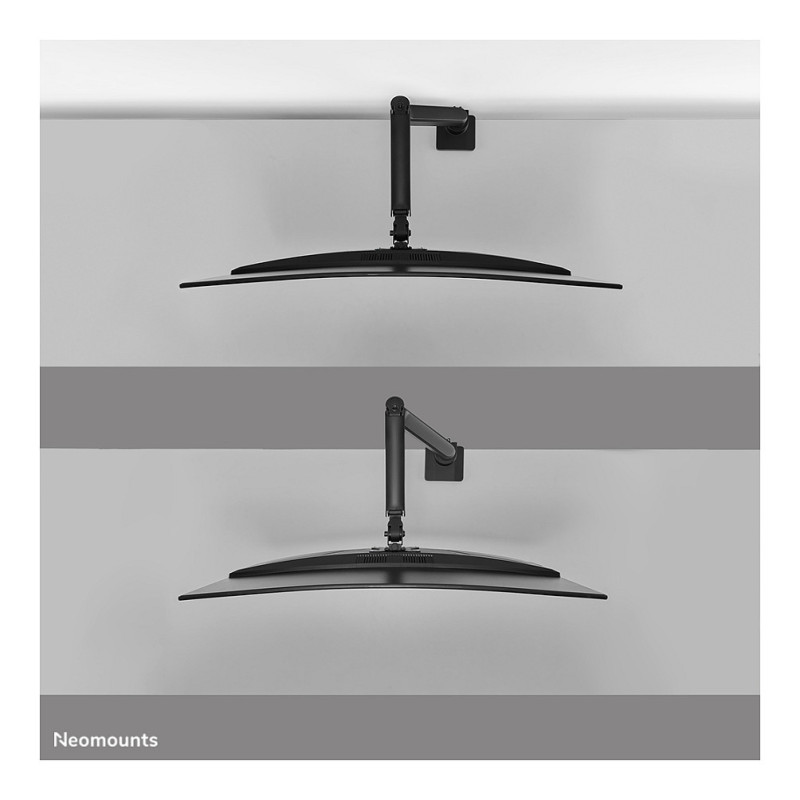

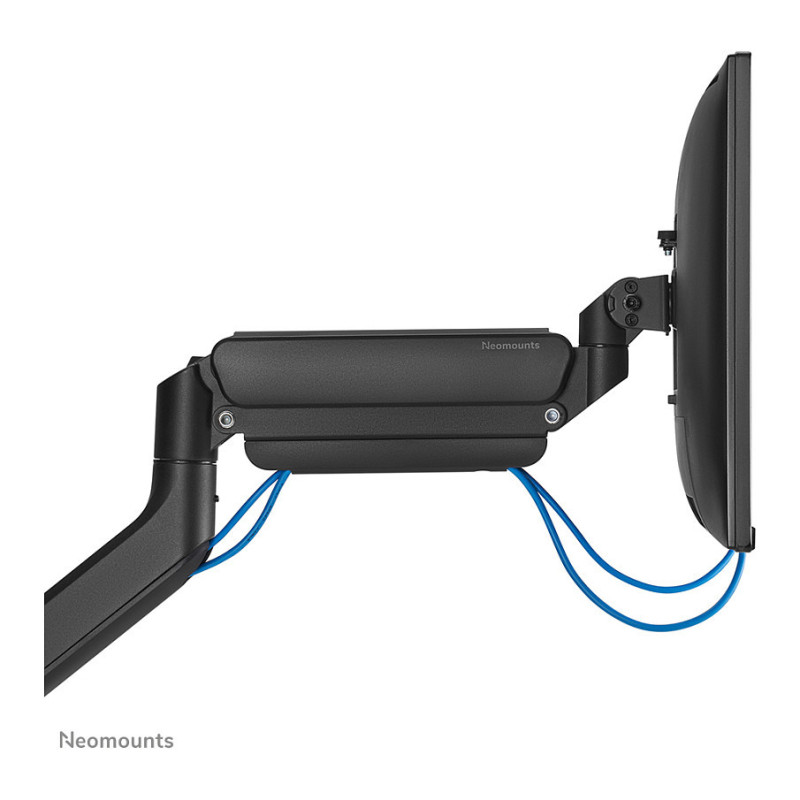

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

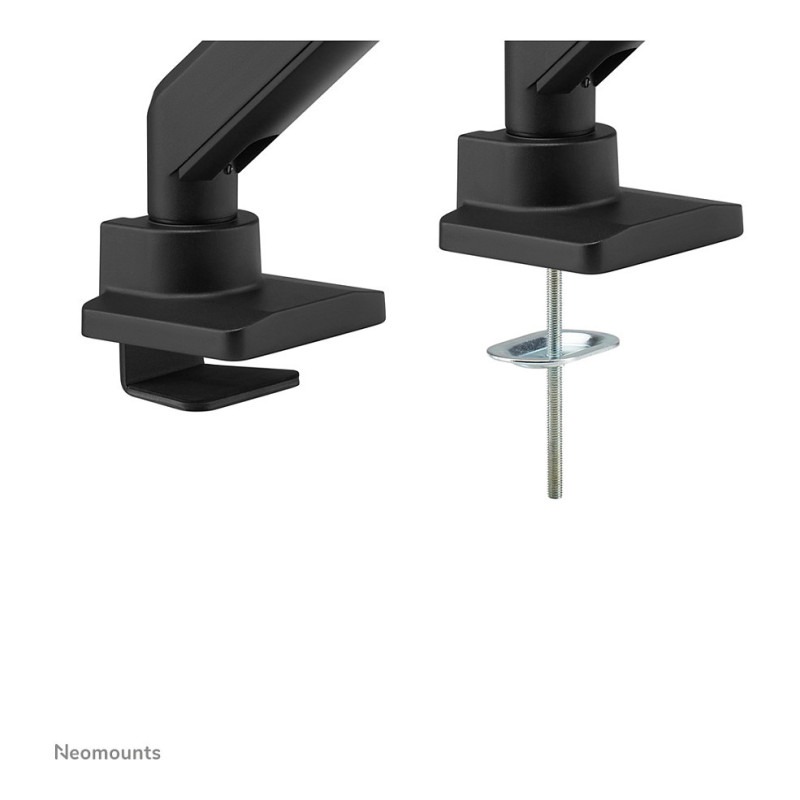

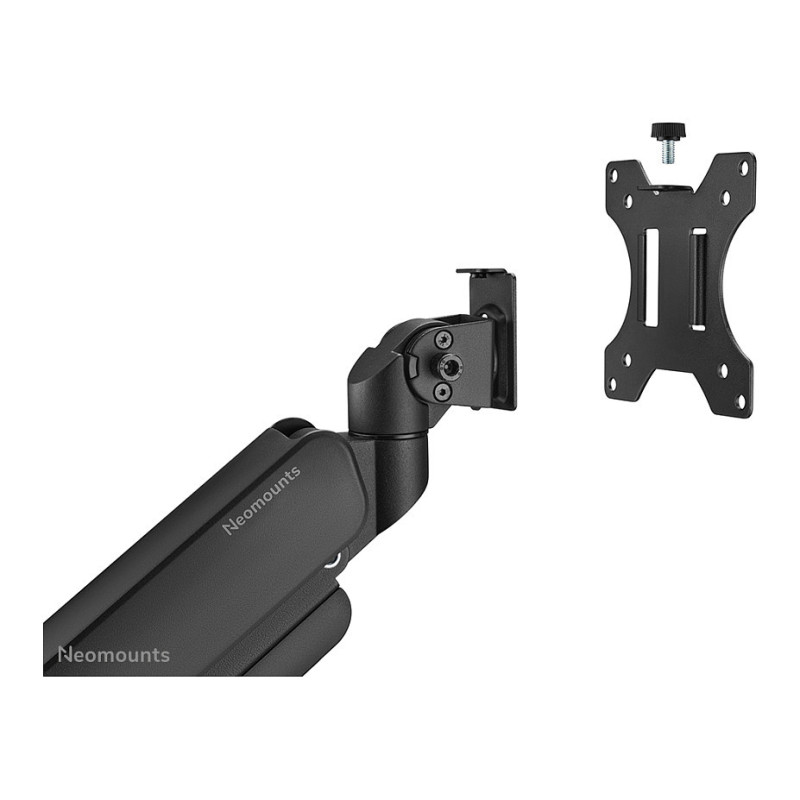

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

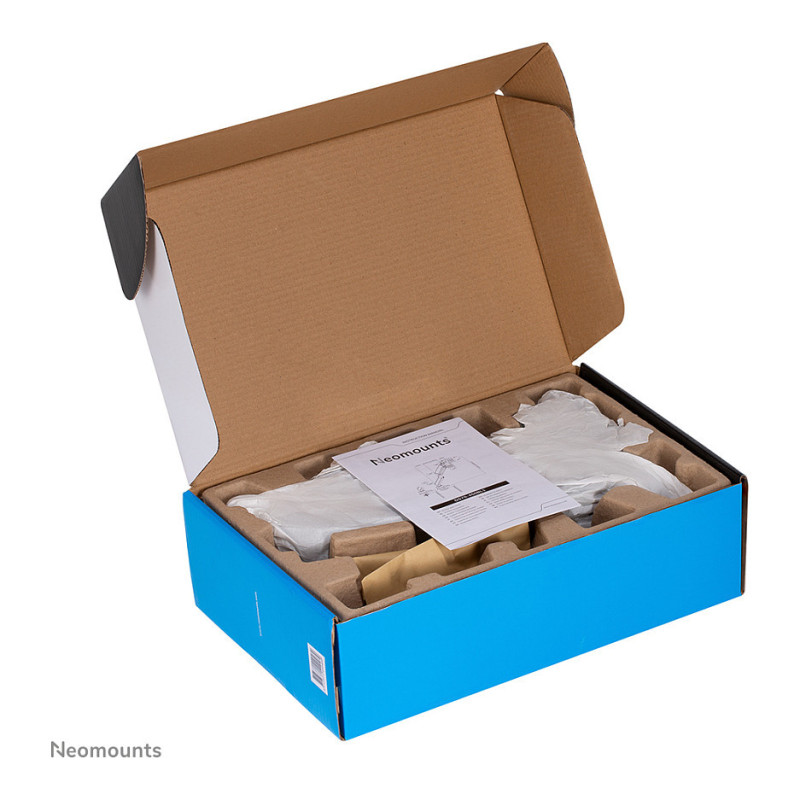

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.

For wall installation, the AWL75-450BL wall adapter is optionally available.

Mounting

Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum weight capacity (per display): 18 kg
Maximum weight capacity (per curved/ultra-wide display): 14 kg
Maximum screen size: 124.5 cm (49")
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm
Distance to the wall (min): 10.8 cm
Distance to the wall (max): 56.8 cm

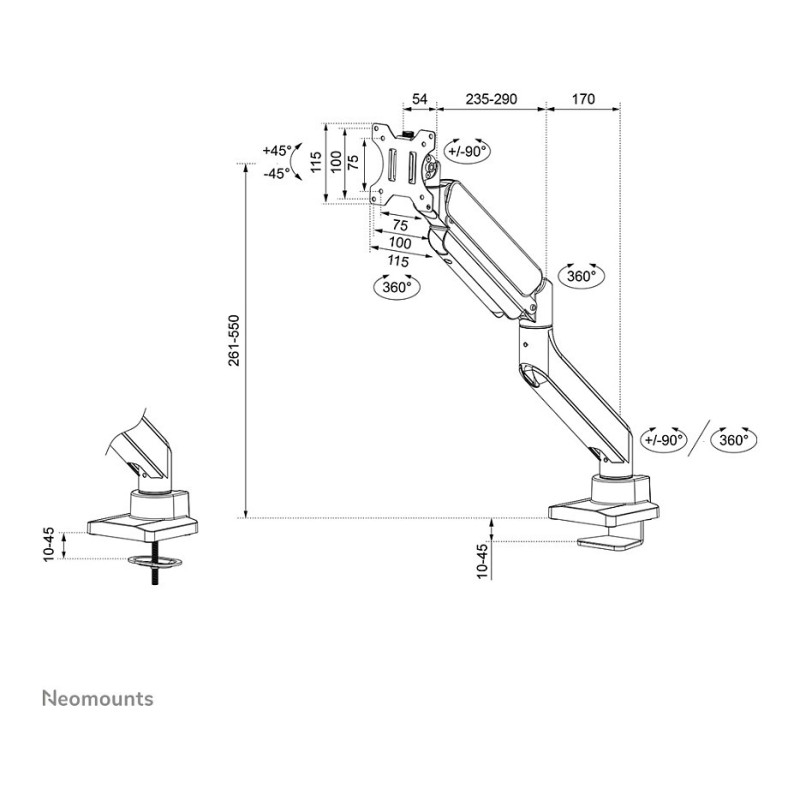

Ergonomics

Feature: Height adjustment

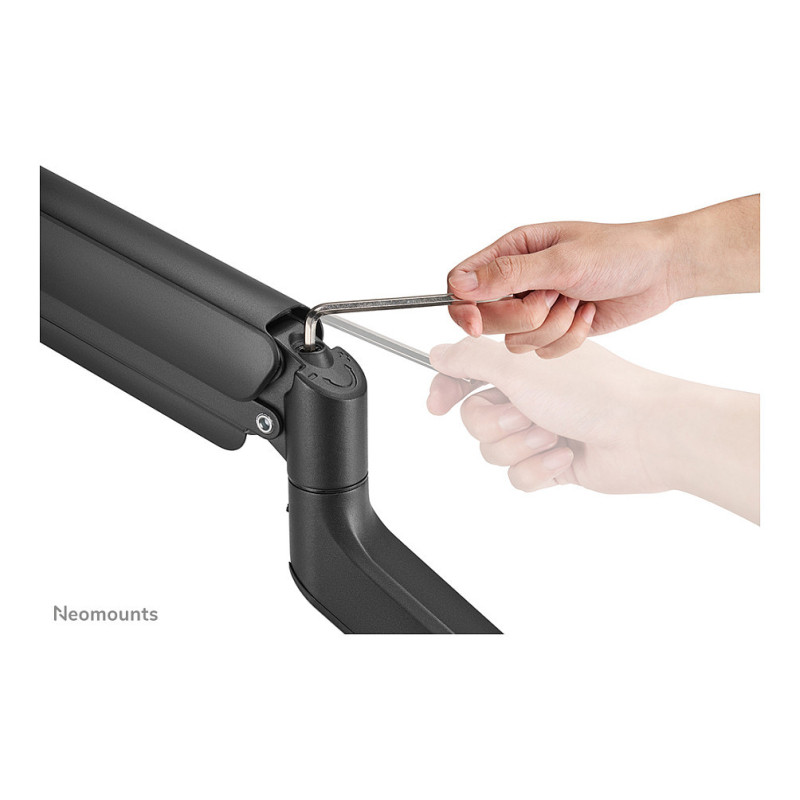

Height adjustment type: Gas spring
Height adjustment range: 261 - 555 mm
Feature: Adjustable depth
Depth adjustment range: 54 - 511 mm
Width adjustment: 92 cm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Feature: Cable management

Design

Housing material: Steel
Product colour: Black

Weight & dimensions

Width: 120 mm
Depth: 568 mm
Height: 653 mm
Weight: 3.98 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 280 mm
Package depth: 127 mm
Package height: 445 mm
Package net weight: 5.1 kg
Package weight: 5.1 kg
Package type: Box

Other features

Minimum weight: 1 kg
Width adjustment range: 0 - 920 mm

Logistics data

Master (outer) case width: 460 mm
Master (outer) case length: 275 mm
Master (outer) case height: 580 mm
Master (outer) case gross weight: 20.5 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 16 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 64 pc(s)
