„Neomounts DS70-810BL1“ monitoriaus laikiklis / stovas

Neomounts DS70-810BL1 Monitor arm 17-32" - gas spring - space saving - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

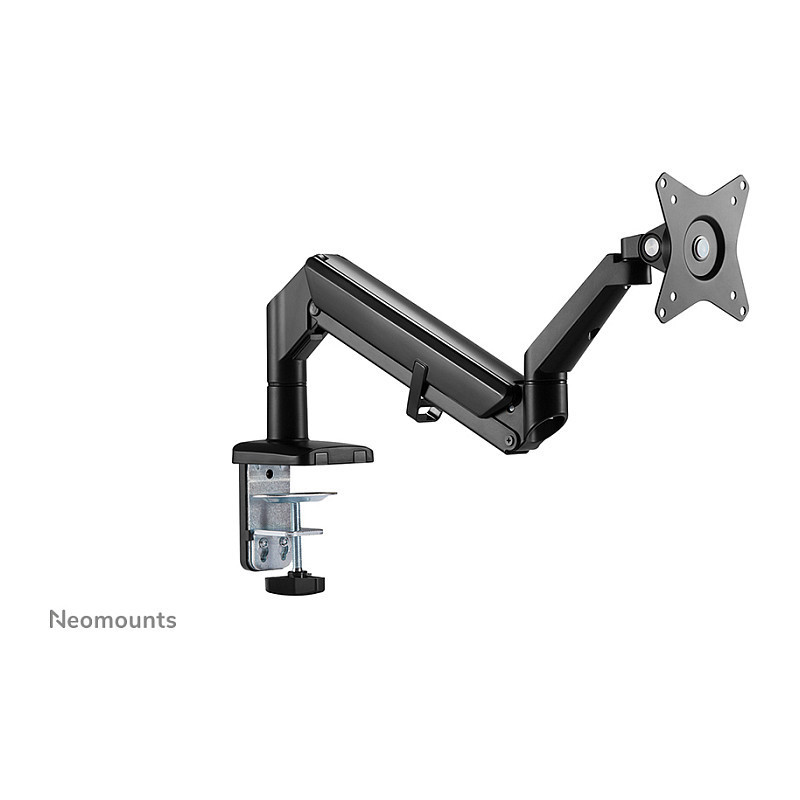

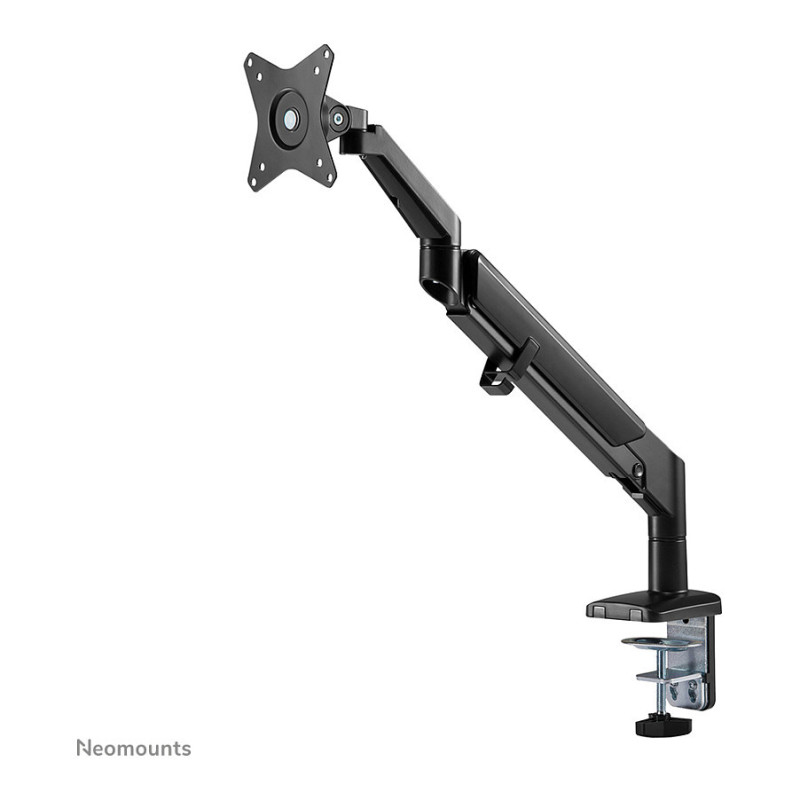

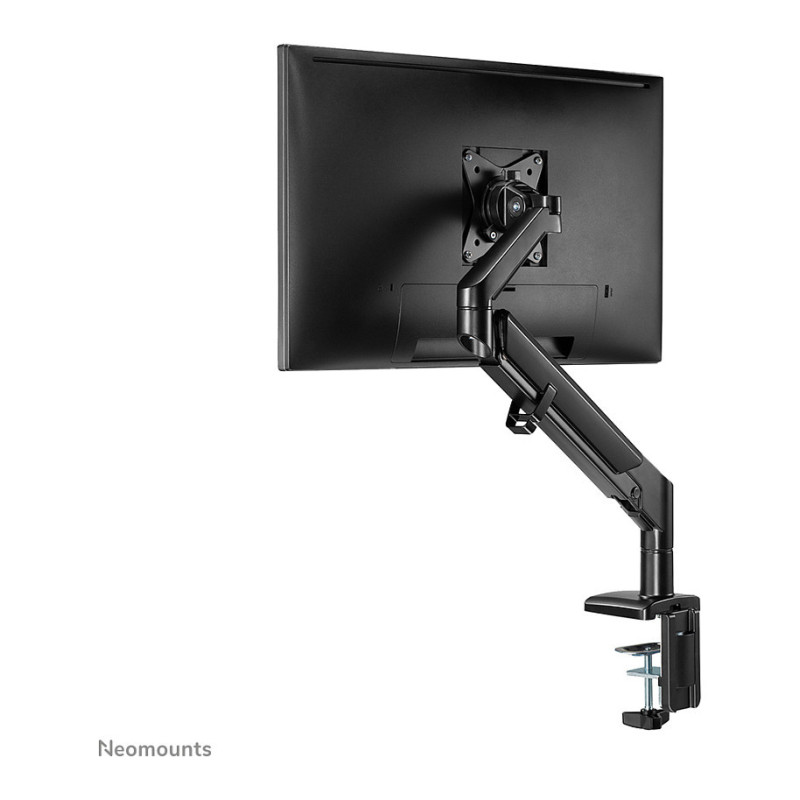

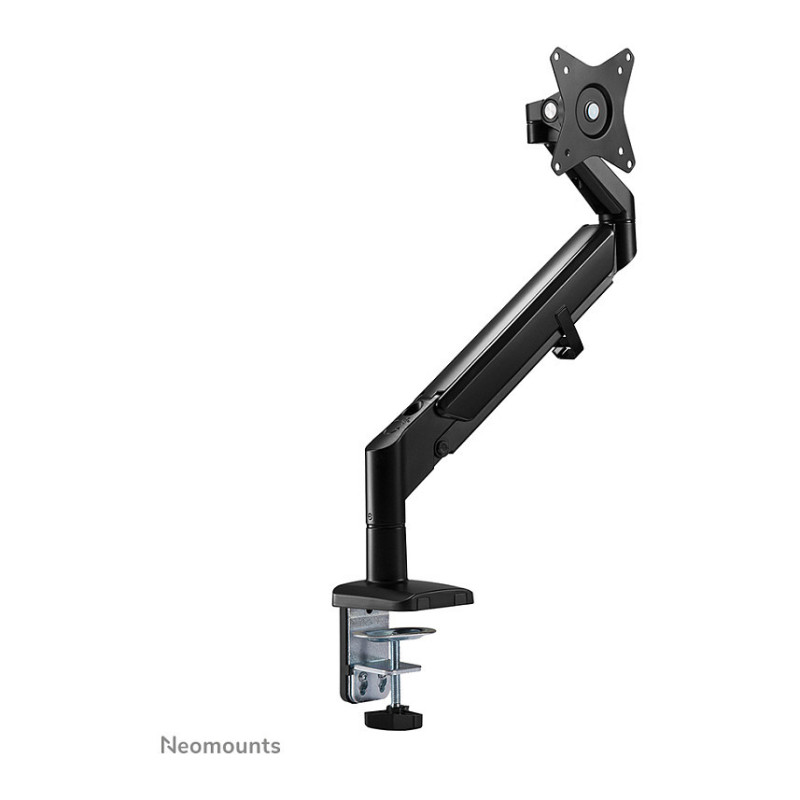

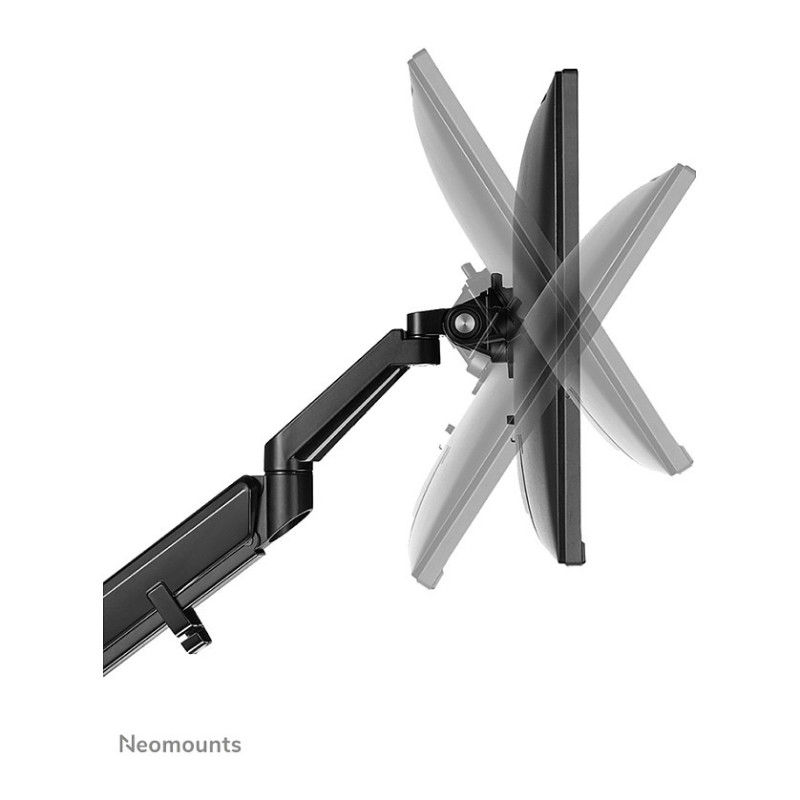

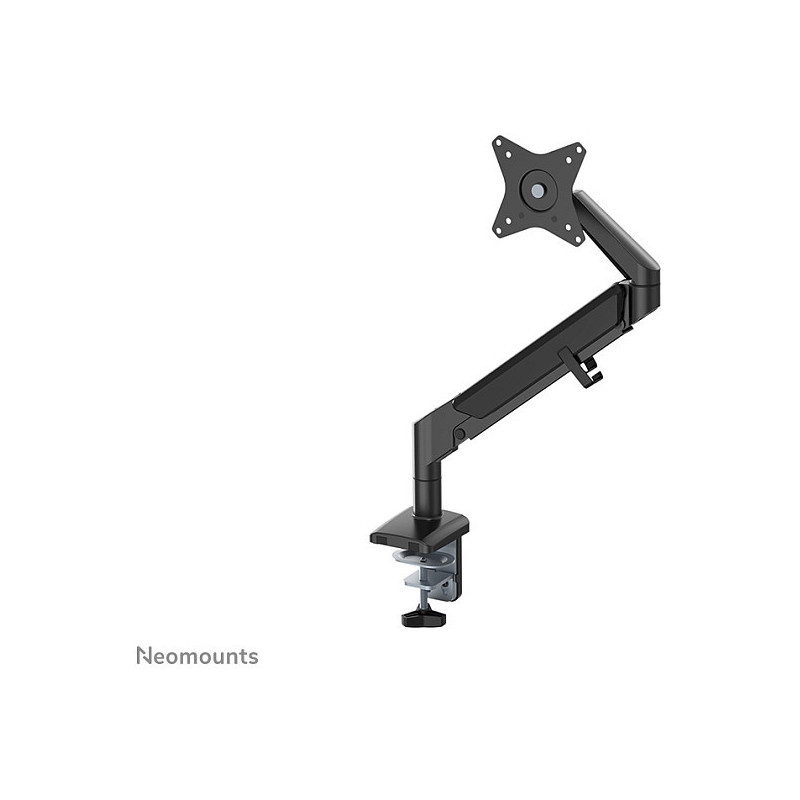

The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.

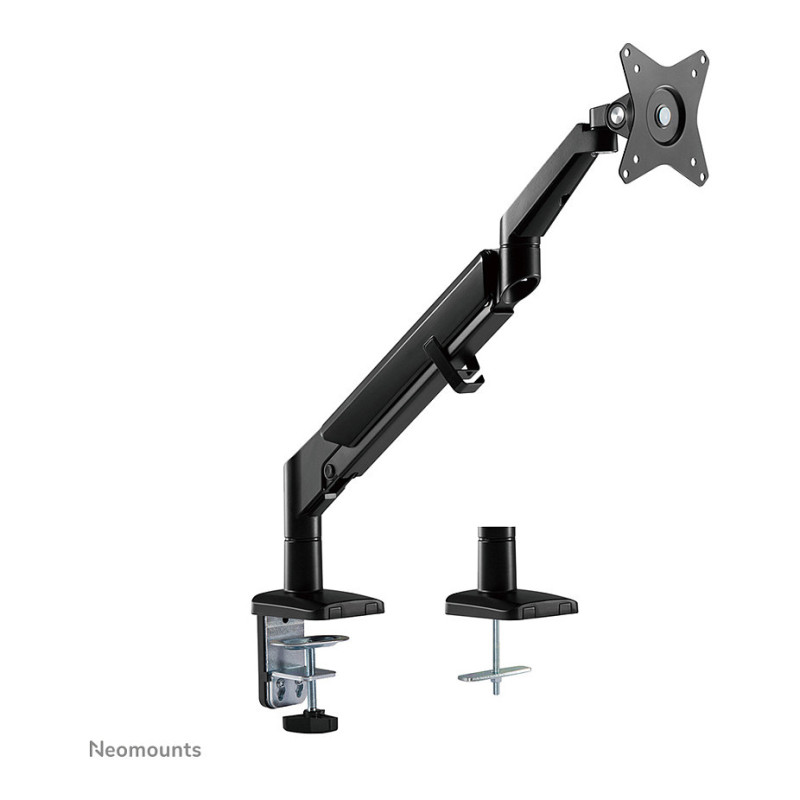

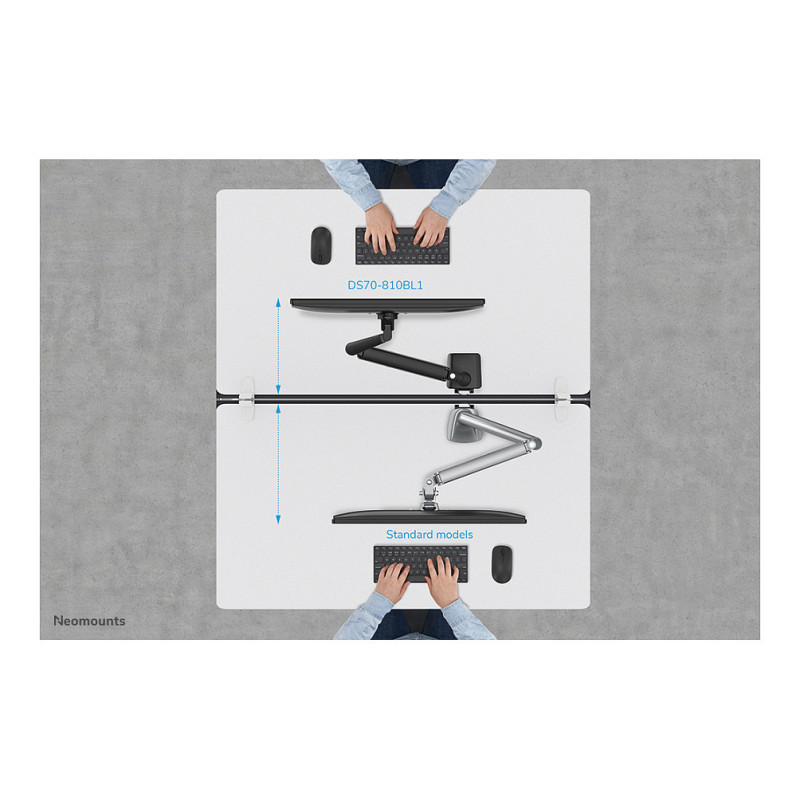

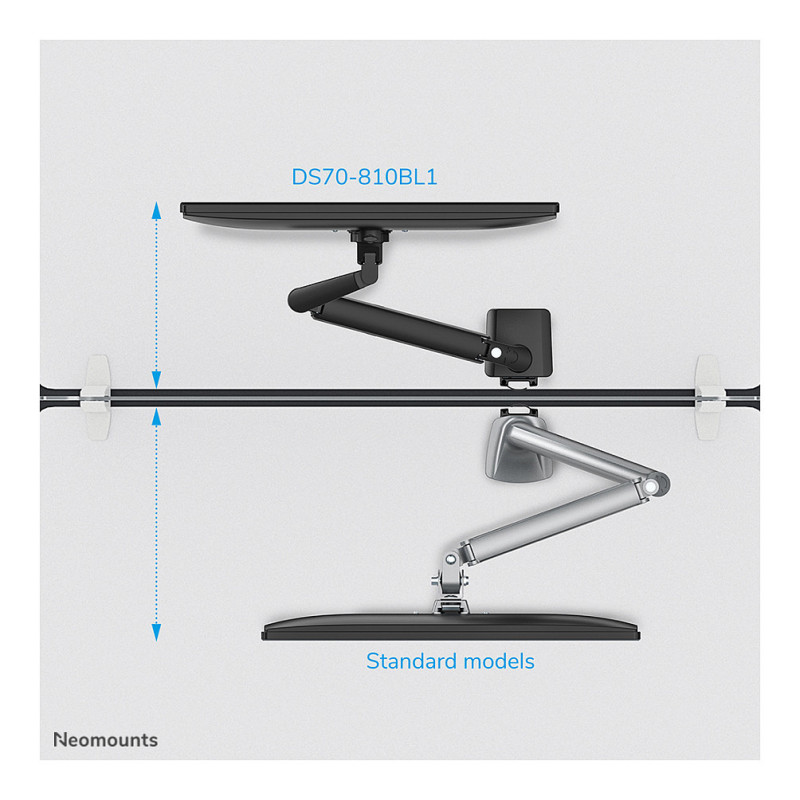

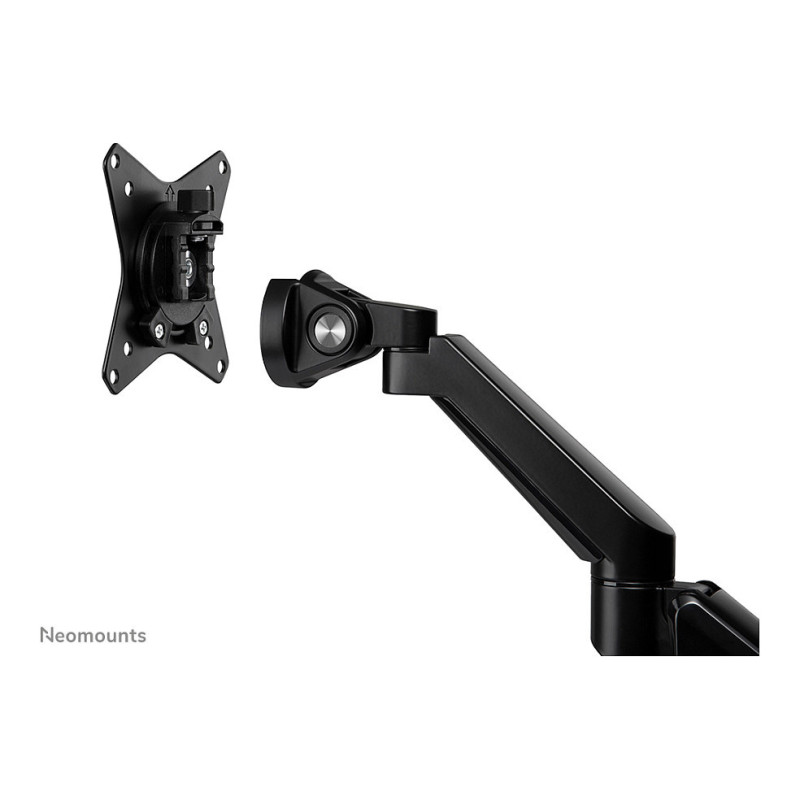

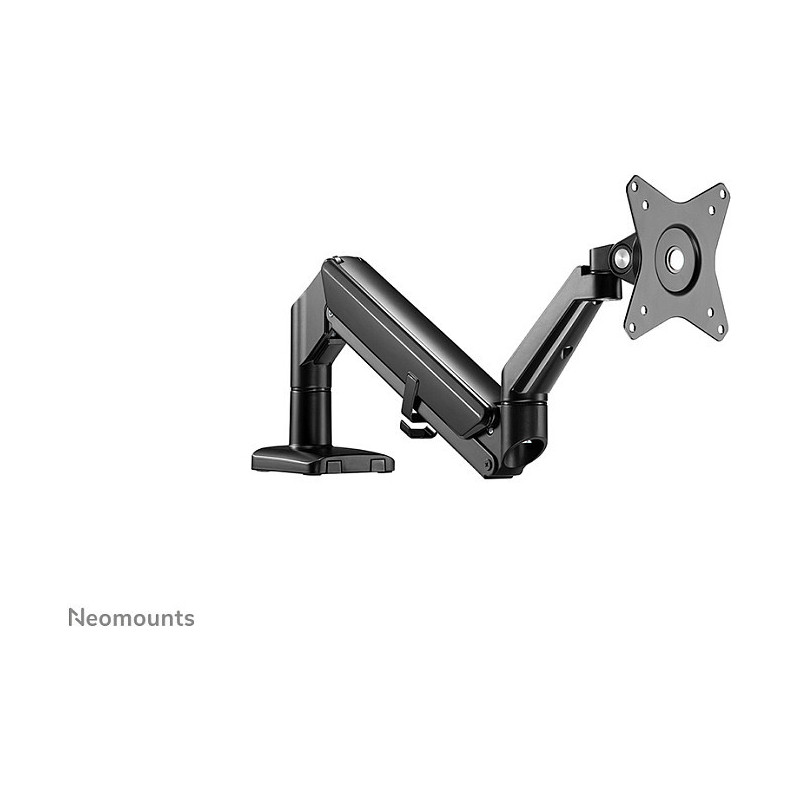

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum weight capacity (per display): 9 kg
Maximum weight capacity (per curved/ultra-wide display): 9 kg
Maximum screen size: 81.3 cm (32")

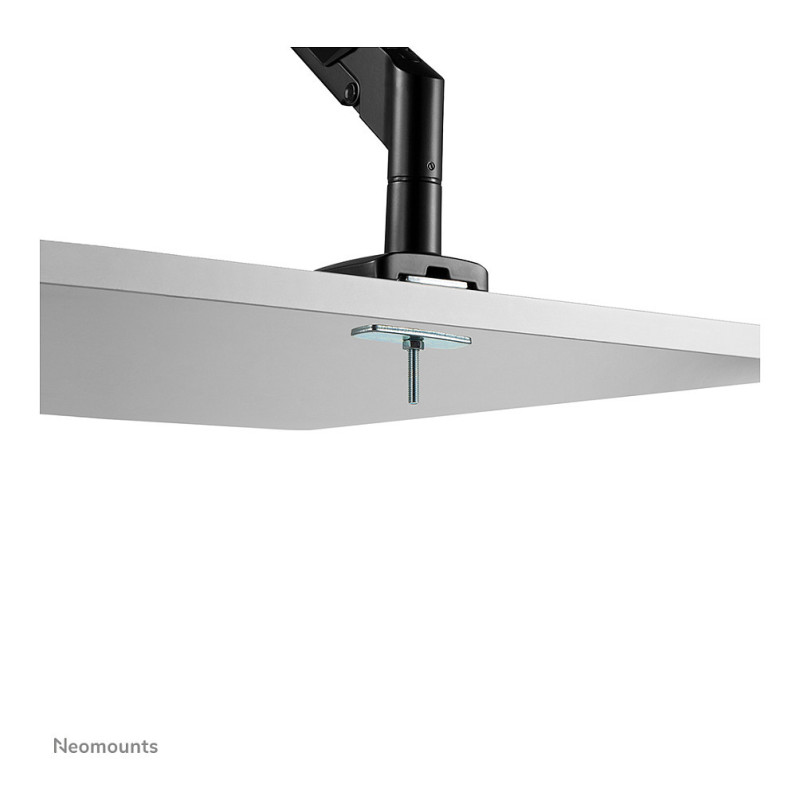

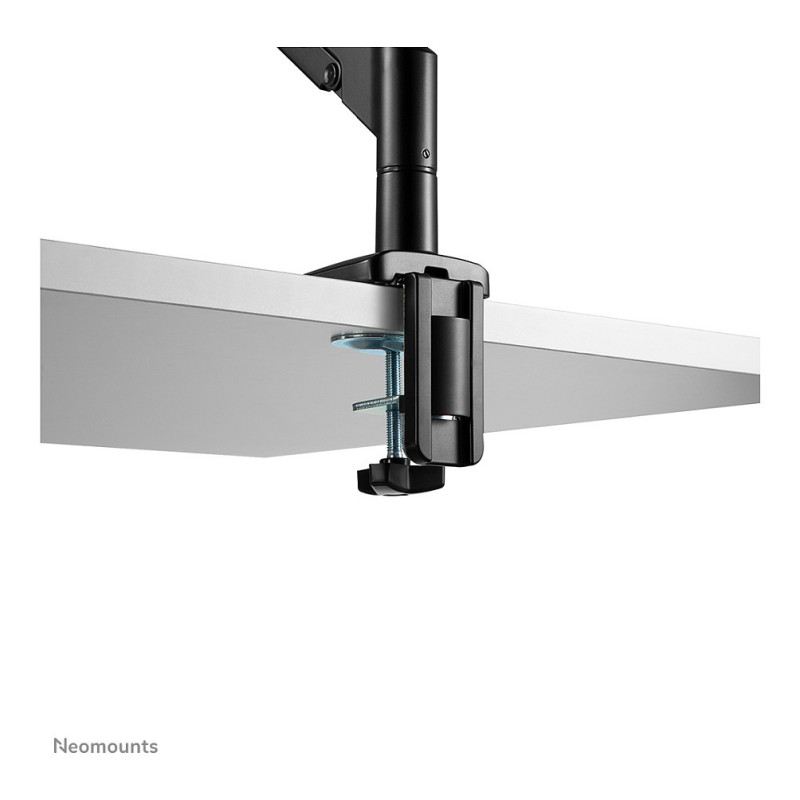

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment

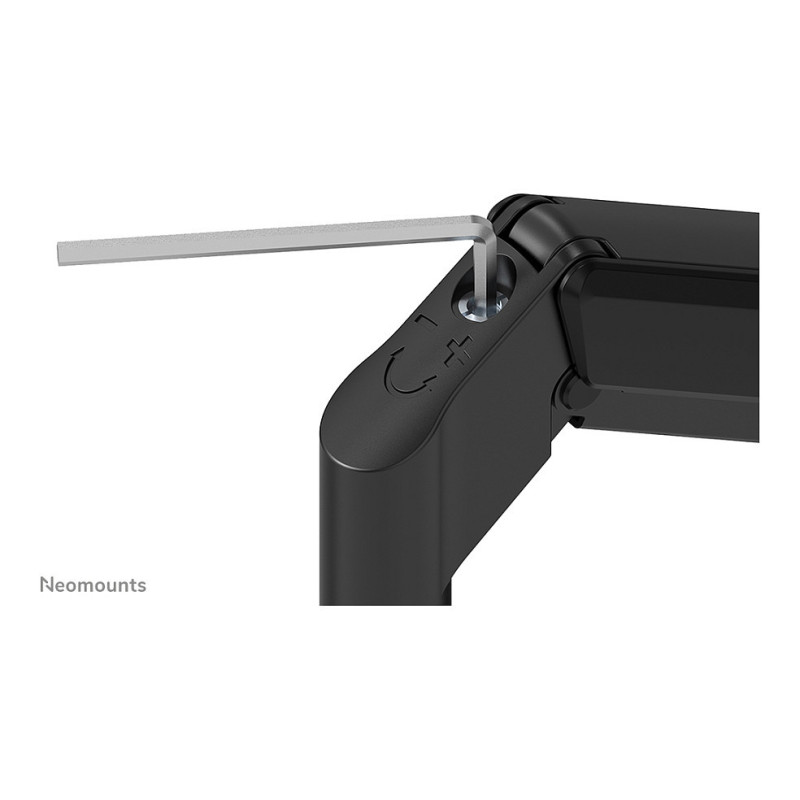

Height adjustment type: Gas spring

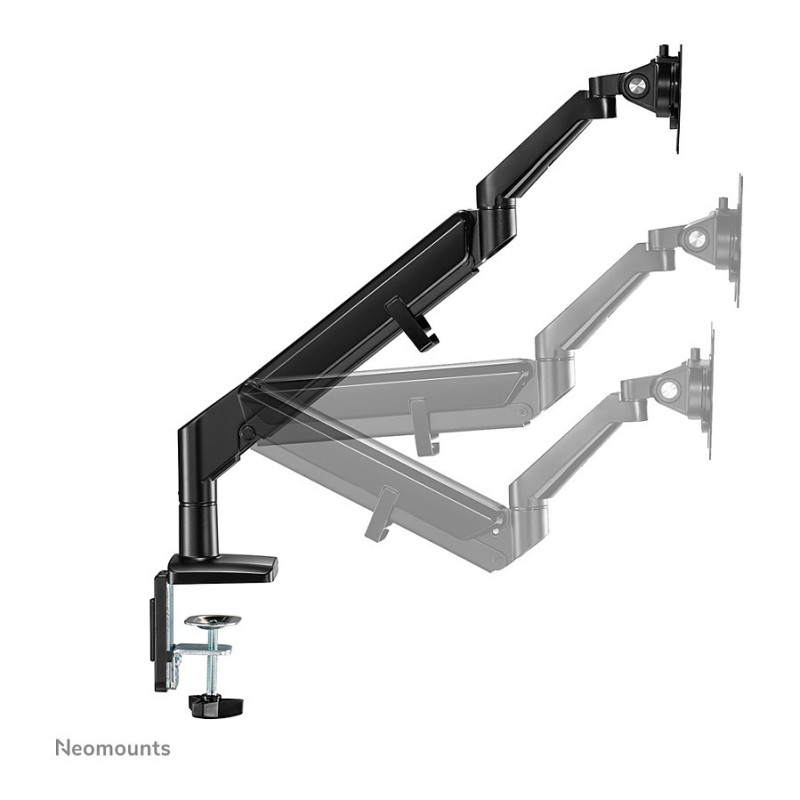

Height adjustment range: 265 - 550 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 490 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°

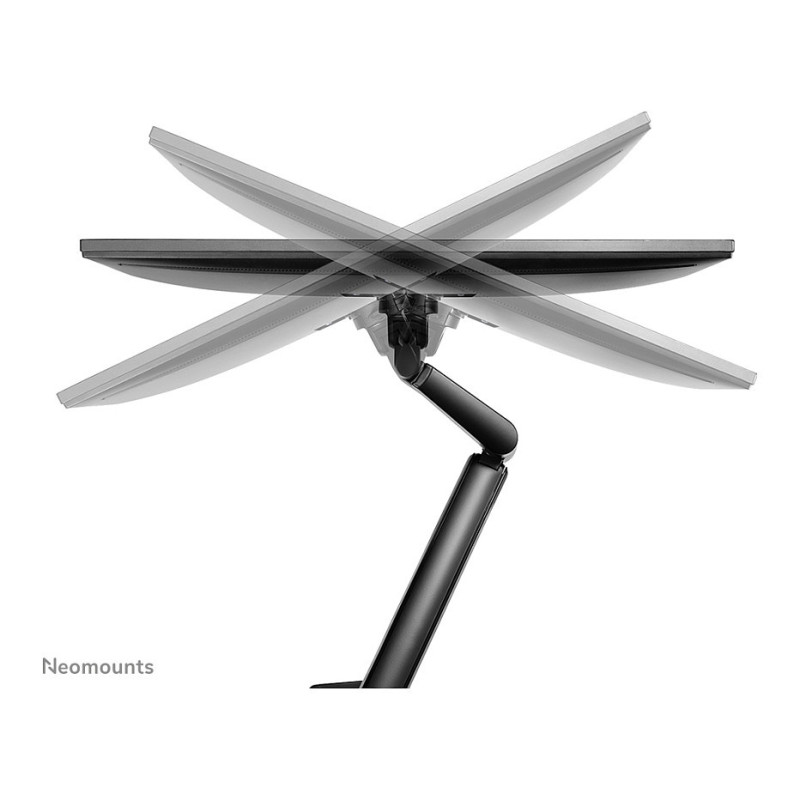

Pivot angle: -180 - 180°

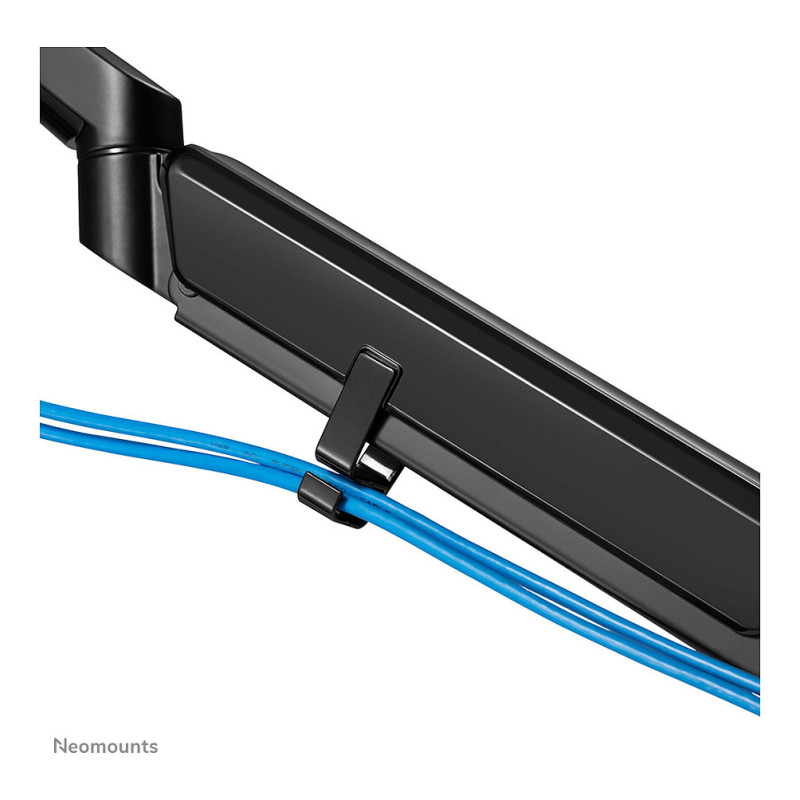

Feature: Cable management

Design

Housing material: Steel
Product colour: Black
Orientation: Landscape/Portrait

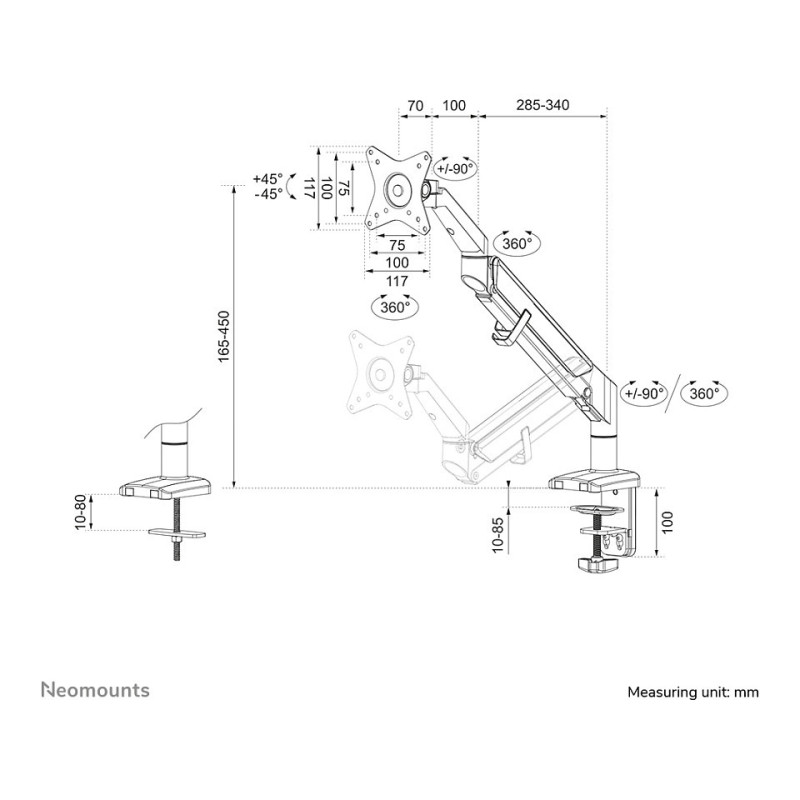

Weight & dimensions

Width: 117 mm
Depth: 555 mm
Height: 615 mm
Weight: 3 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 222 mm
Package depth: 117 mm
Package height: 400 mm
Package net weight: 3.6 kg
Package weight: 3.6 kg

Other features

Minimum weight: 1 kg

Logistics data

Master (outer) case width: 465 mm
Master (outer) case length: 415 mm
Master (outer) case height: 370 mm
Master (outer) case gross weight: 22.3 kg
Products per master (outer) case: 6 pc(s)
Country of origin: China
Master (outer) case net weight: 18 kg
Harmonized System (HS) code: 7326909890
Products per pallet (EU): 72 pc(s)
