„Neomounts DS70-250BL2“ monitoriaus laikiklis / stovas

Neomounts DS70-250BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

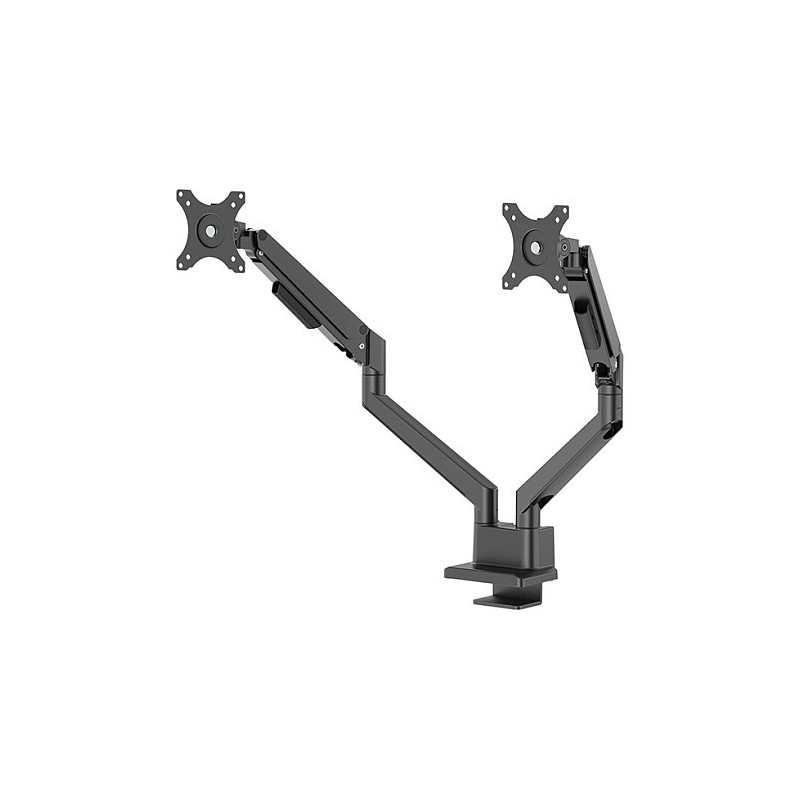

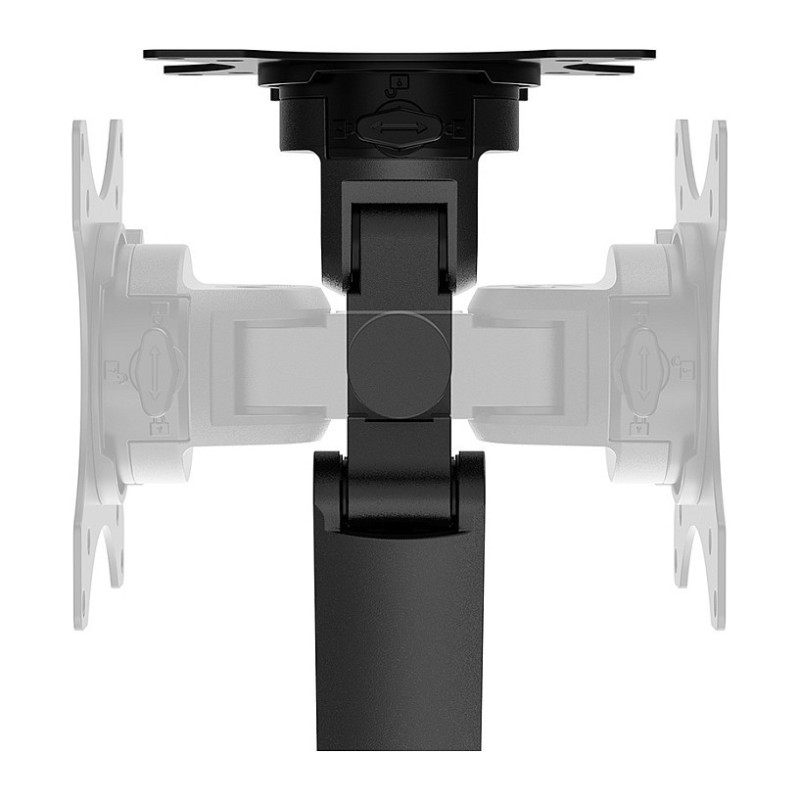

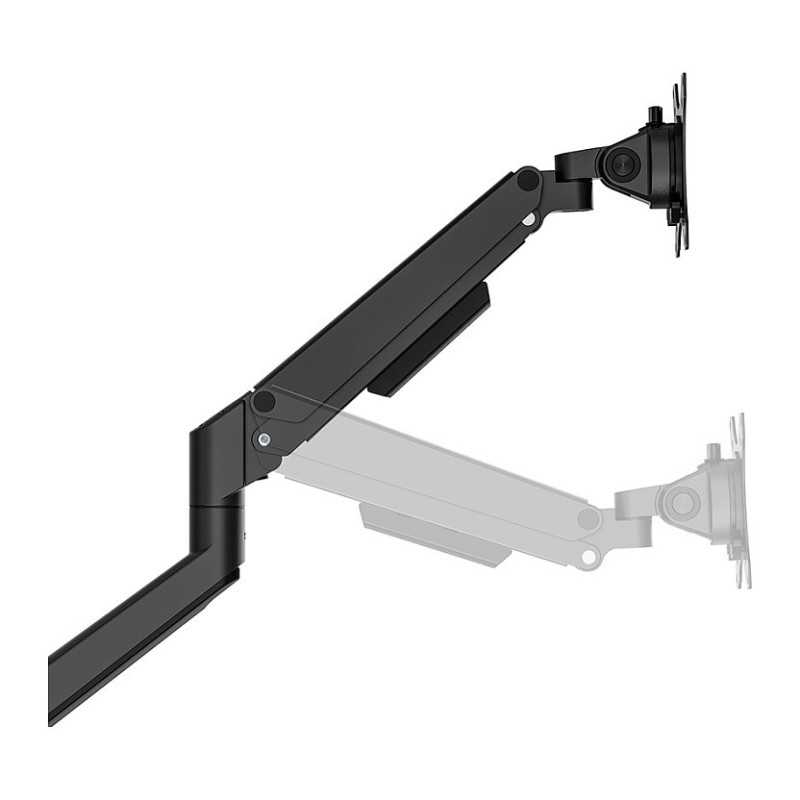

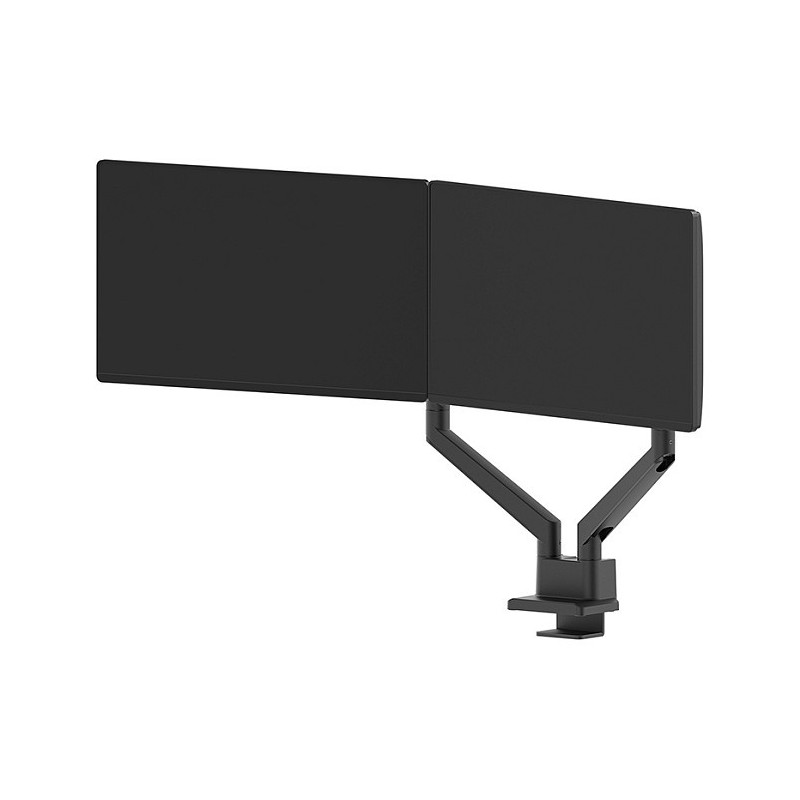

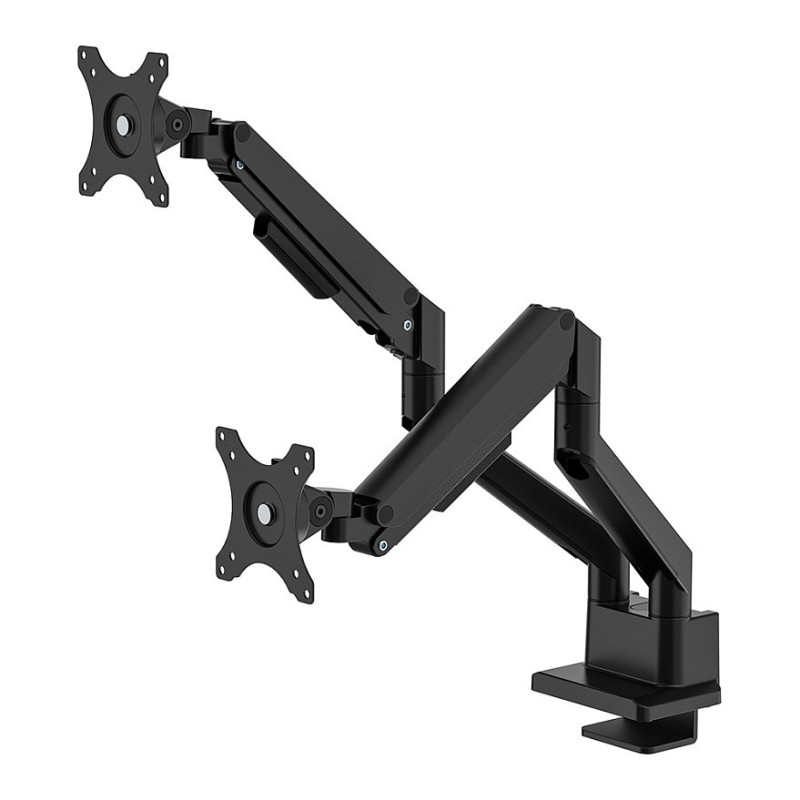

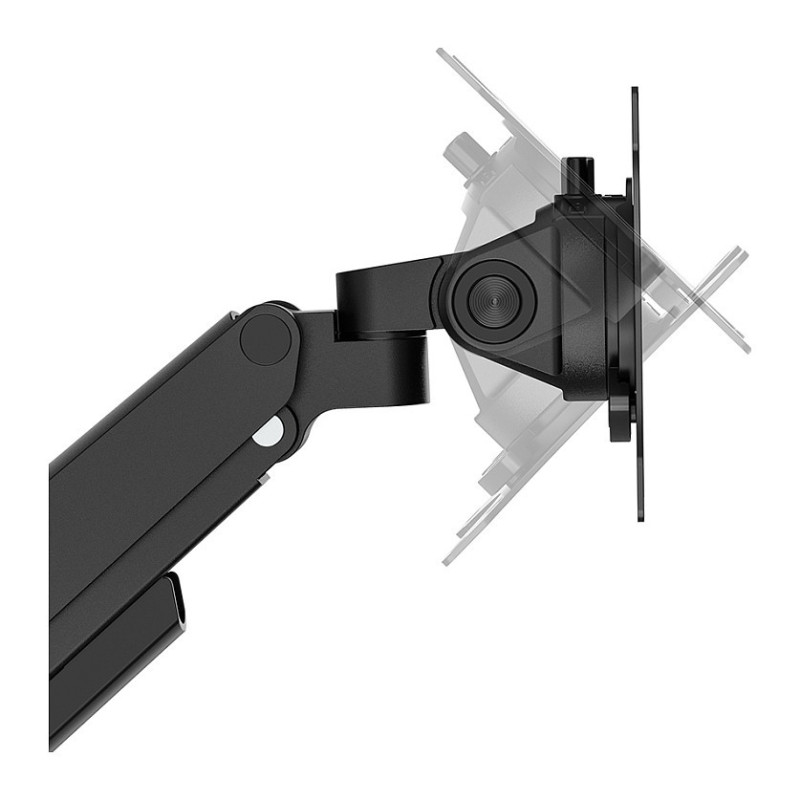

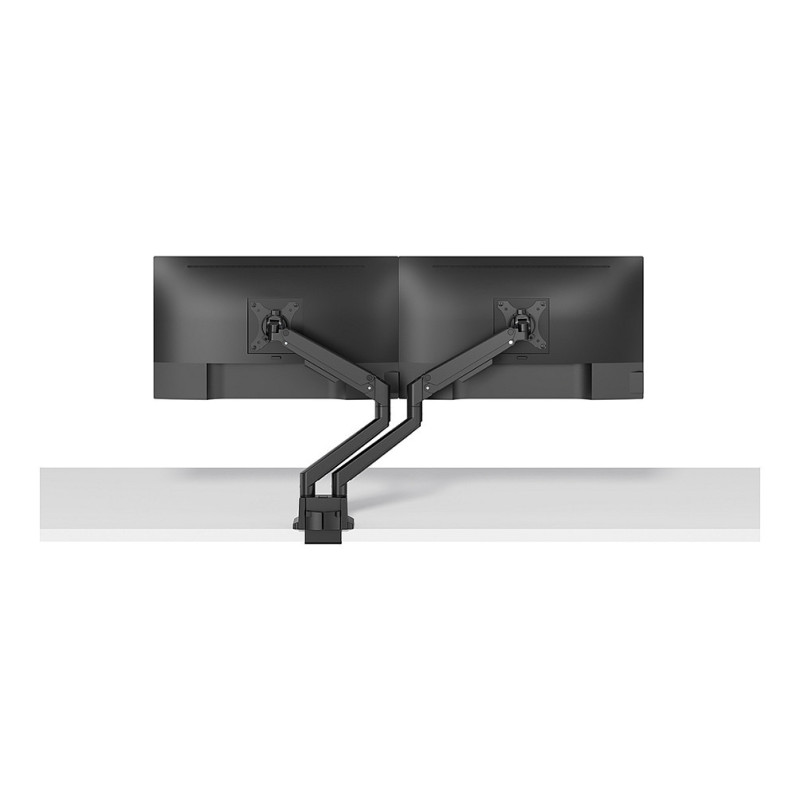

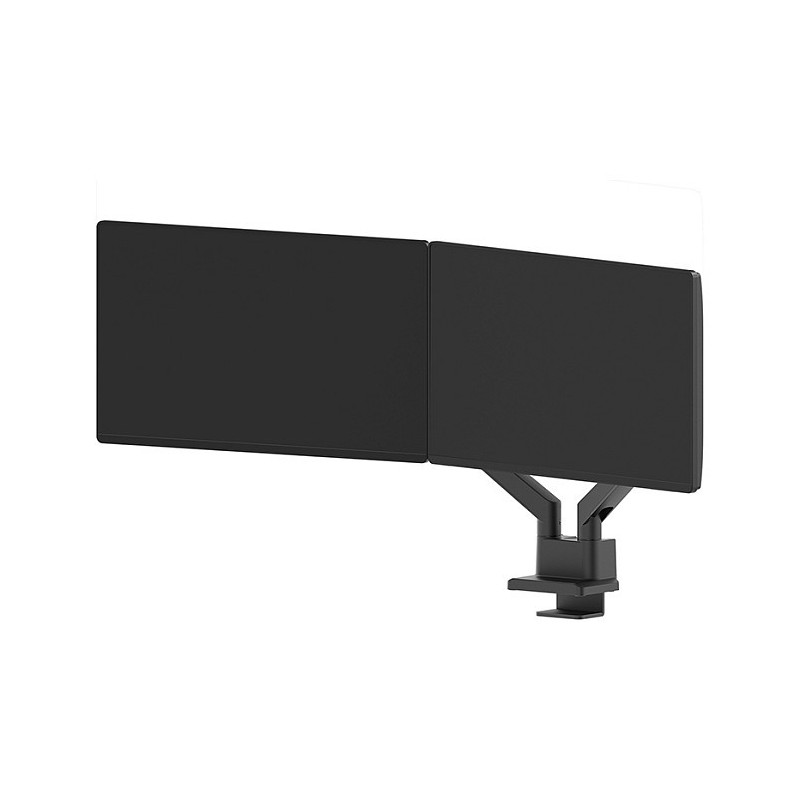

The Neomounts DS70-250BL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

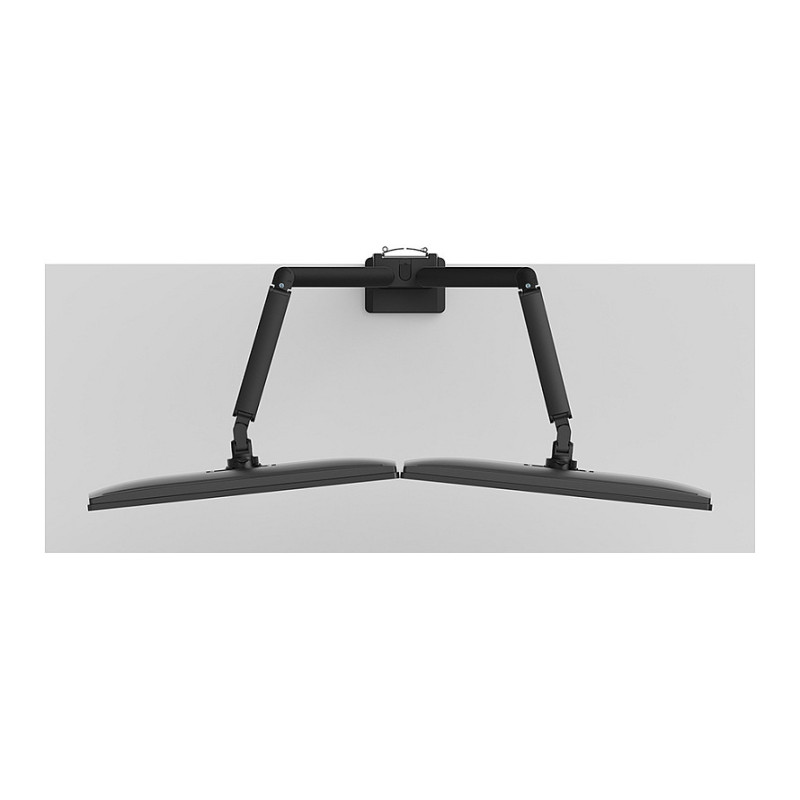

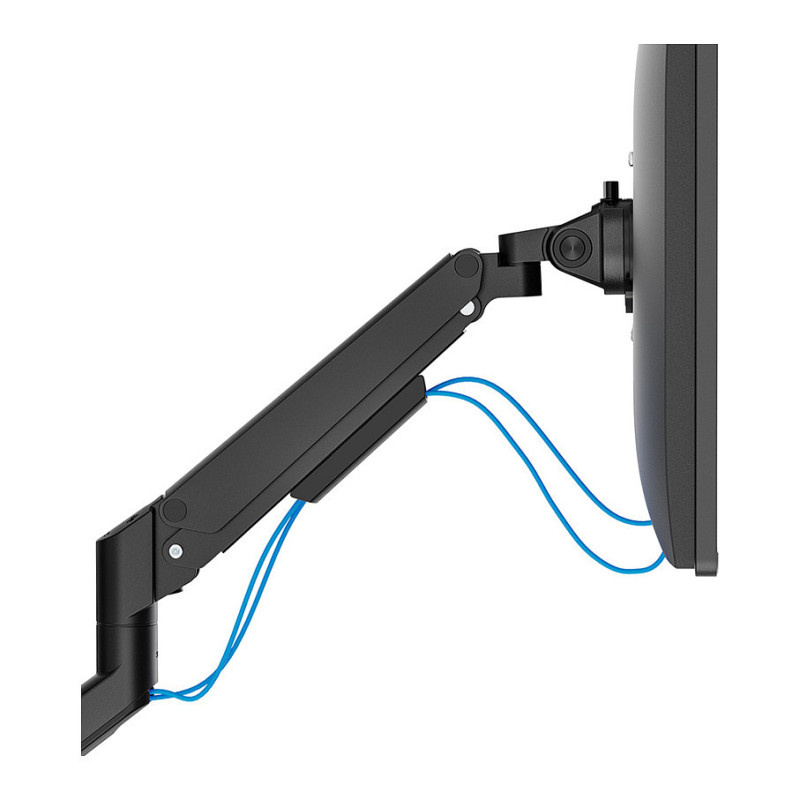

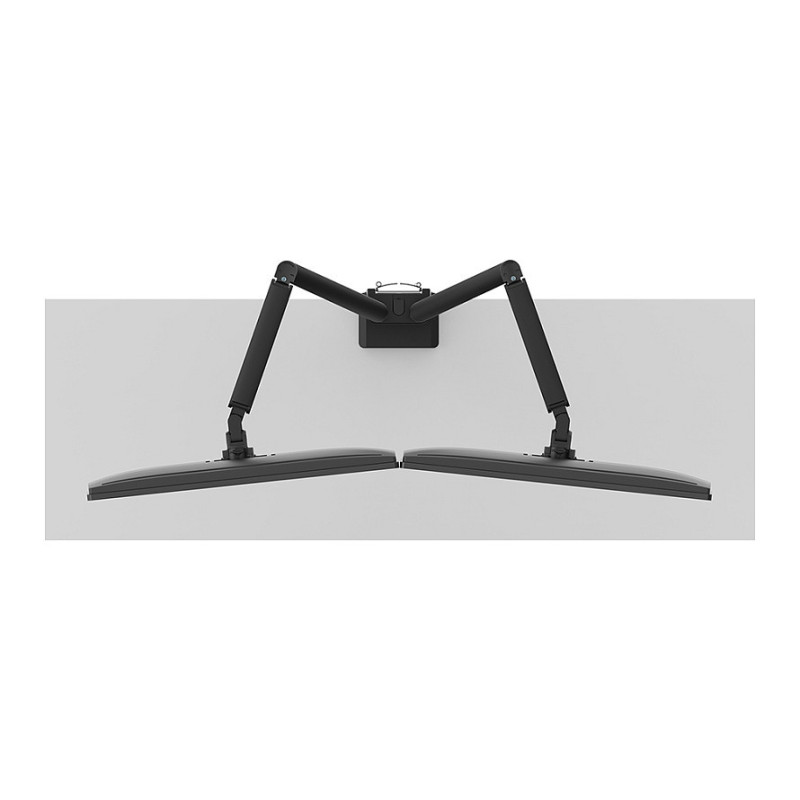

The DS70-250BL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

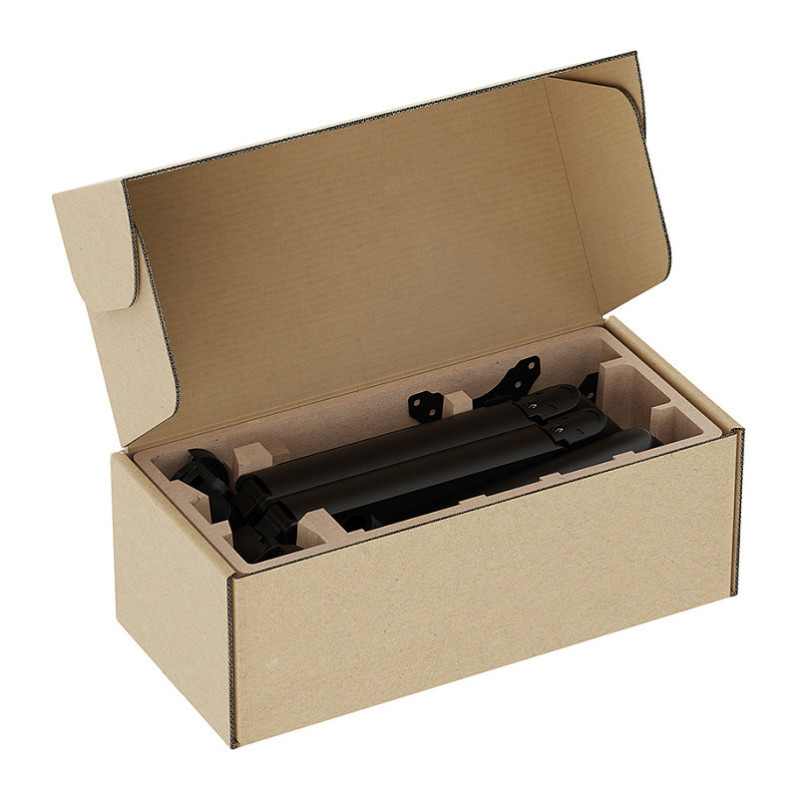

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 9 kg
Maximum weight capacity (per curved/ultra-wide display): 8 kg
Maximum screen size: 81.3 cm (32")
Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm
Distance to the wall (min): 12 cm
Distance to the wall (max): 40.4 cm

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 215 - 495 mm
Feature: Adjustable depth
Depth adjustment range: 70 - 525 mm
Width adjustment: 98.4 cm
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -180 - 180°
Feature: Cable management

Design

Housing material: Aluminium
Product colour: Black

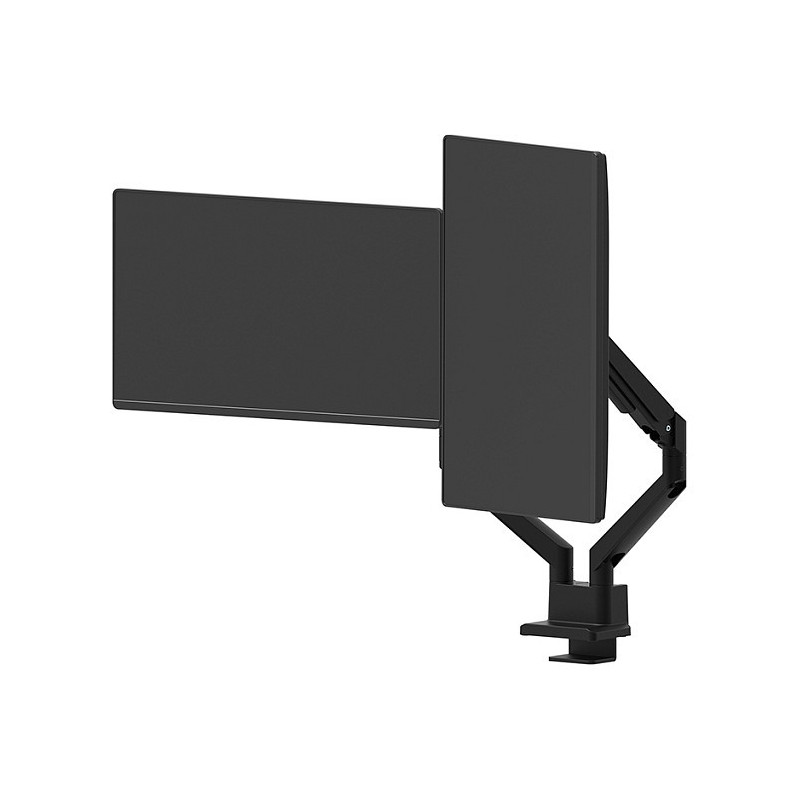

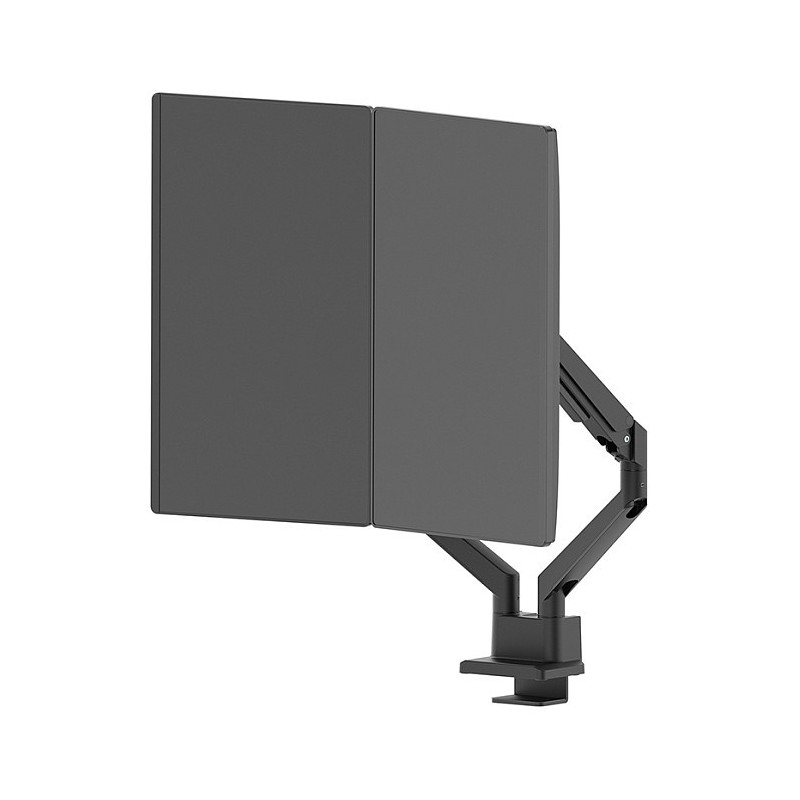

Orientation: Landscape/Portrait

Weight & dimensions

Width: 114 mm
Depth: 580 mm
Height: 552 mm
Weight: 4.35 kg

Packaging data

Package width: 192 mm
Package depth: 147 mm
Package height: 430 mm
Package weight: 4.9 kg

Other features

Minimum weight: 1 kg
Width adjustment range: 0 - 984 mm
Warranty period: 5 year(s)

Logistics data

Master (outer) case width: 405 mm
Master (outer) case length: 310 mm
Master (outer) case height: 445 mm
Master (outer) case gross weight: 20.7 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Master (outer) case net weight: 17.4 kg
Harmonized System (HS) code: 7616991099
Products per pallet (EU): 80 pc(s)
