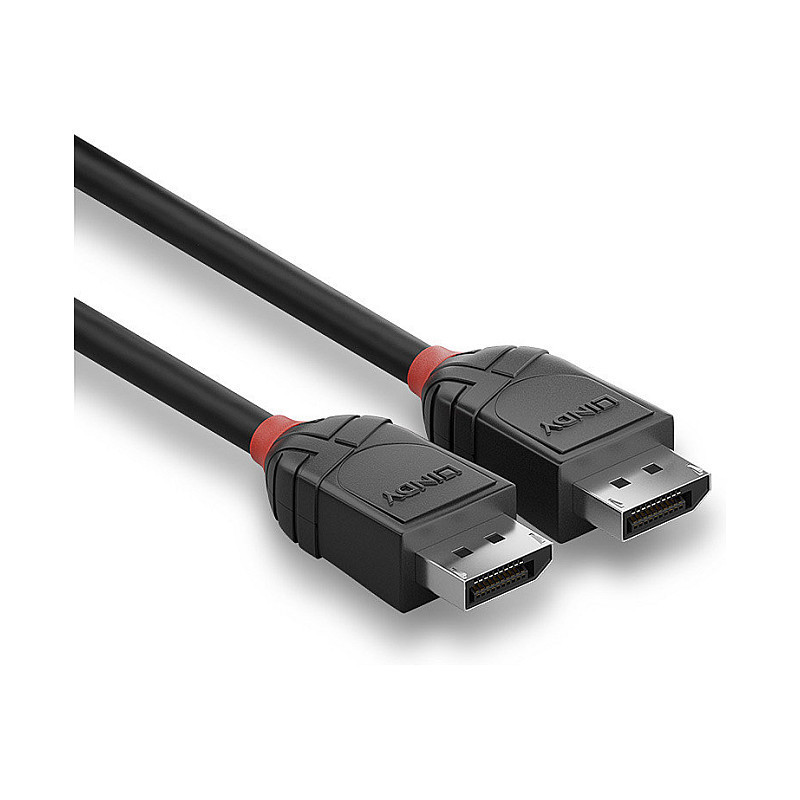

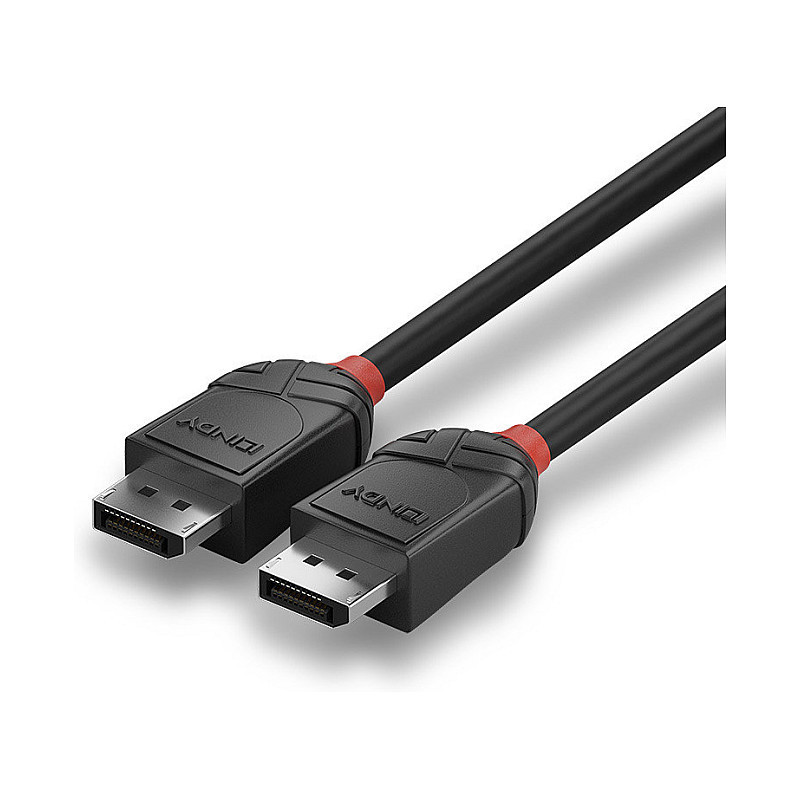

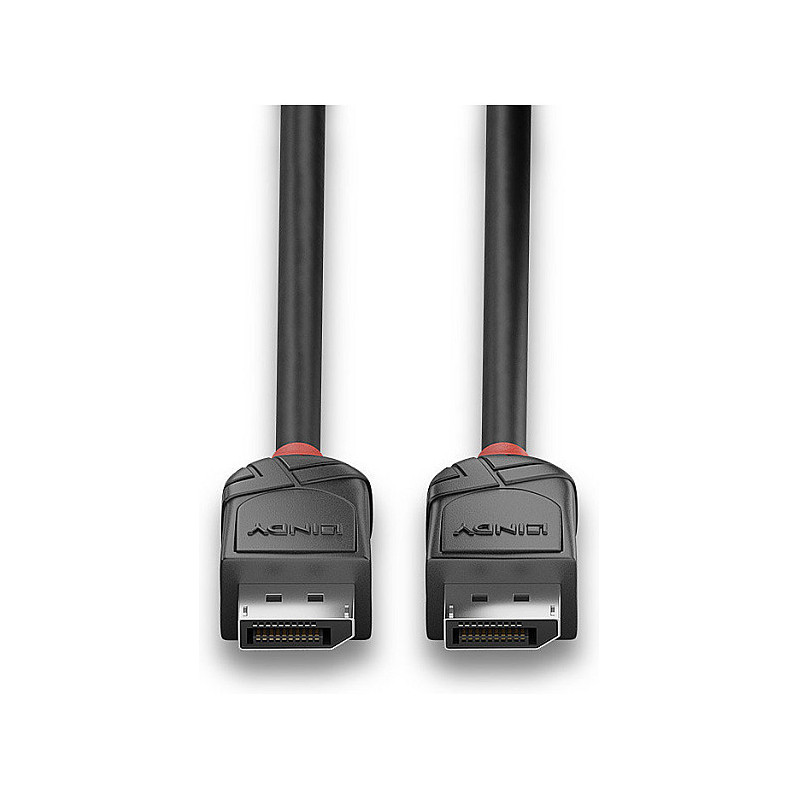

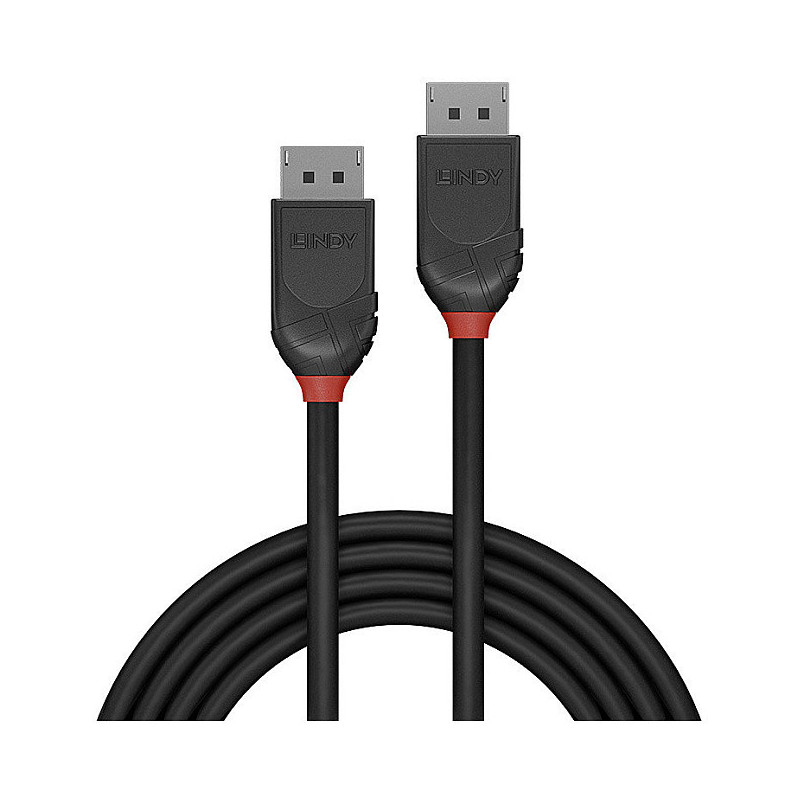

Lindy 36491 DisplayPort kabelis

Lindy 1m DisplayPort 1.2 Cable, Black Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, Certification: RoHS, REACH, UL. Cable diameter: 6 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Black Line DisplayPort cables are available in lengths from 0.5m to 3m.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.2
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 4096 x 2160
Supported video modes: 2160p
Cable length: 1 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable material: Copper
Cable shielding: Copper
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
AWG wire size: 30
Data transfer rate: 21.6 Gbit/s
Contact material: Phosphor bronze
Connector material: Nickel
Feature: Plug and Play
Colour sampling: 4:4:4
Cable type: Round cable
Nominal attenuation: 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Compliance certificates: RoHS
Certification: RoHS, REACH, UL

Weight & dimensions

Cable diameter: 6 mm
Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Bend radius (min): 4.8 cm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
