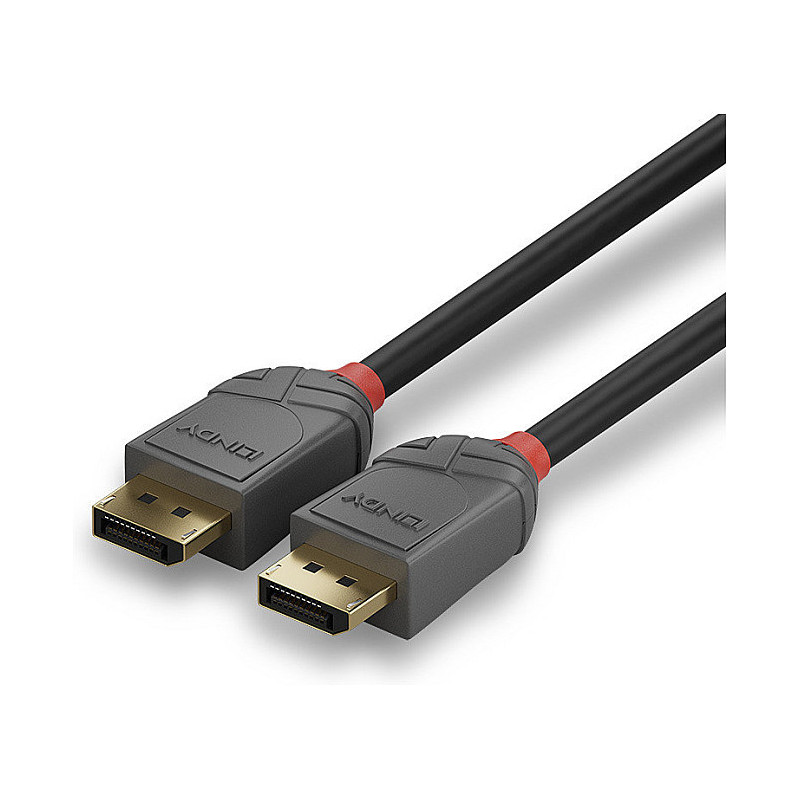

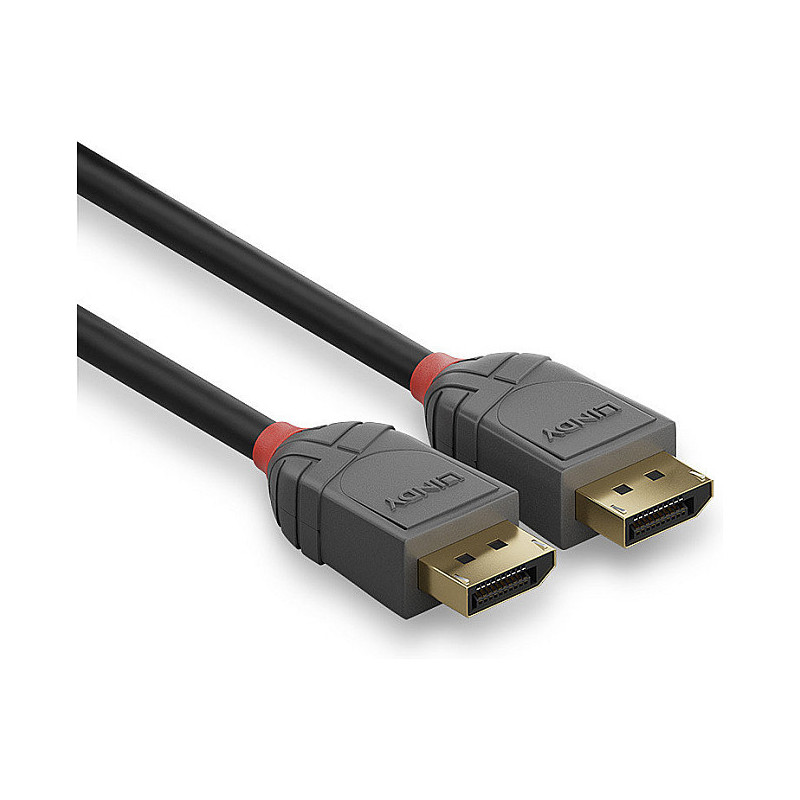

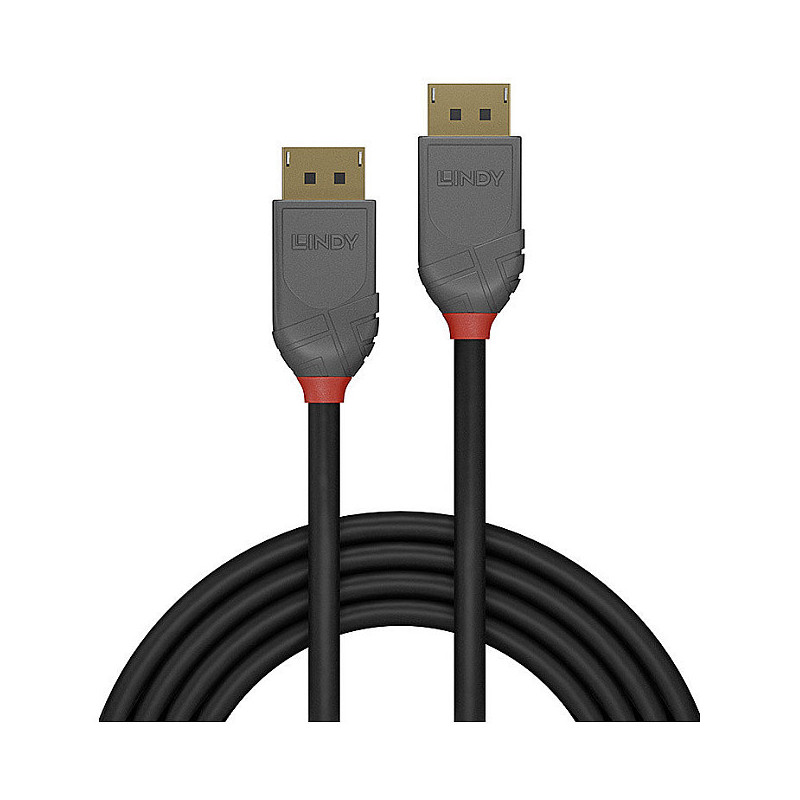

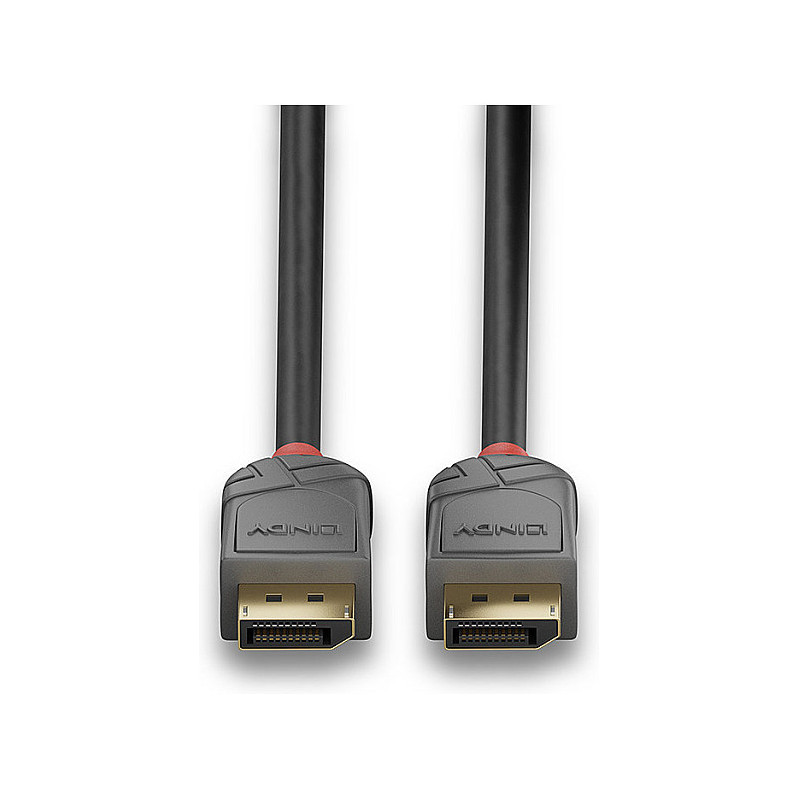

Lindy 36484 DisplayPort kabelis

Lindy 5m DisplayPort 1.4 Cable, Anthra Line. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.2
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 4096 x 2160
Supported video modes: 2160p
Maximum refresh rate: 120 Hz
Cable length: 5 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black, Grey
Cable material: Tinned copper
Cable shielding: Copper
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
AWG wire size: 28
Data transfer rate: 21.6 Gbit/s
Contact material: Phosphor bronze
Connector material: Gold
Feature: Plug and Play
Colour sampling: 4:2:2
Cable type: Round cable
Nominal attenuation: 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Certification: RoHS, REACH, UL

Weight & dimensions

Cable diameter: 7.3 mm
Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
Bend radius (min): 5.84 cm

Packaging data

Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
