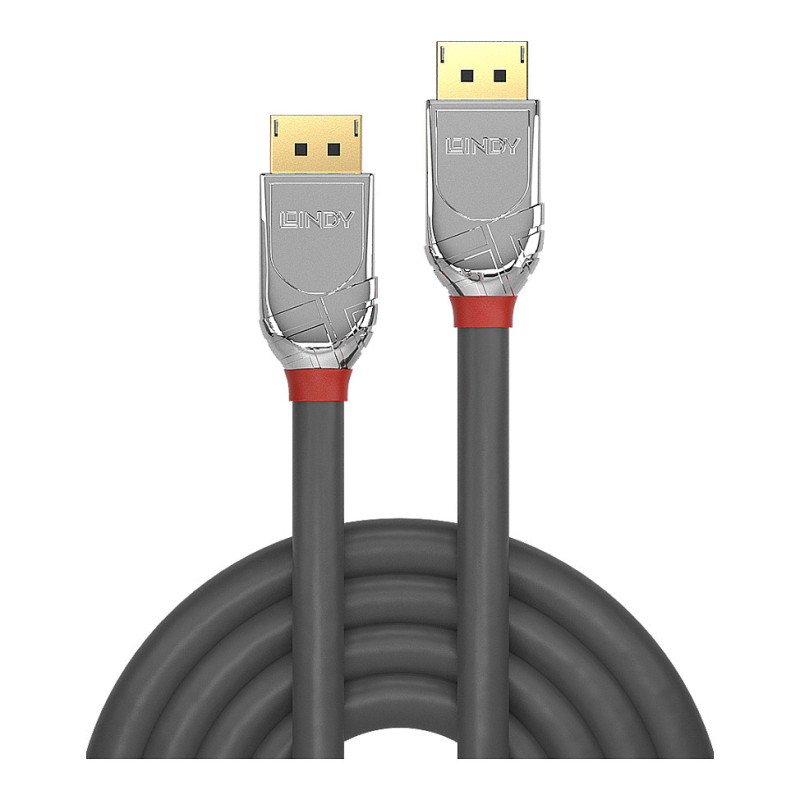

Lindy 36303 DisplayPort cable

Lindy 3m DisplayPort 1.2 Cable, Cromo Line. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: REACH, RoHS, Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm, Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm. Package type: Polybag. Pallet net height: 3.89 cm

From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.

Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.

Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.

Cromo Line DisplayPort cables are available in lengths from 0.5m to 5m.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.2
Maximum resolution: 4096 x 2160 pixels
Supported video modes: 2160p
Maximum refresh rate: 60 Hz
Feature: 3D
Cable length: 3 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Chrome, Grey
Cable material: Tinned copper
Cable shielding: Copper
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
AWG wire size: 28
Data transfer rate: 21.6 Gbit/s
Contact material: Phosphor bronze
Connector material: Gold
Colour sampling: 4:4:4
Cable type: Round cable
Nominal attenuation: 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Compliance certificates: REACH, RoHS
Certification: RoHS, REACH, UL

Weight & dimensions

Cable diameter: 7.3 mm
Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
Bend radius (min): 7.3 cm

Packaging data

Package type: Polybag

Packaging content

Feature: Manual

Supplier features

Feature: Product or Article Information Sheet available?

Logistics data

Pallet net height: 3.89 cm
Harmonized System (HS) code: 84733080
