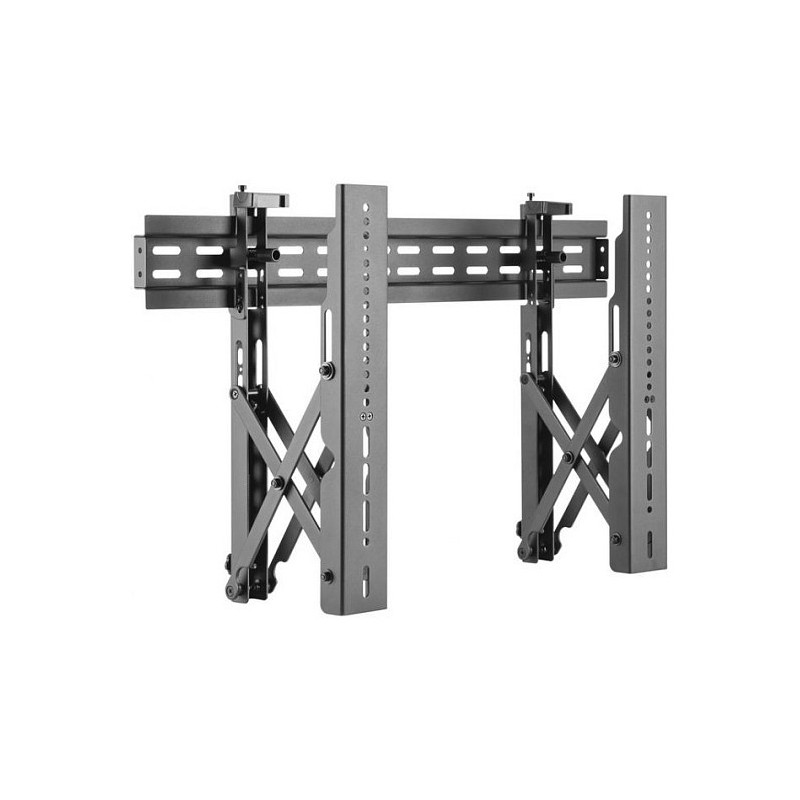

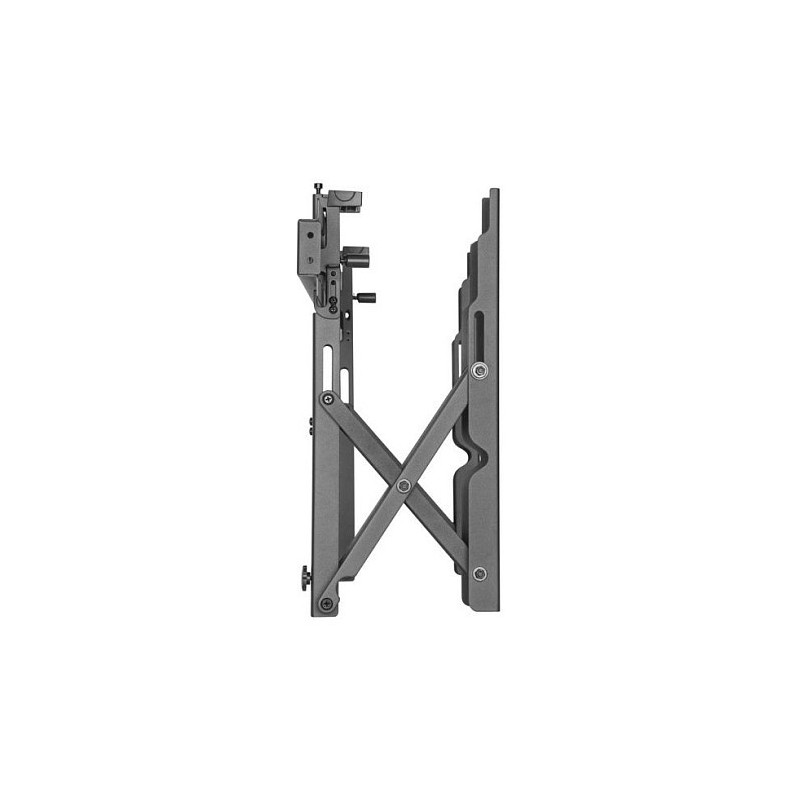

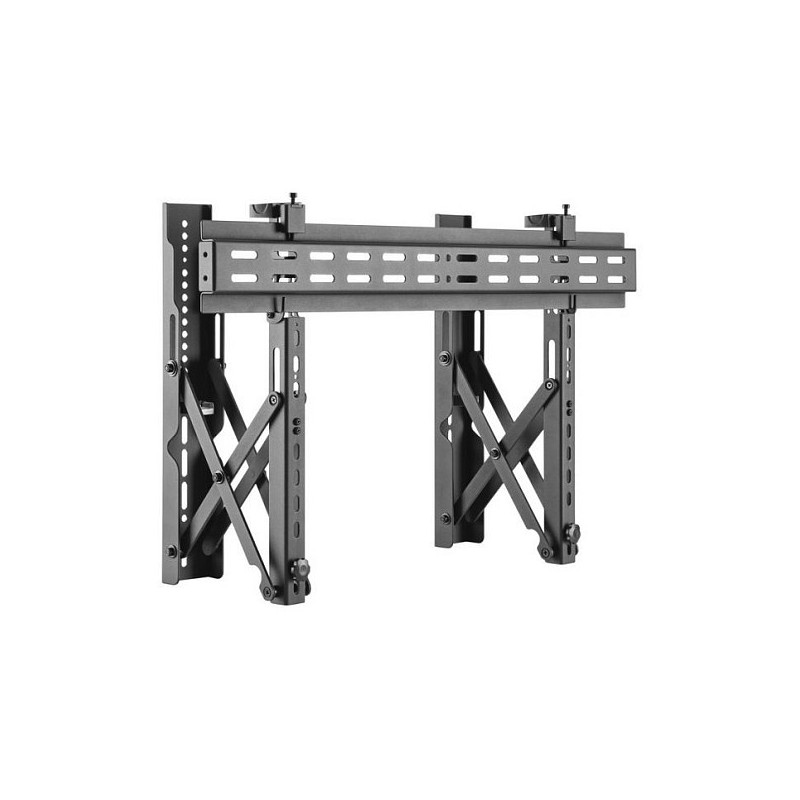

„Equip 650351“ monitoriaus laikiklis / stovas

Equip 37"-70" Pop-Out Video Wall Mount Bracket. Maximum weight capacity: 45 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Product colour: Black

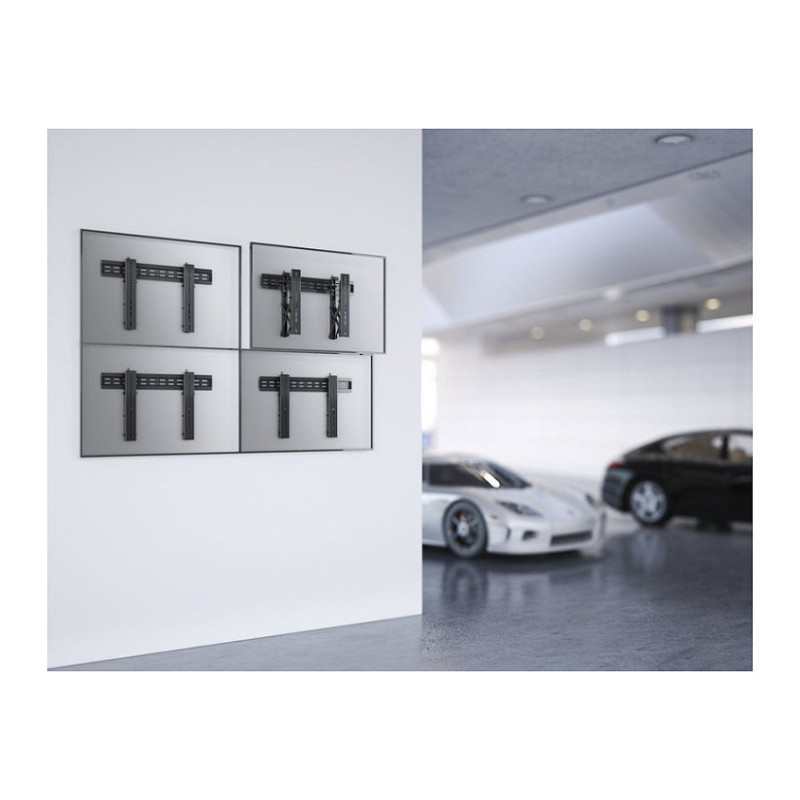

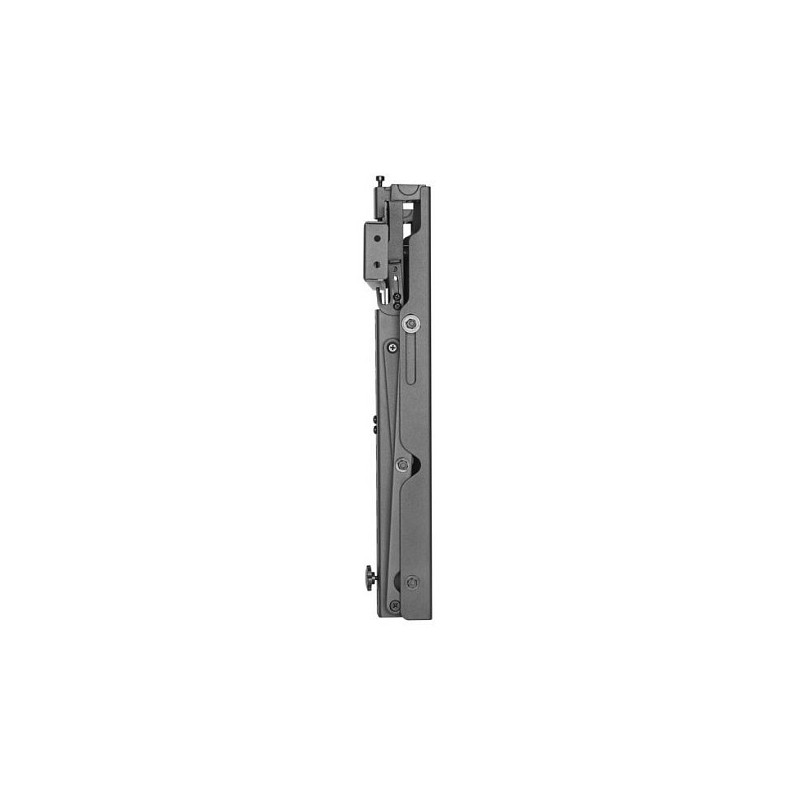

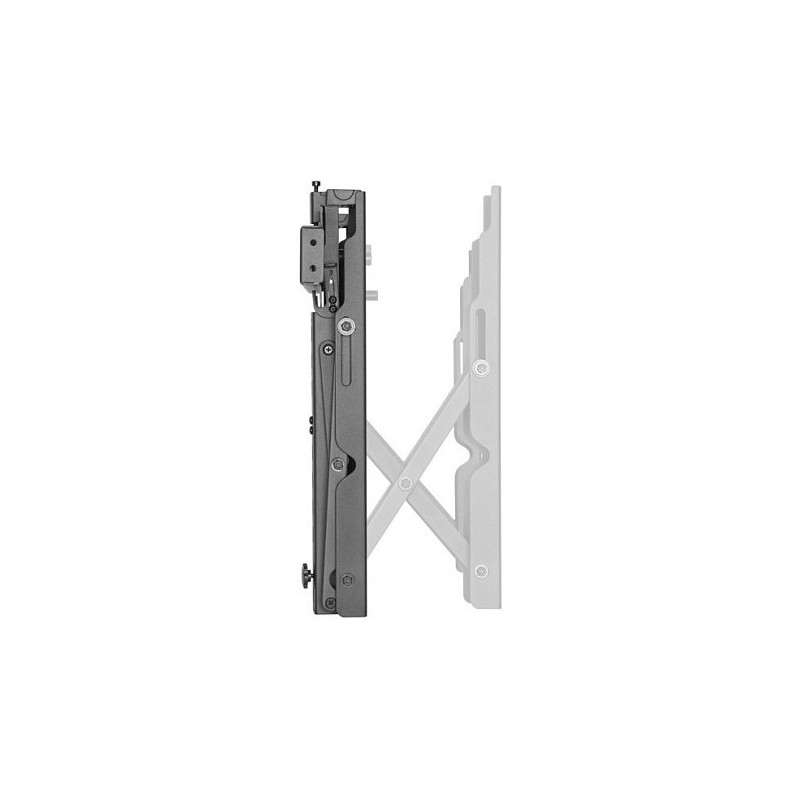

The equip® 650351 Pop-Out TV Video Wall Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost.

Mounting

Maximum weight capacity: 45 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Feature: Suitable for TV
Mounting type: Wall
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Minimum distance to floor: 6.8 cm
Maximum distance to floor: 21.5 cm

Ergonomics

Feature: Cable management

Design

Housing material: Metal
Product colour: Black
Feature: Anti-theft function

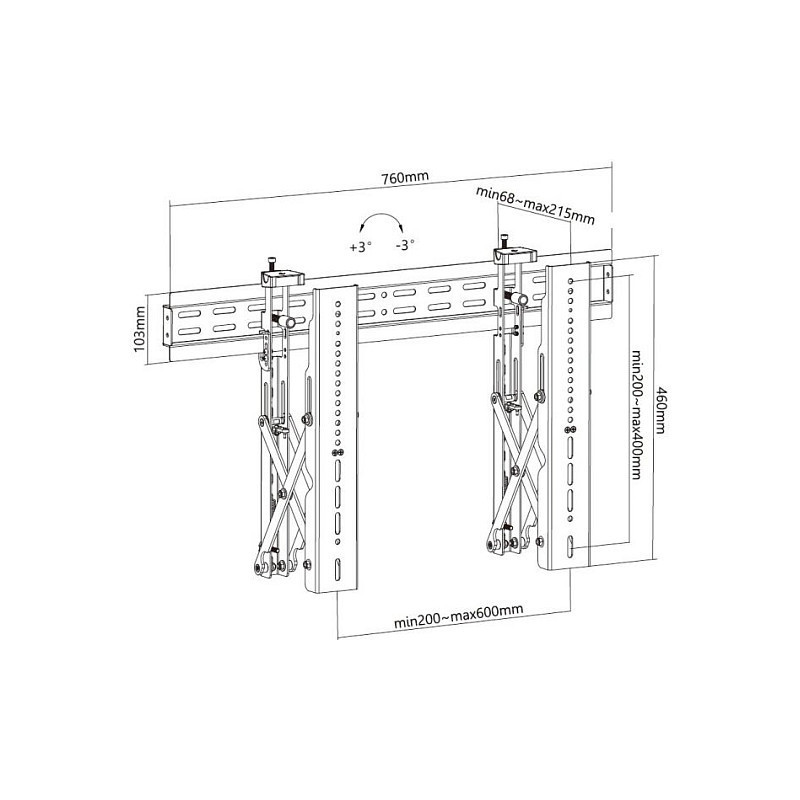

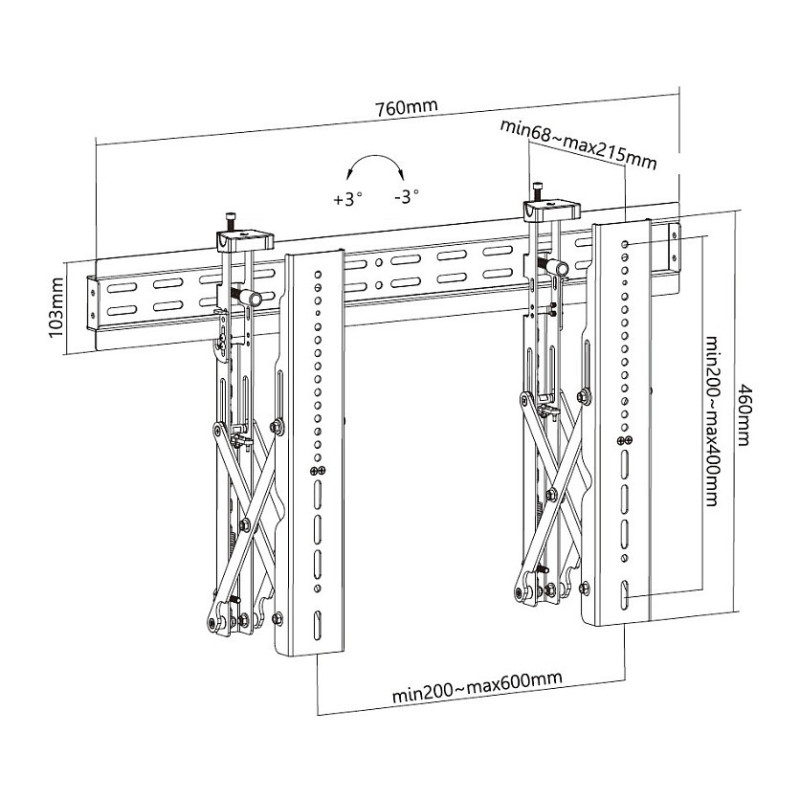

Weight & dimensions

Width: 465 mm
Depth: 215 mm
Height: 760 mm
Weight: 7.06 kg

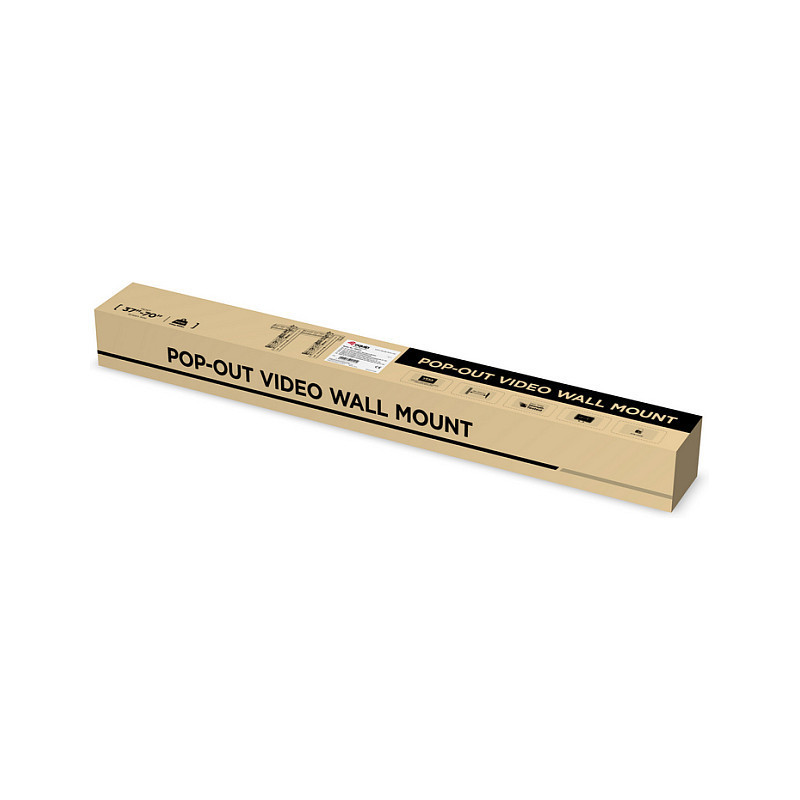

Packaging data

Package width: 112 mm
Package depth: 102 mm
Package height: 980 mm
Package weight: 7.78 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 330 mm
Master (outer) case length: 135 mm
Master (outer) case height: 1000 mm
Master (outer) case gross weight: 24.1 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 85299097
