„Digitus AK-340107-150-S“ DisplayPort kabelis

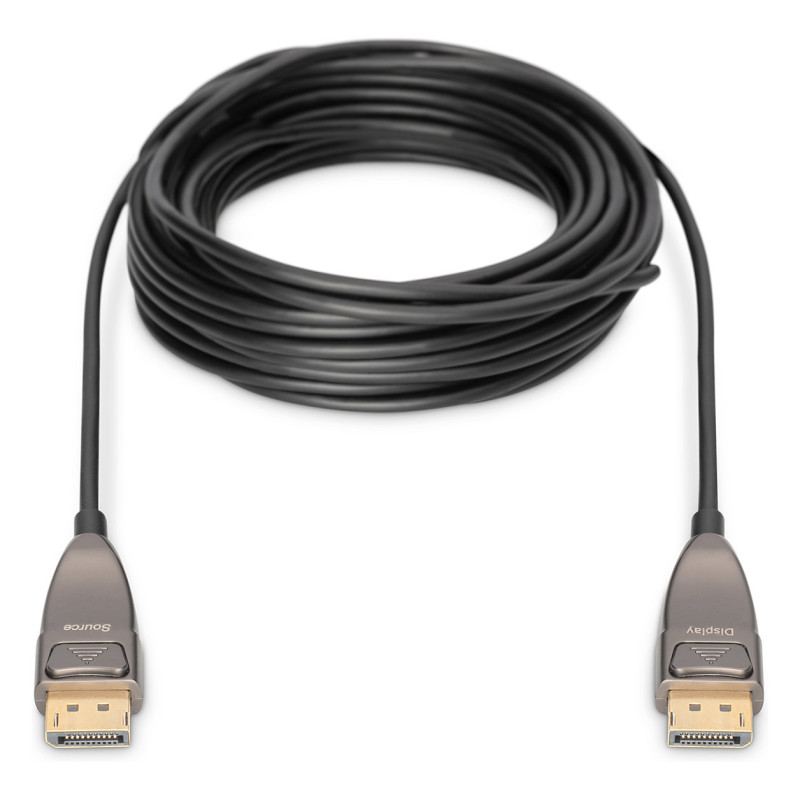

Digitus DisplayPort AOC Hybrid Fiber Optic Cable, UHD 8K, 15 m. Cable length: 15 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 4.8 mm. Package width: 200 mm, Package depth: 60 mm, Package height: 200 mm. Country of origin: China

Transfer of uncompressed video and audio signals in 8K / 60Hz (UHD-2) resolution with 32.4 Gbps bandwidth.

- Active fiber optic data transfer with up to 32.4 Gbps - zero latency
- Resolutions of up to 8K@60Hz
- Transfers uncompressed HDMI video and audio signals over a distance of 15 m
- Flexible installation with a tight bending radius of 25.4 mm
- Compact cable with small diameter (OD 4.8 mm)
- Immune to electromagnetic interference (EMI)
- Supports HDR (High Dynamic Range)
- Supports HDCP 2.2 / EDID / CEC

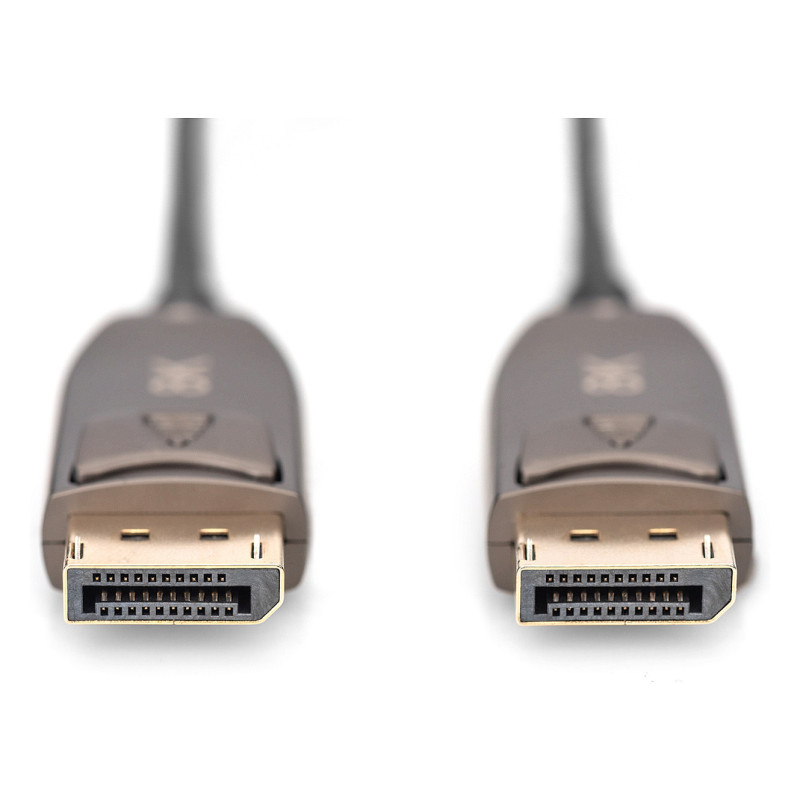

- Hybrid construction with fiber optic and copper cores with gold-plated contacts
- Loss-free data transfer rate at high transmission speed

This active DisplayPort AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 8K/60Hz and bandwidths of up to 32.4 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low and gives it a very tight bending radius and low weight. It is ideal for use in homes, meeting rooms, and conference rooms as well as within buildings — and these are just a few of the possible uses. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as DisplayPort 1.4, HDCP 2.2 and HDR. Some of the many audio features supported are DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full DisplayPort signal spectrum while also supporting uncompressed CED and EDID with very low latency.

Features

Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 7680 x 4320
Maximum refresh rate: 60 Hz
Feature: HDCP
Feature: 3D
Cable length: 15 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
AWG wire size: 24/28
Data transfer rate: 32.4 Gbit/s

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 75%

Weight & dimensions

Cable diameter: 4.8 mm

Packaging data

Package width: 200 mm
Package depth: 60 mm
Package height: 200 mm
Package weight: 616.667 g
Package volume: 2400 cm³

Logistics data

UK Trade Tariff code: 85447000
Harmonized System (HS) code: 84733080
Country of origin: China
