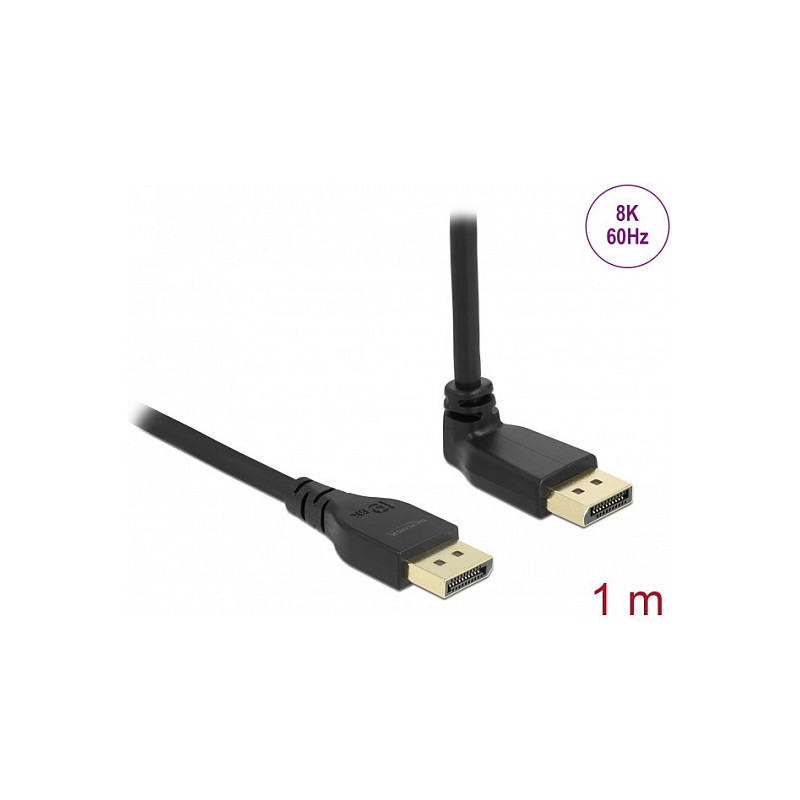

„DeLOCK 87143 DisplayPort“ kabelis

DeLOCK DisplayPort cable. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 5.7 mm. Quantity per pack: 1 pc(s). Country of origin: China. Technical features: Up to 32 audio channels for speakers, Up to 1536 kHz audio sampling rate

This DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, projectors or televisions, to a PC or laptop. Supporting a maximum bandwidth of 32.4 Gb/s, content can be displayed in 8K Ultra HD (7680 x 4320 @ 60 Hz) resp. 5K (5120 x 2880 @ 120 Hz) and 4K Ultra HD (3840 x 2160 @ 240 Hz) resolution. The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Slim plug
Thanks to the missing latch, the plugs are a bit slimmer than standard DisplayPort plugs, so several ports can be used simultaneously. In addition, the plugs can be removed more easily from hard-to-reach DisplayPort ports, e.g. on the rear side of a monitor.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Angled
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 3840 x 2160, 5120 x 2880, 7680 x 4320
Maximum refresh rate: 240 Hz
Feature: HDCP
HDCP version: 2.2
Feature: Display Stream Compression (DSC)
Display Stream Compression (DSC) version: 1.2
Cable length: 1 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Cable material: Copper
Feature: Magnetically shielded
Number of shielding layers: 3
AWG wire size: 30
Data transfer rate: 32.4 Gbit/s
Feature: Plug and Play
Feature: HBR3 support
Colour sampling: 4:2:2, 4:4:4, 4:2:0
Cable type: Round cable

Weight & dimensions

Cable diameter: 5.7 mm

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Country of origin: China

Other features

Technical features: Up to 32 audio channels for speakers, Up to 1536 kHz audio sampling rate
