„DeLOCK 87098“ „DisplayPort“ kabelis

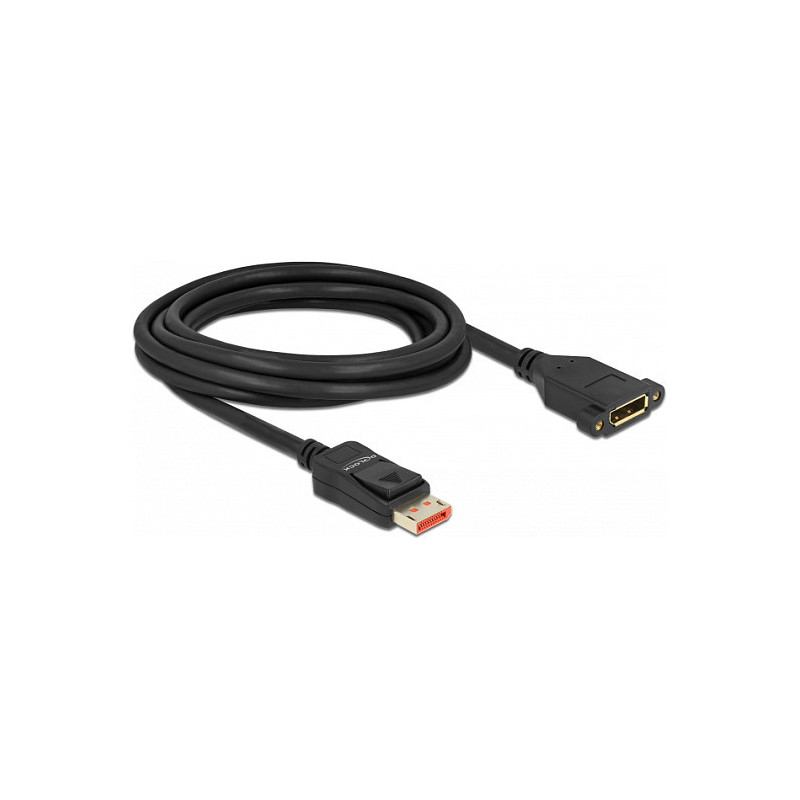

DeLOCK DisplayPort extension cable panel-mount 8K 60 Hz 3 m. Cable length: 3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Cable diameter: 7 mm

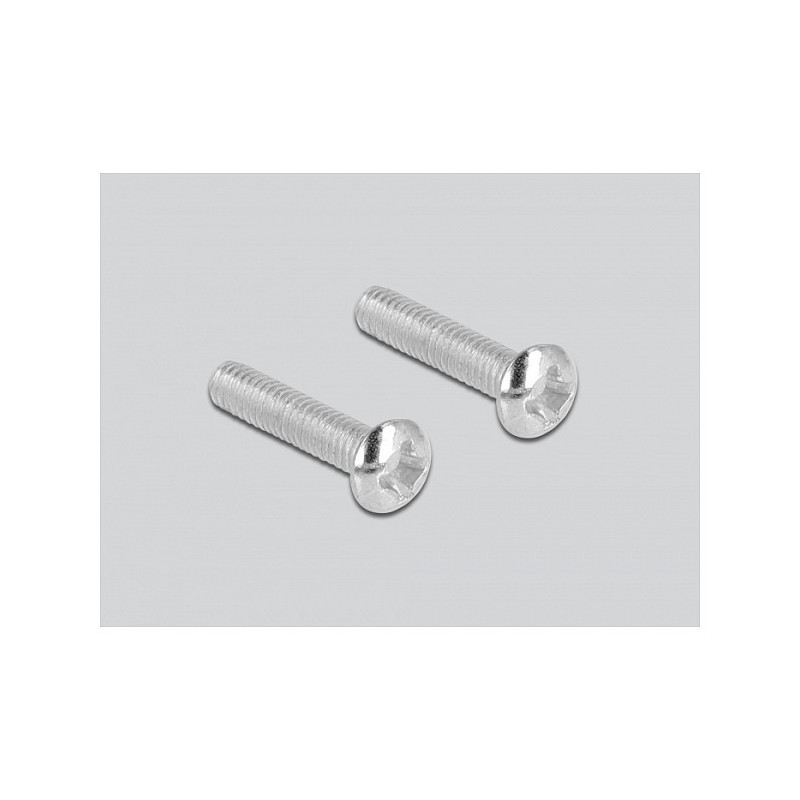

This cable by Delock can be used to extend a DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 3840 x 2160, 5120 x 2880, 7680 x 4320
Maximum refresh rate: 240 Hz
Feature: HDCP
Feature: Display Stream Compression (DSC)
Display Stream Compression (DSC) version: 1.2
Cable length: 3 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Female
Product colour: Black
Cable shielding: Copper
Number of shielding layers: 3
AWG wire size: 28
Data transfer rate: 32.4 Gbit/s
Channels quantity: 32 channels
Feature: HBR3 support
Colour sampling: 4:2:2, 4:4:4

Weight & dimensions

Cable diameter: 7 mm
