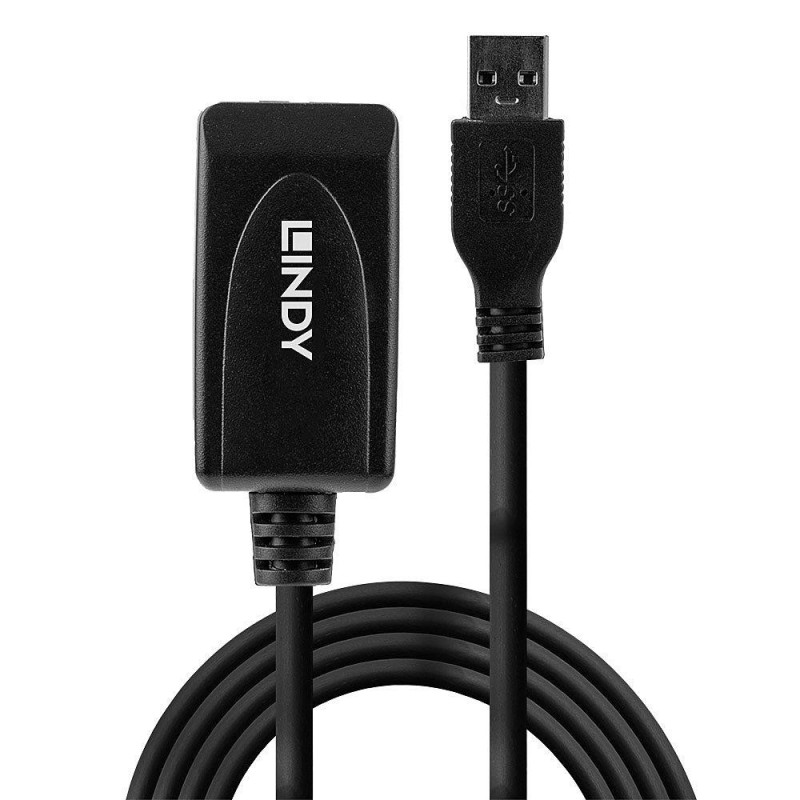

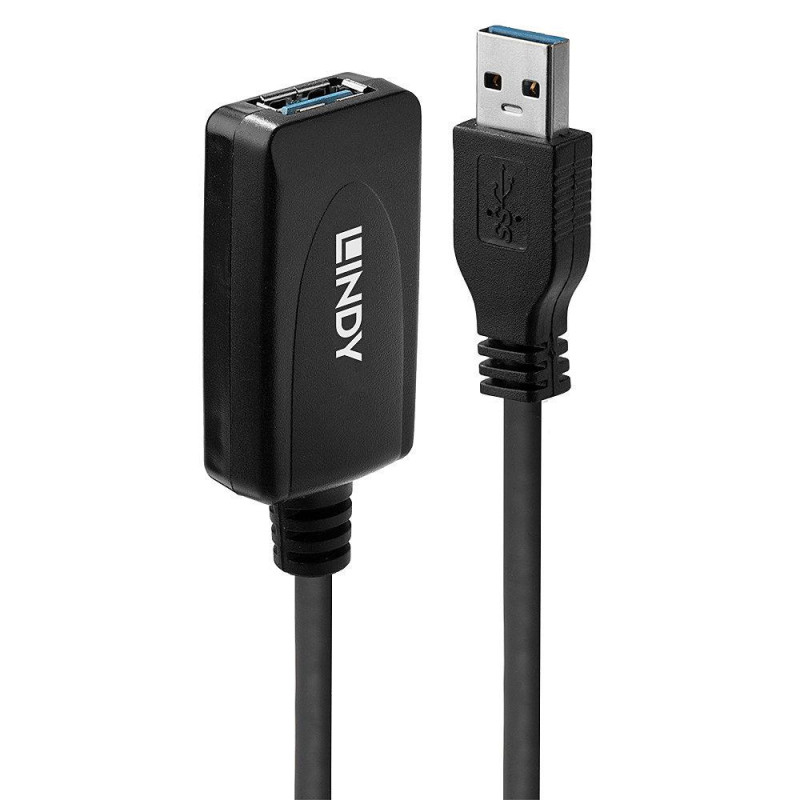

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.
It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| AWG wire size | 28/24 |
| Bend radius (min) | 55 mm |
| Cable diameter | 5.5 mm |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 5 m |
| Cable type | Round cable |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 dimensions (WxDxH) | 16 x 48 x 6 mm |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB A |
| Connector 2 dimensions (WxDxH) | 24 x 46 x 12 mm |
| Connector 2 form factor | Straight |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Connector housing material | Plastic |
| Connector material | Gold |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Brass |
| Harmonized System (HS) code | 84733080 |
| Maximum data transfer rate | 5 Gbit/s, 5000 Mbit/s |
| Model name | 5m USB 3.0 Active Extension |
| Nominal attenuation | 1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz |
| Operating temperature (T-T) | 0 - 60 °C |
| Package depth | 60 mm |
| Package height | 138 mm |
| Package type | Blister |
| Package weight | 289 g |
| Package width | 237 mm |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Storage temperature (T-T) | 0 - 70 °C |
| Summary | Lindy 5m USB 3.0 Active Extension. Cable length: 5 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Transmission medium | Twisted pair |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.135 |
| Unit Calculated Volume | 0.0005468 cubm |
| Unit Calculated Weight | 0.24 kg |
| Units per Shipping Box | 1 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Vendor Homepage | https://www.lindy.co.uk/usb-c4/5m-usb-3-0-active-extension-p515 |
| Weight | 220 g |
