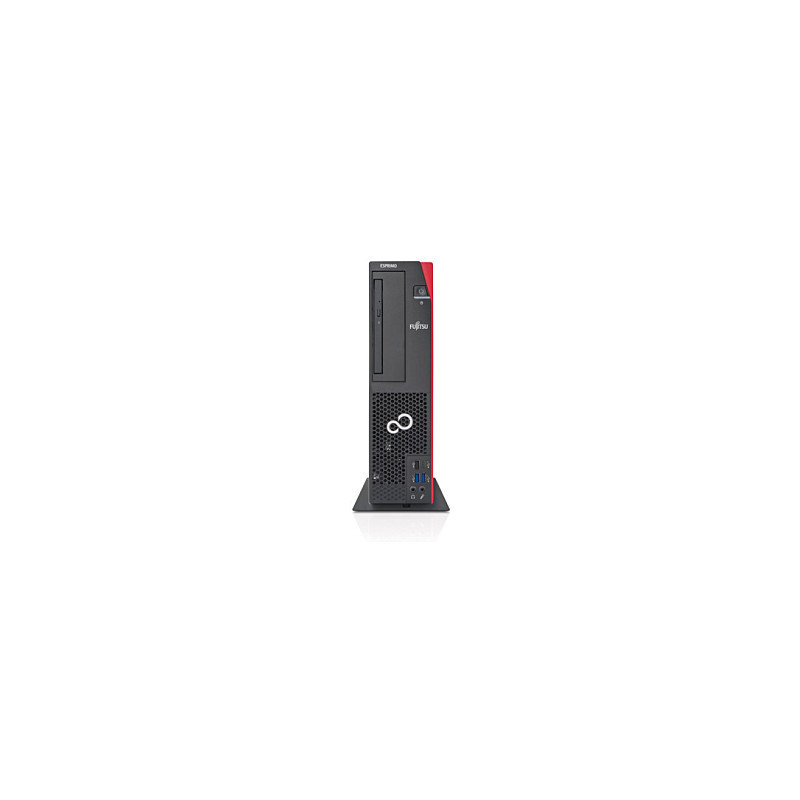

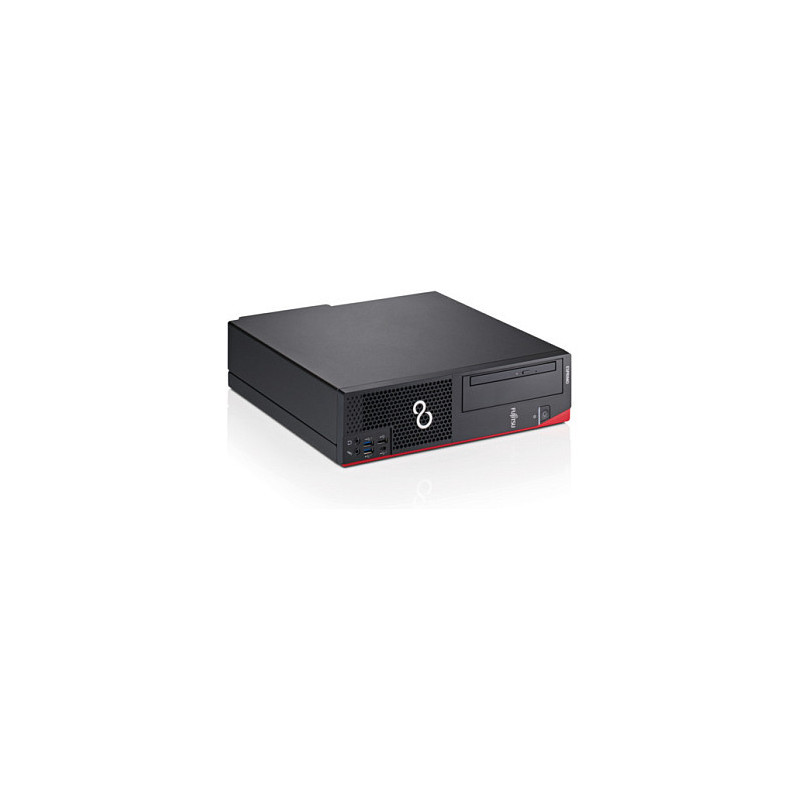

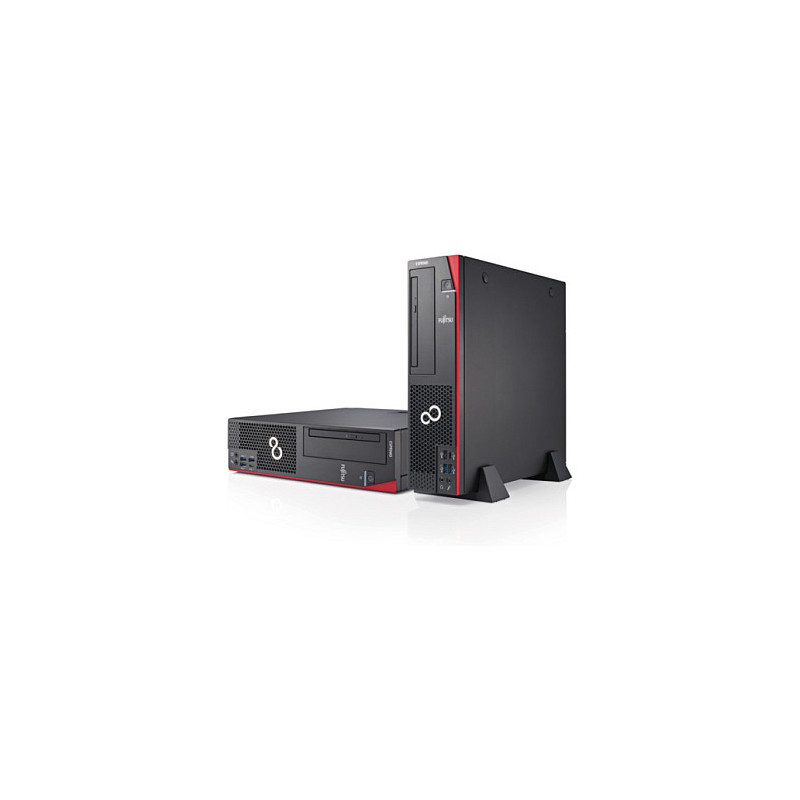

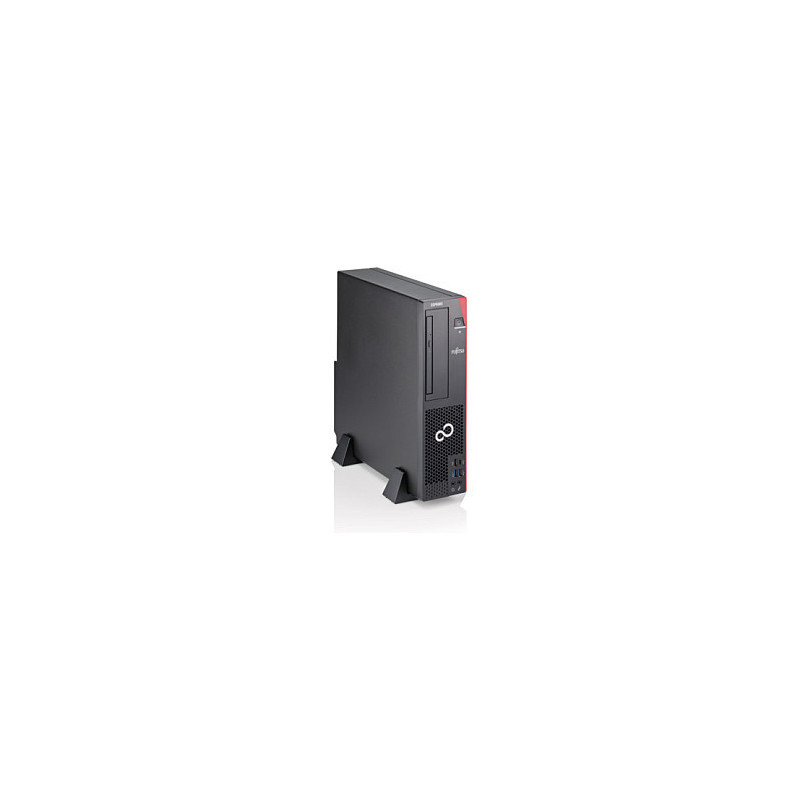

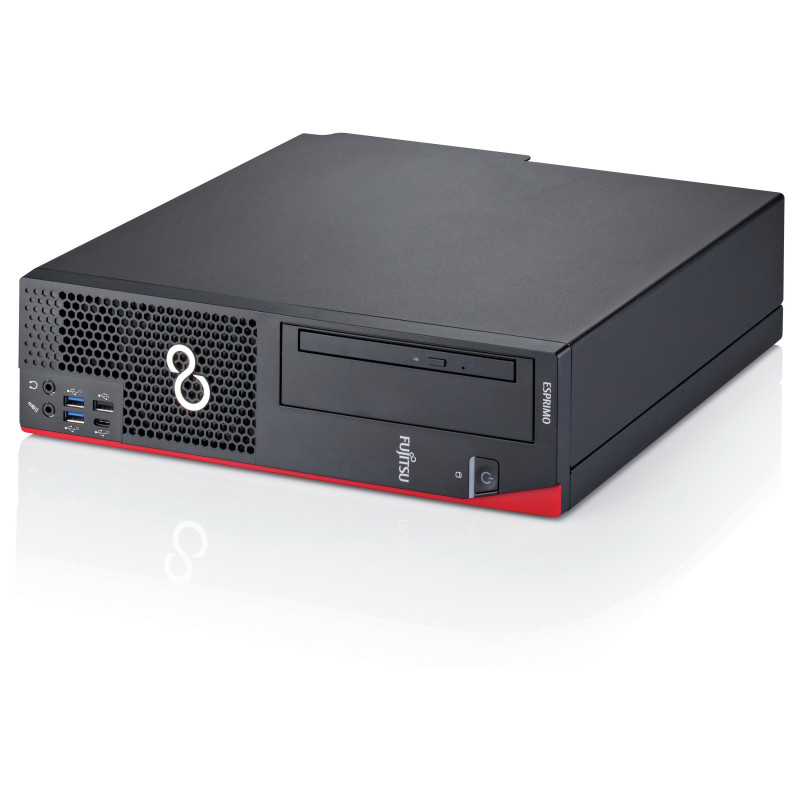

„tecXL Fujitsu ESPRIMO D958“

tecXL Fujitsu ESPRIMO D958. Processor frequency: 3 GHz, Processor family: Intel® Core™ i5, Processor model: i5-8500. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 256 GB, Storage media: SSD, Optical drive type: DVD±RW. On-board graphics card model: Intel® UHD Graphics 630. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Chassis type: Small Desktop. Product type: PC. Weight: 8 kg. Product colour: Black

The FUJITSU ESPRIMO D958 Desktop provides maximum manageability, performance and expandability. Up to 9th Gen Intel® Core™ processor and Intel® vPro™ technology, combined with the DeskView manageability suite support professional computing and advanced manageability. The lownoise design supports a pleasant working environment.
Its innovative Low Power Active Mode feature ensures instant communication in the office. The high production quality helps extend the product lifetime and 94%-efficient power supplies reduce your energy bills. Finally, the Fujitsu EraseDisk function ensures your data is securely wiped on retirement.

Expandability
Easily customizable and highly expandable business desktop PC
10 l housing, more I/O slots, serial connector to help you build your own desktop systems, tailermade to your specific business needs

Low Noise Design
Pleasant working environment due to an extremely quiet system
Innovative hardware design, optimized cooling concept ensures silent operations

Always Available Office PC - stay connected and save power
Be ready for instant communication and a significantly reduced energy bill
Innovative Low Power Active Mode and energy-efficient integrated power supply

Superior system management
Simple system administration for complex IT infrastructures
Intel® vPro™ technology (depending on processor) and DeskView manageability suite

Easy serviceability and usability
Features designed for easy access, control and use of the system
Tool-less access to components; front connectors and interfaces for ease of use with USB Type-C (USB 3.1 Gen2) front connector

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 8th gen Intel® Core™ i5
Processor model: i5-8500
Processor cores: 6
Processor threads: 6
Processor boost frequency: 4.1 GHz
Processor frequency: 3 GHz
Processor cache: 9 MB
Processor cache type: Smart Cache
System bus rate: 8 GT/s
Processor lithography: 14 nm
Processor operating modes: 64-bit
Processor codename: Coffee Lake
Thermal Design Power (TDP): 65 W
Tjunction: 100 °C
PCI Express slots version: 3.0
Maximum number of PCI Express lanes: 16
PCI Express configurations: 1x16, 2x8, 1x8+2x4
Number of processors installed: 1
Processor socket: LGA 1151 (Socket H4)
Maximum internal memory supported by processor: 128 GB
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 2666 MHz
Memory bandwidth supported by processor (max): 41.6 GB/s

Memory

Internal memory: 8 GB
Maximum internal memory: 64 GB
Internal memory type: DDR4-SDRAM
Memory slots: 4x DIMM

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: DVD±RW
Number of storage drives installed: 1
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB

Graphics

Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics 630
On-board graphics card base frequency: 350 MHz
On-board graphics card dynamic frequency (max): 1200 MHz
Maximum on-board graphics card memory: 64 GB
Number of displays supported (on-board graphics): 3
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card ID: 0x3E98

Performance

Motherboard chipset: Intel Q370
Feature: Password protection
Password protection type: HDD, Supervisor, User
Product type: PC
Audio output channels: 5.1 channels

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)

Ports & interfaces

USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Microphone in
Feature: DVI port
PS/2 ports quantity: 2

Power

Power supply input voltage: 100 - 240 V
Power supply input frequency: 50 - 60 Hz

Design

Chassis type: Small Desktop
Placement supported: Horizontal/Vertical
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: Intel® vPro™ Platform Eligibility
Feature: Refurbished

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Pro

Processor special features

Feature: Intel 64
Feature: Enhanced Intel SpeedStep Technology
Feature: Intel® InTru™ 3D Technology
Feature: Intel® Clear Video HD Technology (Intel® CVT HD)
Feature: Intel Clear Video Technology
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel TSX-NI
Feature: Idle States
Feature: Thermal Monitoring Technologies
Feature: Intel Stable Image Platform Program (SIPP)
Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Intel® Secure Key
Feature: Intel® OS Guard
Feature: Intel Trusted Execution Technology
Feature: Execute Disable Bit
Feature: Intel Software Guard Extensions (Intel SGX)
Processor package size: 37.5 x 37.5 mm
Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
Scalability: 1S
CPU configuration (max): 1
Thermal solution specification: PCG 2015C
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel Virtualization Technology (VT-x)
Processor ARK ID: 191792
Intel® Turbo Boost Technology: 2.0
Feature: Intel® Quick Sync Video Technology
Feature: Intel® Identity Protection Technology (Intel® IPT)

Audio

Audio chip: Realtek ALC671
Audio system: High Definition Audio

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 5 - 85%

Weight & dimensions

Width: 332 mm
Depth: 338 mm
Height: 89 mm
Weight: 8 kg

Packaging data

Package width: 419 mm
Package depth: 441 mm
Package height: 162 mm
Package weight: 6.62 kg
