Yealink MVC S90-C5-004 vaizdo konferencijų sistema

Yealink MVC S90-C5-004. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 1080p, 2160p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 120°, Optical zoom: 12x, Digital zoom: 1.7x. Ethernet LAN, Wi-Fi. Bluetooth. Display: IPS, Display diagonal: 29.5 cm (11.6"), Display resolution: 1920 x 1080 pixels. Product colour: Black, Grey

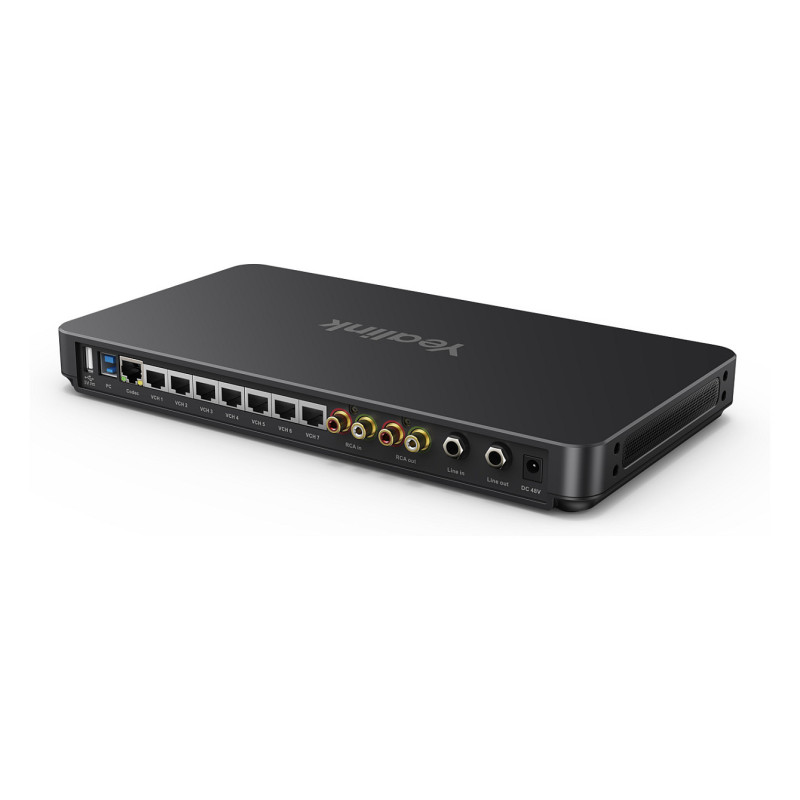

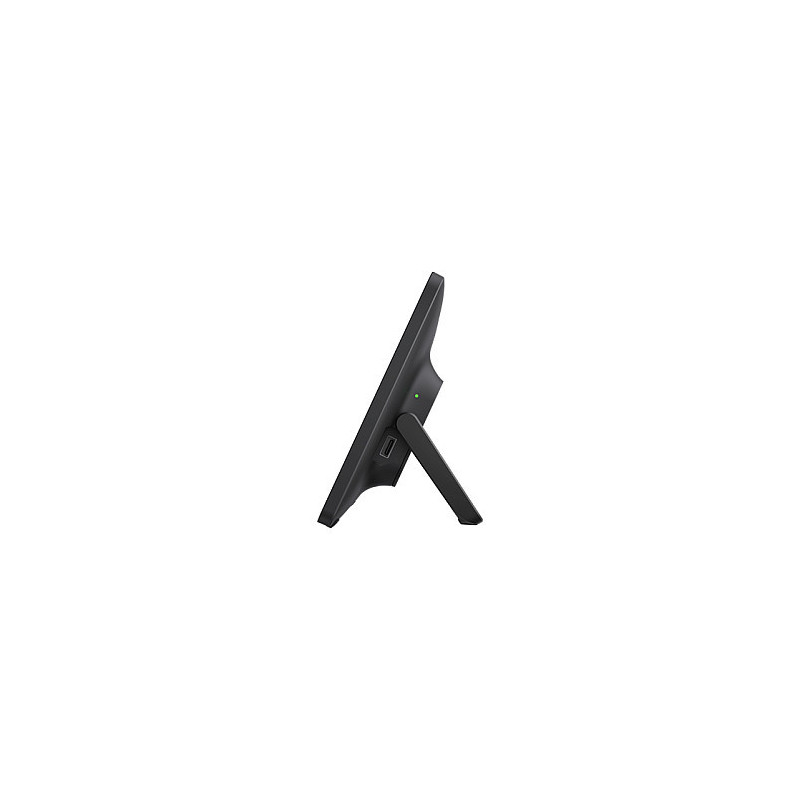

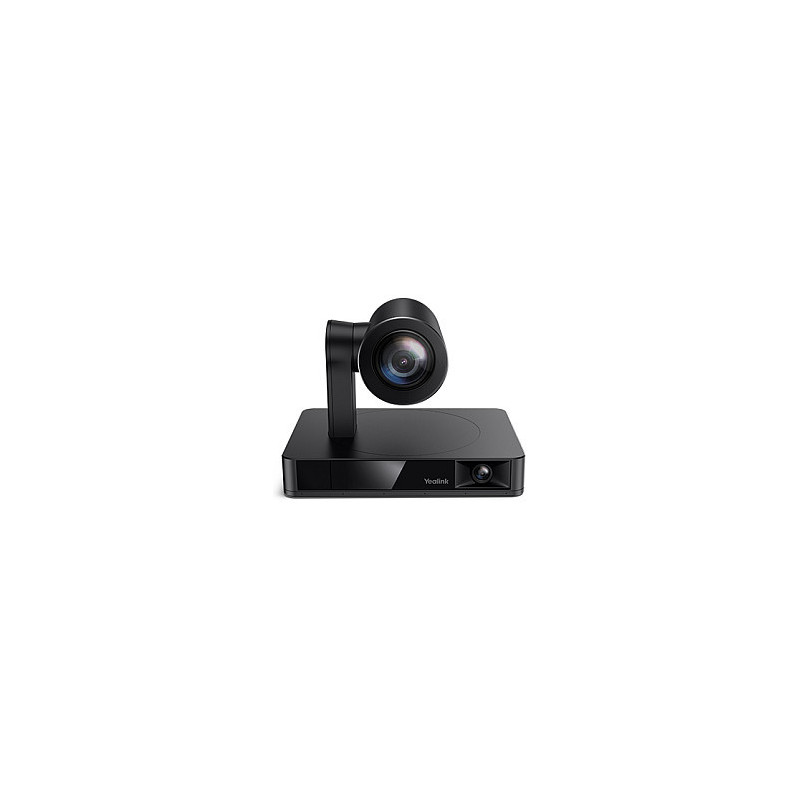

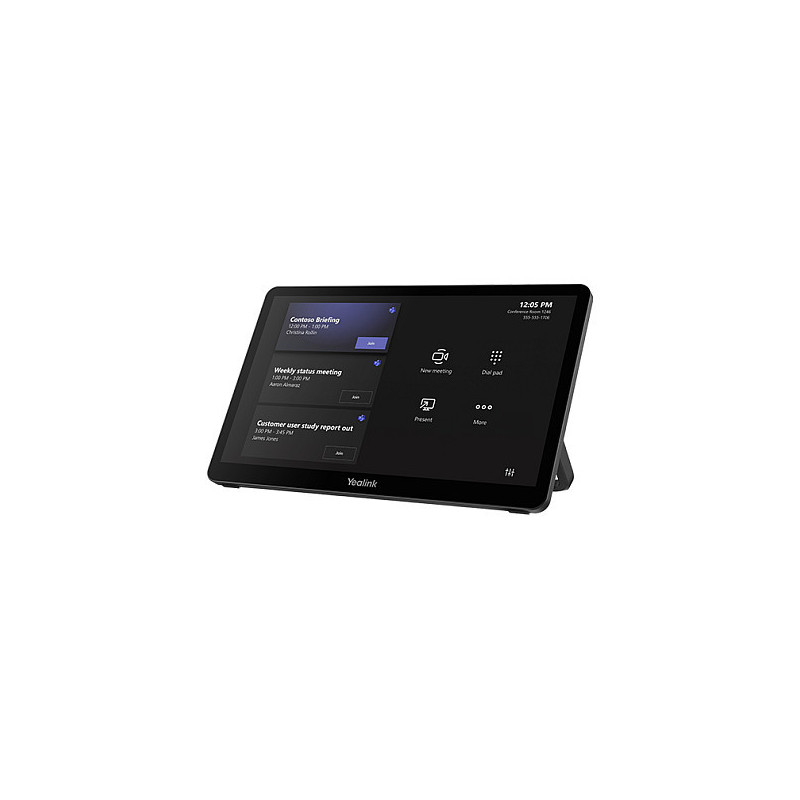

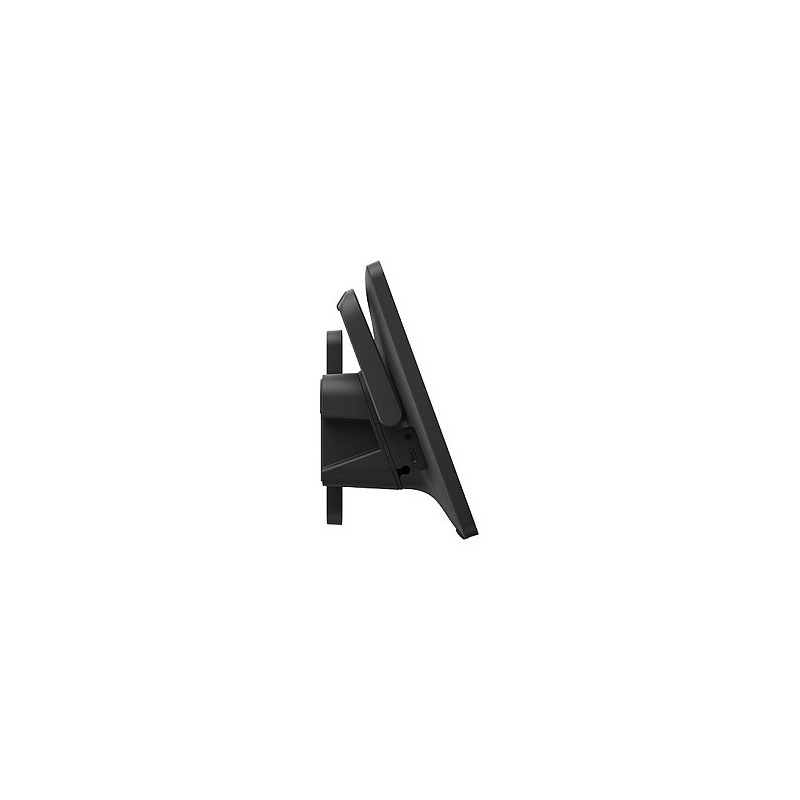

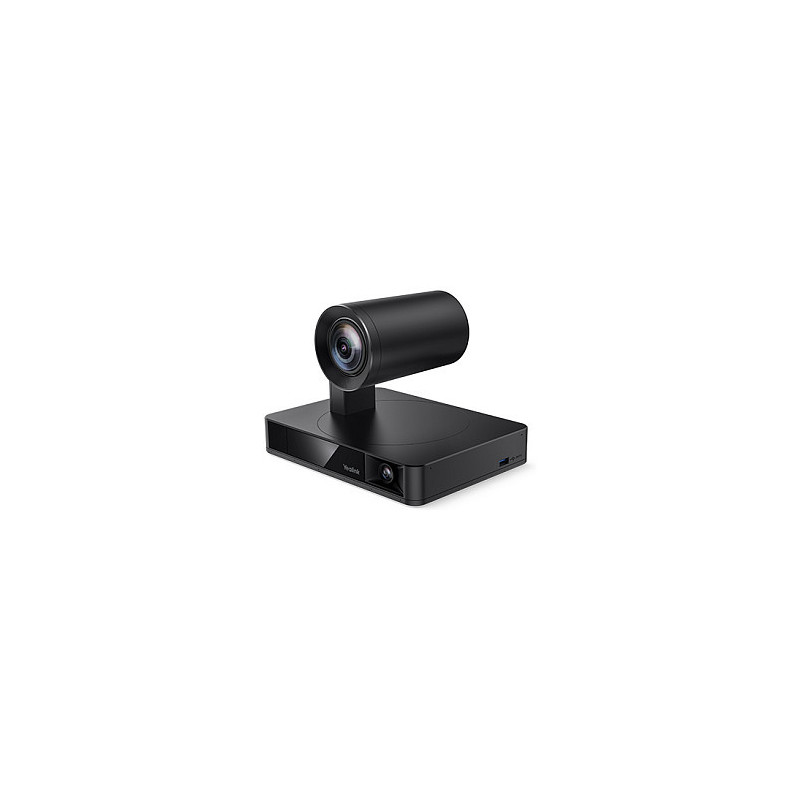

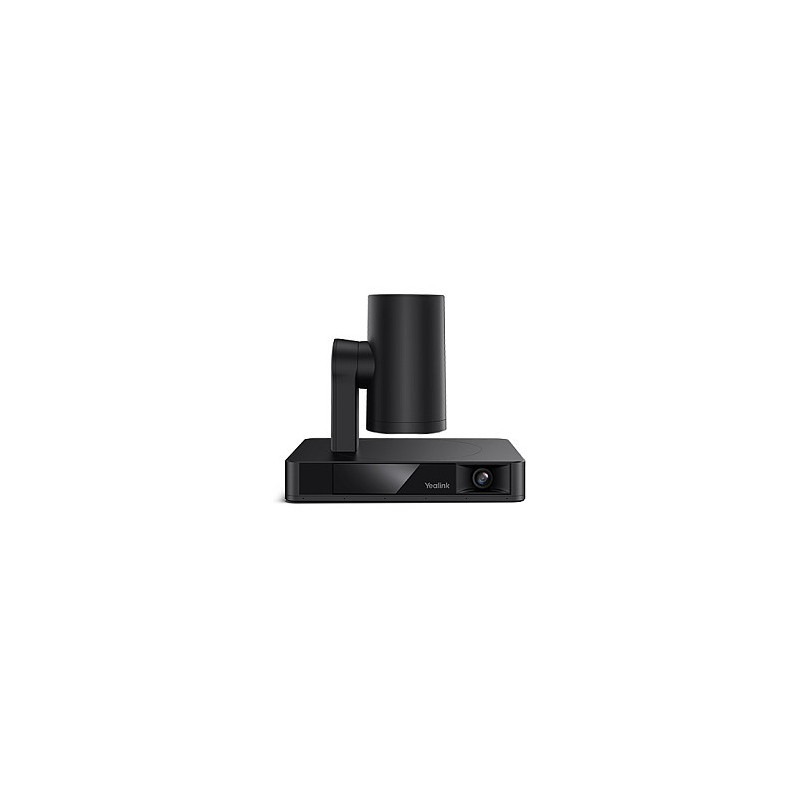

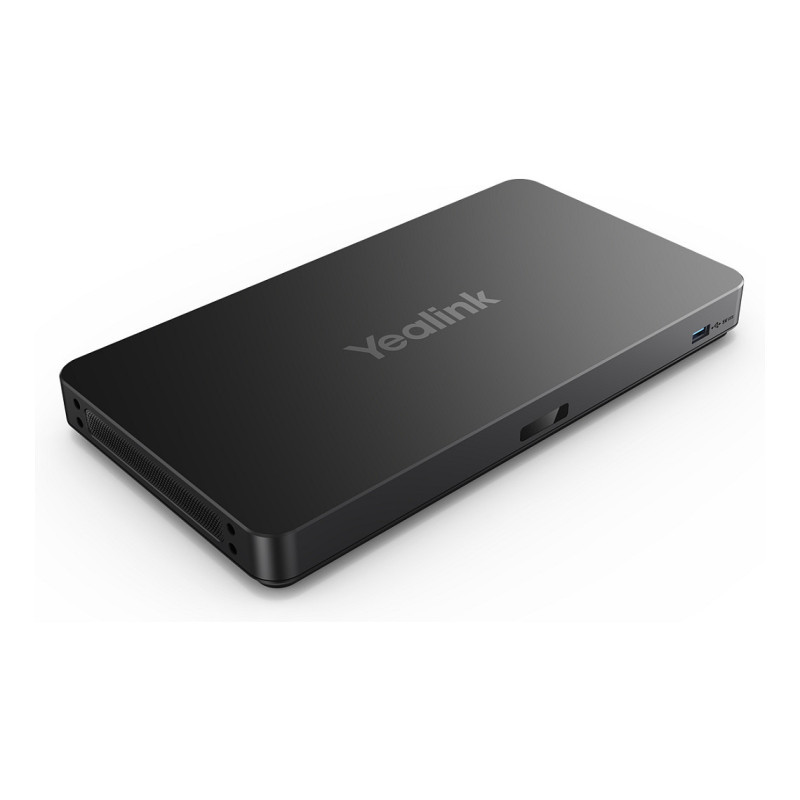

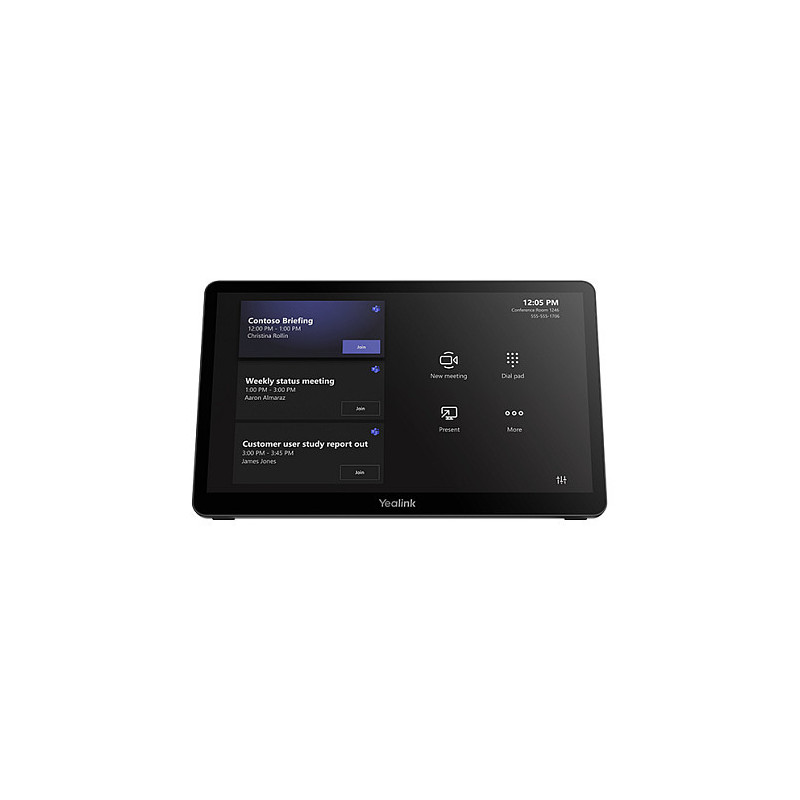

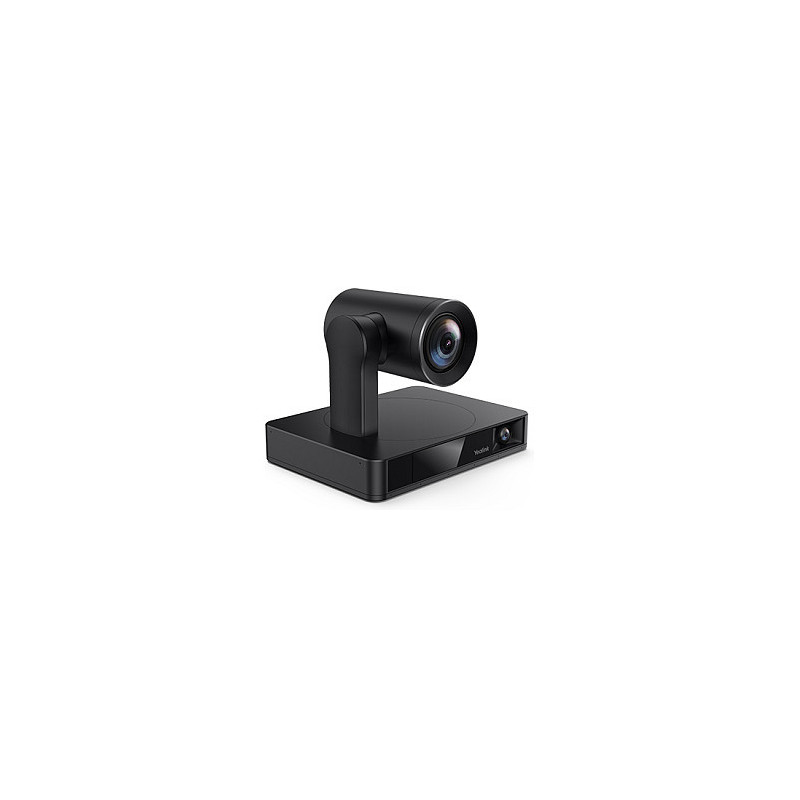

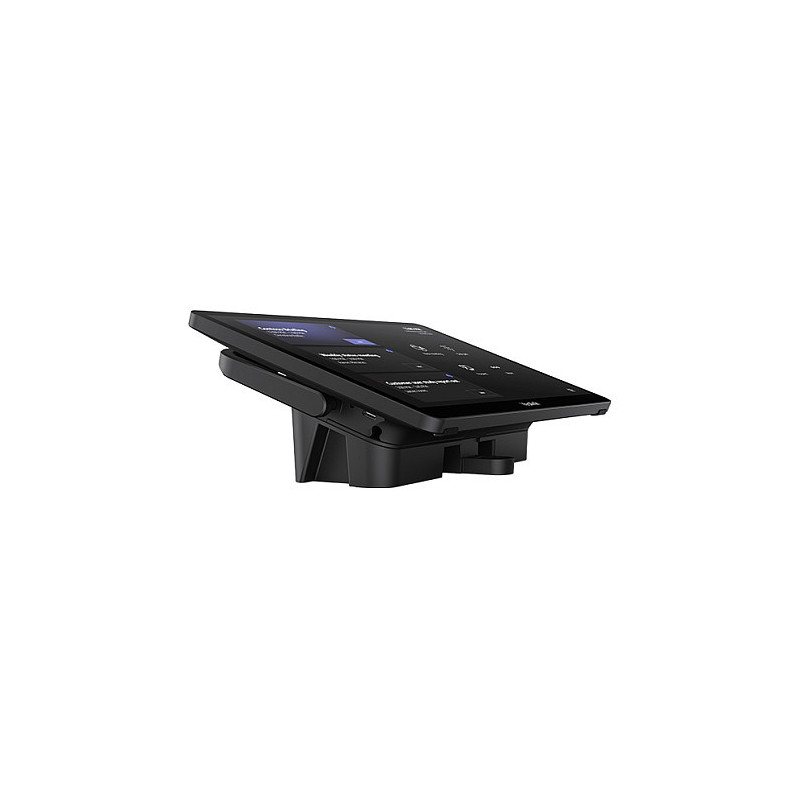

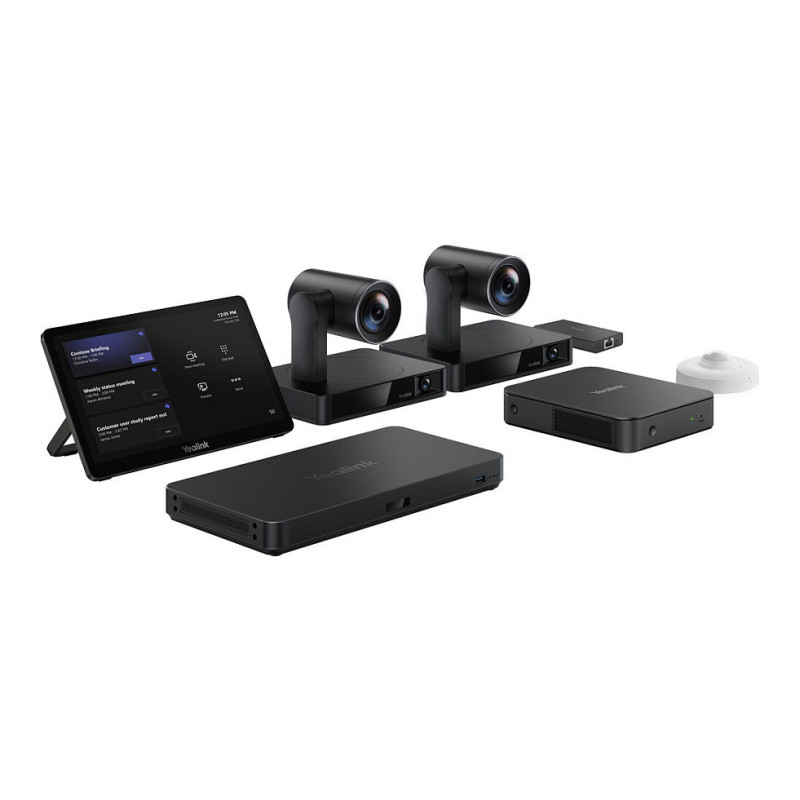

Yealink MVC S90 is specially designed for extra-large conference rooms. This set includes new generation high-performance MINI-PC MCore Pro, touch panel MTouch Plus, intelligent 4K PTZ camera UVC86, and AVHub specially designed for audio and video processing. AVHub can adjust the screen layout and realize Yealink's exclusive multi-camera solution, which can support up to 9 cameras connected at the same time, and realize multi-speaker tracking with voice incentive mechanism Functions, adapt to the audio and video conferencing needs of various large and super large meeting rooms, classrooms, and training rooms.

Performance

Number of cameras: 2
Feature: Bluetooth
Bluetooth version: 5.2
Product colour: Black, Grey
Feature: Auto framing
Feature: Auto-tracking
Tracking modes: Presenter mode
Meeting features: Content sharing
Product type: Group video conferencing system
Feature: PTZ control

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Supported video modes: 1080p, 2160p
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3860 x 2160
Maximum frame rate: 30 fps
Aspect ratio: 16:9

Audio

Feature: Built-in speaker(s)

Memory

Internal memory: 8196 MB
Internal memory type: DDR4
Storage media type: SSD
Total storage capacity: 128 GB

Interface module

Interface module HDMI output ports quantity: 3
Interface module USB 2.0 ports quantity: 4
Interface module audio RCA input ports quantity: 1
Interface module RJ-45 ports quantity: 2
Feature: Interface module DC input port

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g

Camera

Megapixel (approx.): 8 MP
Camera type: Dual camera
Second camera resolution: 8 MP
Feature: Zoom capability
Optical zoom: 12x
Digital zoom: 1.7x
Field of view (FOV) angle: 120°
Horizontal field of view: 110°
Vertical field of view: 78°
Diagonal field of view: 120°

Display

Display: IPS
Display diagonal: 29.5 cm (11.6")
Display resolution: 1920 x 1080 pixels
Feature: Touchscreen

Technical details

Warranty period: 2 year(s)

Features

Feature: Cable lock slot
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Logistics data

Country of origin: China

Computer system

Computer system type: Mini PC
Processor family: Intel® Core™ i5
Processor generation: 11th gen Intel® Core™ i5

Power

Power source type: AC

Weight & dimensions

Weight: 12.1 kg

Packaging data

Package width: 935 mm
Package depth: 413 mm
Package height: 312 mm
Package weight: 13.8 kg

Packaging content

Feature: External interface module included
Feature: Camera control unit included
Cables included: HDMI, LAN (RJ-45), USB Type-A to USB Type-B
Feature: AC adapter included
Feature: Camera included
Feature: Quick start guide
