Yealink MB75C-EDLA

Yealink MB75C-EDLA. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Aspect ratio: 16:9. Housing colour: Black, Panel mounting interface: 600 x 400 mm. RAM capacity: 8 GB, Storage capacity: 64 MB. Speaker power: 30 W. Total megapixels: 50 MP, Maximum resolution: 3840 x 2160 pixels, Field of view (FOV) angle: 98.2°

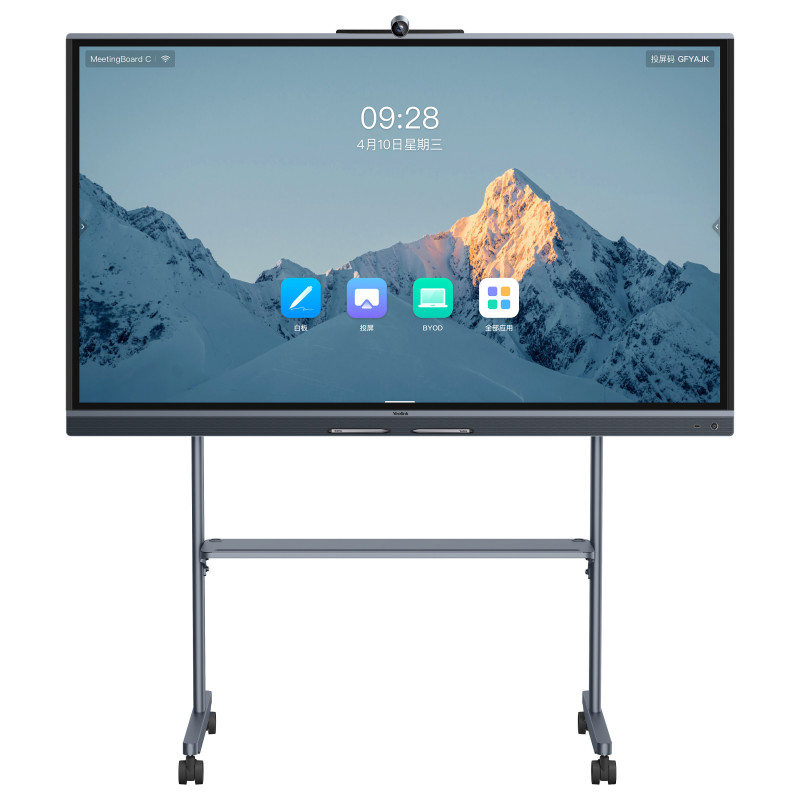

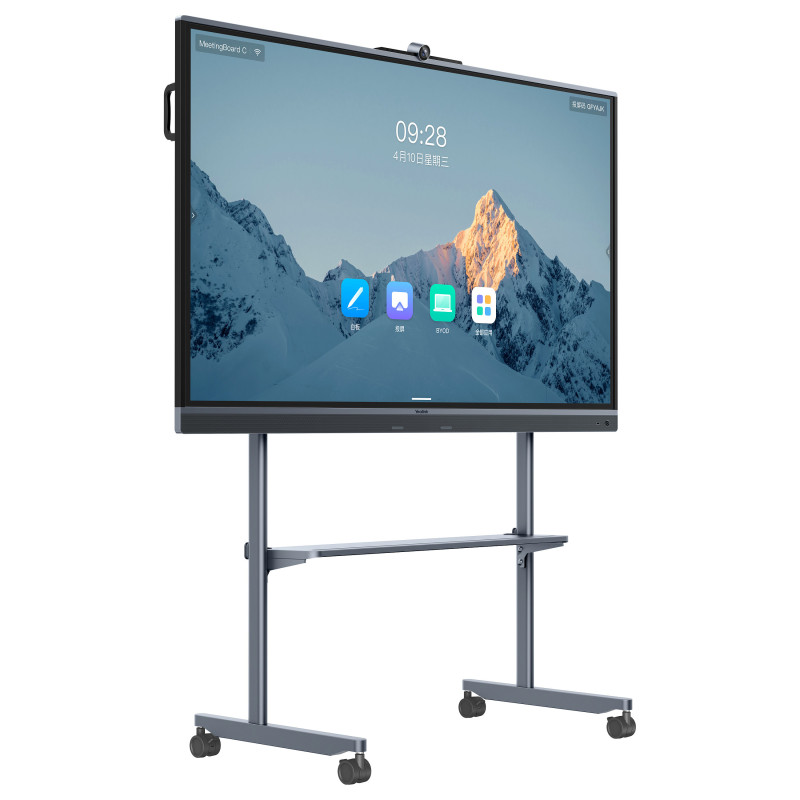

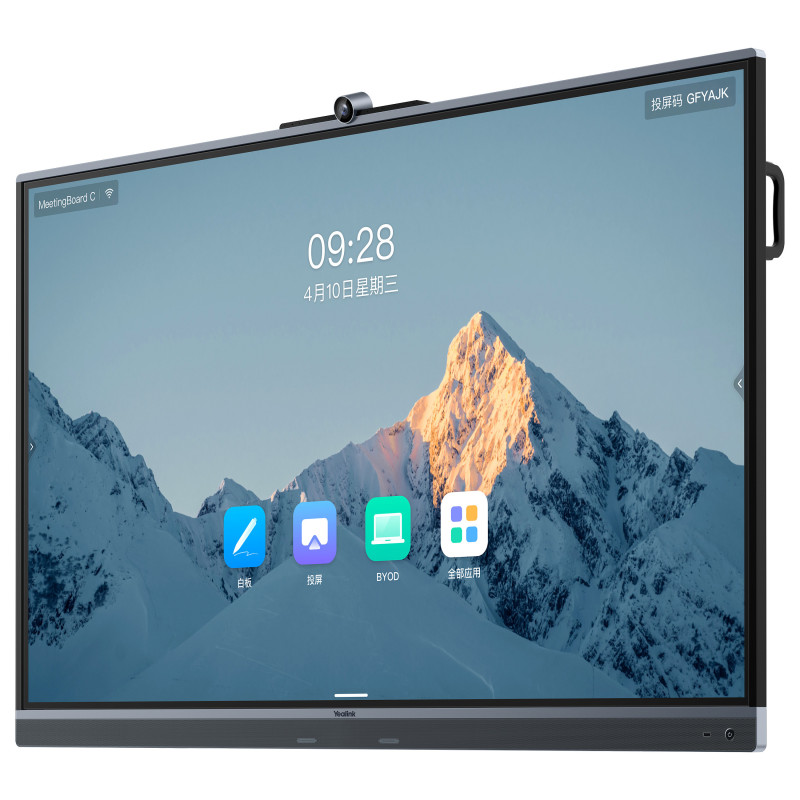

The MeetingBoard 75C is an all-in-one video conferencing device designed with simplicity — streamline installation and deployment. The movable design also allows for flexibility. It takes just 15 minutes to set up, and you can position wherever you need it, get it rolling anywhere, connect with just one cable.

Display

Display diagonal: 190.5 cm (75")
Display resolution: 3840 x 2160 pixels
Aspect ratio: 16:9
Maximum refresh rate: 60 Hz
Viewing angle: 178°
Display brightness: 400 cd/m²
Contrast ratio (typical): 1200:1
Feature: Touchscreen
Number of simultaneous touchpoints: 20
Feature: Anti-glare surface

Design

Housing colour: Black

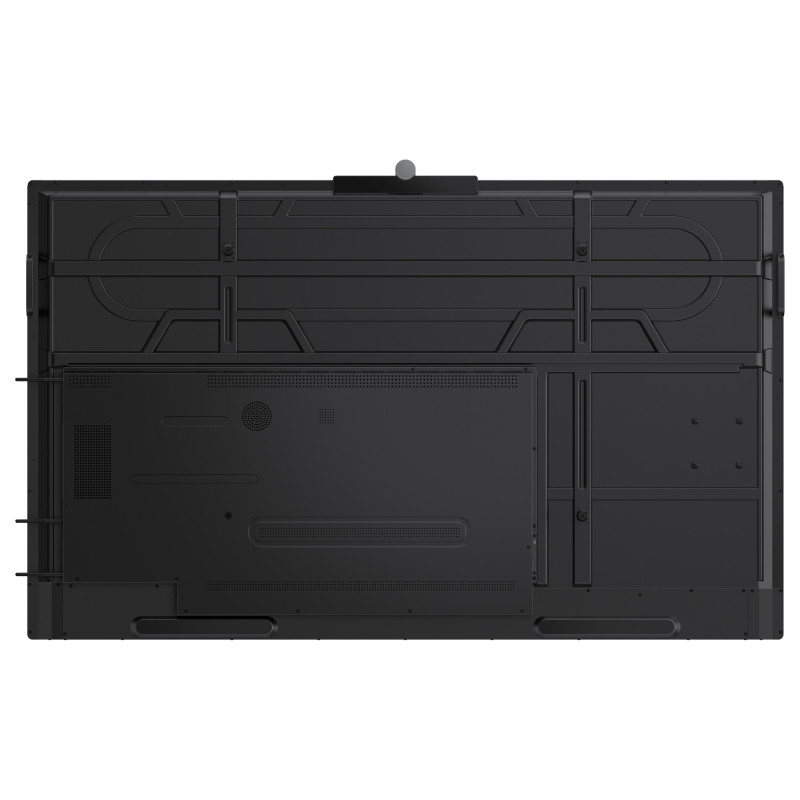

Feature: VESA mounting
Panel mounting interface: 600 x 400 mm

Performance

Feature: Built-in processor
Processor cores: 8
RAM capacity: 8 GB
Storage capacity: 64 MB
Windows operating systems supported: Yes

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone
Speaker power: 30 W
Number of microphones: 16

Camera

Feature: Built-in camera
Total megapixels: 50 MP
Maximum resolution: 3840 x 2160 pixels
Field of view (FOV) angle: 98.2°
F-number (relative aperture): 1.56
Feature: PTZ control
Camera shutter type: Electronic
Feature: Camera privacy shutter

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Feature: MIMO
Feature: Bluetooth
Bluetooth version: 5.1
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Security algorithms: SNMP

Ports & interfaces

Feature: USB port
USB port type: USB Type-A
Audio RCA inputs: 1
Audio RCA outputs: 1
HDMI input ports quantity: 1
HDMI output ports quantity: 1
RJ-45 ports quantity: 2
Feature: 3.5 mm connector

Power

Power source type: AC
Input voltage: 100 - 240 V
Power consumption (average): 141 W
Power consumption (max): 243 W
USB output voltage: 5 V
USB output current: 0.5 A

Weight & dimensions

Width: 1705 mm
Depth: 105 mm
Height: 1081 mm
Weight: 52.2 kg

Packaging data

Package width: 1900 mm
Package depth: 225 mm
Package height: 1160 mm
Package weight: 65 kg
Package type: Box

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Stylus pen
Number of stylus pens: 4
Packaging content: - 1 x 3m AC power cable- 1 x 3m CAT5E network cable- 4 x Stylus pens- 3 x Cable ties- 1 x Quick Start Guide

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
