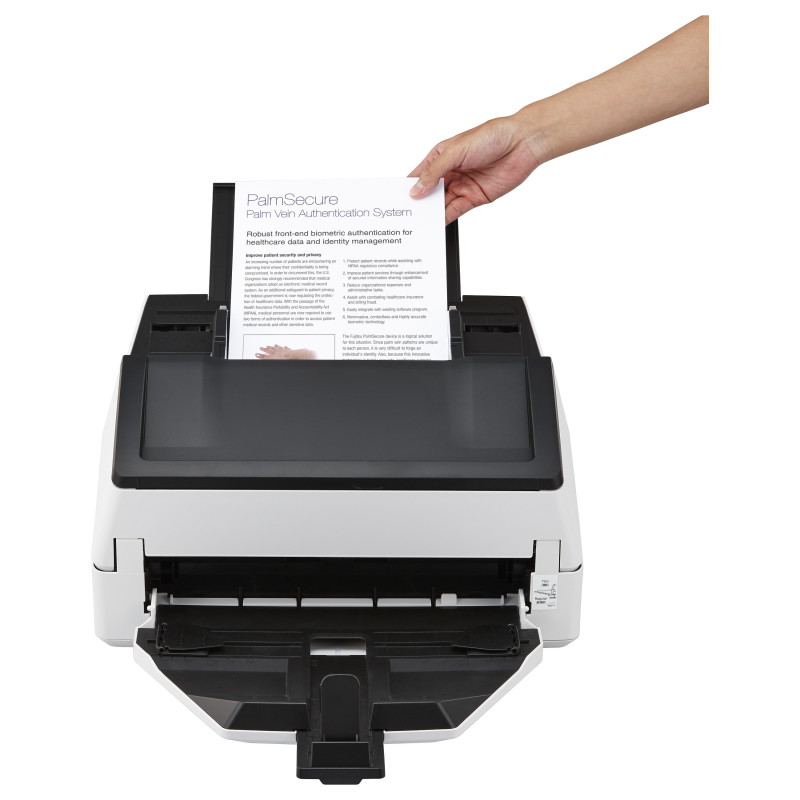

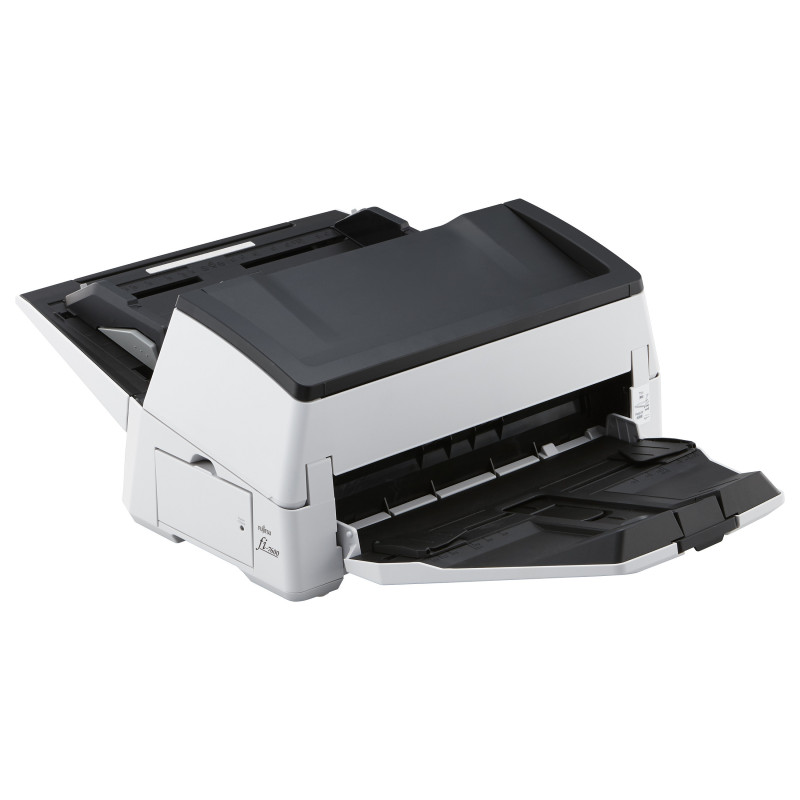

Ricoh fi-7600

Ricoh fi-7600. Maximum scan size: 304.8 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF + Manual feed scanner, Product colour: Black, White, Display: LCD. Sensor type: Dual CCD, Daily duty cycle (max): 44000 pages, Light source: White LED (4x). Auto document feeder (ADF) input capacity: 300 sheets. Maximum ISO A-series paper size: A3, Scanning media types supported: Envelopes, Plain paper, Plastic Card, Thin paper, ISO A-series sizes (A0...A9): A3, A3+, A4, A5, A6, A7, A8

The fi-7600 achieves scanning speeds of 100 ppm/200 ipm (A4 landscape, color, 200/300 dpi), is capable of loading up to 300 sheets at a time and scanning up to as many as 44,000 sheets a day. With its high quality technologies and user-friendly design, the scanner is suitable for continuous high volume scanning. The scanner's ability to scan various documents such as thin paper, plastic cards, envelopes and long page documents boosts user productivity.

Scanning

Maximum scan size: 304.8 x 5588 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Output monochrome depth: 1 bit
ADF scan speed (b/w, A4): 100 ppm
ADF scan speed (colour, A4): 100 ppm
Duplex ADF scan speed (b/w, A4): 200 ipm
Duplex ADF scan speed (colour, A4): 200 ipm
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: ADF + Manual feed scanner
Product colour: Black, White

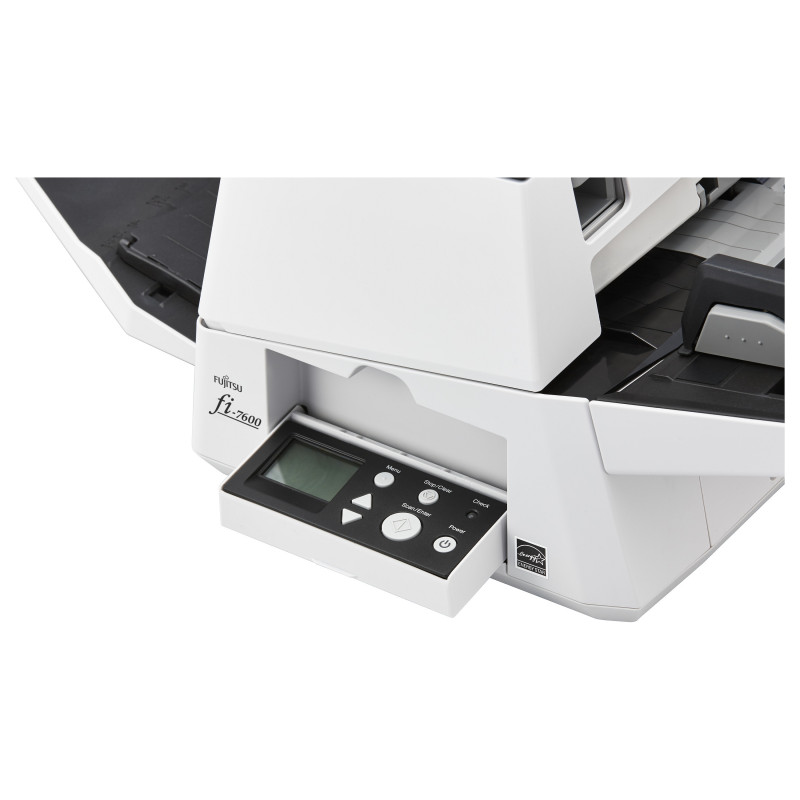

Display: LCD
Feature: Built-in display

Performance

Sensor type: Dual CCD
Light source: White LED (4x)
Daily duty cycle (max): 44000 pages
Scan drivers: ISIS, TWAIN

Input capacity

Auto document feeder (ADF) input capacity: 300 sheets

Paper handling

Scanning media types supported: Envelopes, Plain paper, Plastic Card, Thin paper
Multi feed detection: Yes
Maximum ISO A-series paper size: A3
ISO A-series sizes (A0...A9): A3, A3+, A4, A5, A6, A7, A8
Auto Document Feeder (ADF) media weight: 20 - 413 g/m²
Maximum scan area (ADF): 304.8 x 431.8 mm
Minimum scan area (ADF): 50.8 x 69 mm

Ports & interfaces

Feature: USB port
USB version: 3.2 Gen 2 (3.1 Gen 2)
Socket connector type: C5
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type: AC
Power consumption (typical): 64 W
Power consumption (standby): 0.35 W
Power consumption (off): 0.35 W
Power consumption (PowerSave): 1.7 W
Input voltage: 100-240 V

Weight & dimensions

Width: 236 mm
Depth: 432 mm
Height: 214 mm
Weight: 11 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 396 mm
Package depth: 595 mm
Package height: 506 mm
Package weight: 16 kg

Packaging content

Cables included: AC, USB
Feature: Quick start guide
Feature: AC adapter included
Feature: ADF paper chute
Feature: Stacker
Feature: Drivers included
Bundled software: PaperStream Capture, PaperStream IP, Software Operation Panel, Error Recovery Guide, Scanner Central Admin tools

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Server operating systems supported: Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%

Other features

Downloadable software: ScanSnap Manager, Scan to Microsoft SharePoint, ABBYY FineReader, 2D barcode
Compliance certificates: RoHS
Feature: Selectable background colour
Background colours: Black, White

Logistics data

Country of origin: Indonesia
Pallet gross length: 121.9 cm
Pallet gross width: 101.6 cm
Harmonized System (HS) code: 8471607000
Paper packaging weight: 2.4 kg
Metal packaging weight: 0 g
Wood packaging weight: 0 g
Plastic packaging weight: 15 g
Products per pallet (air): 10 pc(s)
Products per pallet (sea): 15 pc(s)
Pallet height (sea): 166.8 cm
Pallet height (air): 116.2 cm
Cardboard packaging weight: 1.2 kg
Foil packaging weight: 15 g
Polystyrene (EPS/EPP) packaging weight: 200 g
Glass packaging weight: 0 g
