„Logitech Rally Bar Mini“ vaizdo konferencijų sistema

Logitech Rally Bar Mini. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Product colour: White

Performance

Product colour: White
Product type: Group video conferencing system
Pan range: -25 - 25°
Tilt angle range: -15 - 15°
PTZ control: Yes

Video

HD type: 4K Ultra HD
Supported video modes: 576p, 720p, 900p, 1440p, 2160p
Maximum frame rate: 30 fps

Audio

Built-in speaker(s): Yes
Output level: 92/99 dB
Output voltage Total Harmonic Distortion (THD): 2%
Audio beamforming: Yes
Noise reduction: Yes
Echo cancellation: Yes
RMS rated power: 8 W
Microphone pick-up range: 4.5 m
Sample rates: 0 - 48 kHz

Ports & interfaces

HDMI ports quantity: 3
HDMI output ports quantity: 2
HDMI input ports quantity: 1
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols: IPv4, IPv6
Security algorithms: 128-bit AES

Camera

Zoom capability: Yes
Digital zoom: 4x
Horizontal field of view: 113°
Vertical field of view: 80.7°
Diagonal field of view: 120°
Remote control interface: Bluetooth

Microphone

Microphone sensitivity: -36 dB
Microphone frequency: 90 - 16000 Hz
Microphone direction type: Omnidirectional
Sound pressure level (max): 90 dB
Number of microphones: 6

Features

Telepresence: No

Logistics data

Master (outer) case gross weight: 6.29 kg
Master (outer) case length: 804 mm
Master (outer) case width: 200 mm
Master (outer) case height: 212 mm
Harmonized System (HS) code: 85176990

Battery

Battery capacity: 0.675 Wh

Computer system

Windows operating systems supported: Yes
Mac operating systems supported: MacOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 64 BTU/h

Power

Power source type: AC
AC input voltage: 100 - 240 V
Current: 4.754 A
DC input voltage: 19 V
Battery technology: Lithium
Battery capacity: 220 mAh
Number of batteries supported: 1
Power plug type: Type C

Weight & dimensions

Width: 719 mm
Depth: 101 mm
Height: 91.4 mm
Weight: 4.03 kg

Packaging data

Package width: 191 mm
Package depth: 789 mm
Package height: 199 mm
Package weight: 5.8 kg

Packaging content

Cables included: AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length: 2.5 m
HDMI cable length: 2 m
AC adapter included: Yes
Remote control included: Yes
Batteries included: Yes
Quick start guide: Yes

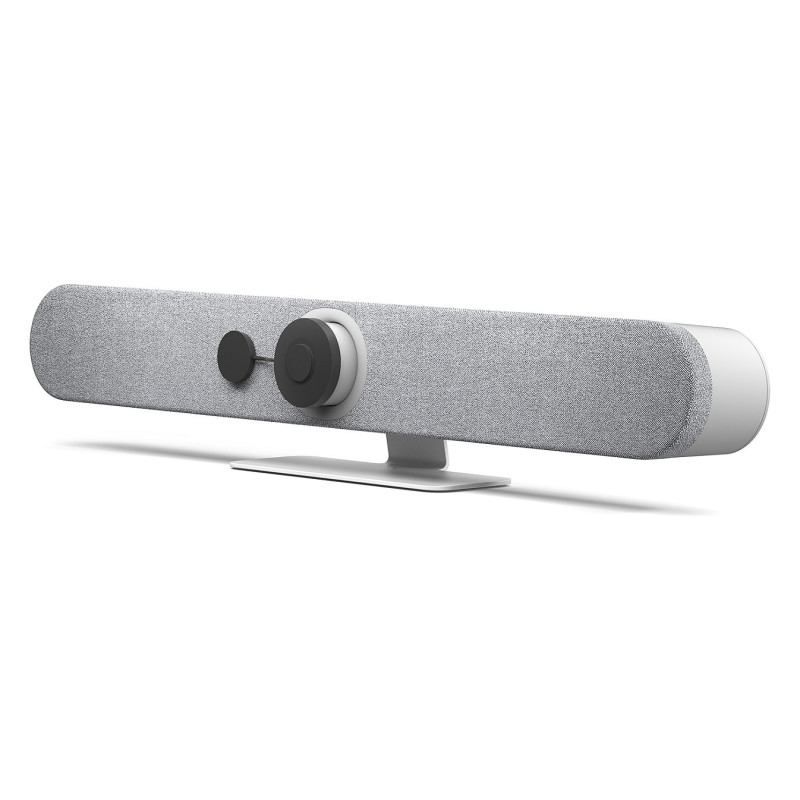

Packaging content: Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
