„Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition“

Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 225U. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.01 kg

ThinkPad X1 Carbon Gen 13 Aura Edition

With efficient performance, stunning visuals, and uncompromising security this ThinkPad empowers professionals to stay productive and connected no matter where work takes them. With up to Intel® V Series Core Ultra 7 Processor, it effortlessly tackles complex tasks, from processing large datasets to running high-demand applications. The option for Intel Arc Graphics elevates the experience for users who rely on graphics-intensive software, delivering smooth visuals for editing, rendering, or presentations.

Design

Colour name: Black, Paint
Product type: Laptop
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel Core Ultra (Series 2)
Processor model: 225U
Processor cores: 12
Processor threads: 14
Processor boost frequency: 4.8 GHz
Performance cores: 2
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.2 GHz
Efficient-core Max Turbo Frequency: 4.2 GHz
Low Power Efficient-core Max Turbo Frequency: 2.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.7 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 12 MB
Processor base power: 15 W
Maximum turbo power: 57 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

Memory

Internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 8400 MHz
Memory form factor: On-board
Maximum internal memory: 16 GB

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics

Audio

Audio chip: Realtek ALC3306
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Feature: Mobile network connection
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 6E AX211
WLAN controller manufacturer: Intel
Feature: Bluetooth
Bluetooth version: 5.3
WWAN: Upgradable

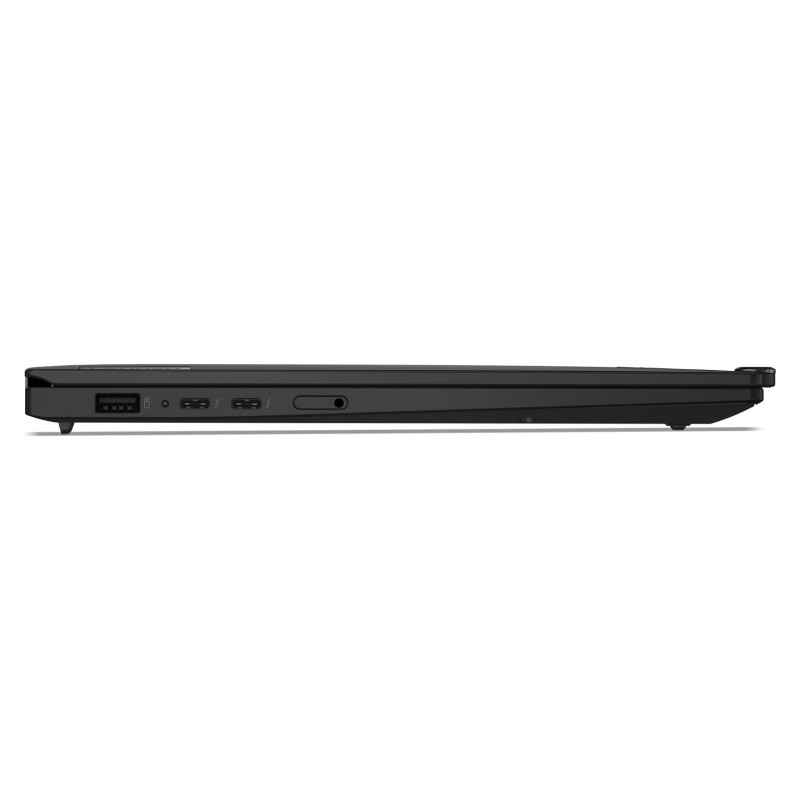

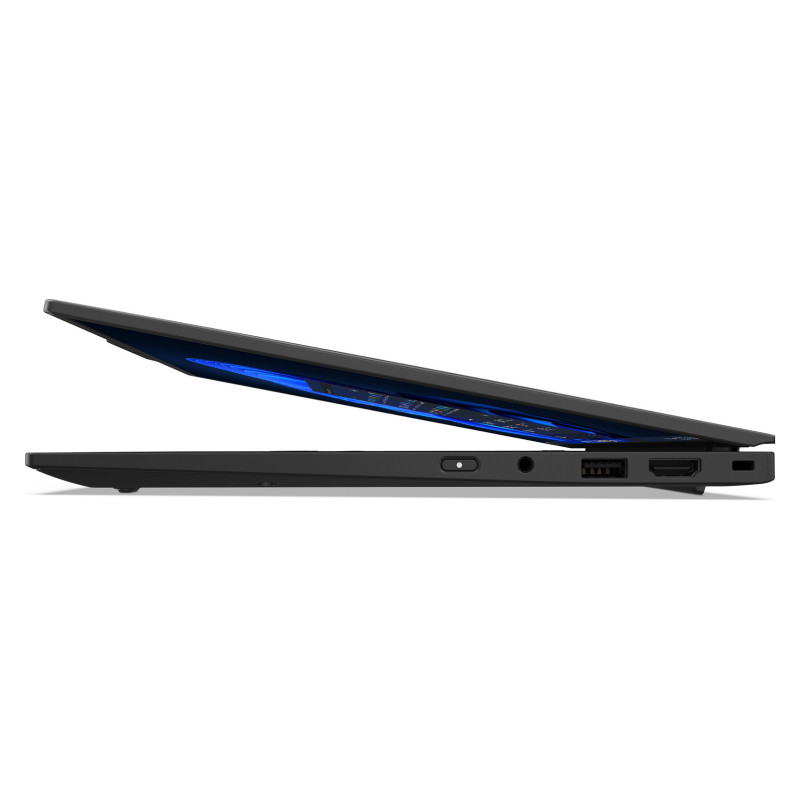

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Intel Connectivity Performance Suite

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 57 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50/60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: RoHS
Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Width: 312.8 mm
Depth: 214.8 mm
Height (front): 8.38 mm
Height (rear): 1.48 cm
Weight: 1.01 kg

Packaging content

Feature: AC adapter included
