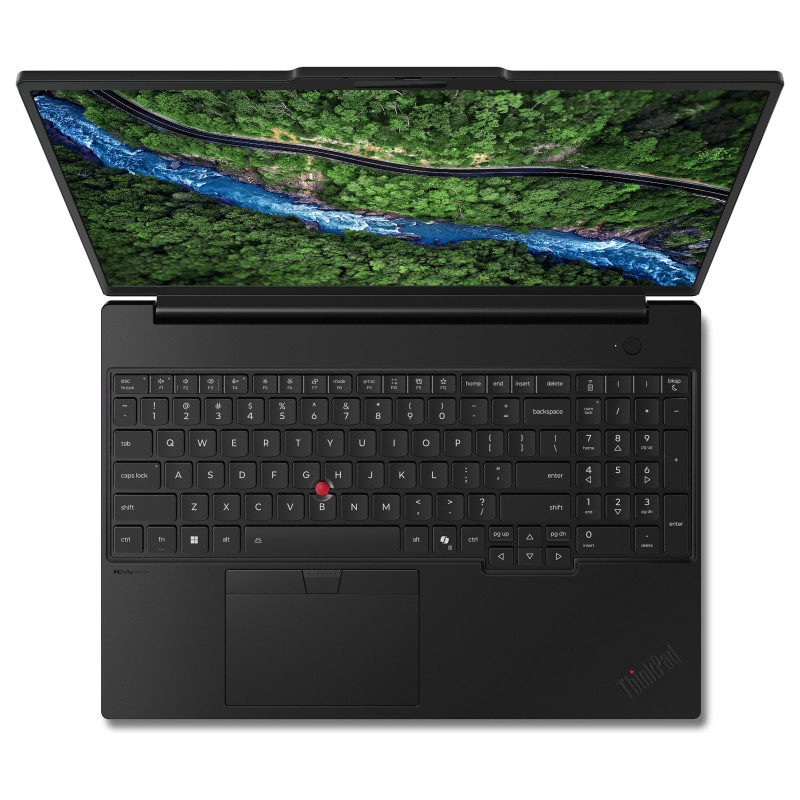

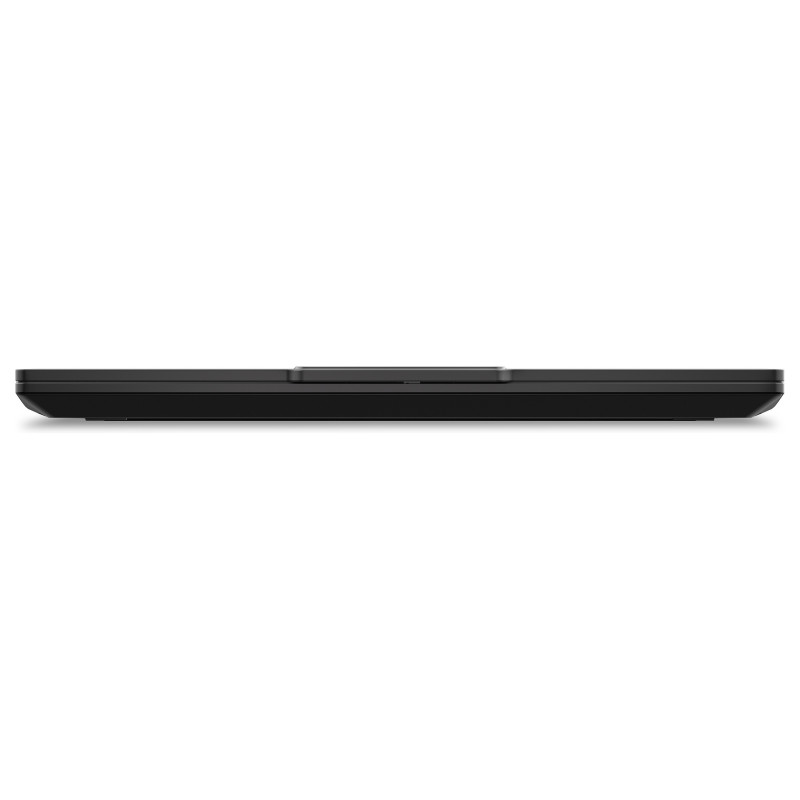

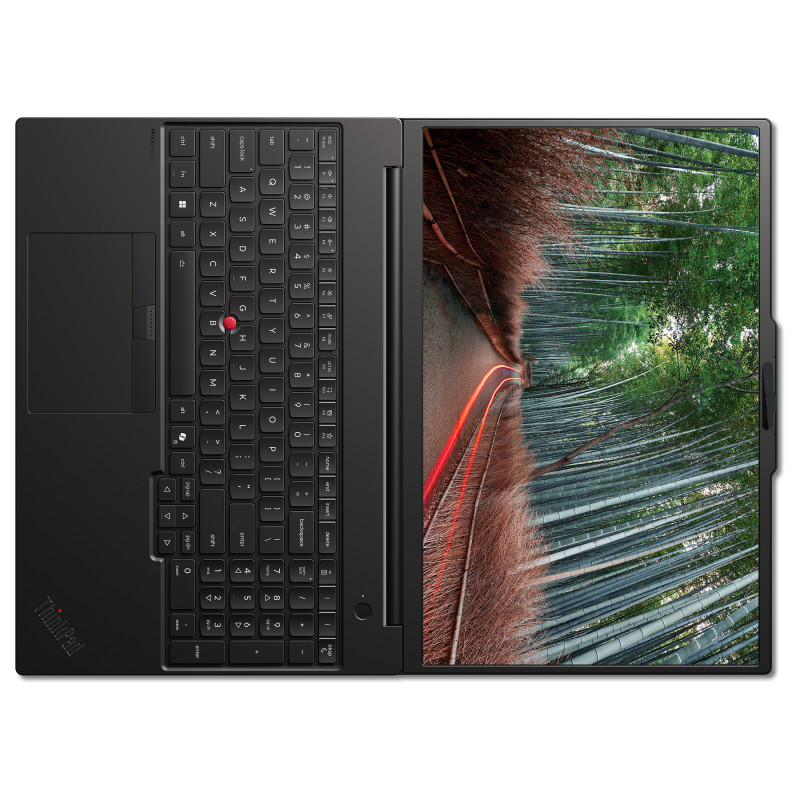

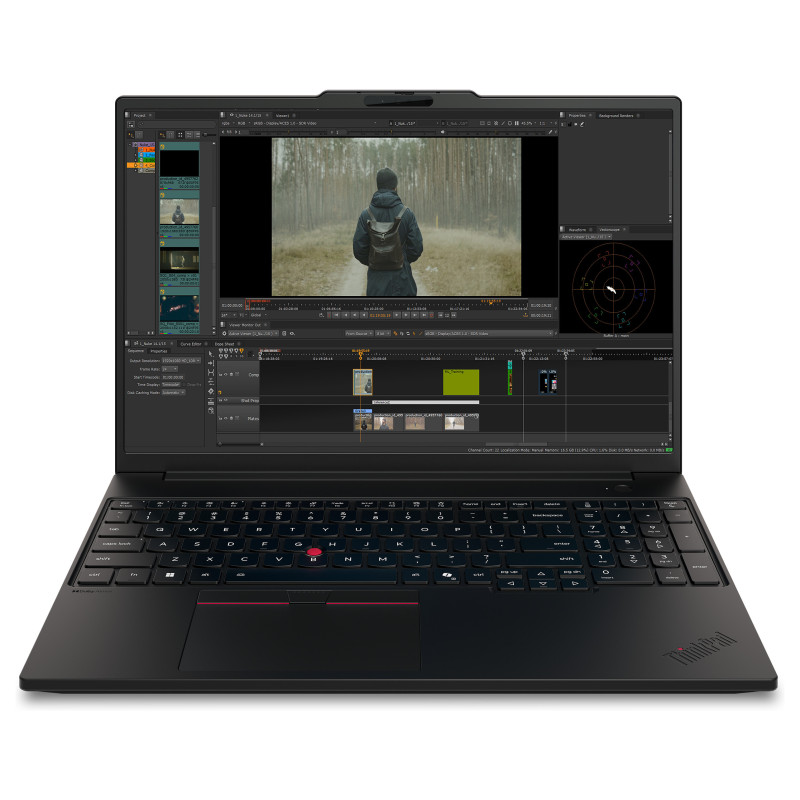

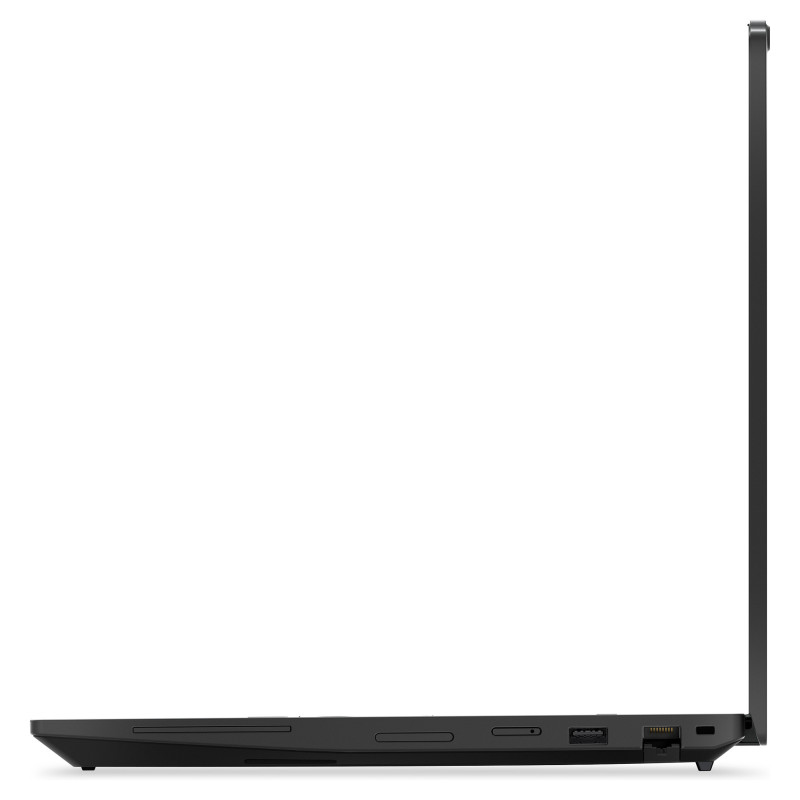

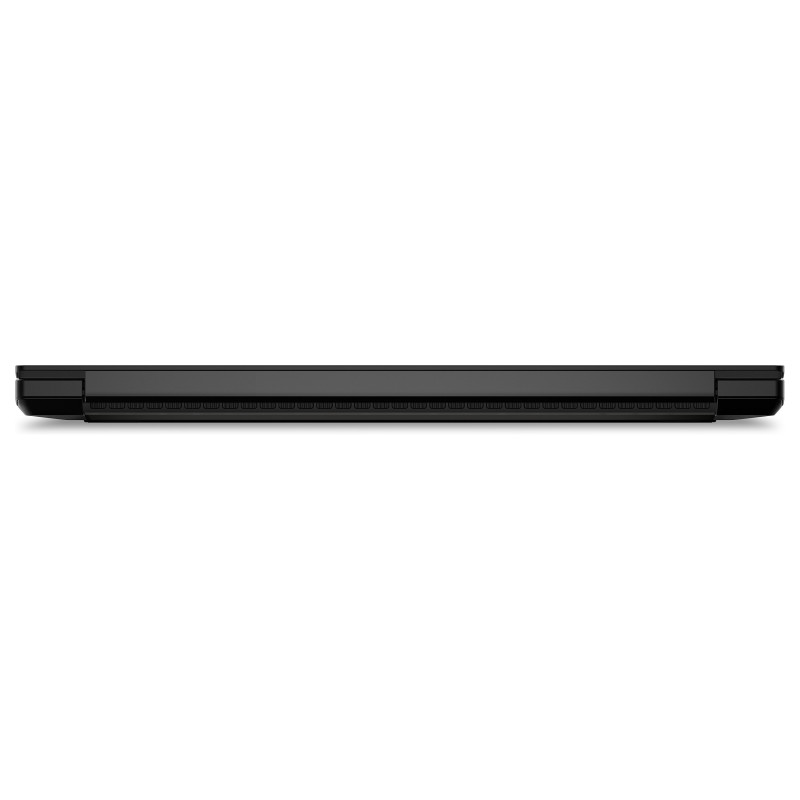

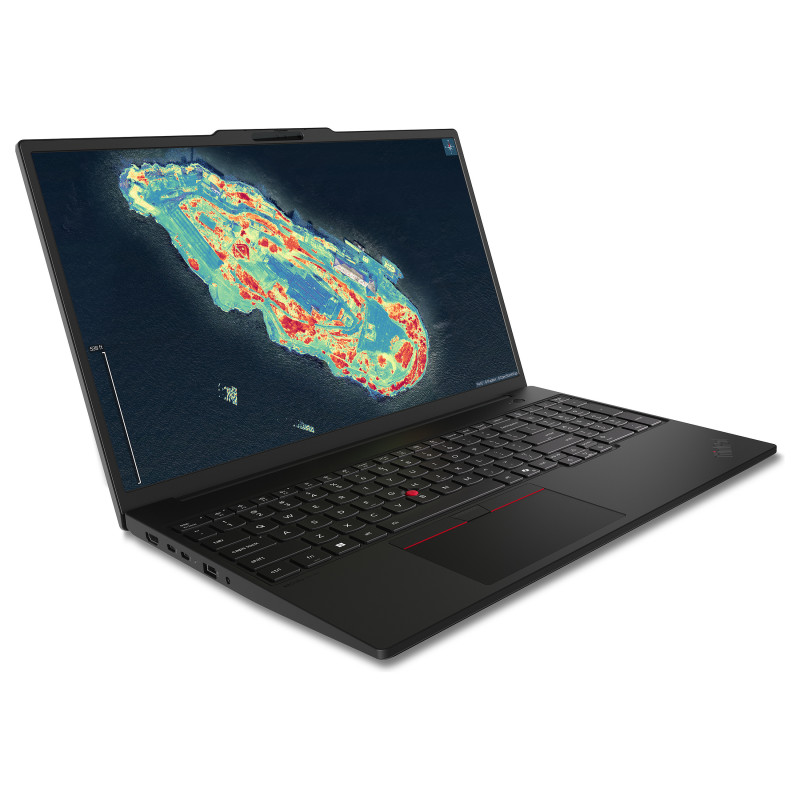

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot + PC

Lenovo ThinkPad P16s Gen 5 (Intel) Copilot + PC. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 366H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

RELIABILITY. SCALABILITY. POWER.
Mobility for Mission‑Critical Workloads

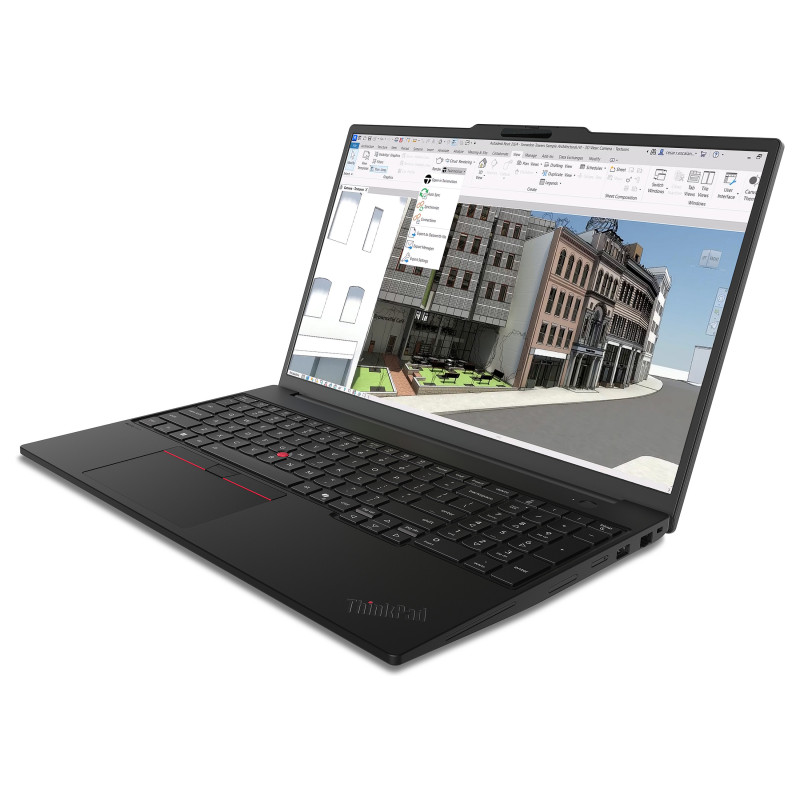

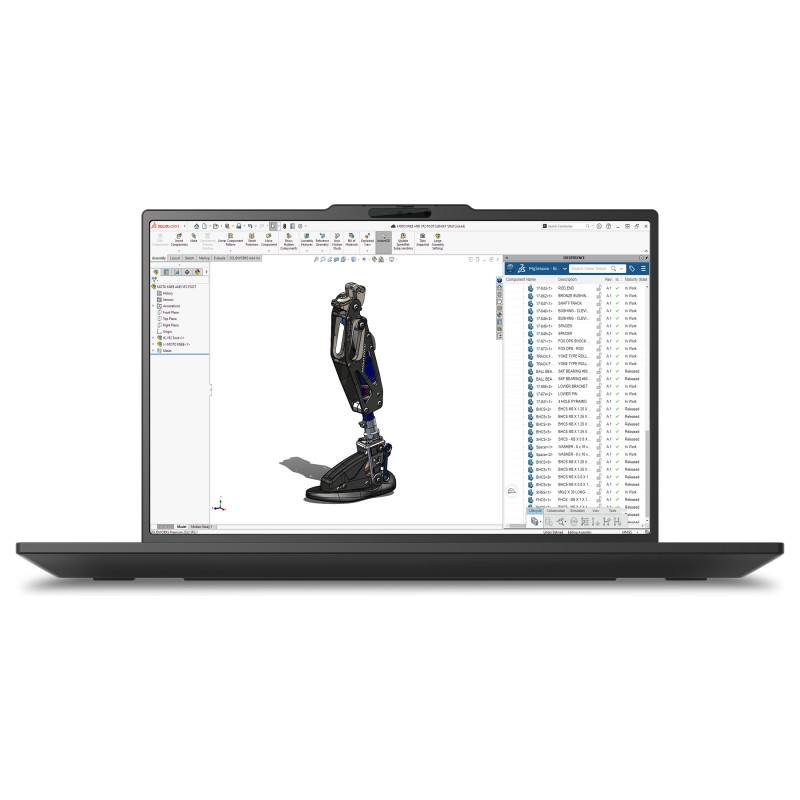

Designed for professionals, the 16" Lenovo ThinkPad P16s i Gen 5 mobile workstation offers reliability and scalability on the go. It features Intel® Core™ Ultra Series 3 processors and is accelerated by the NVIDIA RTX PRO™ platform, assuring exceptional performance for CAD, BIM, and content creation workflows in a lightweight, sustainable design.

ON-DEVICE AI WITH COPILOT+ SUPPORT
Ready for AI‑Accelerated Productivity

Featuring an onboard neural processing unit (NPU) and full Copilot+ support, the ThinkPad P16s i Gen 5 transforms the way you work. Automate repetitive tasks, speed up your workflows, and accomplish more — all without cloud dependency. Work smarter, faster, and more independently with this innovative workstation.

Your Work, Your Data — Protected at Every Level
Enterprise‑Level Security for Peace of Mind

This workstation is strengthened with ThinkShield security, Intel vPro®, privacy-oriented infrared (IR) camera, Smart Card Reader options, physical locks, discrete Trusted Platform Module (dTPM) 2.0, advanced presence detection, WiFi 7, and optional 5G for secured connectivity. Stay protected against cyber threats, data breaches, and tampering.

SIMPLIFIED MAINTENANCE & ADAPTABILITY
More Serviceable Than Ever

Designed for longevity, the ThinkPad P16s i Gen 5 mobile workstation features customer-replaceable memory, battery, storage, keyboard, WWAN, and USB-C® ports. Simplify maintenance, reduce expenses, and extend the life of each device or your entire fleet, without sacrificing performance.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry-leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Design

Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Polycarbonate (PC), Acrylonitrile styrene acrylate (ASA)

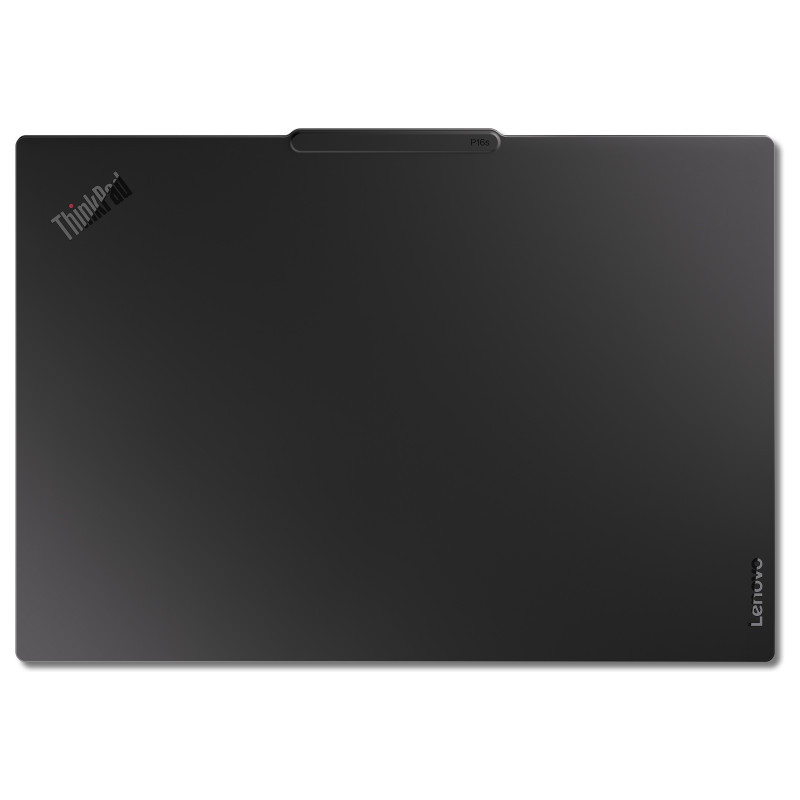

Display back cover material: Aluminium

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 400 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 800:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 366H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 4.8 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Efficient-core Max Turbo Frequency: 3.6 GHz
Low Power Efficient-core Max Turbo Frequency: 3.4 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor socket: FCBGA2540
Processor base power: 25 W
Maximum turbo power: 80 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 50 TOPs
GPU performance up to: 40 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 7467 MHz
Memory form factor: LPCAMM2
Maximum internal memory: 96 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel® Graphics
On-board graphics card model: Intel® Graphics
Feature: Ray tracing acceleration

Audio

Audio chip: Realtek ALC722-CG
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE211
WLAN controller manufacturer: Intel
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.4
WWAN: Upgradable

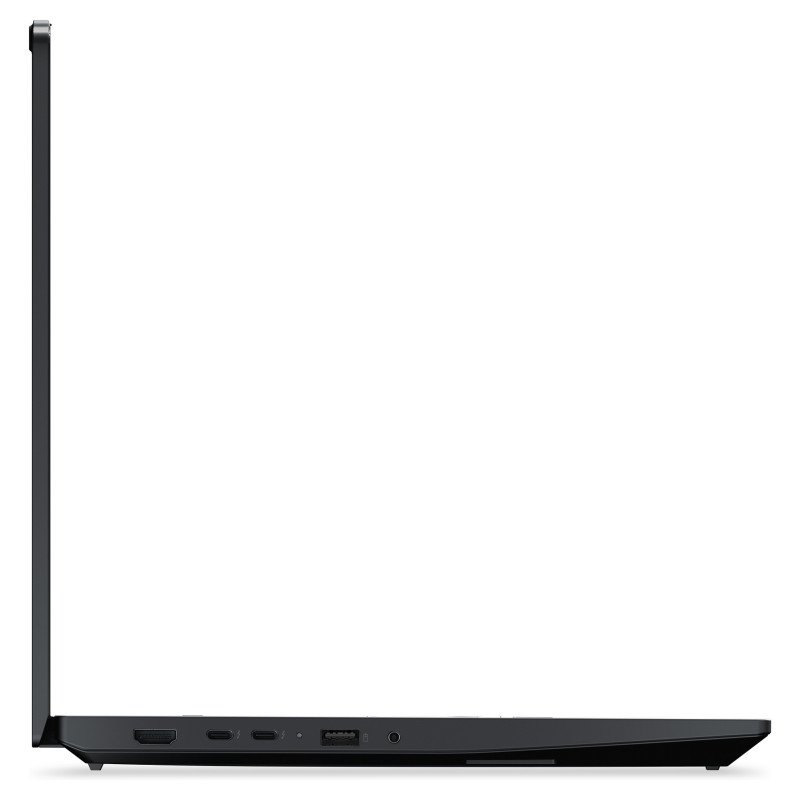

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Numeric keypad
Feature: Keyboard backlit
Feature: Spill-resistant keyboard
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Intel Connectivity Performance Suite + Lenovo AI Now

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 90 Wh
Feature: Fast charging

Power

AC adapter power: 140 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Certification: ENERGY STAR® 9.0EPEAT™ Gold RegisteredRoHS compliantTCO Certified, generation 10

Weight & dimensions

Width: 357.9 mm
Depth: 247.9 mm
Height (front): 1.15 cm
Height (rear): 1.81 cm
Weight: 1.79 kg

Packaging content

Feature: AC adapter included
