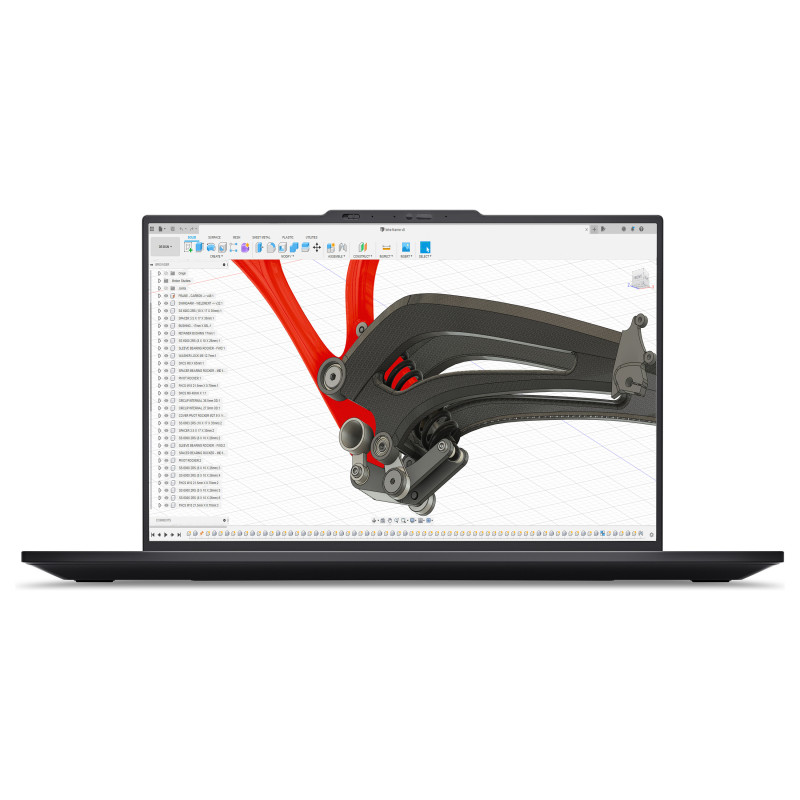

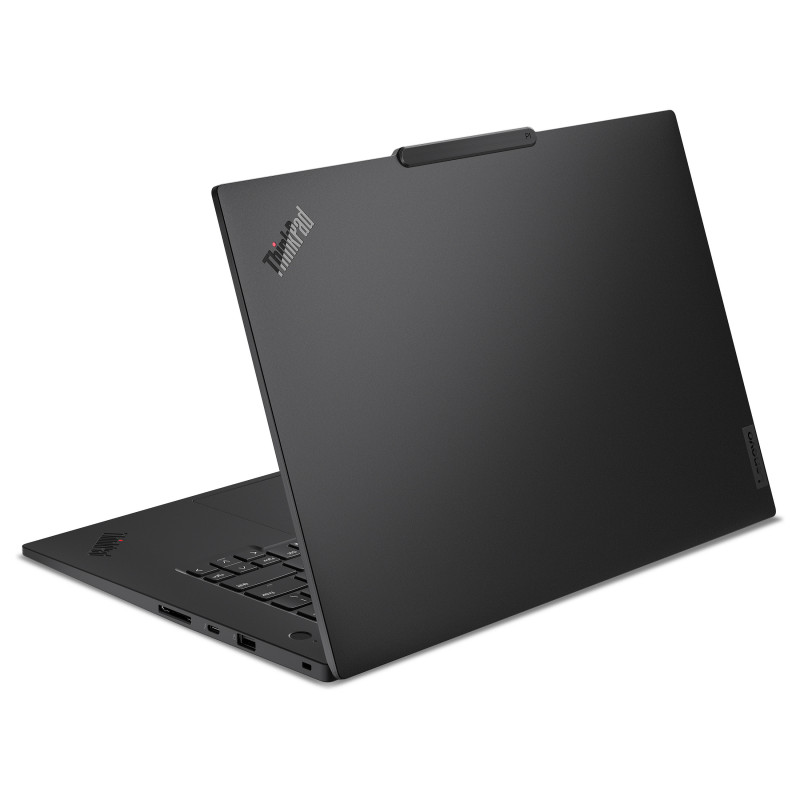

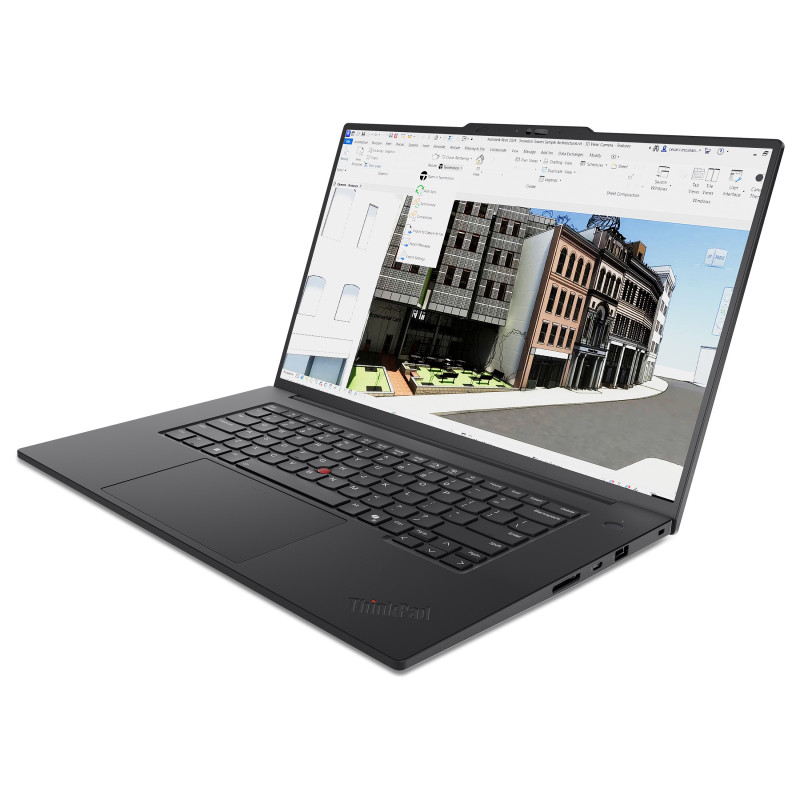

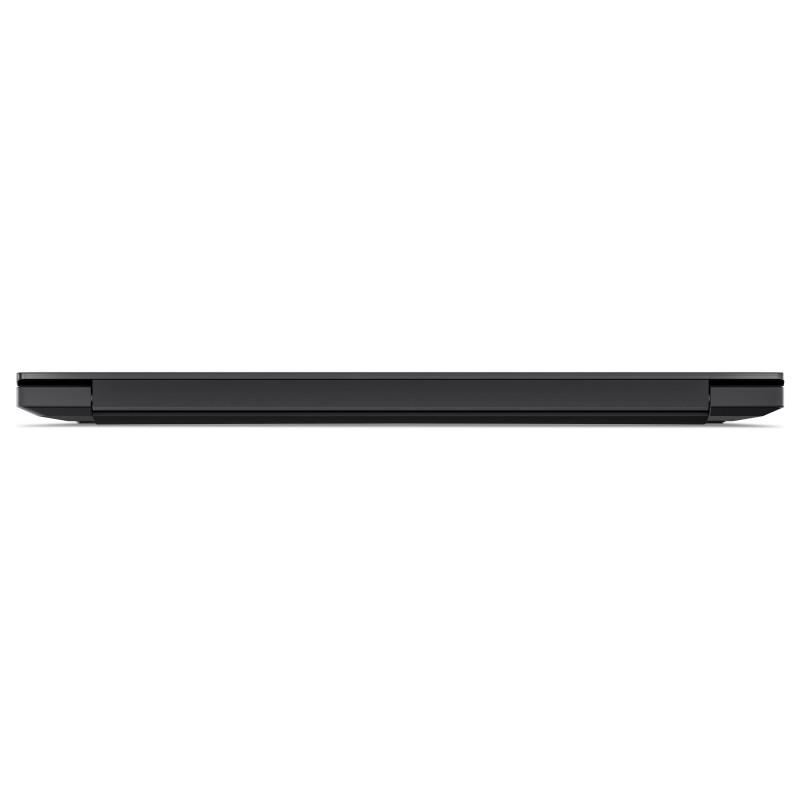

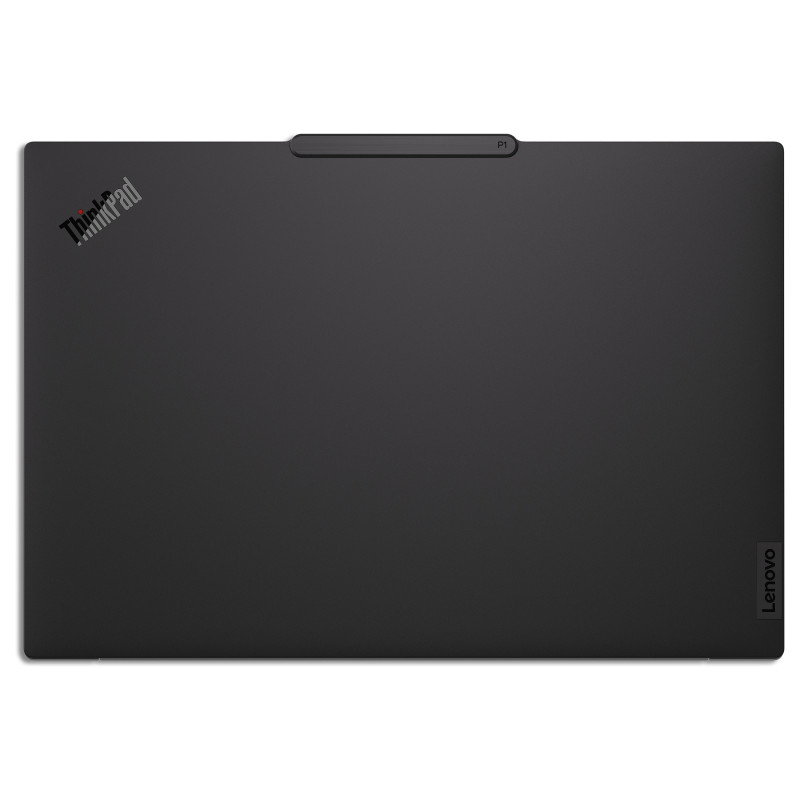

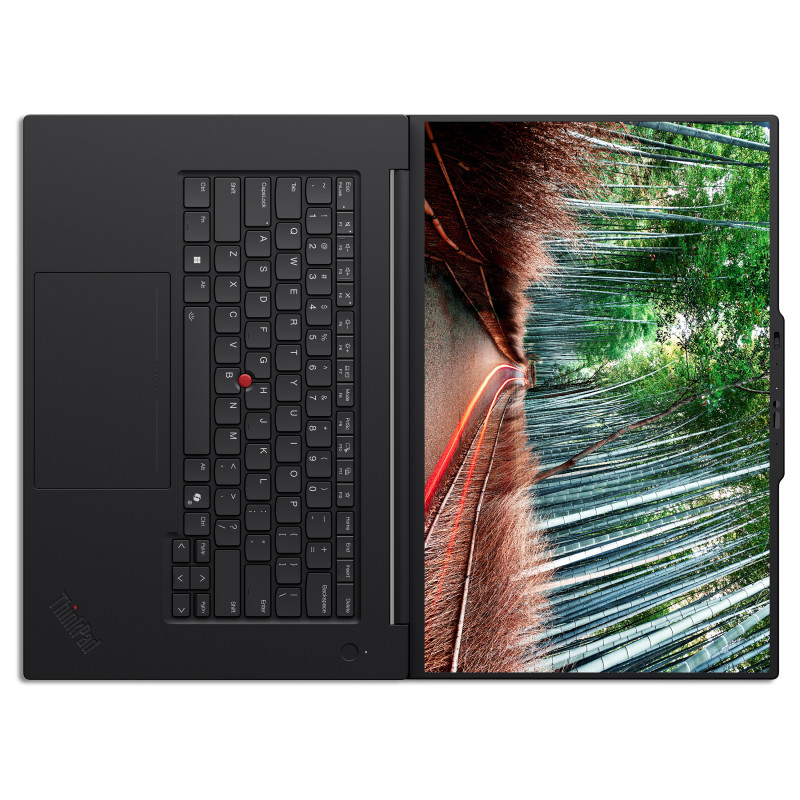

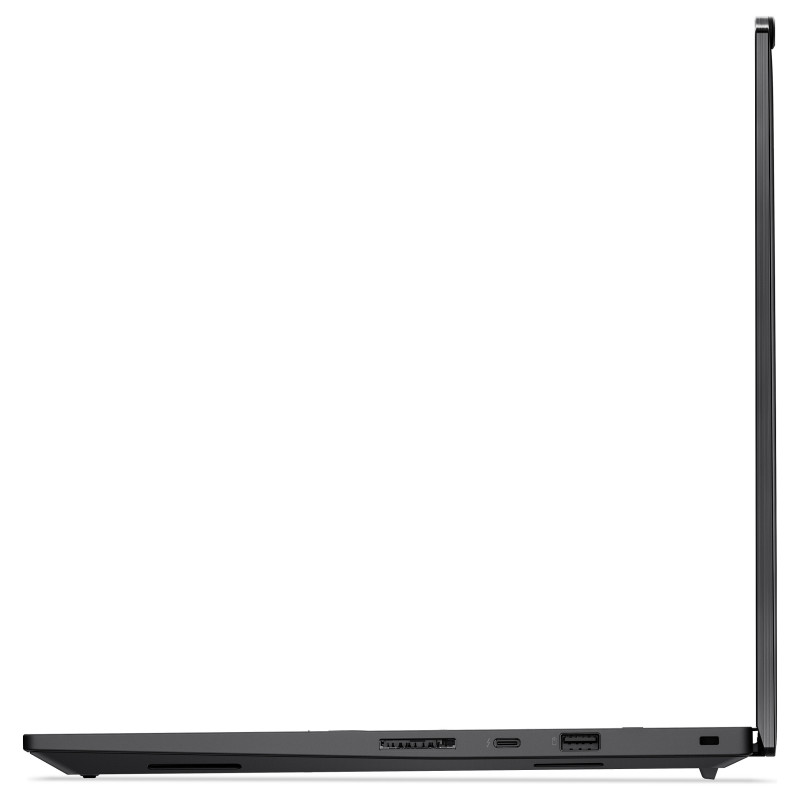

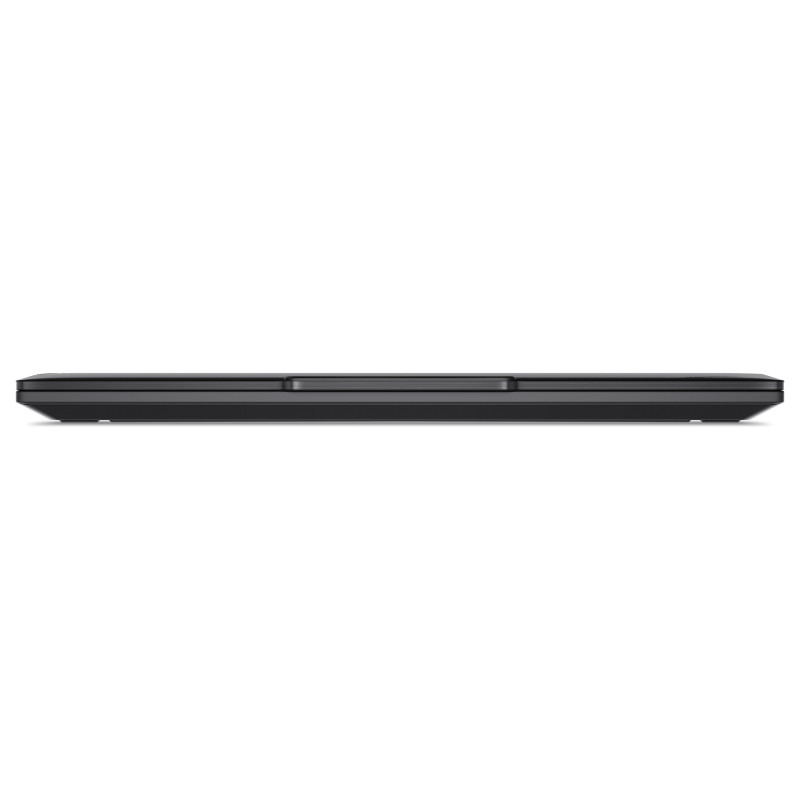

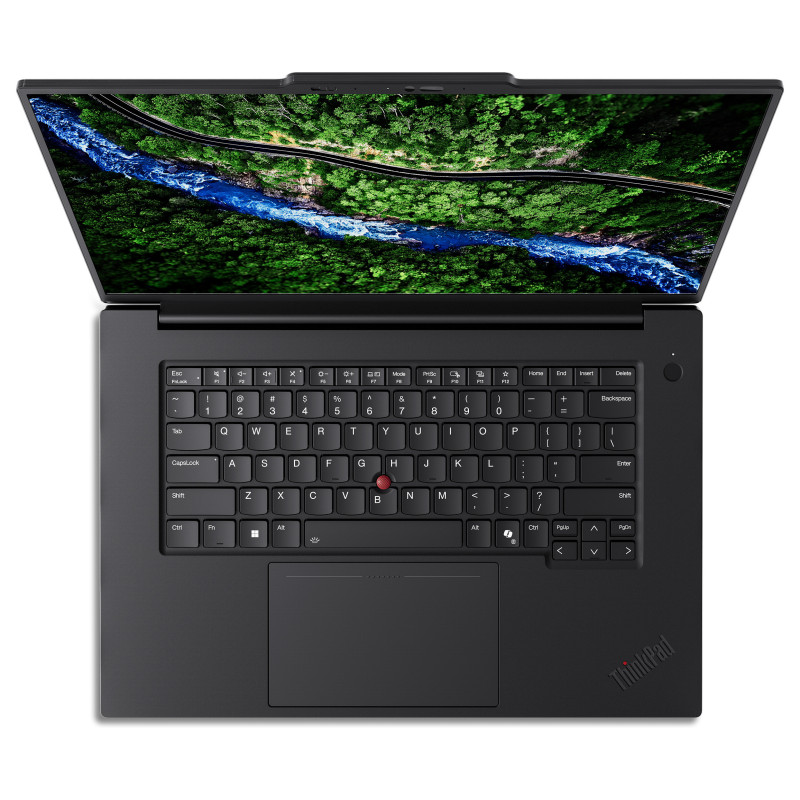

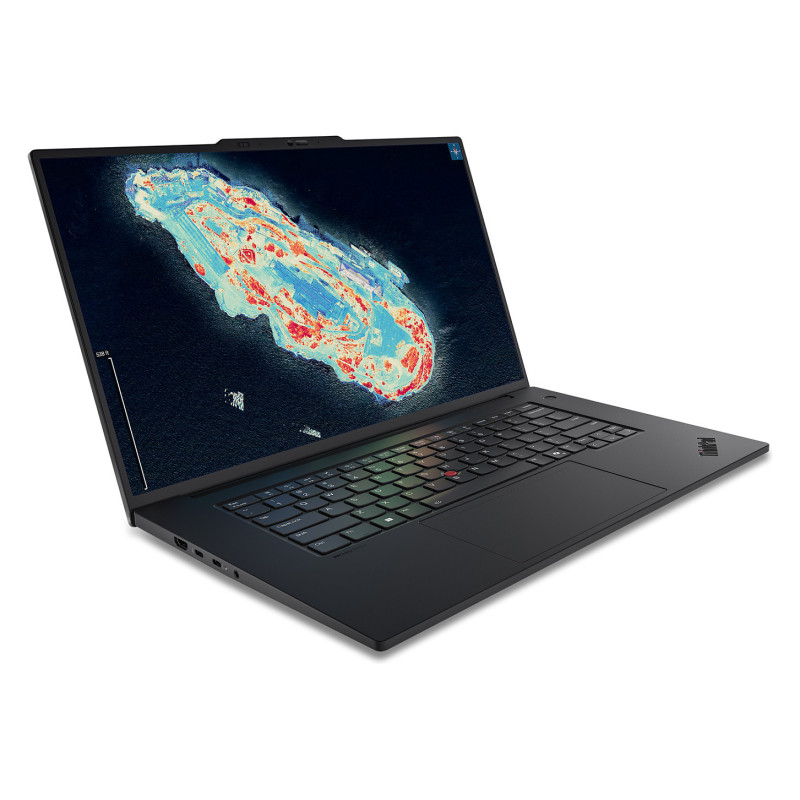

Lenovo ThinkPad P1 Gen 8

Lenovo ThinkPad P1 Gen 8. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

Design

Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Aluminium

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 60 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 255H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.1 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.5 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML
Total processor performance up to: 96 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 74 TOPs

Memory

Internal memory: 64 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 7467 MHz
Maximum internal memory: 64 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 5.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA RTX PRO 2000 Blackwell
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T

Audio

Audio chip: Cirrus Logic CS42L43
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
WLAN controller manufacturer: Intel
Feature: Bluetooth
Bluetooth version: 5.4
WWAN: Not installed

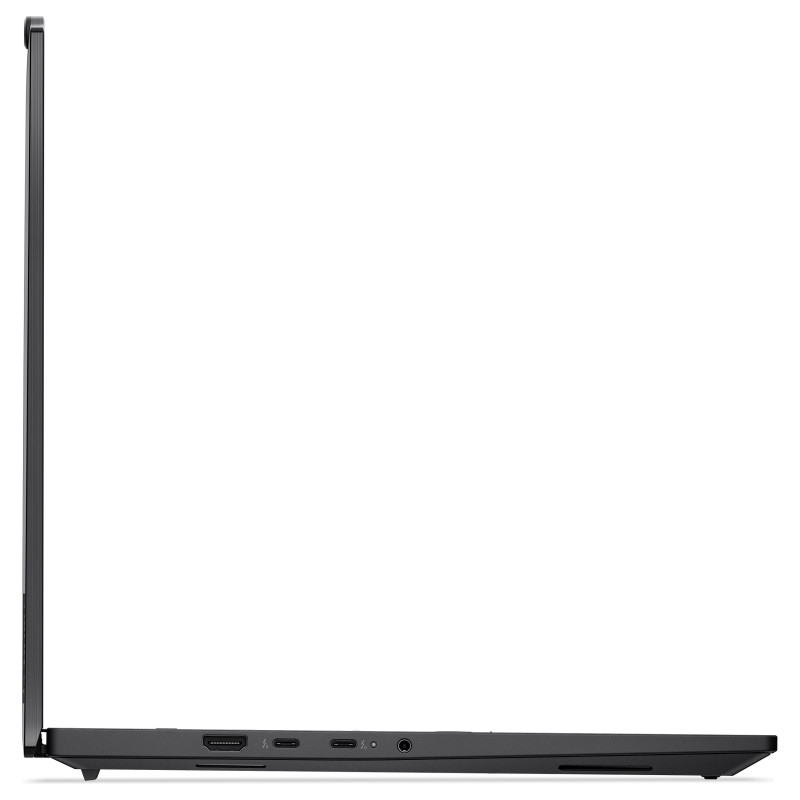

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Thunderbolt 5 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Intel® Thunderbolt 5
Feature: Combo headphone/mic port
Feature: USB Sleep-and-Charge

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Keyboard language: German

Software

Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Lenovo AI Now + Intel Connectivity Performance Suite

Battery

Battery capacity: 90 Wh

Power

AC adapter power: 140 W
Feature: USB Type-C charging port
USB Type-C required charging power (min): 140 W
USB Type-C required charging power (max): 140 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Certificates

Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS

Weight & dimensions

Width: 354.3 mm
Depth: 241 mm
Height (front): 9.9 mm
Height (rear): 1.58 cm
Weight: 1.84 kg

Packaging content

Feature: AC adapter included
