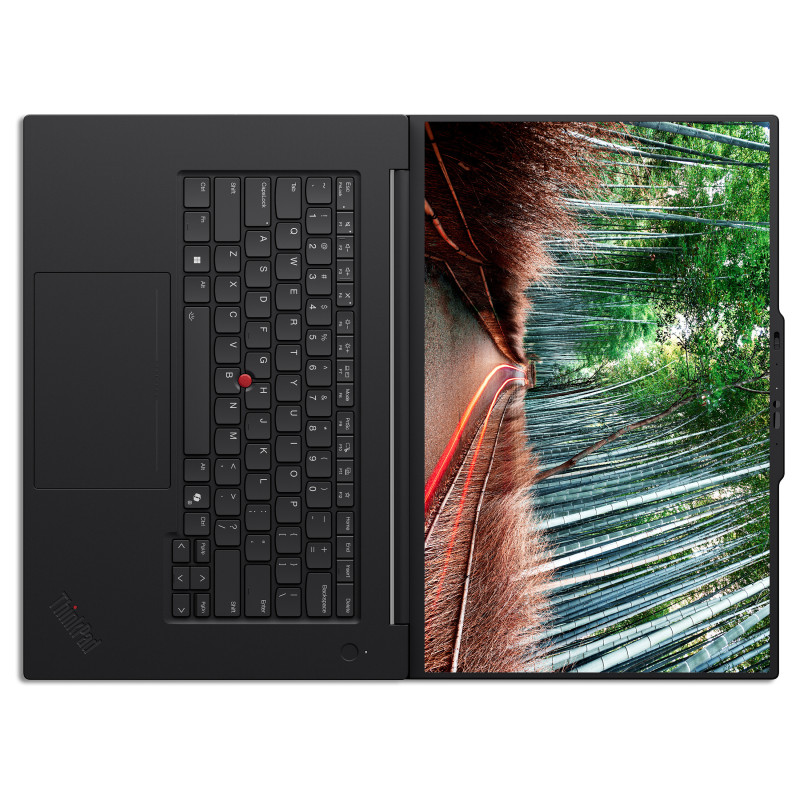

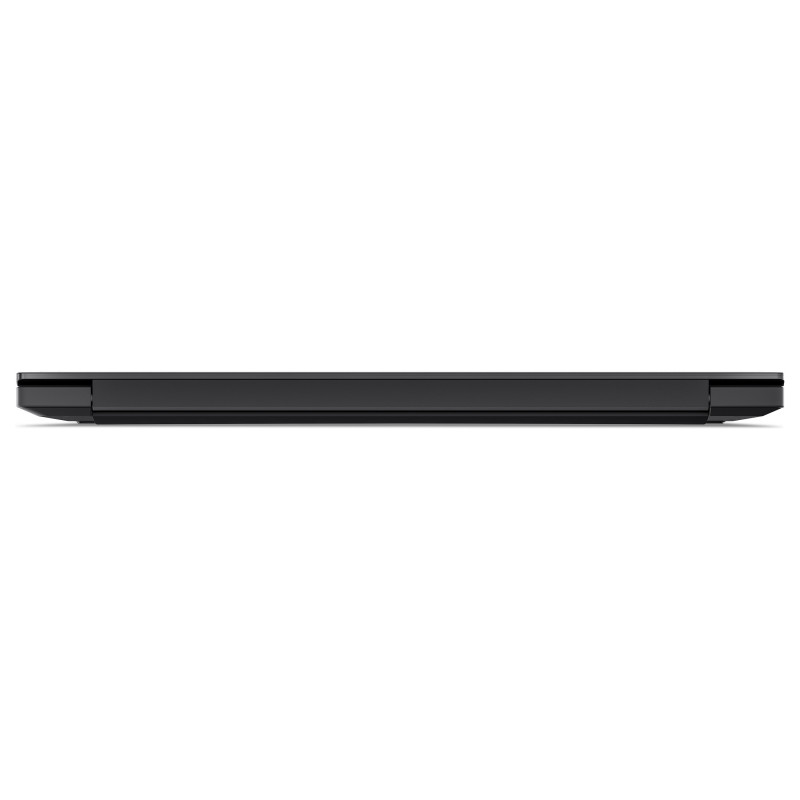

Lenovo ThinkPad P1 Gen 8

Lenovo ThinkPad P1 Gen 8. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA RTX PRO 1000 Blackwell. Operating system installed: Windows 11 Pro. Product colour: Black

RELENTLESS PERFORMANCE
Portable Power With Next-Level Efficiency
The 16″ Lenovo ThinkPad P1 Gen 8 mobile workstation delivers elite performance in a sleek, lightweight design. Powered by Intel® Core™ Ultra (Series 2) processors and up to NVIDIA RTX PRO™ 2000 Blackwell Generation graphics, it's built for developers, CAD specialists and creative professionals who demand power without the bulk.

AI-ENHANCED WORKFLOWS
Streamline. Automate. Dominate.
Transform the way you work and boost productivity with advanced AI processing power. Streamline workflows, automate tasks, and work smarter with AI-powered tools that seamlessly integrate into professional applications, enabling faster iterations and more efficient content creation. Perfect for professionals who need quick, effective results.

IMMERSIVE DISPLAY
Sharper, Brighter, Smarter
The 16ʺ ThinkPad P1 Gen 8 elevates visuals with advanced display options, including Tandem OLED (T-OLED) technology. Experience stunning color accuracy, deep contrast, and exceptional brightness for an immersive viewing experience. Perfect for power users, it offers superior outdoor visibility and power efficiency, ensuring vibrant visuals on the go.

CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Design

Product type: Mobile workstation
Product colour: Black
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Aluminium

Display

Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
HD type: WUXGA
Panel type: IPS
Feature: LED backlight
Native aspect ratio: 16:10
Feature: Anti-glare screen
Display brightness: 500 cd/m²
RGB colour space: sRGB
Colour gamut: 100%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1200:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 255H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.1 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 4.4 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2 GHz
Efficient-core base frequency: 1.5 GHz
Low Power Efficient-core Base Frequency: 700 MHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Processor socket: BGA 2049
Processor base power: 28 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 96 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 74 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory clock speed: 7467 MHz
Memory form factor: LPCAMM2
Maximum internal memory: 32 GB
Memory channels: Dual-channel

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express 5.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete GPU manufacturer: NVIDIA
Discrete graphics card model: NVIDIA RTX PRO 1000 Blackwell
Discrete graphics card memory: 8 GB
Discrete graphics memory type: GDDR7
Feature: On-board graphics card
On-board GPU manufacturer: Intel
Feature: Discrete graphics card
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T

Audio

Audio chip: Cirrus Logic CS42L43
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5 MP
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE201
WLAN controller manufacturer: Intel
Feature: Bluetooth
Bluetooth version: 5.4
WWAN: Not installed

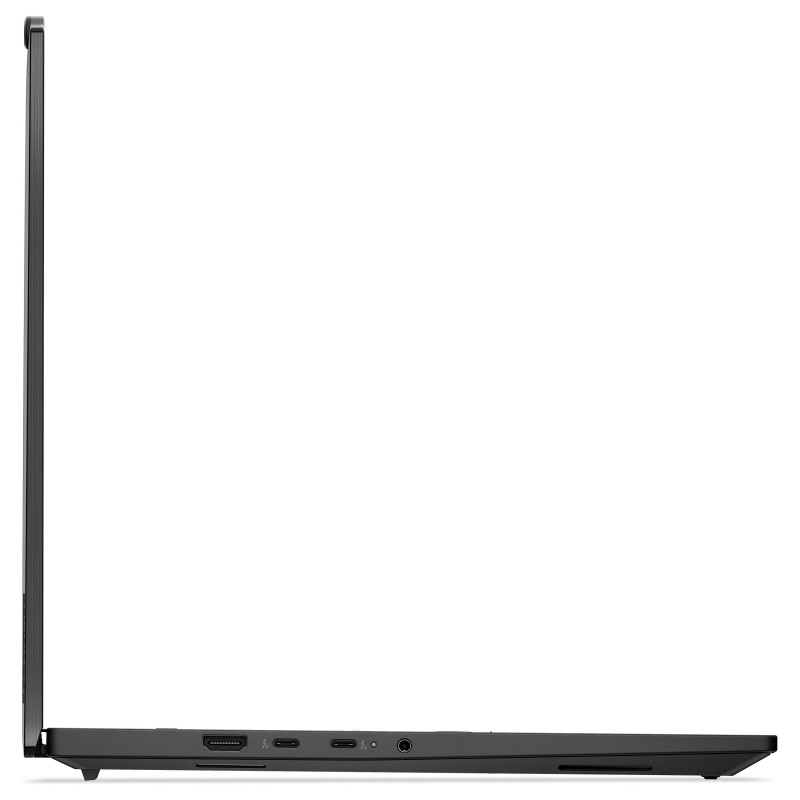

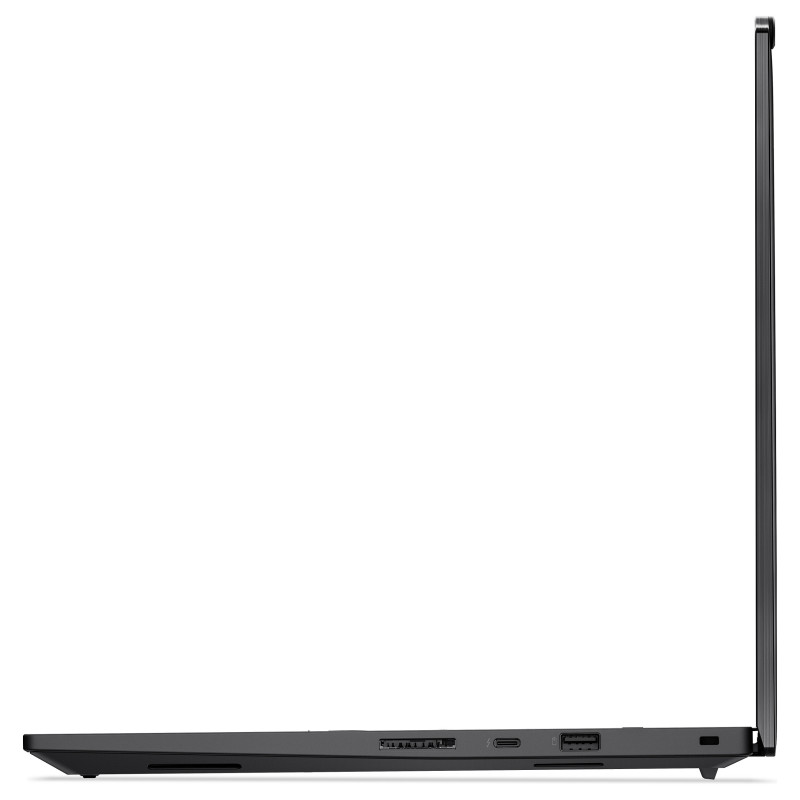

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Thunderbolt 5 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Intel® Thunderbolt 5
Feature: Combo headphone/mic port
Feature: USB Sleep-and-Charge
USB Sleep-and-Charge ports: 1

Performance

Motherboard chipset: Intel SoC

Keyboard

Pointing device: ThinkPad UltraNav
Feature: Keyboard backlit
Feature: Spill-resistant keyboard
Keyboard language: German
Feature: Copilot key

Software

Operating system language: German
Operating system installed: Windows 11 Pro
Bundled software: Intel Connectivity Performance Suite + Lenovo AI Now

Battery

Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 90 Wh
Feature: Fast charging

Power

AC adapter power: 140 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Fingerprint reader
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0
Feature: Password protection
Password protection type: Power on, SSD, Supervisor

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): 5 - 43 °C
Operating relative humidity (H-H): 8 - 95%
Storage relative humidity (H-H): 5 - 95%
Maximum shipping altitude: 3048 m

Certificates

Compliance certificates: RoHS
Certification: MIL-STD-810H military test passedEyesafe Certified 2.0Intel Evo PlatformTÜV Rheinland Low Blue Light

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Gold, TCO

Weight & dimensions

Width: 354.3 mm
Depth: 241 mm
Height (front): 9.9 mm
Height (rear): 1.58 cm
Weight: 1.84 kg

Packaging content

Feature: AC adapter included
