„DeLOCK 90605“ brūkšninių kodų skaitytuvas

DeLOCK Wearable Barcode Scanner 1D and 2D with 2.4 GHz or Bluetooth - for glove 90606 and 90609. Type: Wearable bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RF Wireless, USB, Operating frequency: 2400 MHz. Product colour: Black, LED indicators: Bluetooth, Charging, Power, Internal memory: 16 MB. Power source type: Battery, Battery technology: Lithium Polymer (LiPo), Battery type: Built-in battery. Weight: 40 g, Width: 42 mm, Depth: 56 mm

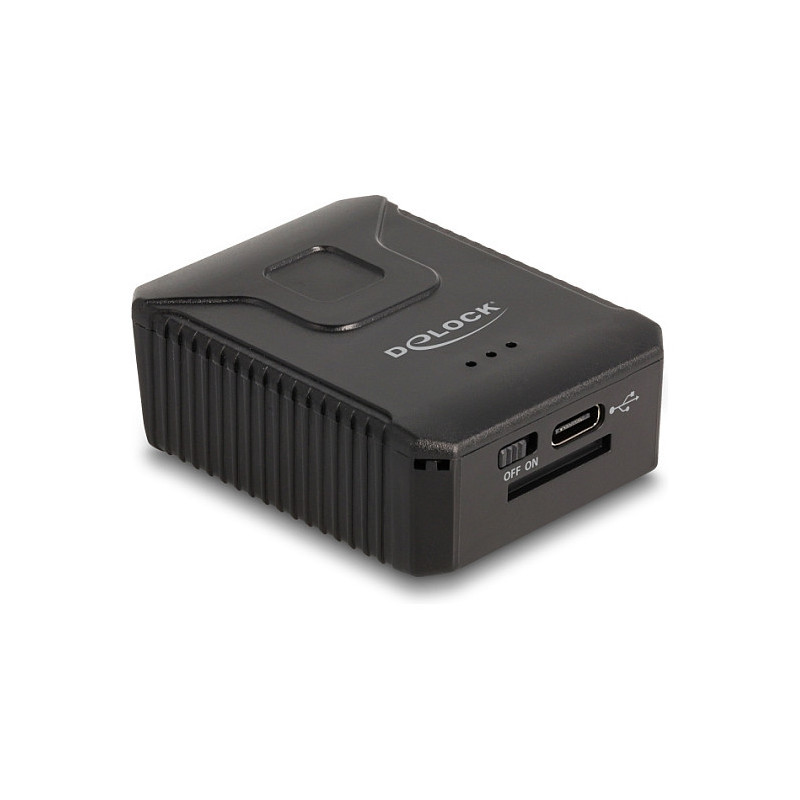

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 100 scans per second under optimal lighting conditions.
In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Practical
This portable scanner can be conveniently attached to the glove via a snap-on mechanism, leaving the wearer's hands free to hold a box, for example.

Transmission via Bluetooth, USB or 2.4 GHz

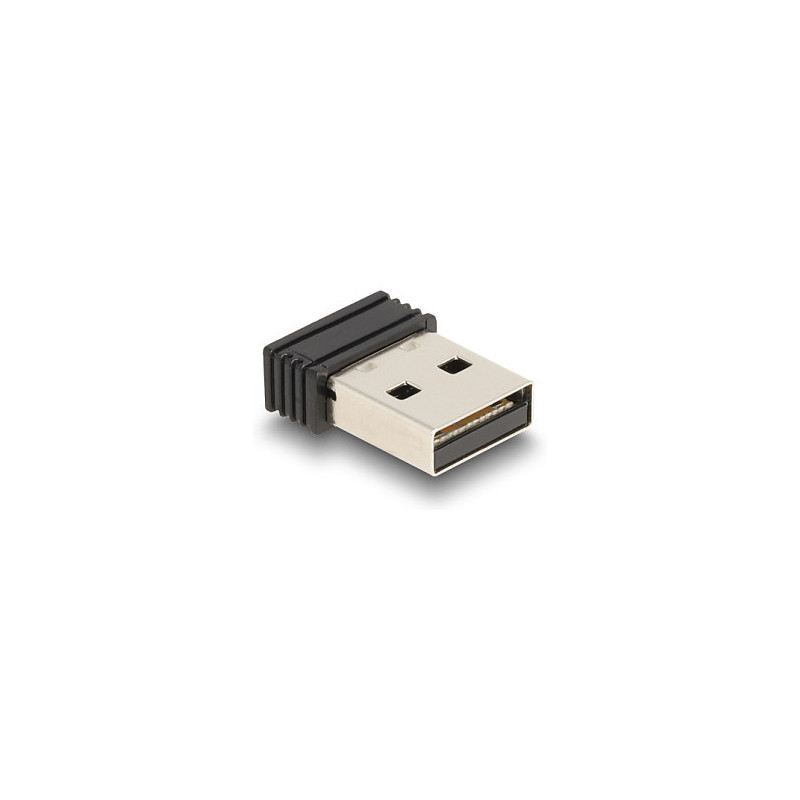

The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.

Scanning

Type: Wearable bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
Linear (1D) barcodes supported: Codabar, Code 128, EAN-13, EAN-8, ISBN, Interleaved 2 of 5, PDF417
2D (matrix & stacked) barcodes supported: Code 39, Data Matrix, Micro QR Code, MicroPDF417, QR Code
Optical sensor resolution (W x H): 1280 x 800 pixels
Working distance: 30 cm
Read rate (max): 100 reads/s
Pitch reading angle: 0 - 360°

Ports & interfaces

Connectivity technology: Wireless
Standard interfaces: Bluetooth, RF Wireless, USB
USB 2.0 ports quantity: 1
Bluetooth version: 4.1
Operating frequency: 2400 MHz
Cable length: 1 m

Performance

LED indicators: Bluetooth, Charging, Power
Internal memory: 16 MB
Feature: Built-in processor
Product colour: Black

Power

Power source type: Battery
Battery technology: Lithium Polymer (LiPo)
Battery type: Built-in battery
Number of batteries supported: 1
Battery capacity: 380 mAh
Charging time: 2 h
Input voltage: 3.3 V

Weight & dimensions

Width: 42 mm
Depth: 56 mm
Height: 20 mm
Weight: 40 g

Packaging data

Cables included: USB

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
