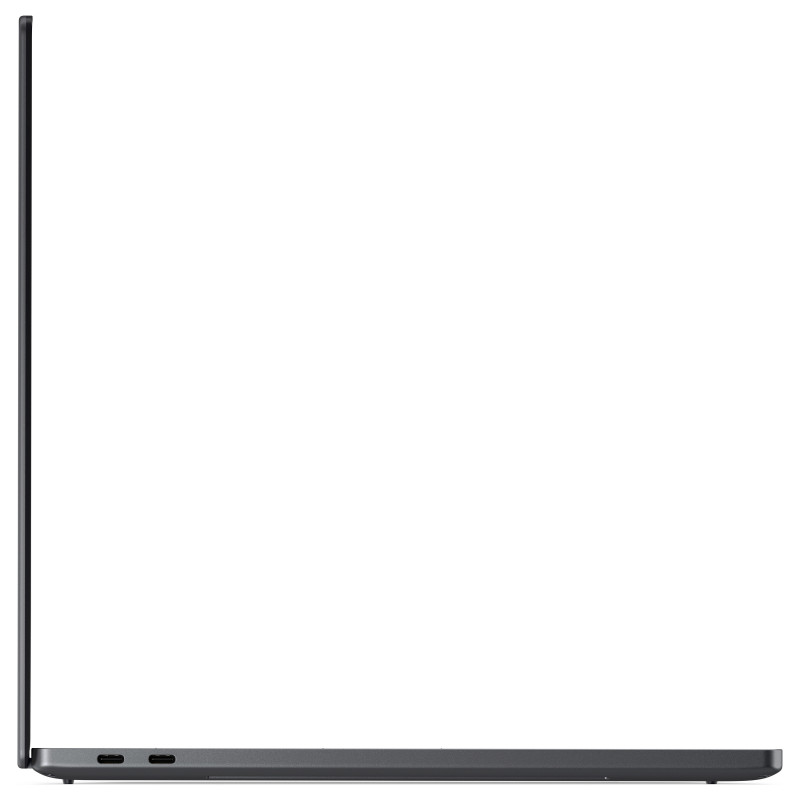

DELL XPS DA16260

DELL XPS DA16260. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra X9, Processor model: 388H. Display diagonal: 40.6 cm (16"), HD type: 3.2K, Display resolution: 3200 x 2000 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc B390. Operating system installed: Windows 11 Home. Product colour: Graphite

The ultimate creator's canvas, the XPS 16 delivers high performance and exceptional battery life in our thinnest 16-inch laptop.

Design

Product type: Laptop
Product colour: Graphite
Form factor: Clamshell
Housing material: Aluminium

Display

Display diagonal: 40.6 cm (16")
Display resolution: 3200 x 2000 pixels
Feature: Touchscreen
HD type: 3.2K
Panel type: OLED
Feature: Anti-reflective coating
Feature: Anti-smudge coating
Display glass type: Gorilla Glass
Display brightness: 400 cd/m²
Pixel density: 235.8 ppi
RGB colour space: DCI-P3
Colour gamut: 100%
Feature: Low Blue Light technology
Maximum refresh rate: 120 Hz
Contrast ratio (typical): 1000000:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra X9
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 388H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.1 GHz
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 5.1 GHz
Efficient-core Max Turbo Frequency: 3.8 GHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.1 GHz
Efficient-core base frequency: 1.6 GHz
Low Power Efficient-core Base Frequency: 1600 MHz
Processor cache: 18 MB
Processor cache type: Smart Cache
Processor socket: FCBGA2540
Processor base power: 25 W
Maximum turbo power: 80 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to: 50 TOPs
GPU performance up to: 122 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 32 GB
Memory channels: Dual-channel
Memory data transfer rate: 9600 MT/s

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc B390
Feature: Ray tracing acceleration

Audio

Audio chip: Cirrus Logic CS42L45
Audio system: MaxxAudio
Number of built-in speakers: 4
Speakers manufacturer: Waves
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 8 MP
Front camera resolution: 3840 x 2160 pixels
Front camera HD type: Ultra HD
Video capturing speed: 30 fps
Feature: Infrared (IR) camera

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max): 5000 Mbit/s
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE211
Feature: Bluetooth

Ports & interfaces

Thunderbolt 4 ports quantity: 3
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit

Software

Operating system architecture: 64-bit
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium Polymer (LiPo)
Number of battery cells: 3
Battery capacity: 70 Wh
Battery voltage: 11.49 V
Feature: Fast charging
Battery weight: 252 g

Power

AC adapter power: 100 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 45 W
USB Type-C required charging power (max): 93 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Windows Hello

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating shock: 110 G
Non-operating shock: 160 G
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Gold
Doesn't contain: PVC/BFR

Weight & dimensions

Width: 352.6 mm
Depth: 237.5 mm
Height: 14.6 mm
Weight: 1.65 kg
