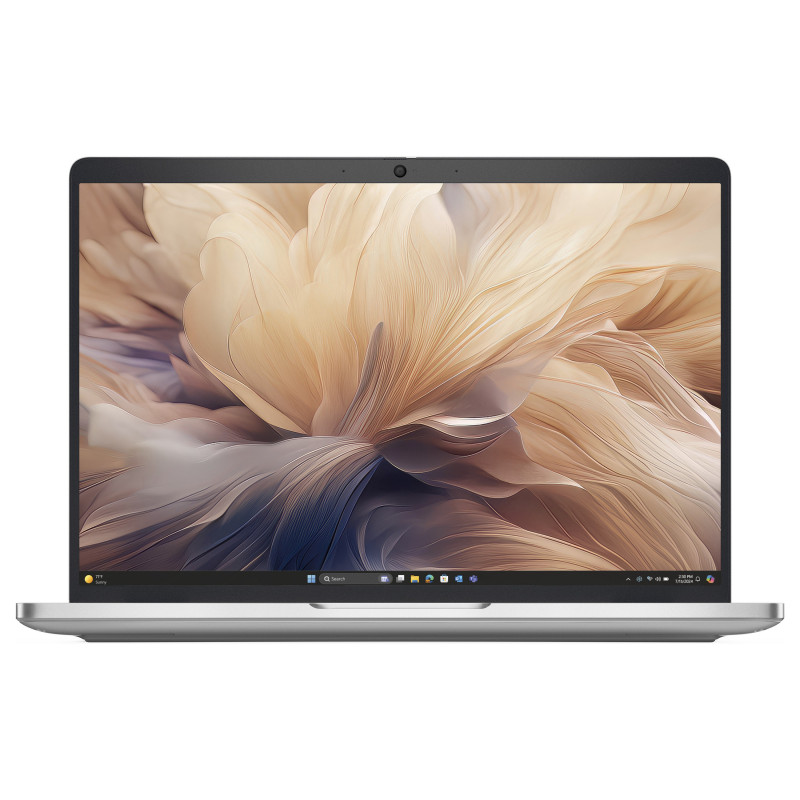

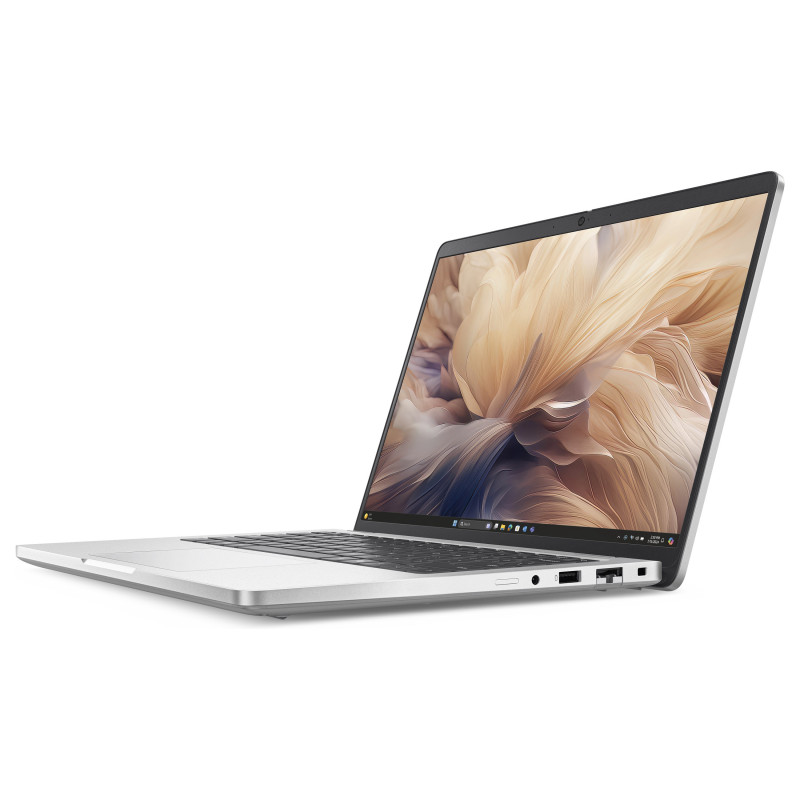

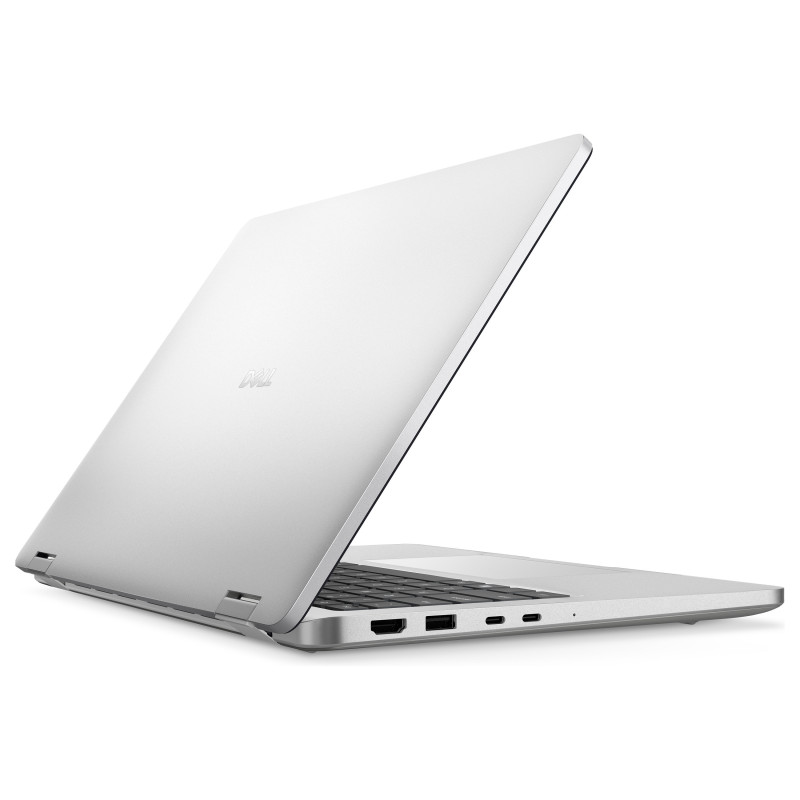

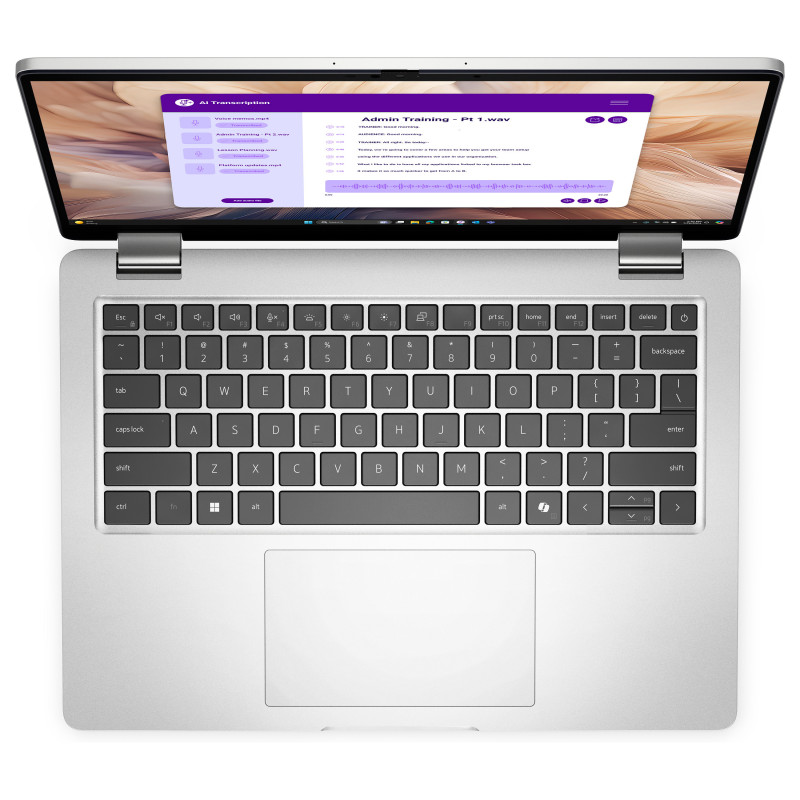

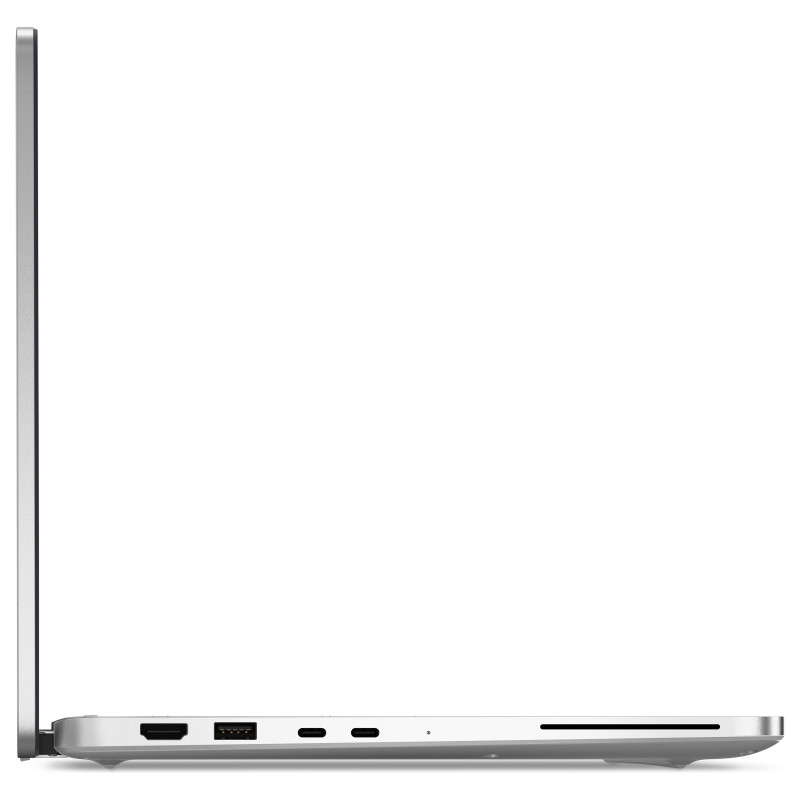

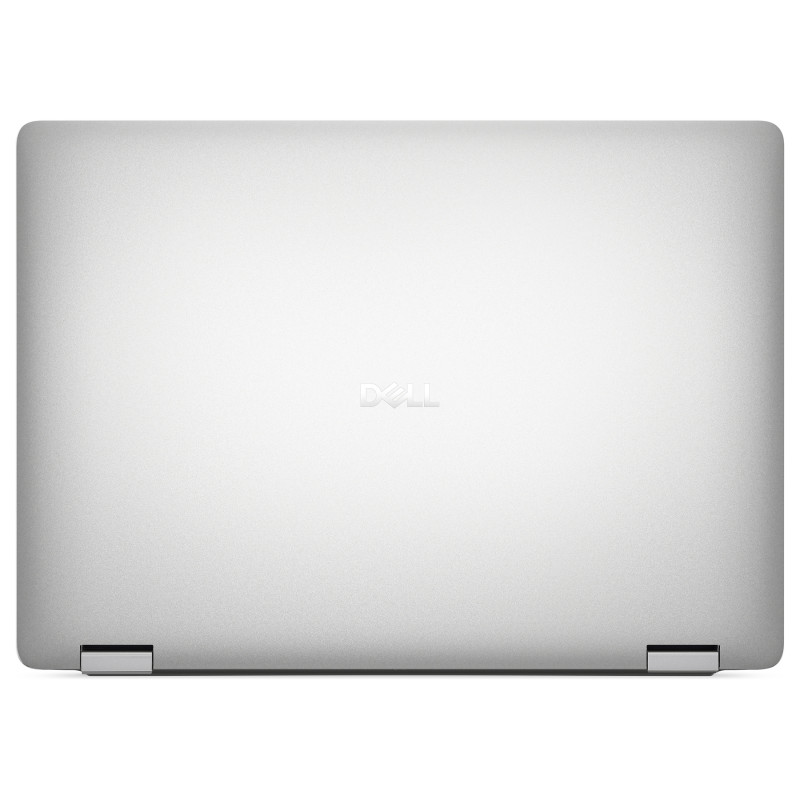

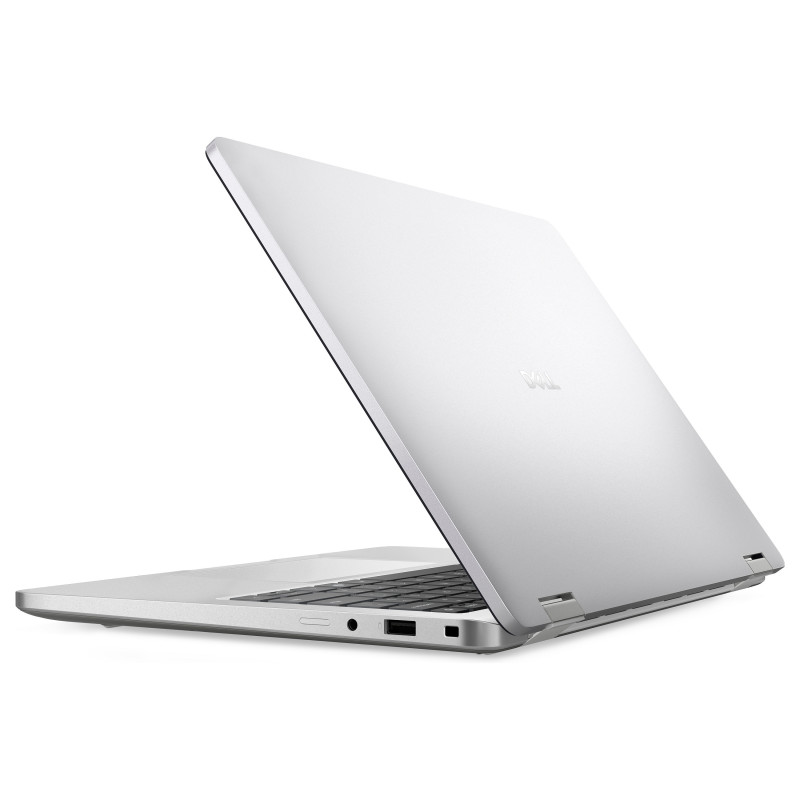

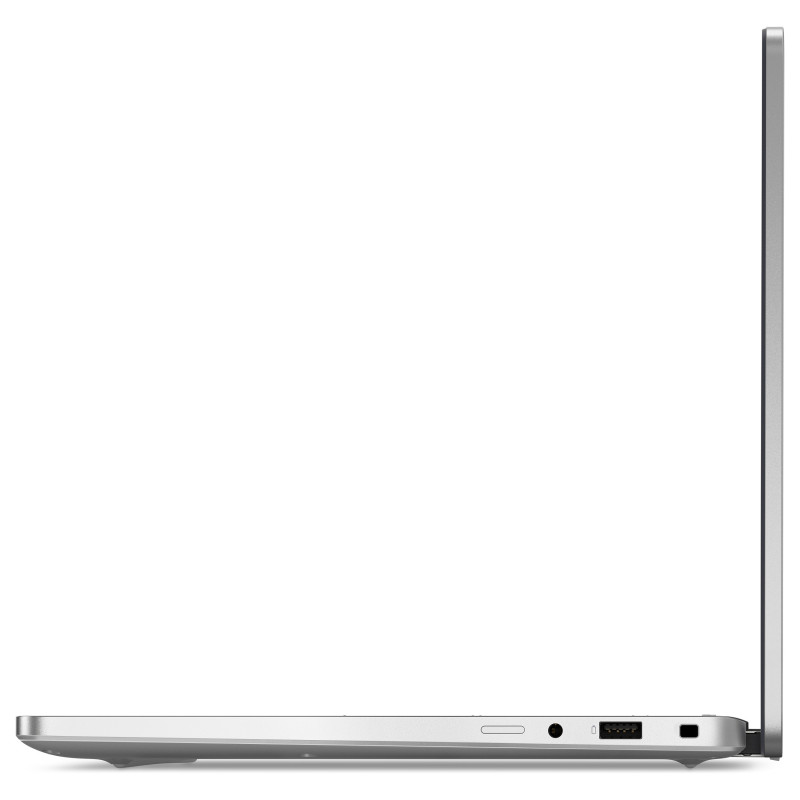

DELL Pro 14 Plus PB14250

DELL Pro 14 Plus PB14250. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 266V. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Pro. Product colour: Aluminium. Weight: 1.53 kg

Design

Product type: Laptop
Product colour: Aluminium
Form factor: Clamshell
Housing material: Aluminium
Feature: Intel® vPro™ Platform Eligibility

Display

Display diagonal: 35.6 cm (14")
Display resolution: 1920 x 1200 pixels
HD type: Full HD+
Panel type: IPS
Feature: Anti-glare screen
Display brightness: 300 cd/m²
Pixel density: 162 ppi
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 600:1

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 266V
Processor cores: 8
Processor threads: 8
Processor boost frequency: 5 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 5 GHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.2 GHz
Low Power Efficient-core Base Frequency: 2200 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 118 TOPs
NPU performance up to: 48 TOPs
GPU performance up to: 66 TOPs

Memory

Internal memory: 16 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 16 GB
Memory data transfer rate: 8533 MT/s

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD memory type: TLC
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics 140V

Audio

Audio chip: Cirrus Logic CS42L43
Number of built-in speakers: 2
Speaker power: 2 W
Feature: Built-in microphone
Number of microphones: 2

Camera

Feature: Front camera
Front camera resolution (numeric): 5.2 MP
Front camera resolution: 2560 x 1440 pixels
Front camera HD type: Full HD
Video capturing speed: 30 fps
Feature: Infrared (IR) camera

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max): 5760 Mbit/s
Antenna type: 2x2
WLAN controller model: Intel Wi-Fi 7 BE201
WLAN controller manufacturer: Intel
Feature: Bluetooth
Feature: Near Field Communication (NFC)
WWAN: Upgradable

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode
Feature: PowerShare
Number of USB ports with PowerShare support: 1

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Trial software: Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed: Windows 11 Pro

Brand-specific features

Brand specific technologies: Control Vault 3+, TNR, Express Charge Boost capable

Battery

Number of battery cells: 3
Battery capacity: 55 Wh
Battery voltage: 11.7 V
Battery recharge time: 4 h
Feature: Fast charging
Feature: Battery charge indicator
Battery weight: 220 g

Power

Feature: USB Type-C charging port
USB Type-C required charging power (min): 27 W
USB Type-C required charging power (max): 100 W
Feature: USB Power Delivery (USB PD)
USB charging voltage: 5,9,15,20 V

Security

Feature: Cable lock slot
Cable lock slot type: Wedge
Feature: Fingerprint reader
Feature: Smart card reader
Feature: Face recognition
Feature: Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version: 2.0

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating shock: 110 G
Non-operating shock: 160 G
Operating vibration: 0.66 G
Non-operating vibration: 1.3 G

Weight & dimensions

Width: 313.5 mm
Depth: 224 mm
Height: 21.2 mm
Height (front): 1.95 cm
Height (rear): 2 cm
Weight: 1.53 kg

Carbon footprint

Total carbon footprint (kg of CO2e): 104
Carbon emissions, manufacturing (kg of CO2e): 76.44
Carbon emissions, logistics (kg of CO2e): 4.47
Carbon emissions, energy usage (kg of CO2e): 21.11
Carbon emissions, end-of-life (kg of CO2e): 1.98
PAIA version: GaBi version 1, 2024
