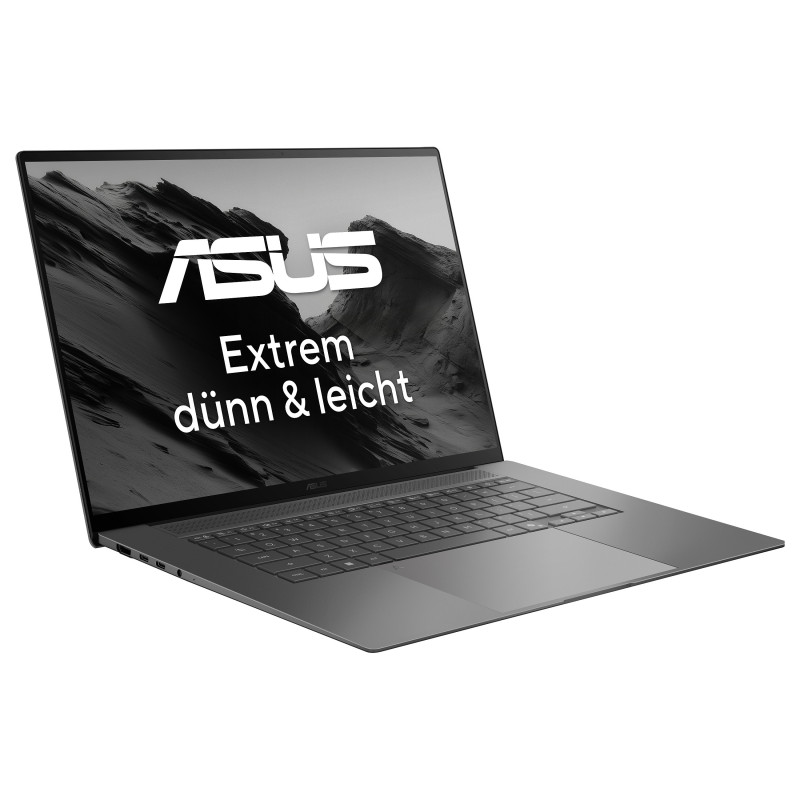

ASUS Zenbook S16 UM5606GA-SS266W

ASUS Zenbook S16 UM5606GA-SS266W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9, Processor model: 465, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 880M. Operating system installed: Windows 11 Home. Product colour: Grey

ASUS Zenbook S 16
New Zen with superior AI
Zenbook S 16 is the first ultrathin 16-inch new-era ASUS AI PC, combining performance with sophistication. It has been completely redesigned from the inside out. The chassis incorporates our exquisite new Ceraluminum™, a high-tech ceramic in a range of nature-inspired colors. It provides the characteristics of hardness while completing the ultra-slim design and withstand the test of time.

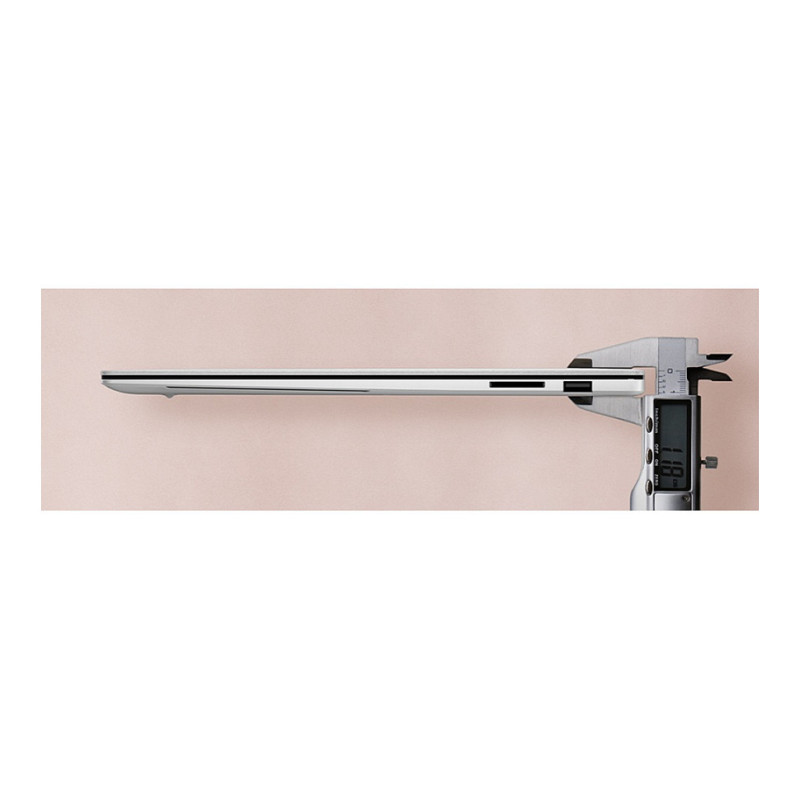

This new-era ASUS AI PC harnesses the latest AMD Ryzen™ AI processor, enhanced by quiet ambient cooling. It's designed to enrich your on-the-go lifestyle, with an astonishingly thin 1.1 cm1 chassis housing an advanced 16-inch 3K ASUS Lumina OLED2 display and immersive six-speaker audio.

Design

Colour name: Antrim Gray
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Aluminium
Market positioning: Home

Display

Display diagonal: 40.6 cm (16")
Display resolution: 2880 x 1800 pixels
HD type: 3K
Panel type: OLED
Display number of colours: 1.07 billion colours
Native aspect ratio: 16:10
Display surface: Gloss
Display brightness: 500 cd/m²
Maximum display brightness (HDR): 1000 cd/m²
RGB colour space: DCI-P3
Colour gamut: 100%
Feature: Low Blue Light technology
Display response rise/fall: 0.2 ms
Maximum refresh rate: 120 Hz
Contrast ratio (typical): 1000000:1
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR True Black 1000

Processor

Processor manufacturer: AMD
Processor family: AMD Ryzen AI 9
Processor generation: AMD Ryzen AI 400 Series
Processor model: 465
Processor cores: 10
Processor threads: 20
Processor boost frequency: 5 GHz
Processor frequency: 2 GHz
Processor cache type: L2 & L3
L3 cache: 24 MB
L2 cache: 10 MB

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): AMD Ryzen AI
Total processor performance up to: 73 TOPs
NPU performance up to: 50 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 32 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon
On-board graphics card model: AMD Radeon 880M
Feature: On-board graphics card 4K support
Feature: On-board graphics card 8K support
Feature: AMD FreeSync

Audio

Audio system: Smart Amp
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera HD type: Full HD
Feature: Infrared (IR) camera

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB4 Gen 3x2 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Feature: Microsoft Copilot
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 83 Wh

Power

Feature: USB Type-C charging port
USB Type-C required charging power (min): 45 W
USB Type-C required charging power (max): 100 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Windows Hello
Feature: Trusted Platform Module (TPM)

Weight & dimensions

Width: 353.6 mm
Depth: 243 mm
Height (front): 1.19 cm
Height (rear): 1.29 cm
Weight: 1.5 kg

Packaging data

Package width: 494 mm
Package depth: 116 mm
Package height: 320 mm
