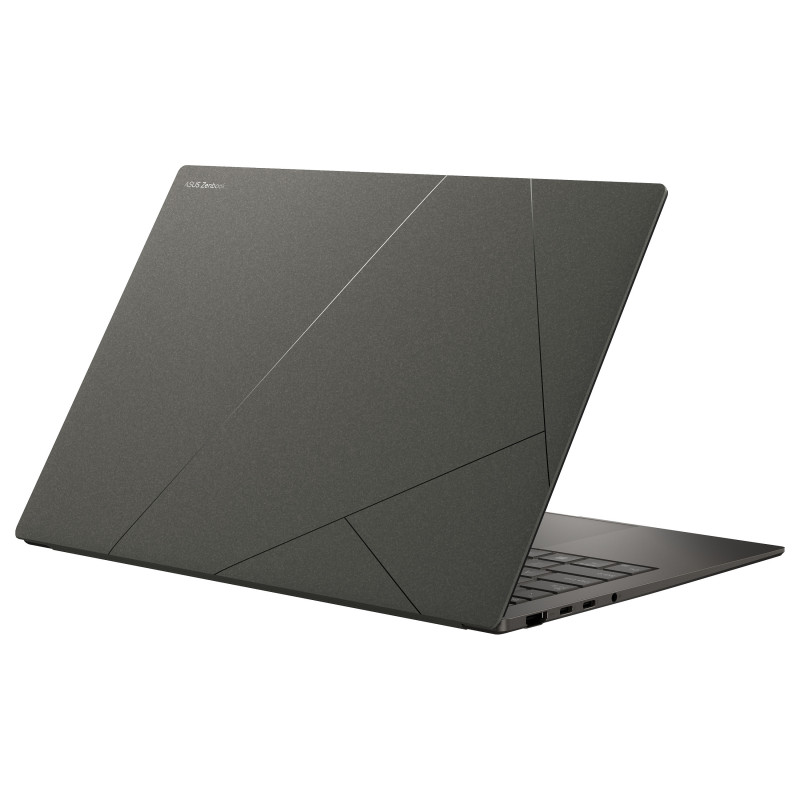

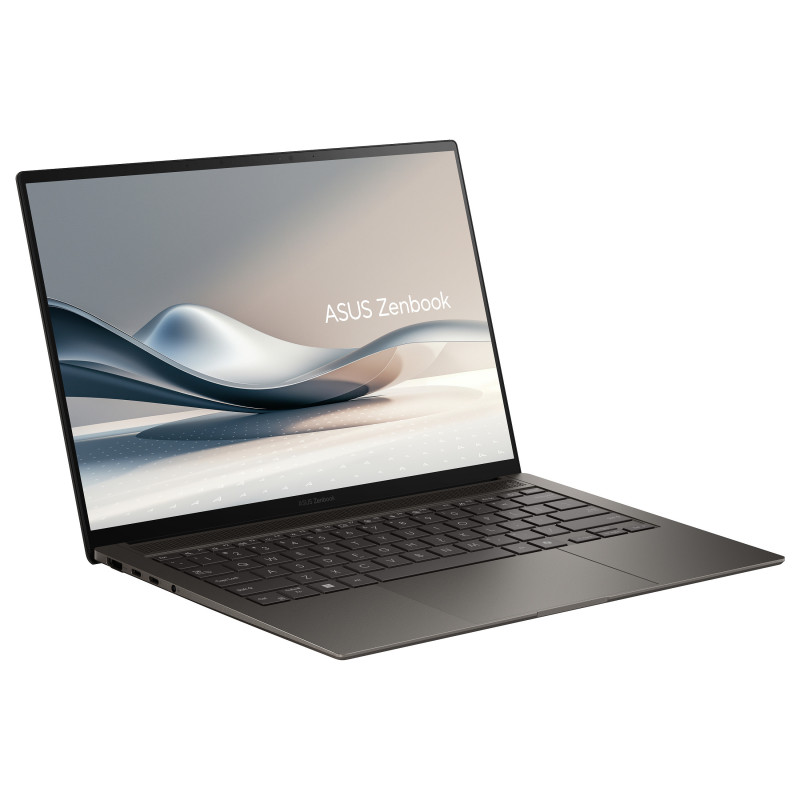

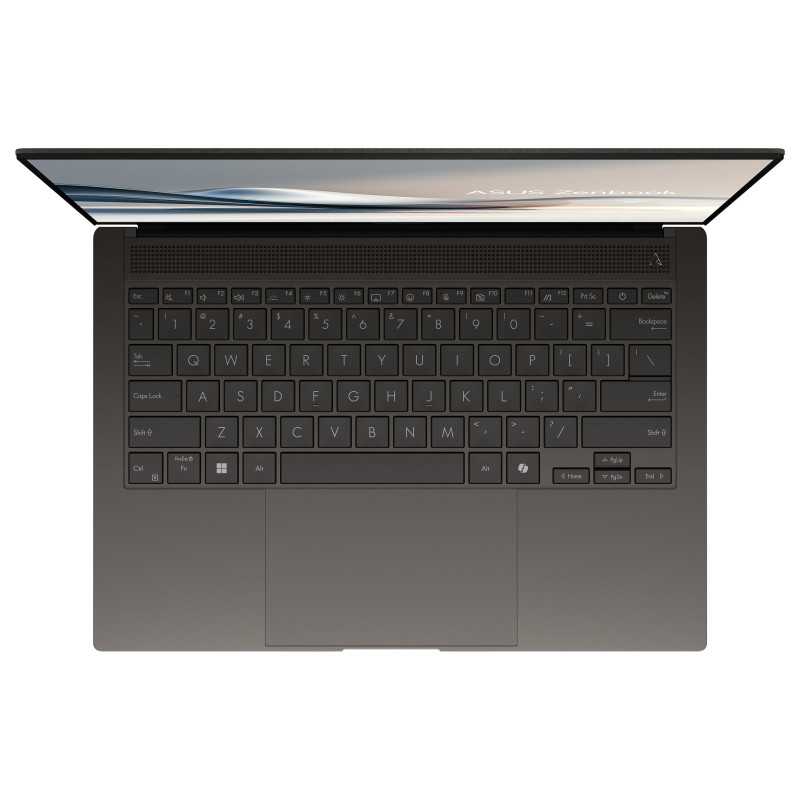

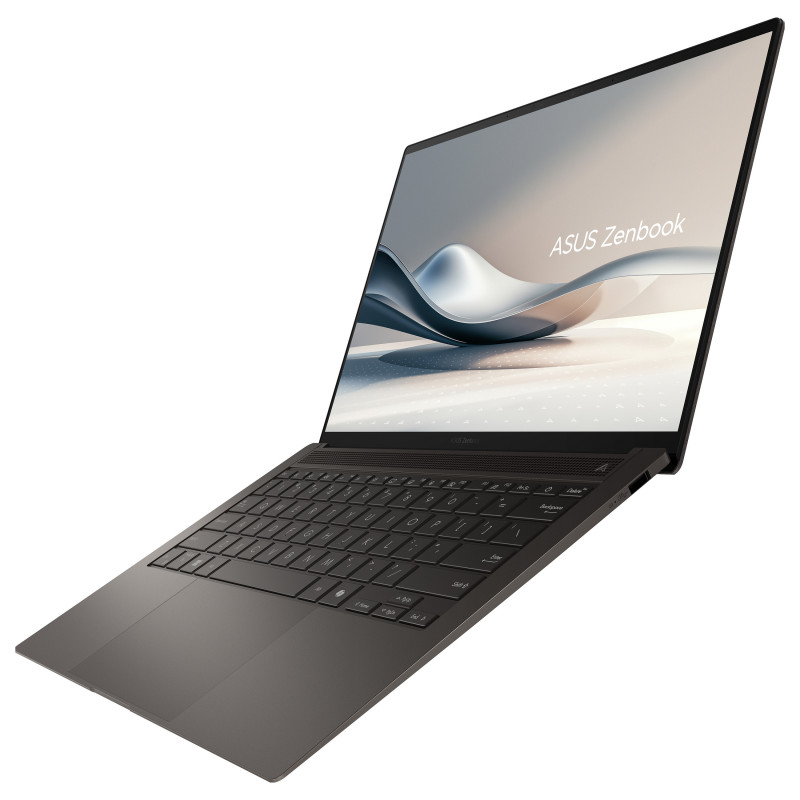

ASUS Zenbook S14 UX5406SA-PV530W

ASUS Zenbook S14 UX5406SA-PV530W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 258V. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Home. Product colour: Grey. Weight: 1.2 kg

New Zen with superior AI
Experience the world-changing power of AI with Zenbook S 14, a new-era ASUS Copilot+ PC that combines an exceptional 1.1 cm-slim1 design with cutting-edge technology. Its all-metal body — with a unique Ceraluminum™ high-tech ceramic lid and nature-inspired colors — houses next-level AI capabilities, driven by up to the latest Intel® Core™ Ultra 9 processor (Series 2) with ambient cooling minimize noise. Immerse yourself in a visual feast with the stunning 3K ASUS Lumina OLED2 display, complemented by rich and powerful sound from the four-speaker audio system. Zenbook S 14 brings you elegance, power, and innovation in a slim and sophisticated package.

Design

Colour name: 2I, Zumaia Gray
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Housing material: Aluminium
Market positioning: Home

Display

Display diagonal: 35.6 cm (14")
Display resolution: 2880 x 1800 pixels
HD type: 3K
Panel type: OLED
Display number of colours: 1.07 billion colours
Native aspect ratio: 16:10
Display surface: Gloss
Display brightness: 400 cd/m²
Maximum display brightness (HDR): 500 cd/m²
RGB colour space: DCI-P3
Colour gamut: 100%
Display response rise/fall: 0.2 ms
Maximum refresh rate: 120 Hz
Contrast ratio (typical): 1000000:1
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: HDR True Black 500

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 2)
Processor model: 258V
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.8 GHz
Performance cores: 4
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.8 GHz
Low Power Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.2 GHz
Low Power Efficient-core Base Frequency: 2200 MHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 17 W
Maximum turbo power: 37 W

Neural processor unit (NPU)

Feature: Copilot+ PC
Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 115 TOPs
NPU performance up to: 47 TOPs
GPU performance up to: 64 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-package
Maximum internal memory: 32 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc Graphics

Audio

Audio system: Smart Amp
Speakers manufacturer: Harman Kardon
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera resolution: 1920 x 1080 pixels
Front camera HD type: Full HD
Feature: Infrared (IR) camera

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: Touchpad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German
Feature: Copilot key

Software

Operating system architecture: 64-bit
Feature: Microsoft Copilot
Pre-installed software: StoryCube\nMyASUS\nScreenXpert\nGlideX
Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.
Operating system installed: Windows 11 Home

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 72 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 3.25 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 45 W
USB Type-C required charging power (max): 65 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Face recognition
Feature: Windows Hello
Feature: Trusted Platform Module (TPM)
Feature: Password protection

Certificates

Compliance certificates: RoHS, REACH
Certification: US MIL-STD 810H

Sustainability

Sustainability certificates: ENERGY STAR, EPEAT Gold

Weight & dimensions

Width: 310.3 mm
Depth: 214.7 mm
Height (front): 1.19 cm
Height (rear): 1.29 cm
Weight: 1.2 kg

Packaging data

Package width: 456 mm
Package depth: 102 mm
Package height: 284 mm

Packaging content

Accessories included: Sleeve, * Included accessories vary according to country and territory. Please check with your local ASUS retailer for details.

Other features

Expansion slots: 1x M.2 2280 PCIe 4.0x4
