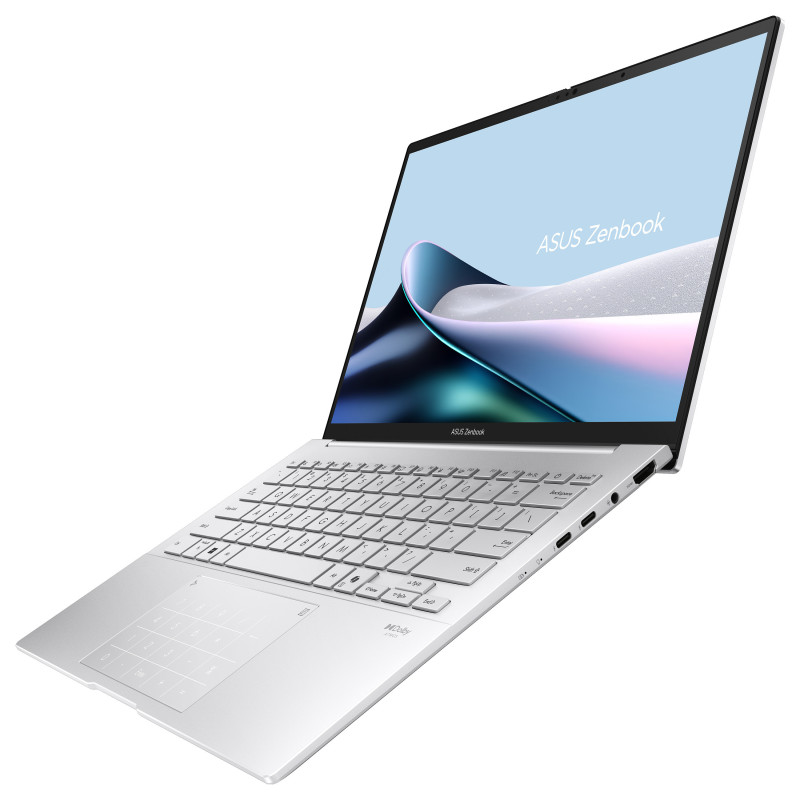

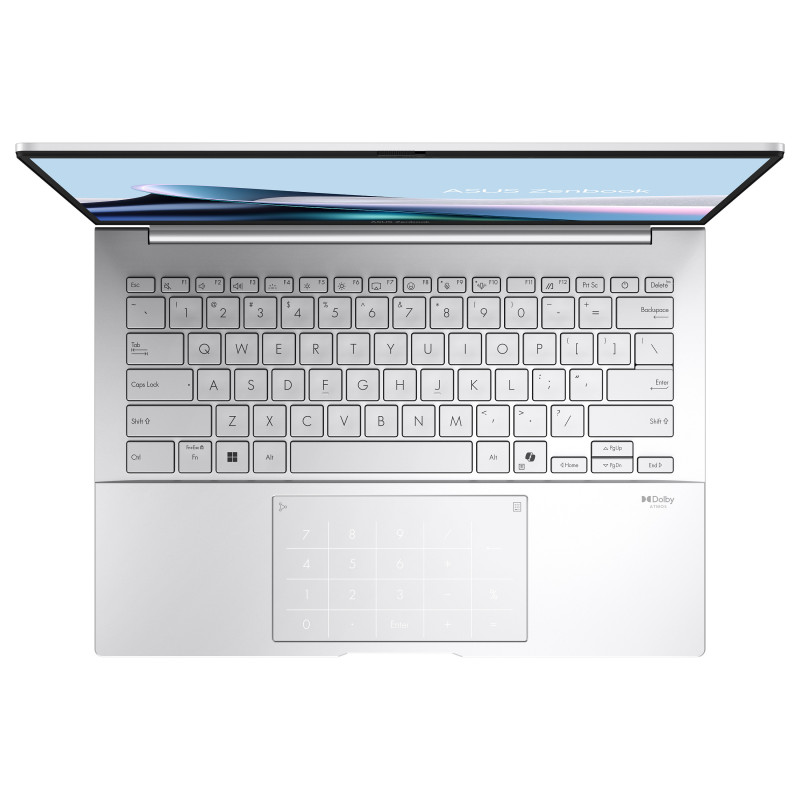

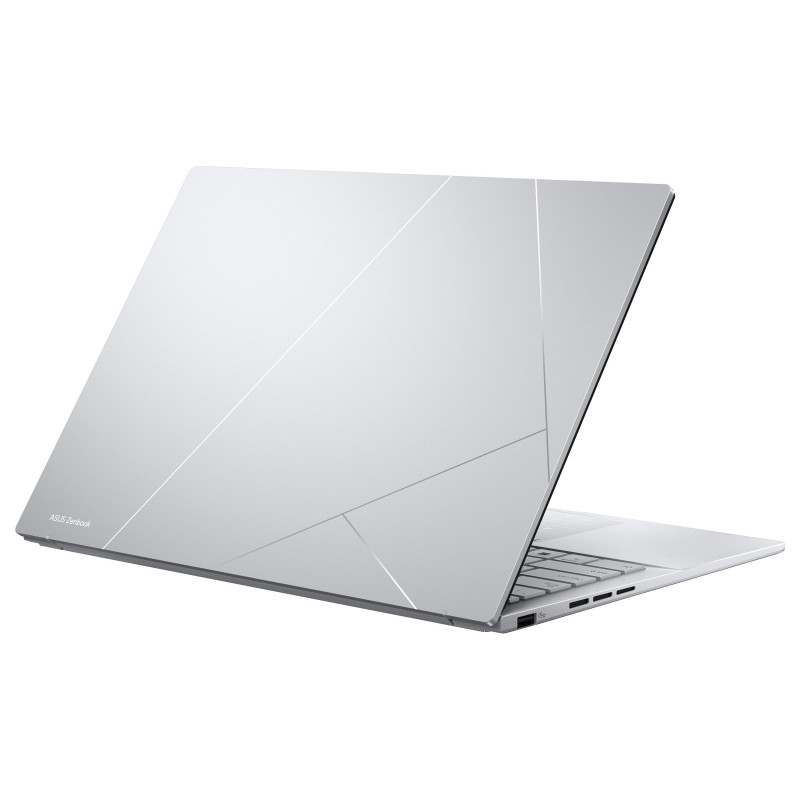

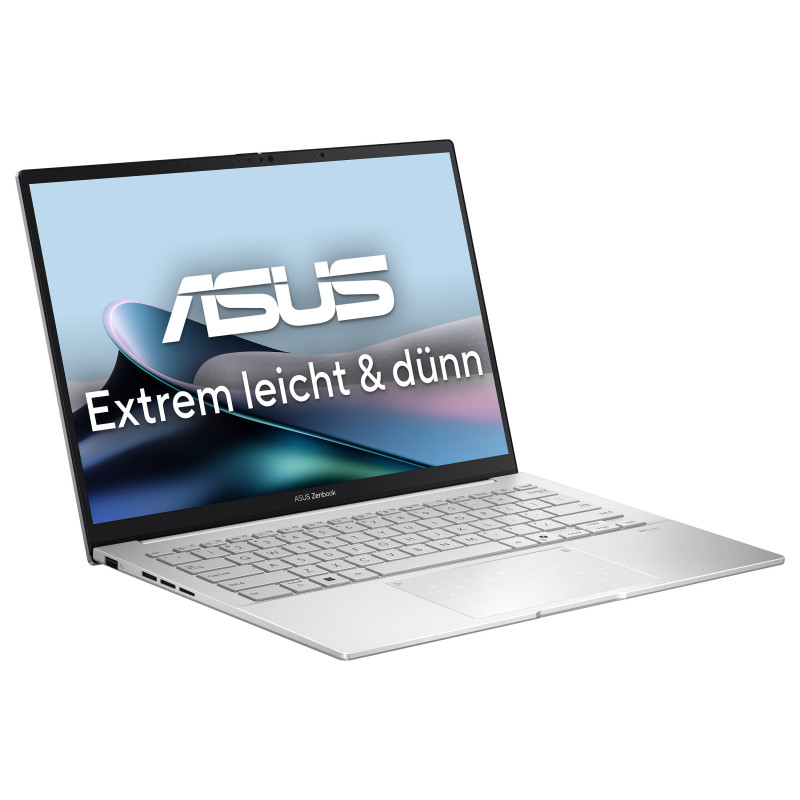

ASUS Zenbook 14 OLED UX3405CA-PZ092X

ASUS Zenbook 14 OLED UX3405CA-PZ092X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 35.6 cm (14"), HD type: WQXGA+, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Silver

New Zen with AI
Go the extra mile with the remarkably sleek Zenbook 14 — the ultimate ultraportable laptop that takes sophistication to a whole new level. Seize every moment using the enhanced extended-life battery, amplify your efficiency with the top-tier Intel® Core™ Ultra processor (Series 2) and Intel Arc™ graphics, and achieve seamless connectivity via all the essential ports. Immerse your senses in the vivid ASUS Lumina OLED1 touchscreen2 and powerful new Super-linear speakers, while embracing the eco-elegance of the environmentally conscious design.

Design

Colour name: Foggy Silver
Product type: Laptop
Product colour: Silver
Form factor: Clamshell
Housing material: Aluminium
Display back cover material: Aluminium
Market positioning: Home

Display

Display diagonal: 35.6 cm (14")
Display resolution: 2880 x 1800 pixels
Feature: Touchscreen
HD type: WQXGA+
Panel type: OLED
Native aspect ratio: 16:10
Display brightness: 400 cd/m²
Maximum display brightness (HDR): 550 cd/m²
Display diagonal (metric): 35.6 cm
RGB colour space: DCI-P3
Colour gamut: 100%
Display response rise/fall: 0.2 ms
Maximum refresh rate: 120 Hz

Processor

Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 285H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 5.4 GHz
Performance cores: 6
Efficient cores: 8
Low Power Efficient-cores: 2
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.5 GHz
Low Power Efficient-core Max Turbo Frequency: 2.5 GHz
Performance-core base frequency: 2.9 GHz
Efficient-core base frequency: 2.7 GHz
Low Power Efficient-core Base Frequency: 1000 MHz
Processor cache: 24 MB
Processor base power: 45 W
Maximum turbo power: 115 W

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 99 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 77 TOPs

Memory

Internal memory: 32 GB
Internal memory type: LPDDR5x-SDRAM
Memory form factor: On-board
Maximum internal memory: 32 GB

Storage

Total storage capacity: 1 TB
Storage media: SSD
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel Arc Graphics
On-board graphics card model: Intel Arc 140T

Audio

Audio system: Smart Amp
Feature: Built-in microphone

Camera

Feature: Front camera
Front camera HD type: Full HD
Feature: Infrared (IR) camera
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Feature: Bluetooth
Bluetooth version: 5.4

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Feature: Intel® Thunderbolt 4
Feature: Combo headphone/mic port
Feature: USB Type-C DisplayPort Alternate Mode

Keyboard

Pointing device: NumberPad
Feature: Keyboard backlit
Keyboard layout: QWERTZ
Keyboard language: German

Software

Operating system architecture: 64-bit
Trial software: Microsoft 365 (30-day trial)
Operating system installed: Windows 11 Pro

Battery

Battery technology: Lithium-Ion (Li-Ion)
Number of battery cells: 4
Battery capacity: 75 Wh

Power

AC adapter power: 65 W
AC adapter frequency: 50 - 60 Hz
AC adapter input voltage: 100 - 240 V
AC adapter output current: 3.25 A
AC adapter output voltage: 20 V
Feature: USB Type-C charging port
USB Type-C required charging power (min): 45 W
USB Type-C required charging power (max): 65 W
Feature: USB Power Delivery (USB PD)

Security

Feature: Windows Hello
Feature: Trusted Platform Module (TPM)

Weight & dimensions

Width: 312.4 mm
Depth: 220.1 mm
Height: 14.9 mm
Weight: 1.28 kg

Packaging data

Package width: 410 mm
Package depth: 75 mm
Package height: 284 mm

Packaging content

Feature: AC adapter included
